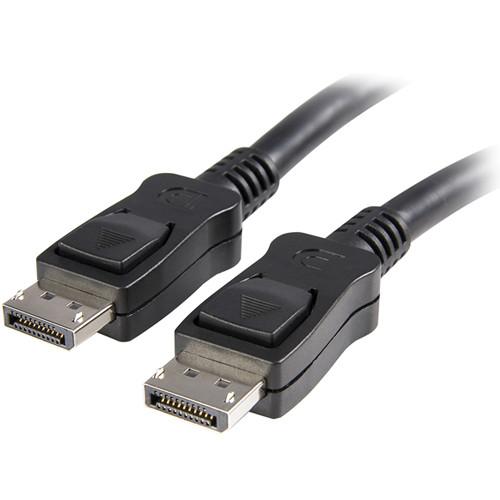

User Manual for StarTech DisplayPort Male to DisplayPort Male Cable with Latches Click to enlarge the picture
Contents of the user manual for the StarTech DisplayPort Male to DisplayPort Male
- Product category: DisplayPort Cables StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech DisplayPort Cables
|
User manual for the StarTech DisplayPort Male to DisplayPort Male contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description The 20', black DisplayPort Male to DisplayPort Male Cable with Latches from StarTech provides a connection of up to 25' (7.62 m) between a DisplayPort source and a DisplayPort display, with no loss of signal quality, more than double the typical DisplayPort connection distance limitation of 16' (4.87 m). This cable is made of 26 gauge (AWG) pure copper wire. The Aluminum and Mylar shielding helps to eliminate EMI and RFI interference. The cable delivers a maximum bandwidth of 10.8 Gb/s and is capable of providing higher performance than either HDMI or dual link DVI. It supports next generation multimedia applications with a maximum resolution capability of up to WQXGA (2560 x 1600). The cable has small USB-sized latching connectors which support two-way display connectivity and optional audio support. It is both HDCP and DPCP capable, ensures proper display of digitally protected content on the display. - It has molded latching connectors with strain relief
- The cable supports the DPCP (DisplayPort content protection) standard in addition to HDCP
- The cable is designed and manufactured to DisplayPort standards
- It is used to connect a DisplayPort to a PC or alternative DisplayPort source
- Display Cable has latching connectors which secure cable against accidental disconnection
- The DisplayPort offers full digital audio support (up to eight channels) in the same cable as video
- The cable provides a clear digital audio-video signal
UPC: 065030841924 In the Box StarTech DisplayPort Male to DisplayPort Male Cable with Latches (20', Black) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech DisplayPort Male to DisplayPort Male Cable with Latches in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech DISPLPORT20L Specs | Connector 1 | 1 x DisplayPort Male | | Connector 2 | 1 x DisplayPort Male | | Cable Length | 20' / 6.09 m | | Jacket Type | Polyvinyl Chloride (PVC) | | Connector Plating | Nickel | | Shielding | Aluminum-Mylar Braid | | Wire Gauge | 26 AWG | | Certifications | CMG, RoHS, as per Manufacturer | | Outer Diameter | 0.33" / 8.5 mm | | Weight | 13.4 oz / 379.9 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 8.6 x 8.4 x 0.8" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 06 owners. Add your rating and experience with the product.
