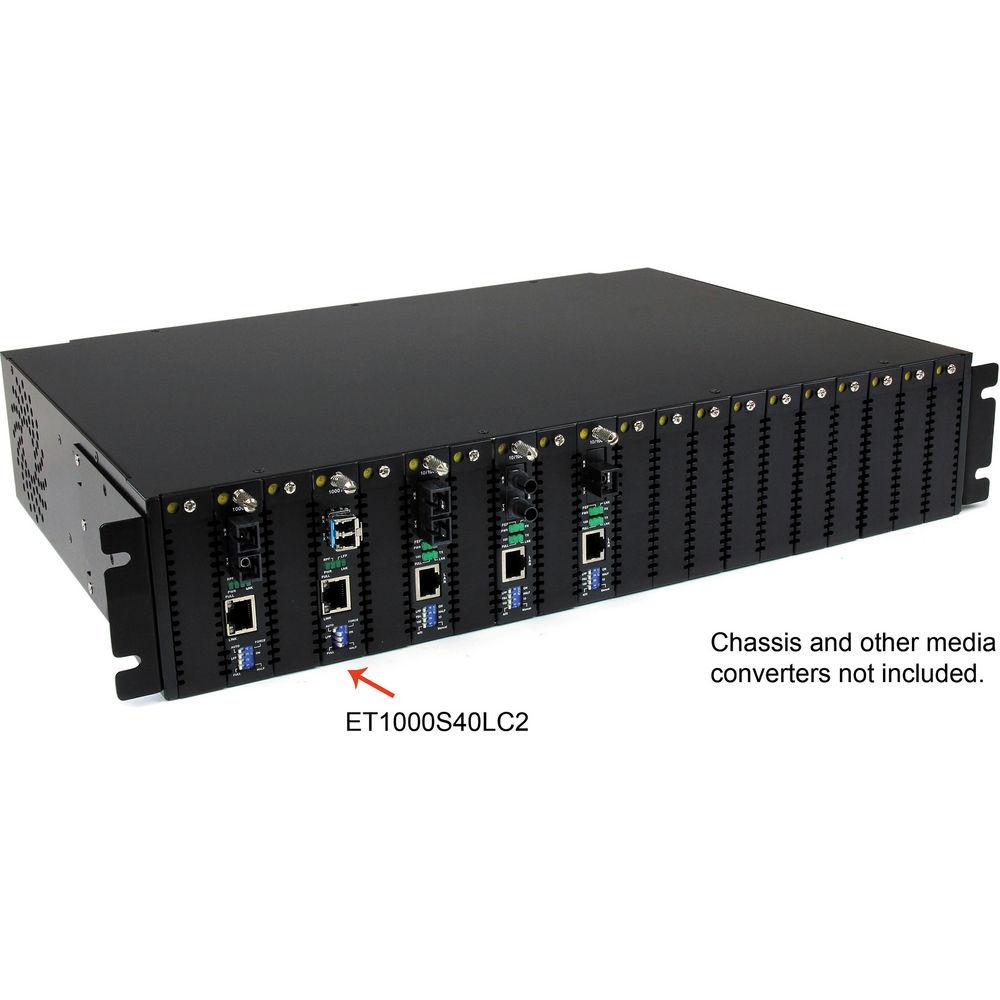

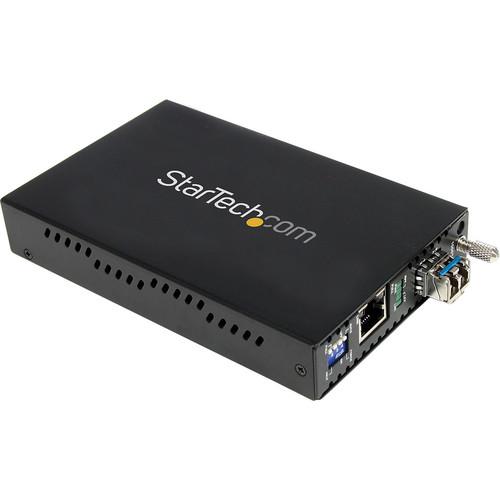

Product description The black ET1000S40LC2 1000 Mb/s Gigabit Single Mode Fiber Media Converter from StarTech enables you to convert and extend a Gigabit Ethernet network connection over a single-mode LC fiber at distances up to 24.85mi (40.00km). It provides a cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX / SX) fiber backbone.The Gigabit Ethernet to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, this Ethernet to LC Fiber Media Converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.For added versatility, this Fiber Media Converter supports standalone operation, or installation into the 20 Slot, 2U Rack-mount Chassis (ETCHS2U, sold separately). - Supports standalone operation, or installation into the ETCHS2U Rack-mount Chassis (sold separately)
- Advanced features include Link-loss forwarding, remote monitor status, 2 frame lengths
- Maximum fiber cable length of 24.85mi (40.00km)
- Supports full or half-duplex operation
- Link loss forwarding, remote monitoring of status ensures maximum up-time
- Rugged steel casing for added durability in harsh environments
- Cost-effective way to extend / bridge networks using fiber cabling
- Lifetime technical support
Applications - Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
- Suitable for secure connections required by government agencies where EMI is not acceptable
- Connect traffic control / monitoring systems at extreme distances to the main office
- Extend network connectivity to remote areas of stadiums, auditoriums or other venues
- Converts 1000Base-LX fiber optic signals to 1000Base-T Ethernet over single mode fiber cable
- Auto MDIX interface automatically detects required cable connection types (straight-through or crossover) and configures the connection appropriately

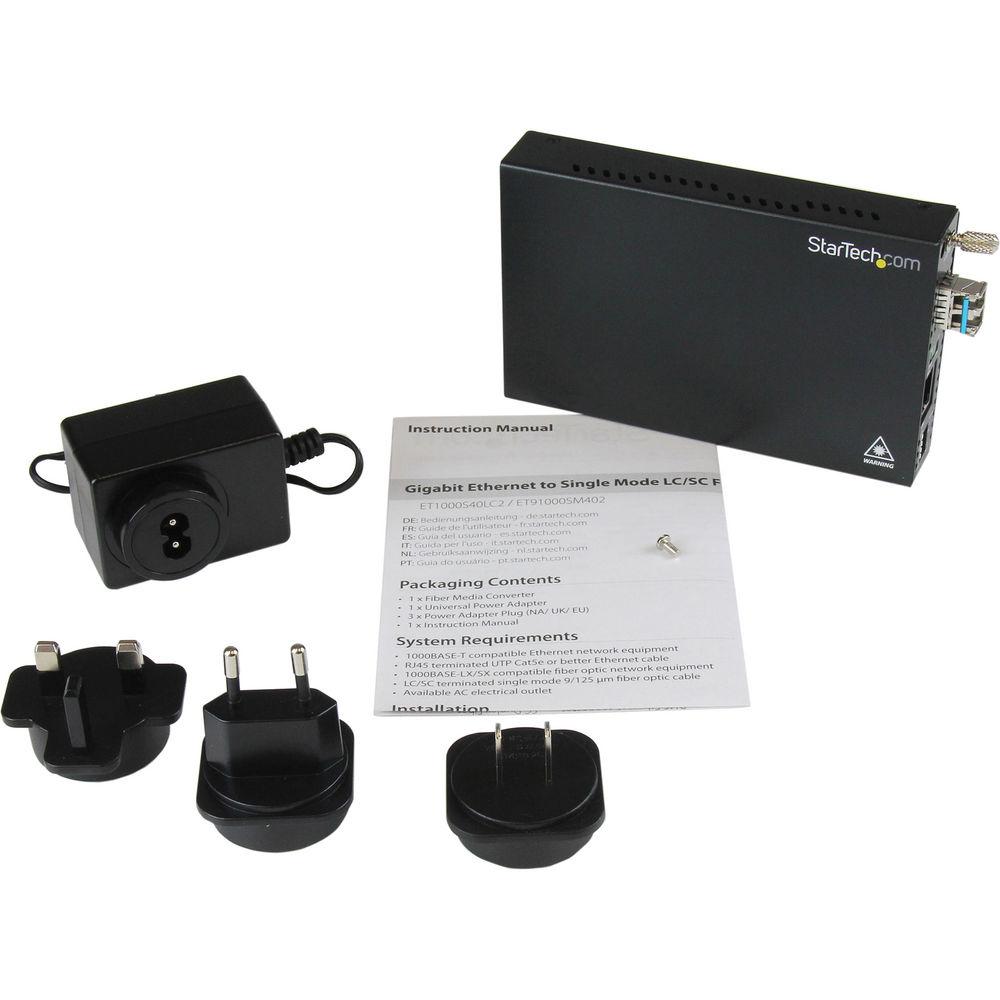

UPC: 065030846066 In the Box StarTech ET1000S40LC2 1000 Mb/s Gigabit Single Mode Fiber Media Converter (Black) Universal Power Adapter Limited 2-Year Warranty Brochure PDF 149.9kbytuseuutbtwrybcxztruxsuzsfvyxv More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech ET1000S40LC2 1000 Mb s Gigabit Single Mode Fiber Media Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech ET1000S40LC2 Specs | Ports | 1 x SC
1 x RJ45 | | Wavelength | 1310 nm | | Maximum Networking Distance | 131,234' / 40,000 m | | Maximum Data Rate | 2 Gbps | | Mode | Single-Mode | | Operating Mode | Full Duplex, Half Duplex | | Plug Type | M | | Power Consumption | 4 W | | AC Input Power | 115 to 230 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 1 A | | Center Tip Polarity | Positive | | Operating Temperature | 32 to 140°F / 0 to 60°C | | Operating Humidity | 11 to 90% | | Storage Temperature | 14 to 158°F / -10 to 70°C | | Dimensions (L x W x H) | 6.1 x 3.4 x 0.9" / 154.9 x 86.4 x 22.9 mm | | Weight | 14.7 oz / 416.7 g | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 9.2 x 7.5 x 3.0" |
