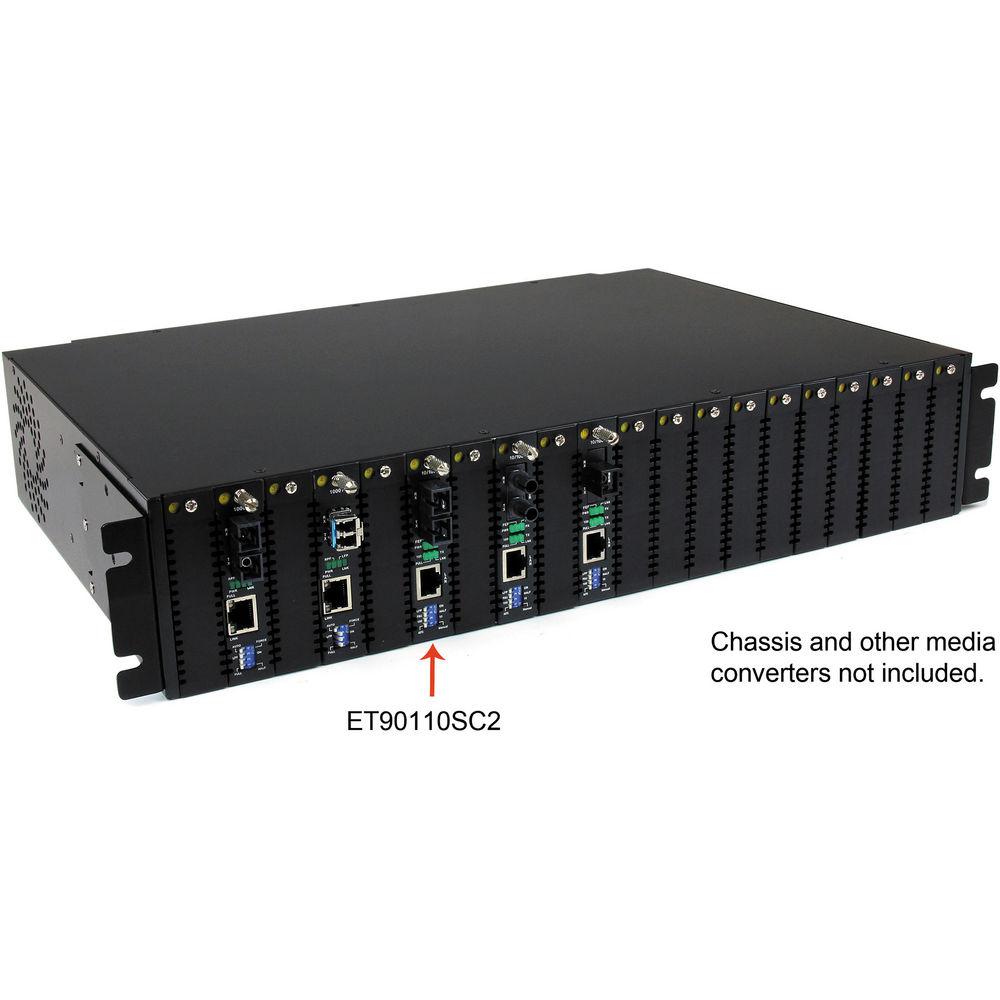

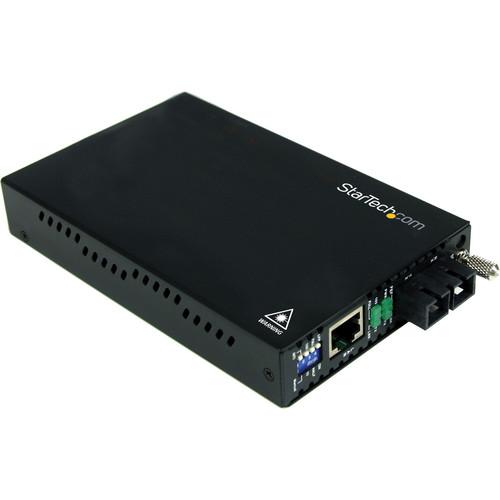

Product description The black ET90110SC2 10/100 Mb/s Multi Mode Fiber Media Converter SC 2km from StarTech lets you extend a fast Ethernet network (10/100 Mb/s) over multimode fiber, at distances up to 1.2mi (2.0km).A good solution for connecting a 10/100 Mb/s Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, this media converter is designed to offer a durable and convenient Ethernet-to-fiber solution. It features an all-steel chassis and a simple plug-and-play installation with minimal configuration required.For added versatility, this fiber media converter supports standalone operation or installation into the 20 slot, 2U Rackmount Chassis (ETCHS2U, sold separately). - Provides Ethernet to Fiber conversion as a standalone device or can be installed into the ETCHS2U 20 slot chassis (sold separately) for added versatility
- Advanced features include link-loss forwarding, remote status monitoring, 2 frame lengths help ensure maximum up-time
- Supports a maximum fiber cable length of 1.2mi (2 km)
- Supports full or half-duplex operation
- Rugged steel casing for durability in harsh environments
- Free lifetime technical support
Applications - Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
- Suitable for secure environments required by government agencies where EMI is not acceptable
- Connect traffic control / monitoring systems at extreme distances to the main office
- Extend network connectivity to remote areas of stadiums, auditoriums, or other venues
- Converts 10/100Base-T Ethernet to 100Base-FX fiber optic signals over multimode fiber cable

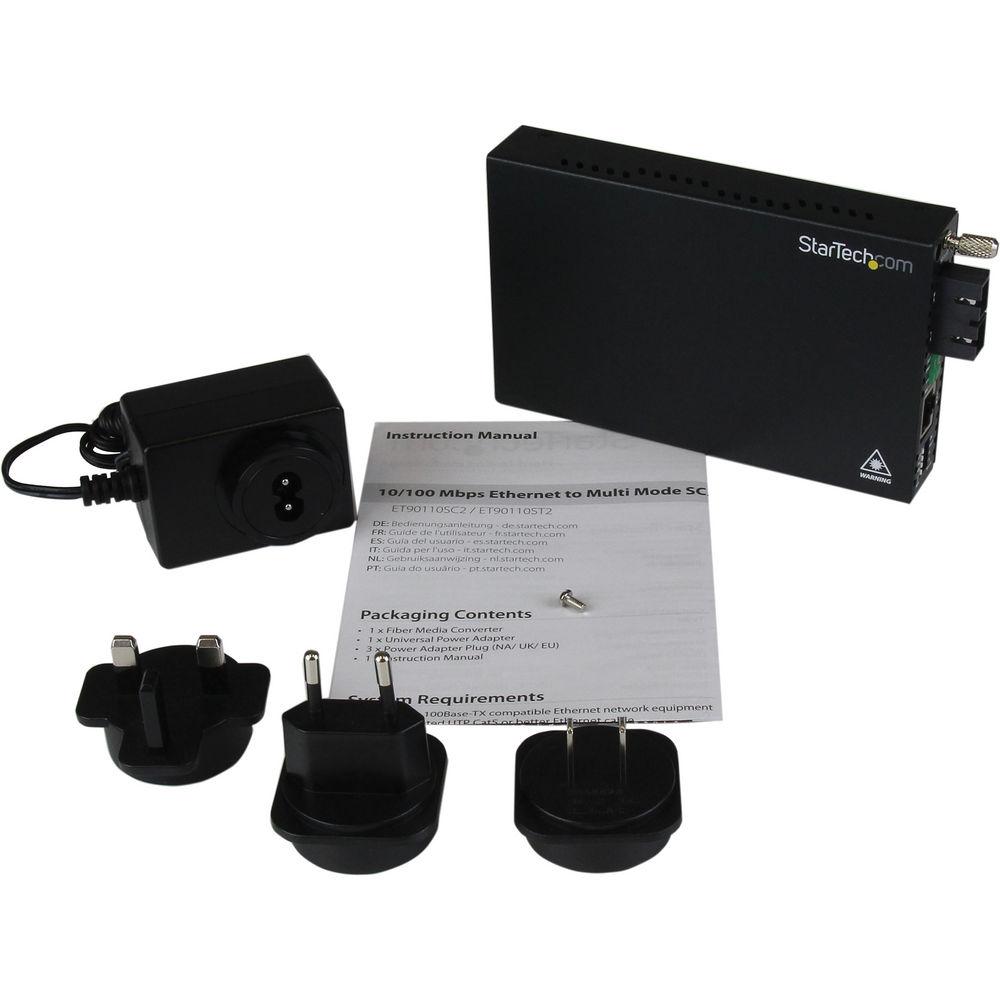

UPC: 065030846240 In the Box StarTech ET90110SC2 10/100 Mb/s Multi Mode Fiber Media Converter SC 2km (Black) Universal Power Adapter Limited 2-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech ET90110SC2 10 100 Mb s Multi Mode Fiber Media Converter SC 2km in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

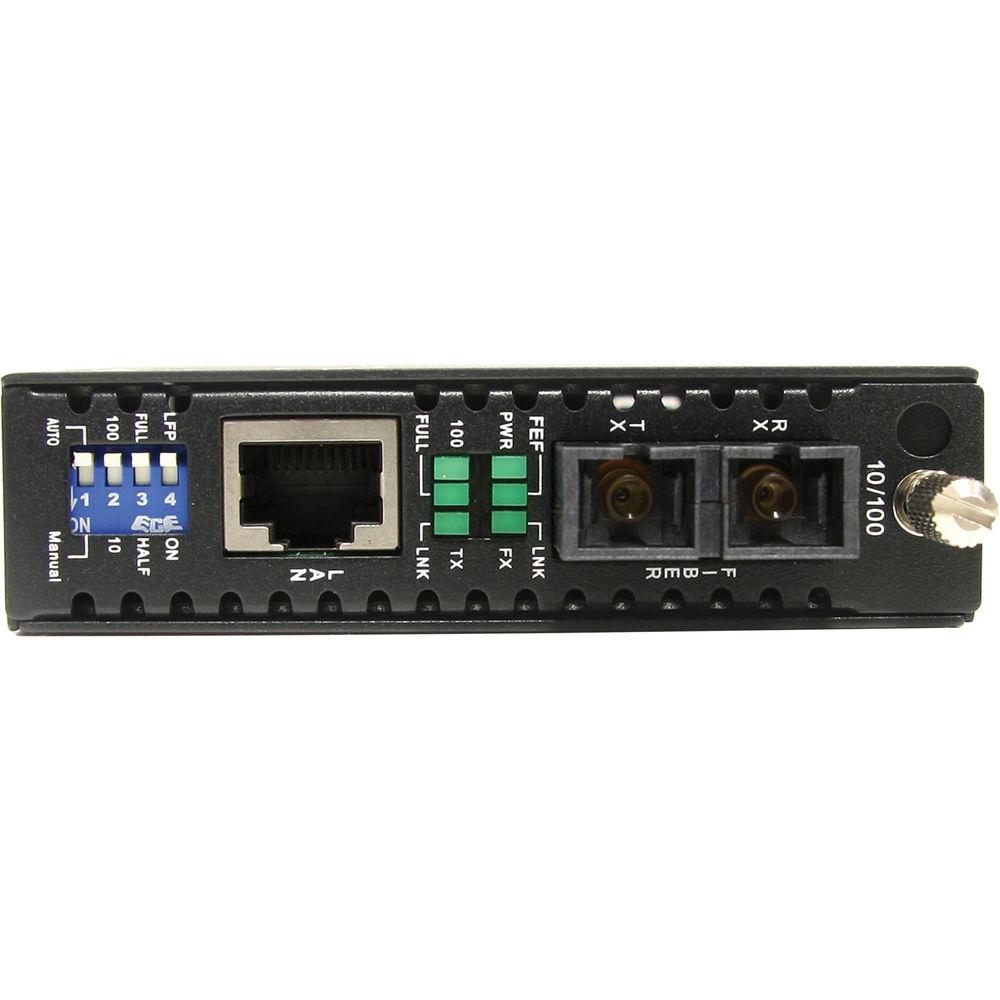

Technical parametersStarTech ET90110SC2 Specs | Ports | 1 x SC

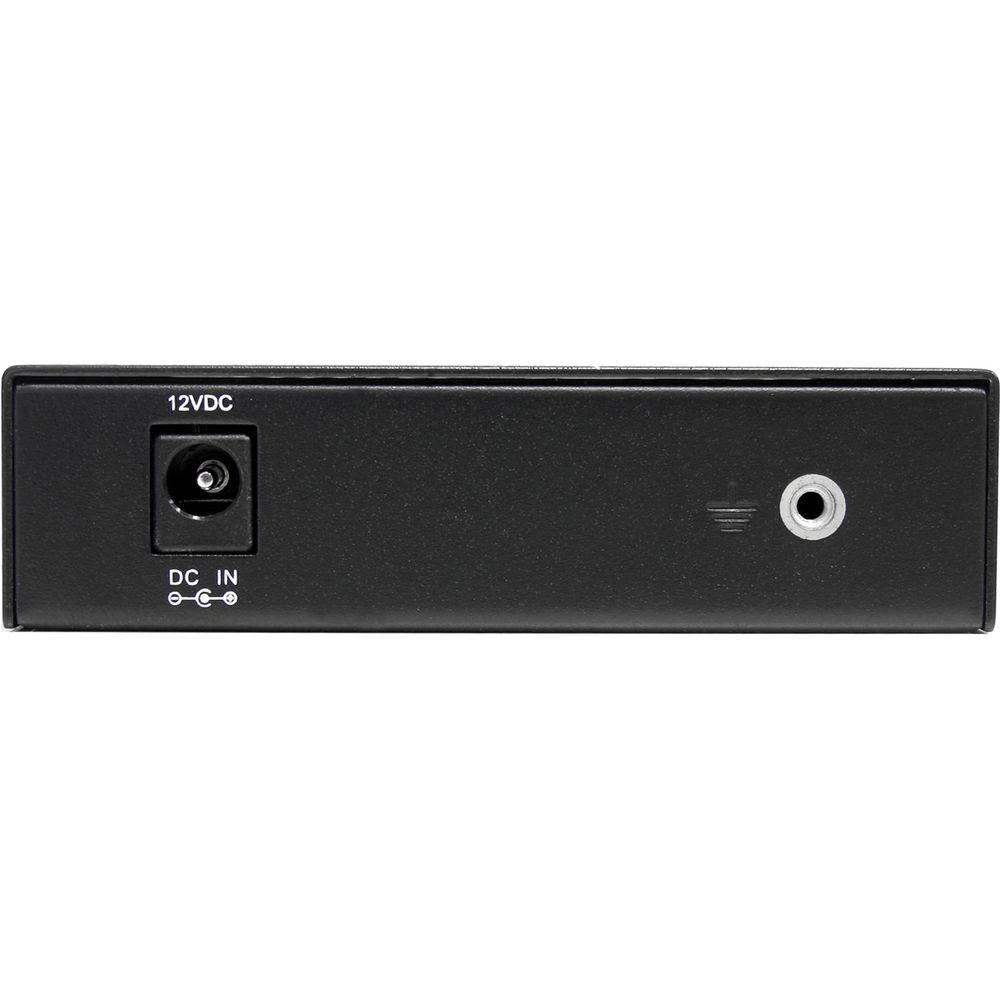

1 x RJ45 | | Wavelength | 1310 nm | | Maximum Networking Distance | 6562' / 2000 m | | Maximum Data Rate | 200 Mbps | | Mode | Multi-Mode | | Operating Mode | Half Duplex, Full Duplex | | Plug Type | M | | AC Input Power | 115 to 230 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 1 A | | Center Tip Polarity | Positive | | Material | Metal | | Operating Temperature | 32 to 140°F / 0 to 60°C | | Operating Humidity | 12 to 90% | | Storage Temperature | 14 to 158°F / -10 to 70°C | | Dimensions (L x W x H) | 6.0 x 3.4 x 0.9" / 152.4 x 86.4 x 22.9 mm | | Weight | 21.2 oz / 601 g | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 9.213 x 7.559 x 2.992" |
