User Manual for StarTech ET90110SM302 10 100 Mb s Single Mode Fiber Media Converter SC Click to enlarge the picture
Contents of the user manual for the StarTech ET90110SM302 10 100 Mb s
- Product category: Network Transceivers StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Network Transceivers
 |
User manual for the StarTech ET90110SM302 10 100 Mb s contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

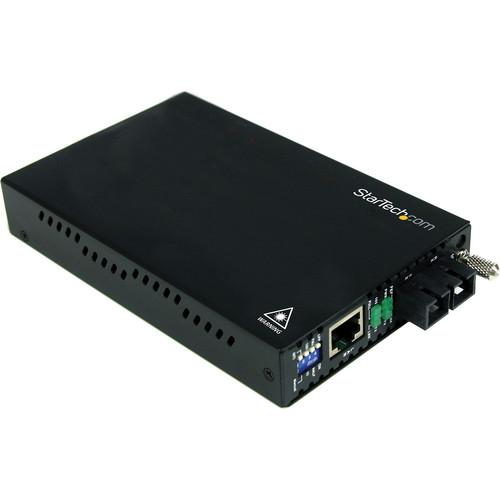

Product description The black ET90110SM302 10/100 Mb/s Single Mode Fiber Media Converter from StarTech lets you convert and extend a fast Ethernet network (10/100) over single mode SC fiber, at distances up to 18.6 miles (30.0 km) Used for connecting a 10/100 Mb/s Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, this media converter is designed to offer a durable and convenient Ethernet to fiber solution. It comes with an all-steel chassis and simple plug-and-play installation wherein minimal configuration is required. For added versatility, this fiber media converter supports standalone operation, or installation into the 20 slot, 2U rackmount chassis (ETCHS2U). - Supports standalone operation or installation into the ETCHS2U Rackmount chassis
- Extends/bridges networks using fiber cabling
- Link loss forwarding, remote status monitoring, 2 frame lengths
- Maximum fiber cable length of 18.6 miles (30 km)
- Supports full or half-duplex operation
- Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
- Suitable for secured environments required by government agencies, where EMI is not acceptable
- Connects traffic control/monitoring systems at extreme distances to the main office
- Extends network connectivity to remote areas of stadiums, auditoriums, or other venues
- Converts 100Base-FX fiber optic signals to 10/100Base-T Ethernet over single mode fiber cable
- Link loss forwarding, remote monitoring of status ensures maximum up-time

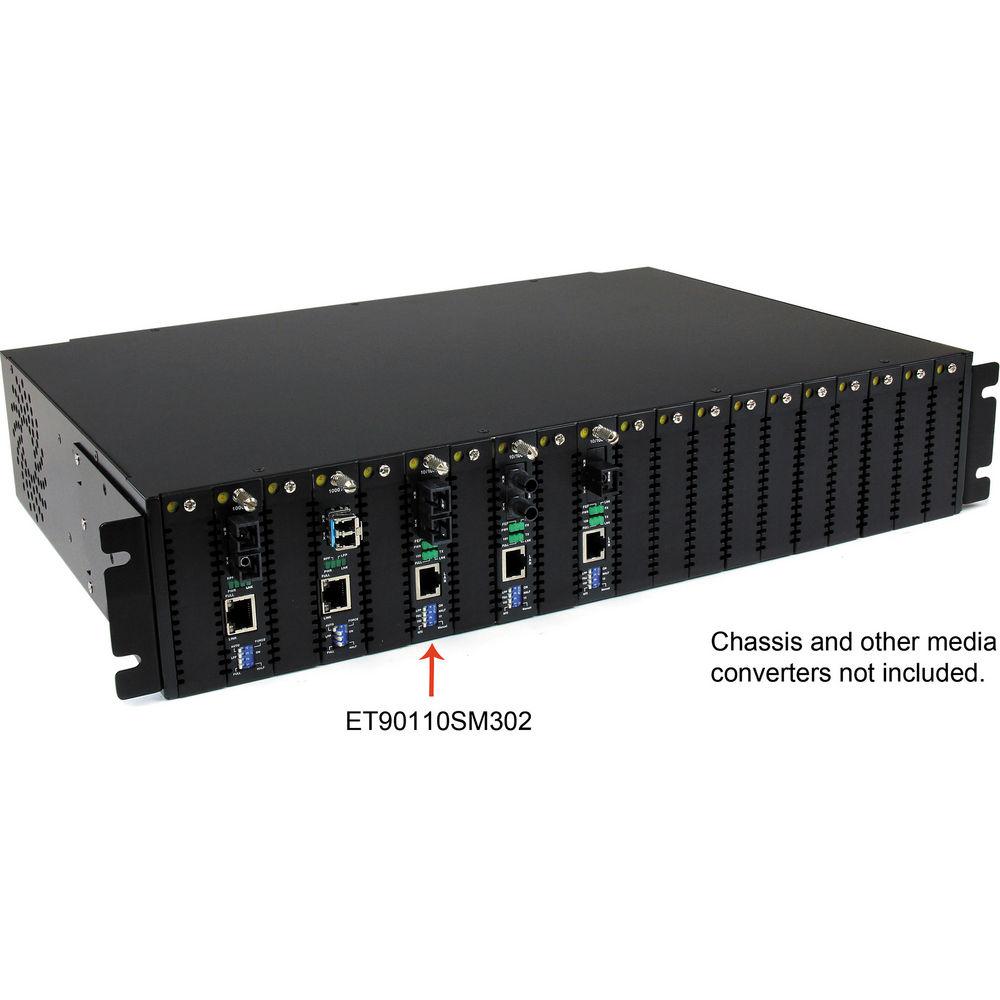

- Provides Ethernet to fiber conversion as a standalone device or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments

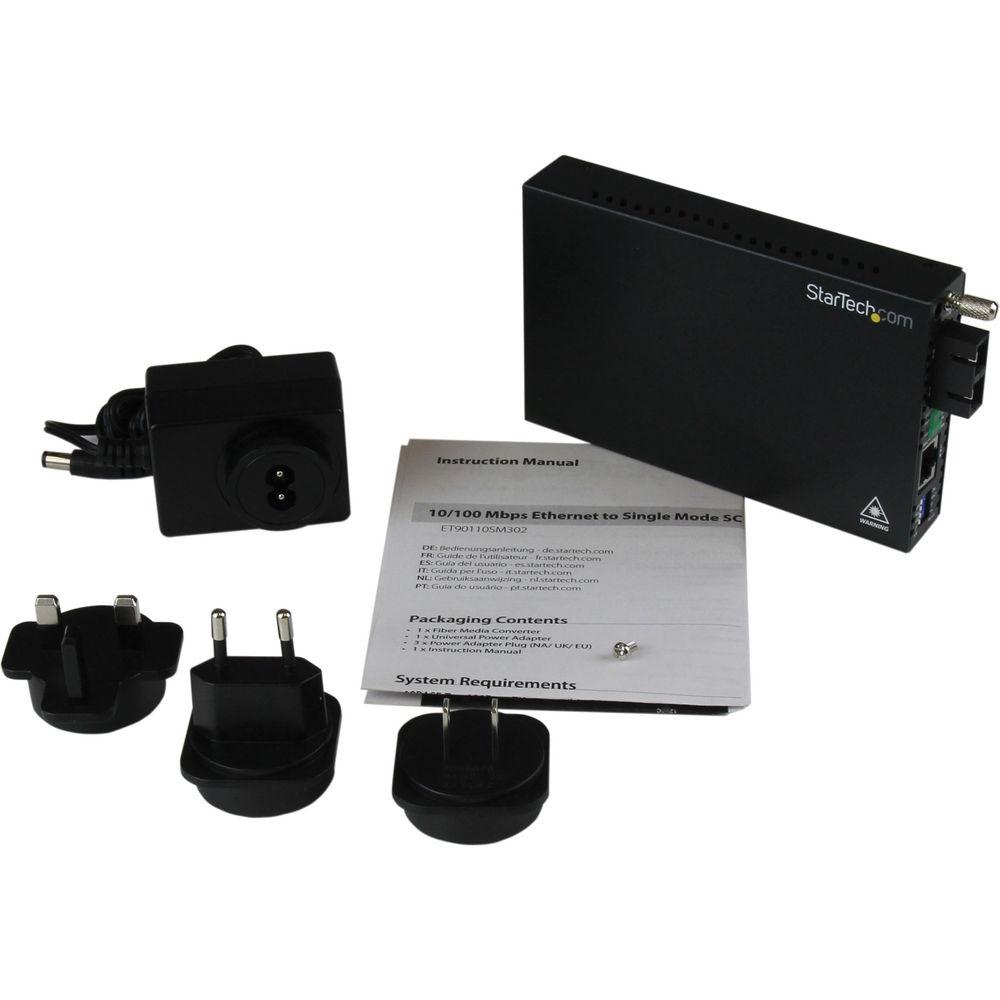

UPC: 065030846264 In the Box StarTech ET90110SM302 10/100 Mb/s Single Mode Fiber Media Converter SC (Black) Universal Power Adapter (NA/UK/EU) Limited 2-Year Warranty More from Manufacturer ytuseuutbtwrybcxztruxsuzsfvyxv Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech ET90110SM302 10 100 Mb s Single Mode Fiber Media Converter SC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

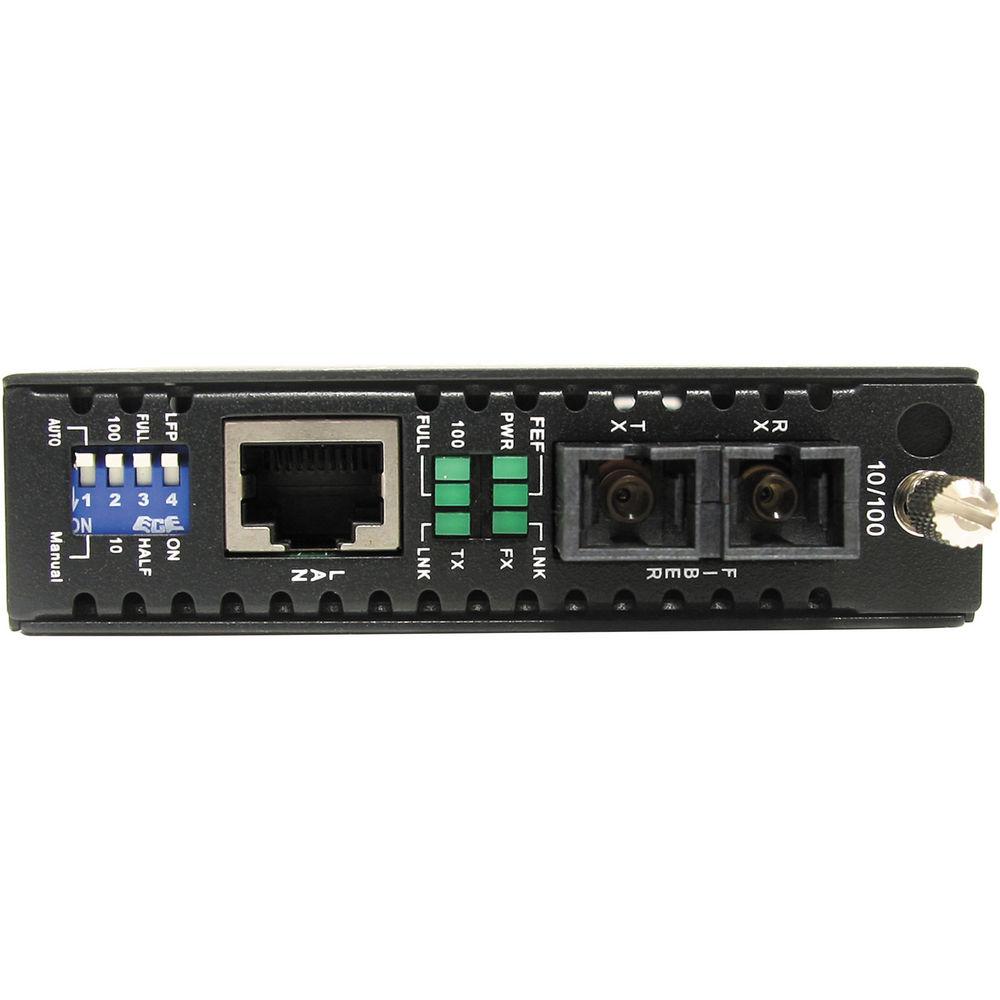

Technical parametersStarTech ET90110SM302 Specs | Ports | 1 x SC

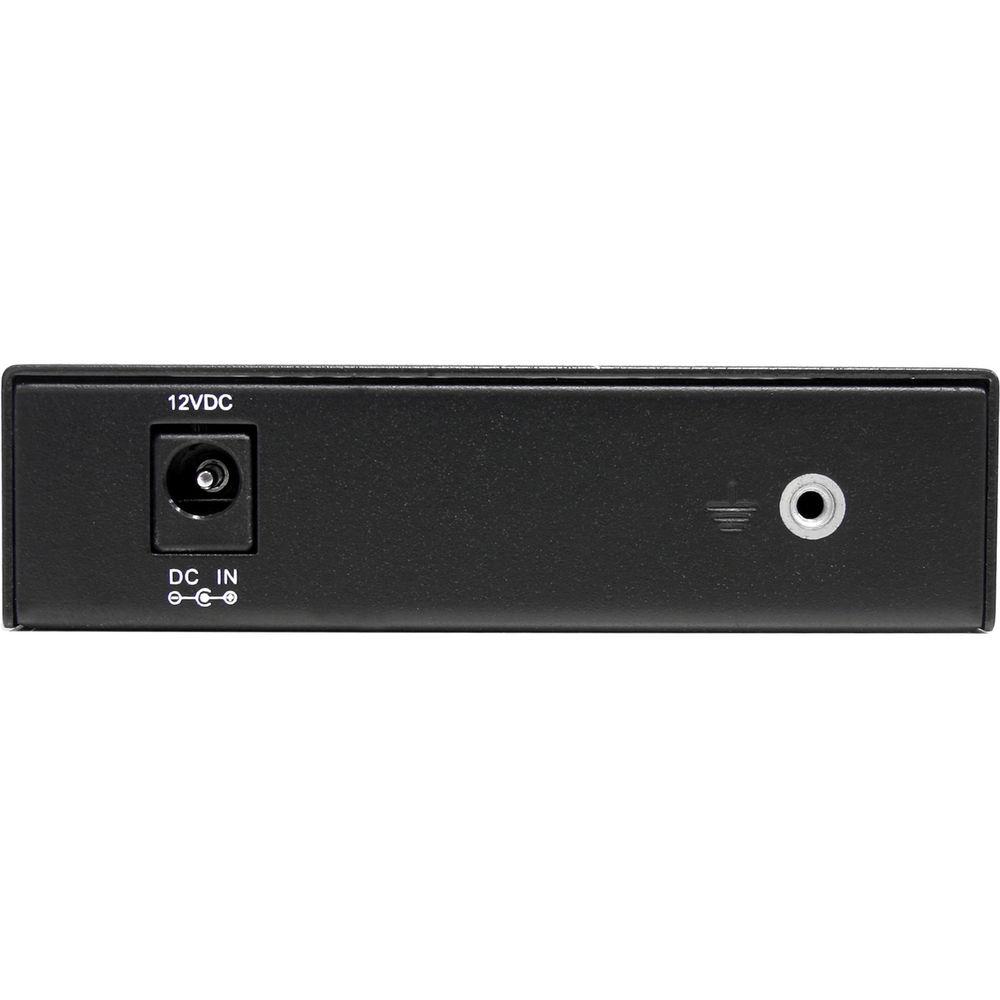

1 x RJ45 | | Wavelength | 1310 nm | | Maximum Networking Distance | 98,425' / 30,000 m | | Maximum Data Rate | 200 Mbps | | Mode | Single-Mode | | Operating Mode | Full Duplex, Half Duplex | | Plug Type | M | | AC Input Power | 115 to 230 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 1 A | | Center Tip Polarity | Positive | | Material | Metal | | Operating Temperature | 32 to 140°F / 0 to 60°C | | Operating Humidity | 13 to 90% | | Storage Temperature | 14 to 158°F / -10 to 70°C | | Dimensions (L x W x H) | 6.1 x 3.4 x 0.9" / 154.9 x 86.4 x 22.9 mm | | Weight | 14 oz / 396.9 g | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 9.0 x 7.4 x 3.0" |
