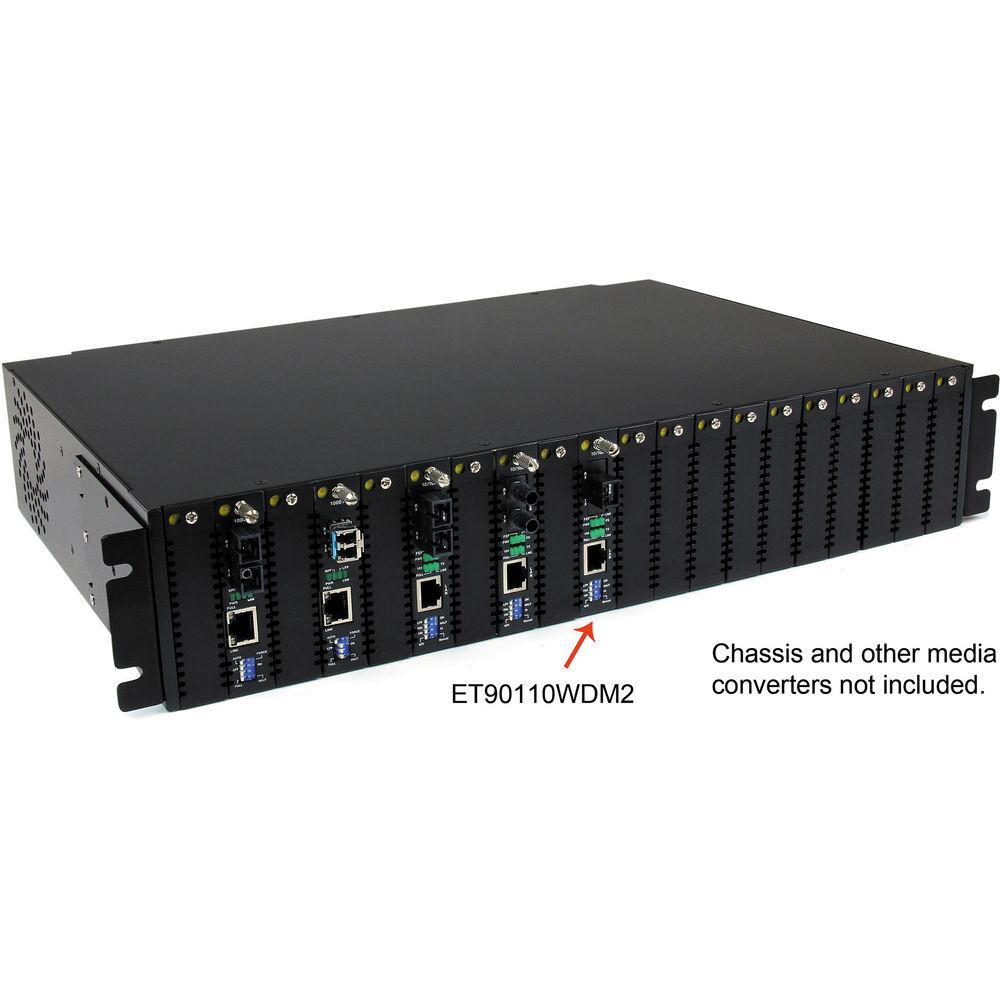

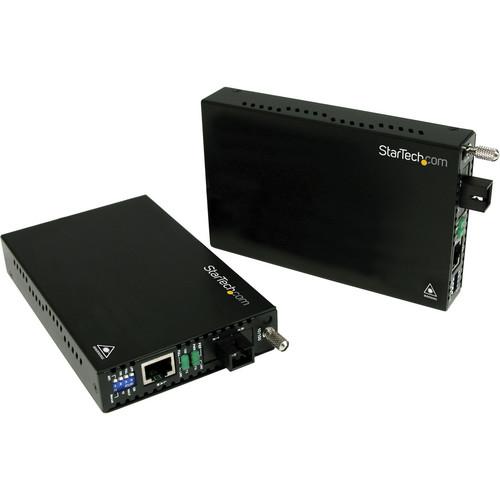

Product description The black ET90110WDM2 10/100 Mb/s Ethernet Single Mode WDM Fiber Media Converter Kit from StarTech lets you extend a 10/100 Mb/s Ethernet connection over single mode fiber, at distances up to 12.4 miles (20.0 km). The kit consists of 1 local media converter unit and 1 remote media converter unit, 2 universal power adapter, and 6 power adapter plugs. crequuybyvctayetfcesThis converter kit offers Wavelength-Division Multiplexing (WDM), enabling bi-directional communication over a single strand of fiber, essentially doubling the capacity of your existing fiber infrastructure without having to install new cabling.The Ethernet to WDM fiber kit includes both endpoints (2 interchangeable modules) which is a simple solution for connecting 10/100Base-T networks to remote locations using SC-terminated single mode fiber. The Ethernet-to-fiber converter also features a durable all-steel chassis and a simple plug-and-play installation wherein minimal configuration is required.For added versatility, this fiber media converter supports standalone operation, or one or both sides can be installed into a 20 Slot, 2U rack mount chassis (ETCHS2U). - Supports standalone operation or installation into the ETCHS2U Rackmount chassis
- Extends/bridges networks using fiber cabling
- Kit includes local and remote converter module for a complete solution
- WDM (Wave Division Multiplexing) technology allows the use of a single fiber cable for full-duplex operation
- Supports standalone operation or installation into the ETCHS2U rack mount chassis
- Maximum fiber cable length of (20 km)
- Link-loss forwarding, remote status monitoring, 2 frame lengths
- Supports full or half-duplex operation
- Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
- Designed for environments such as government agencies, where security threats (network tapping, etc.) need to be prevented
- Connects traffic control/monitoring systems at extreme distances to the main office
- Extends network connectivity to remote areas of stadiums, auditoriums, or other venues
- Converts 10/100Base-T Ethernet to 100Base-FX fiber optic signals (and back - includes both endpoints) over single mode fiber cable

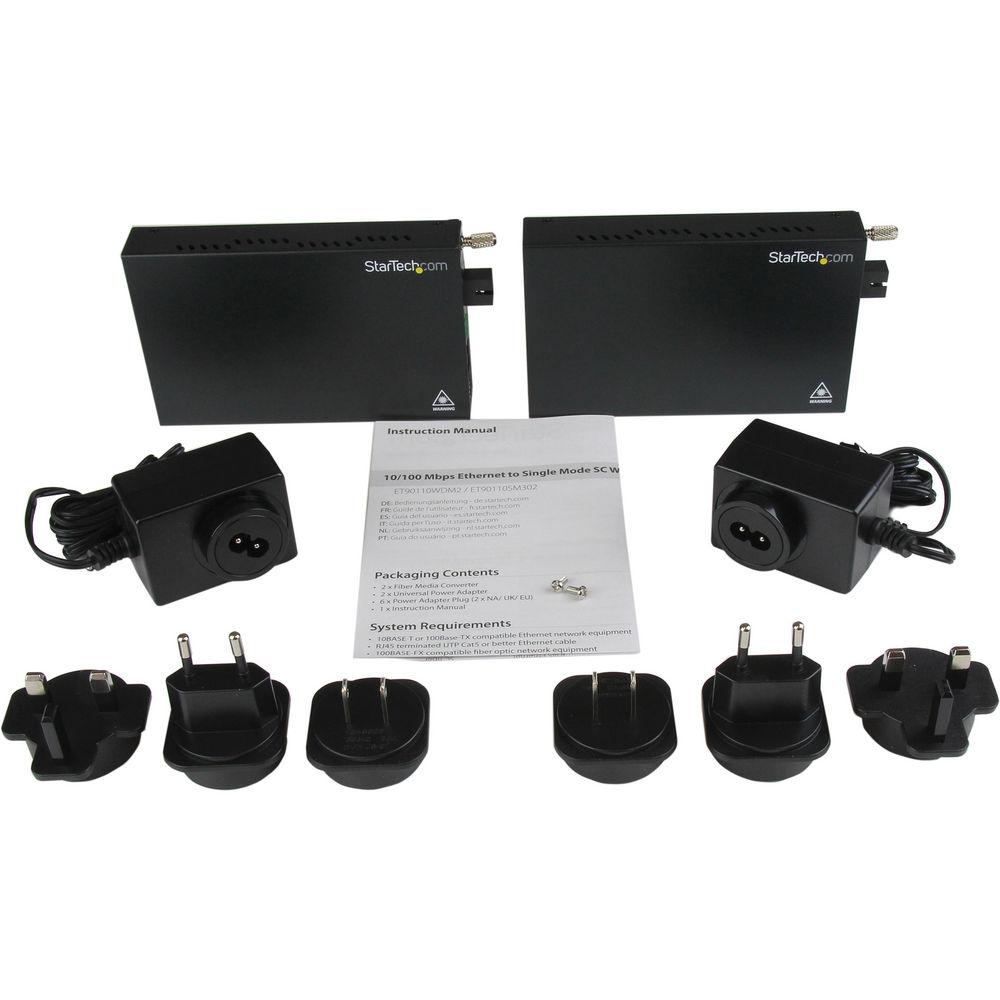

UPC: 065030846271 In the Box StarTech ET90110WDM2 10/100 Mb/s Ethernet WDM Fiber Media Converter Kit (Black) 2 x Universal Power Adapter 6 x Power Adapter Plug (2 x NA/ UK/ EU) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech ET90110WDM2 10 100 Mb s Ethernet WDM Fiber Media Converter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech ET90110WDM2 Specs | Ports | 2 x SC

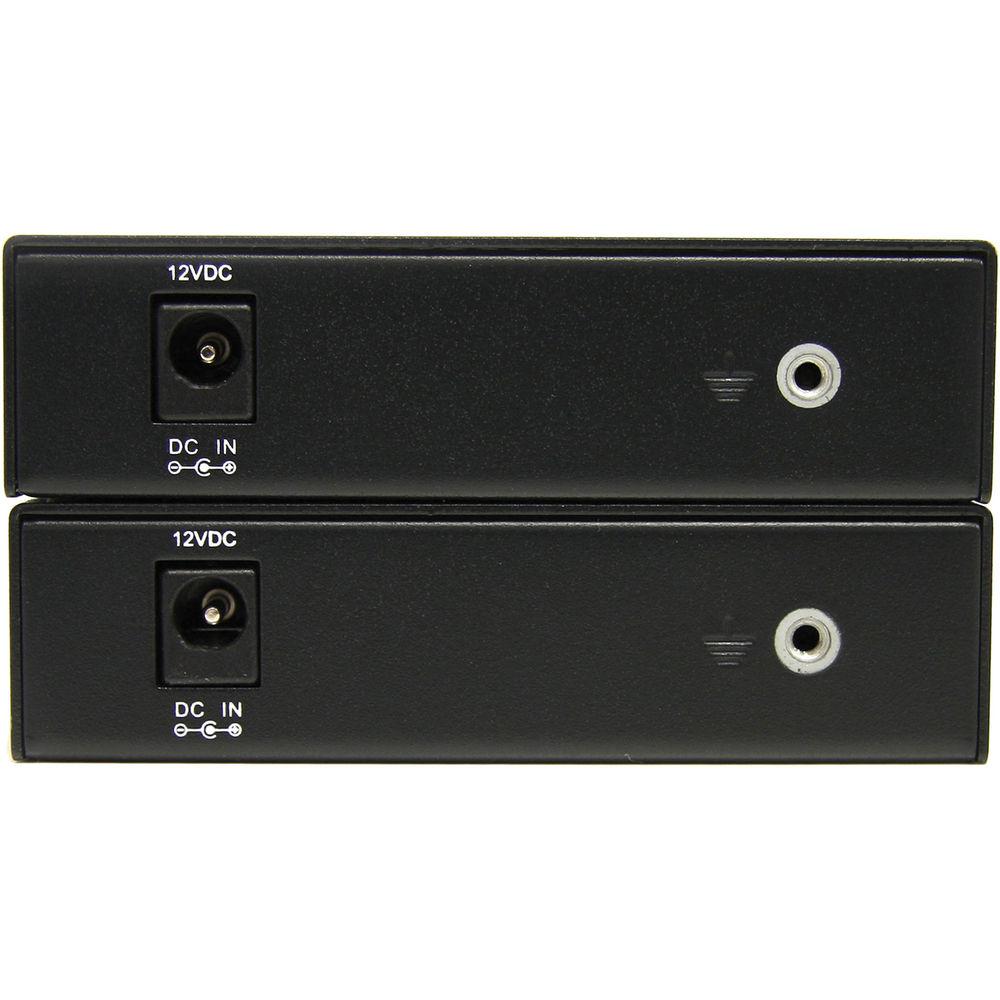

2 x RJ45 | | Wavelength | 1310 nm | | Maximum Networking Distance | 65,617' / 20,000 m | | Maximum Data Rate | 200 Mbps | | Mode | Single-Mode | | Operating Mode | Full Duplex, Half Duplex | | Plug Type | M | | AC Input Power | 115 to 230 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 1 A | | Center Tip Polarity | Positive | | Material | Metal | | Operating Temperature | 32 to 140°F / 0 to 60°C | | Operating Humidity | 15 to 90% | | Storage Temperature | 14 to 158°F / -10 to 70°C | | Dimensions (L x W x H) | 6.3 x 3.7 x 0.9" / 160.0 x 94.0 x 22.9 mm | | Weight | 49.6 oz / 1406.1 g | | | | Package Weight | 3.75 lb | | Box Dimensions (LxWxH) | 9.4 x 7.7 x 6.4" |
