User Manual for StarTech ET91000SM402 1000 Mb s Gigabit Ethernet Fiber Media Converter Click to enlarge the picture
Contents of the user manual for the StarTech ET91000SM402 1000 Mb s Gigabit
- Product category: Network Transceivers StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Network Transceivers
 |
User manual for the StarTech ET91000SM402 1000 Mb s Gigabit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

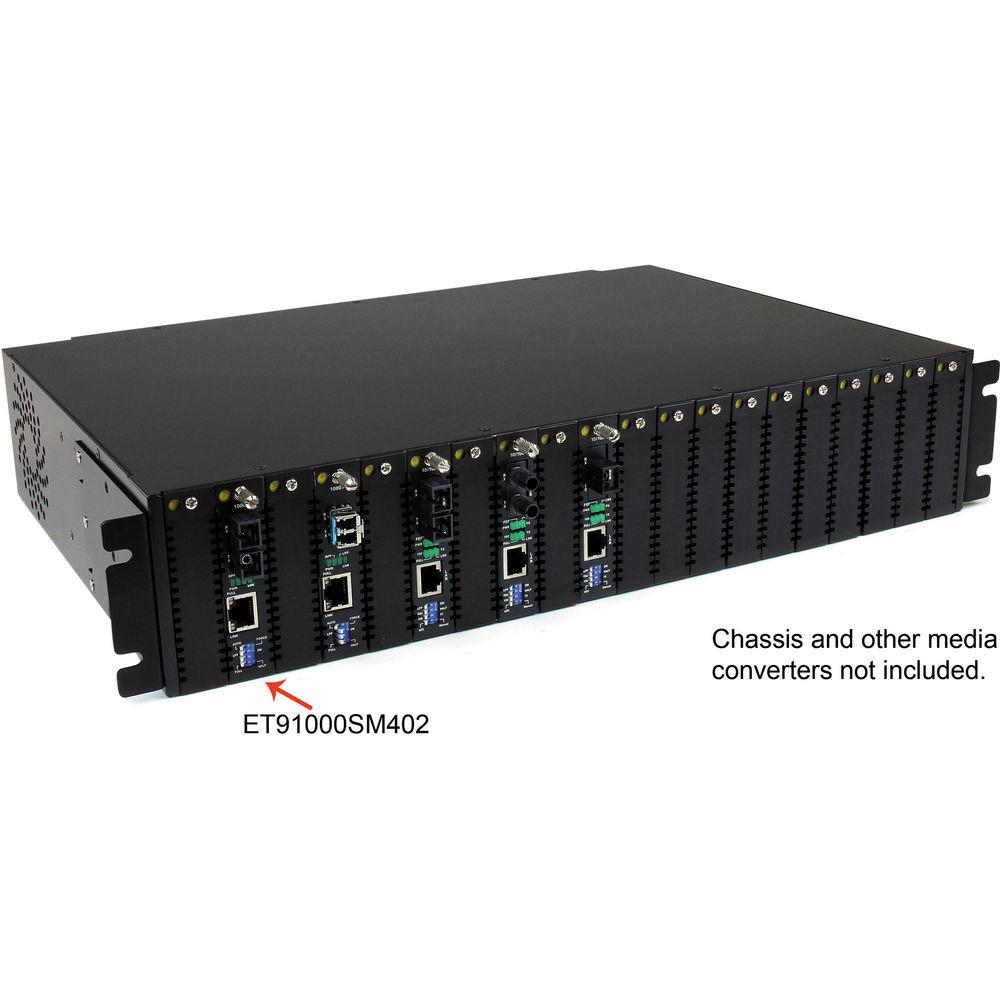

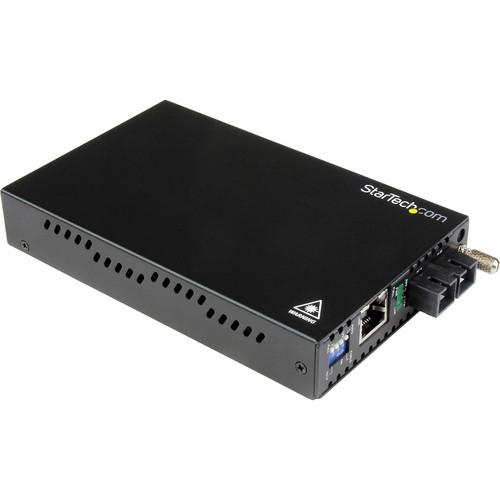

Product description The black ET91000SM402 1000 Mb/s Gigabit Ethernet Single Mode Fiber Media Converter lets you extend a Gigabit Ethernet network over a single mode fiber by up to 24.85mi (40.0km). It provides a good solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone. The GbE to SM fiber Converter supports full Gigabit speeds for ideal network performance and scalability.Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to SC fiber converter features an all-steel chassis, and a simple plug-and-play installation wherein minimal configuration is required.For added versatility, this Fiber Media Converter supports standalone operation or installation into the 20 Slot, 2U rackmount Chassis (ETCHS2U, sold separately). - Features
- Supports standalone operation or installation into the ETCHS2U Rack-Mount Chassis (sold separately)
- Extends / bridges networks using fiber cabling
- Link-loss forwarding, remote monitor status, 2 frame lengths
- Maximum fiber cable length of 24.85mi (40.0km)
- Supports full or half-duplex operation
- Quick and simple installation, easy to use
- Applications
- Provides network connectivity to users or network segments located in isolated areas of a large complex or separate building
- Designed for environments such as government agencies, where security threats (network tapping, etc.) need to be prevented
- Connect traffic control/monitoring systems at extreme distances to the main office
- Extend network connectivity to remote areas of stadiums, auditoriums or other venues
- Converts 1000Base-LX fiber optic signals to 1000Base-T Ethernet over single mode fiber cable

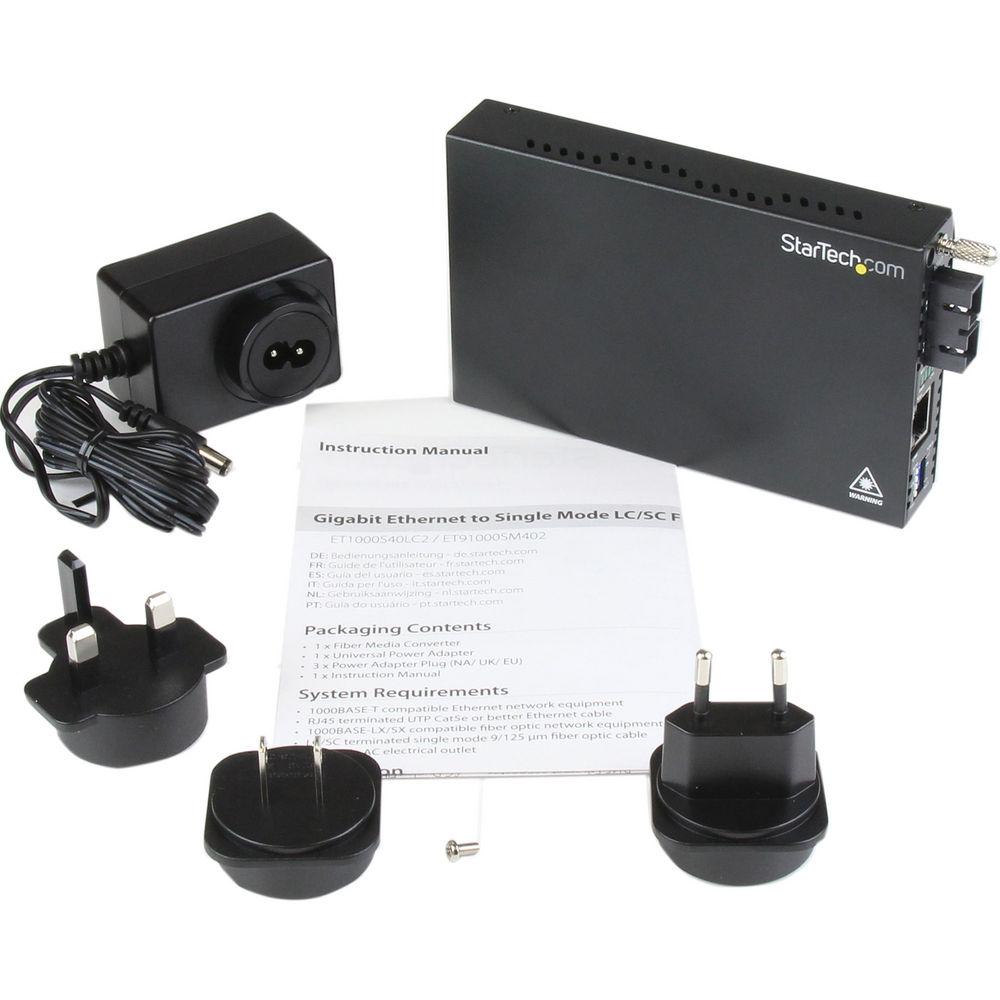

UPC: 065030846219 In the Box StarTech ET91000SM402 1000 Mb/s Gigabit Ethernet Fiber Media Converter (Black) Universal Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech ET91000SM402 1000 Mb s Gigabit Ethernet Fiber Media Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

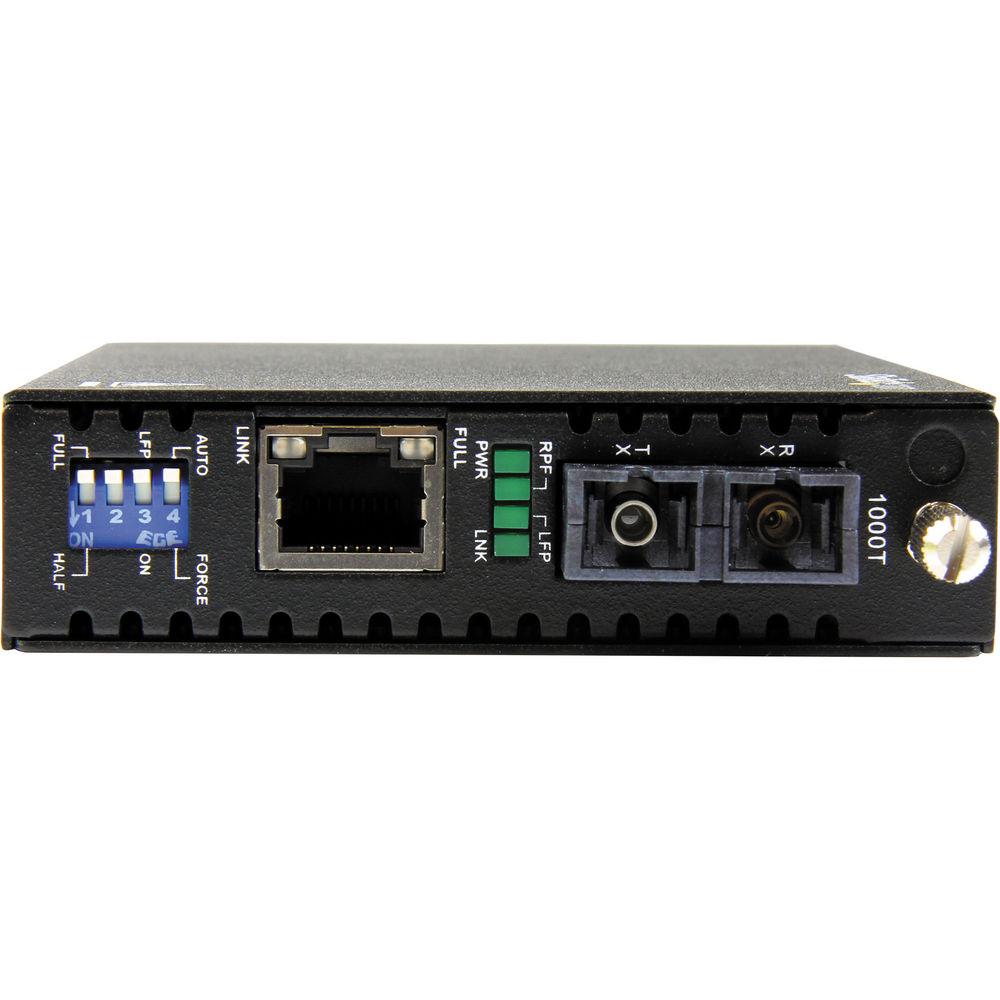

Technical parametersStarTech ET91000SM402 Specs | Ports | 1 x SC

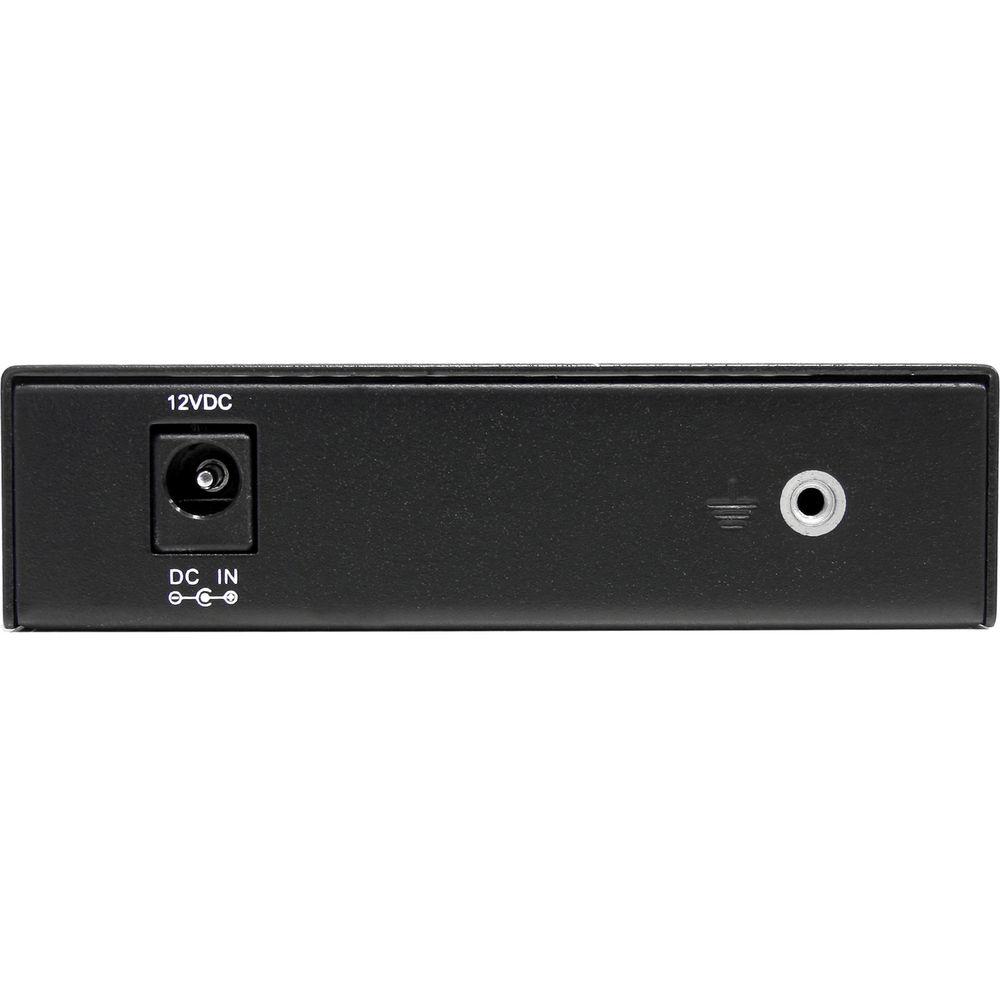

1 x RJ45 | | Wavelength | 1310 nm | | Maximum Networking Distance | 131,234' / 40,000 m | | Maximum Data Rate | 2 Gbps | | Mode | Single-Mode | | Operating Mode | Full Duplex, Half Duplex | | Plug Type | M | | Power Consumption | 4 W | | AC Input Power | 115 to 230 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 0.2 A | | Center Tip Polarity | Positive | | Material | Metal | | Operating Temperature | 32 to 140°F / 0 to 60°C | | Operating Humidity | 18 to 90% | | Storage Temperature | 14 to 158°F / -10 to 70°C | | Dimensions (L x W x H) | 6.3 x 3.7 x 0.8" / 160.0 x 94.0 x 20.3 mm | | Weight | 21.2 oz / 601 g | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 8.1 x 5.5 x 3.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
