User Manual for StarTech External Docking Station for 2.5" 3.5" SATA III Drives Click to enlarge the picture
Contents of the user manual for the StarTech External Docking Station for 2.5"
- Product category: Hard Drive Enclosures & Docks StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Hard Drive Enclosures & Docks
 |
User manual for the StarTech External Docking Station for 2.5" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

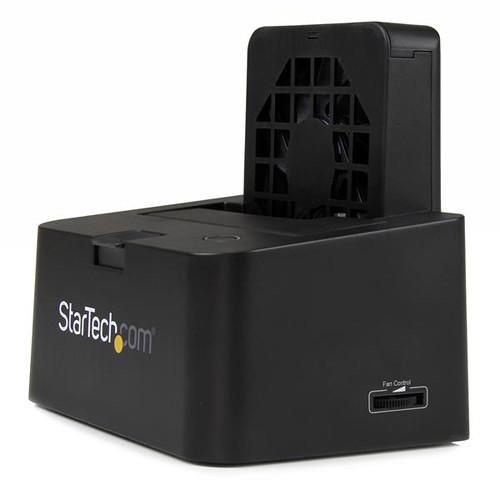

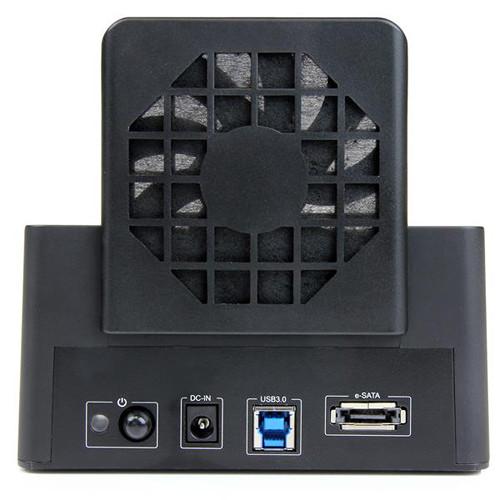

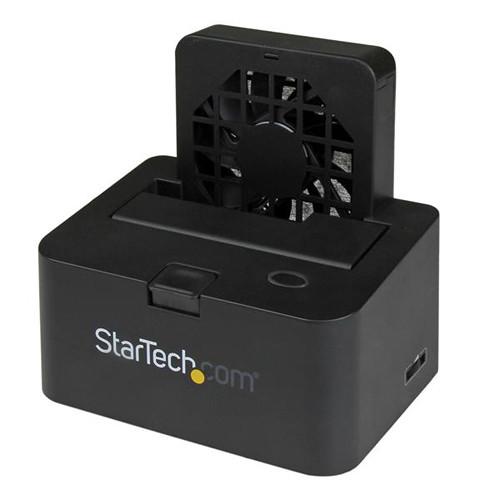

Product description Transfer files from either 2.5" or 3.5" SATA III drives with the External Docking Station from StarTech. The docking station features a single hot-swappable drive slot and supports both SSDs and HDDs in capacities up to 6TB. Connecting the dock to your computer is simple as it comes equipped with USB 3.0 and eSATA ports along with a maximum transfer rate of up to 6 Gbps over the eSATA connection. Additionally, this StarTech docking station comes equipped with a built-in 80mm fan to keep the drive cool even when pushing it to the max. - Maximize Compatibility
- With support for either USB 3.0 or eSATA host connections, this versatile drive dock gives you the freedom to connect to your computer through either port. The docking station features a slot-loading design that supports both 2.5" and 3.5" drives and it has been tested with drives up to 6TB.
- Protect the Health of Your Drives
- For optimal performance, the docking station has a built-in 80mm fan that helps keep the drive running cooler. The variable speed fan can be adjusted on the fly to reduce power consumption and noise when the drive isn't being accessed. The HDD dock will also power down SATA drives after a period of inactivity (USB mode only) or when the computer is turned off, to help reduce power consumption and noise when not being accessed.
- Improve Performance
- For the fastest possible performance, this dock supports the full SATA III bandwidth of 6 Gbps when connected through eSATA, ensuring you can get the most out of your solid-state drives.

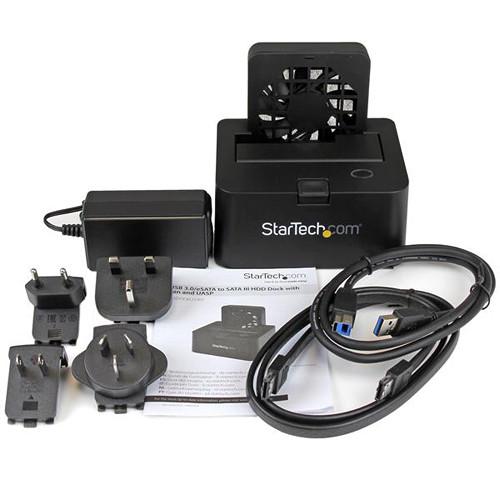

This USB 3.0 dock ensures high-bandwidth transfer speeds up to 5 Gbps. The USB host interface connection also supports UASP, which delivers performance up to 70% faster than conventional USB 3.0 when paired with a compatible host controller. UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. UPC: 065030860420 In the Box StarTech External Docking Station for 2.5" / 3.5" SATA III Drives USB 3.0 Cable eSATA Cable Universal Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech External Docking Station for 2.5" 3.5" SATA III Drives in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech STA-SDOCKU33EF Specs | Number of Bays | 1 x 2.5"/3.5" | | Connections | 1 x USB Type-B (USB 3.1 Gen 1 (5 Gb/s))
1 x eSATA (SATA II (3 Gb/s)) | | Compatible Drive Interface | SATA | | UASP Support | Yes | | Hot-Swap Support | Yes | | | | Power Source | AC Adapter | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 2 A | | Power Consumption | 24 W | | | | Operating Temperature | 41 to 176°F / 5 to 80°C | | Operating Humidity | 8 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | | | Cooling | 1 x 80 mm Fan | | Bridge Chipset | JMicron JMS561 | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 5.3 x 5.0 x 3.7" / 134.0 x 126.0 x 95.0 mm | | Weight | 16.8 oz / 477.0 g | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 8.2 x 7.4 x 4.7" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 92 owners. Add your rating and experience with the product.
