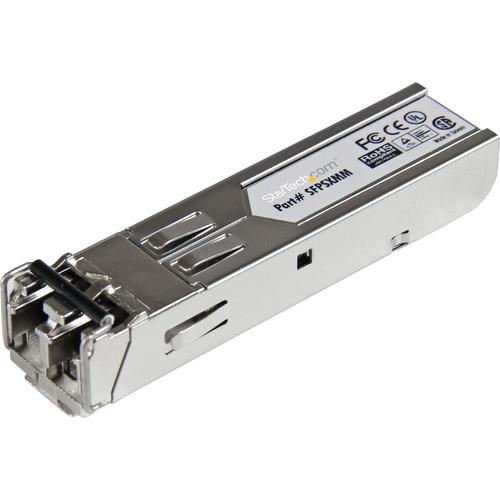

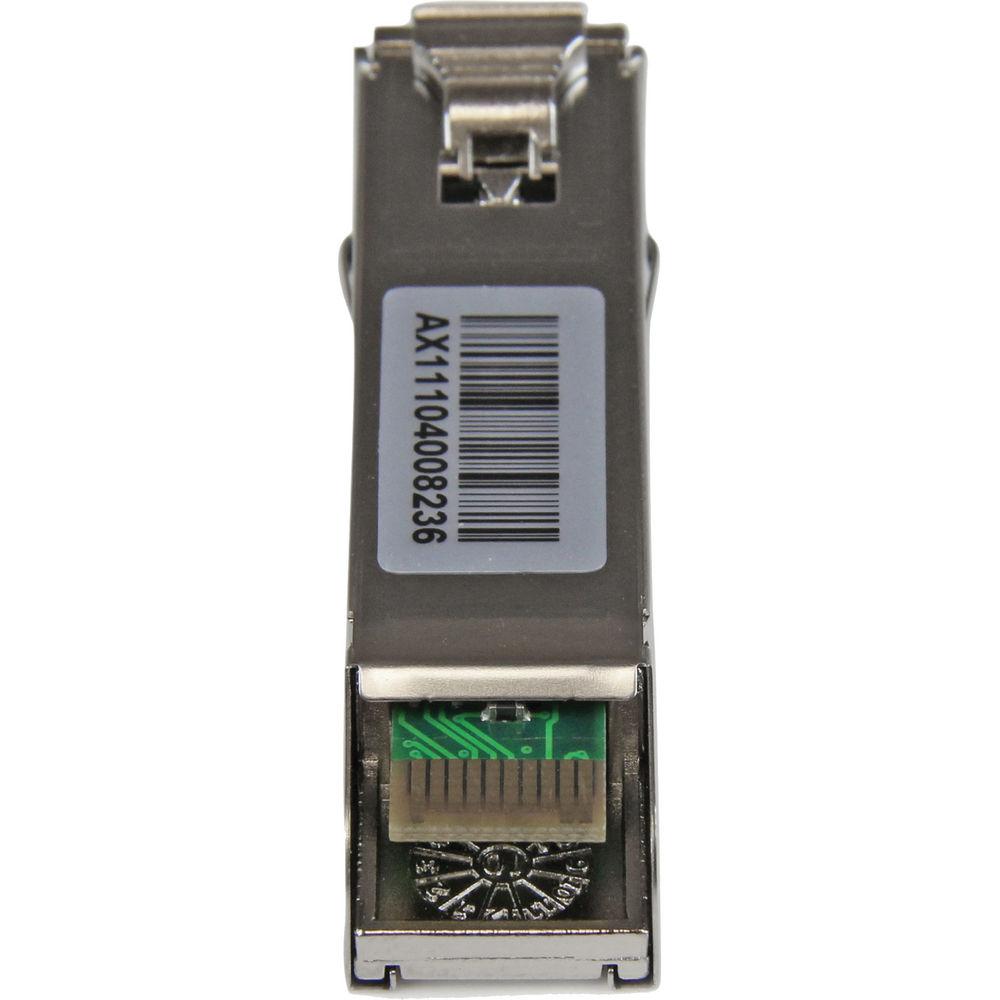

User Manual for StarTech Gigabit 850nm Multi Mode SFP Fiber Optical Transceiver - LC 550m Click to enlarge the picture
Contents of the user manual for the StarTech Gigabit 850nm Multi Mode SFP
- Product category: Network Transceivers StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Network Transceivers
 |
User manual for the StarTech Gigabit 850nm Multi Mode SFP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description The Startech Gigabit 850nm Multi Mode SFP Fiber Optical Transceiver - LC 550m allows you to add, replace, or upgrade SFP modules on gigabit fiber equipment. It is built to comply with MSA (Multi-Sourcing Agreement) standards and increase performance and connectivity of your fiber-connected network devices.Using a short wavelength (850nm) VCSEL laser diode and enabling a maximum cable distance of 1804’ (550m) over multi mode fiber, this Small Form Factor Pluggable (SFP) Gigabit Multi Mode module can be installed into any fiber networking devices with an MSA-compliant SFP port. It provides a simple solution to upgrade existing network devices to connect to remote locations using LC terminated multimode fiber.Delivering convenience and scalability, the optical transceiver allows you to install the multimode LC module without interrupting network traffic or requiring a device reboot. It is suitable for applications such as network extension and fiber backbones and replacing defective or damaged SFPs in MSA compliant equipment. It can be used in Multimode fiber installations and enables you to expand your network to remote segments over fiber. - 1.25 Gb/s IEEE 802.3z 1000BASE-SX compliant
- Complies with SFP Multi-Source Agreements standards (MSA)
- Equipped with a 850nm VCSEL Laser with Class 1 laser safety standards IEC825 compliance

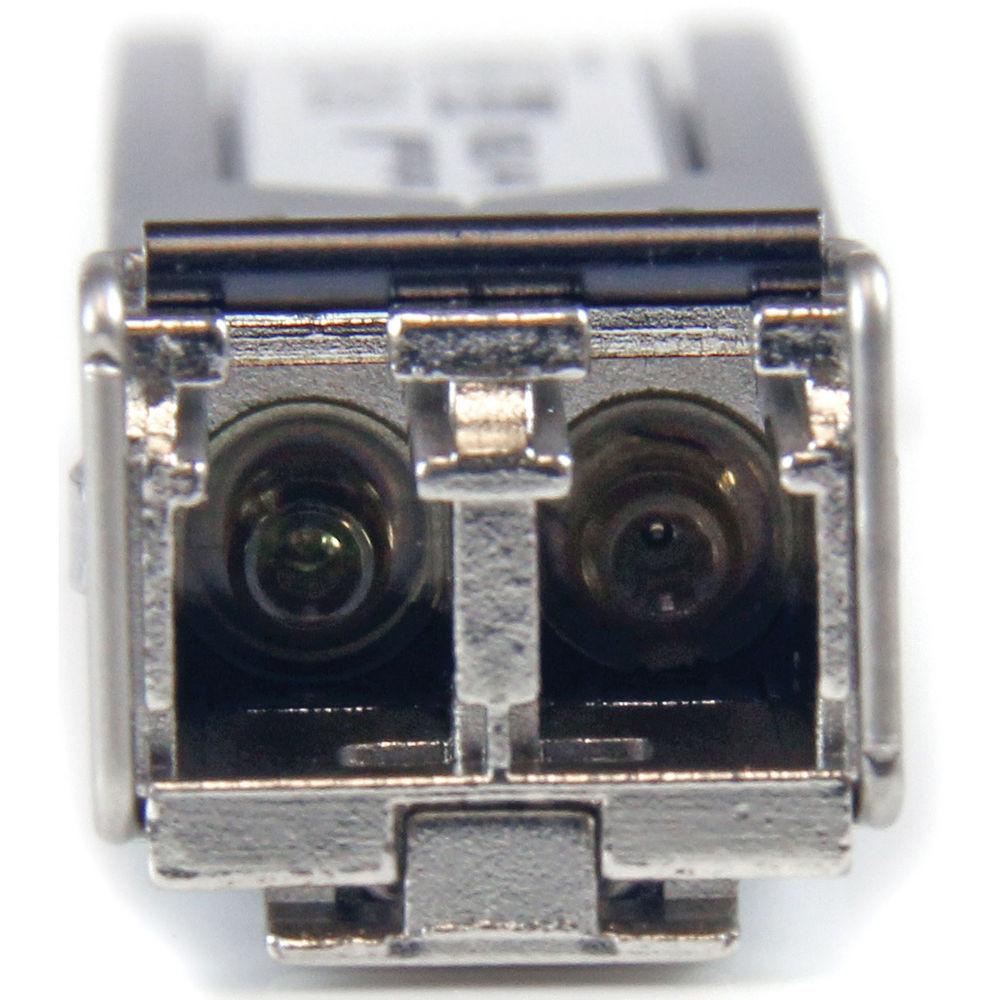

- Duplex LC receptacle connector
- Complies with 1.0625 Gb/s Fiber Channel FC-PI 100-M5-SN-I and FC-PI 100-M6-SN-I (sold separately)
- Serial ID functionality support
UPC: 065030834940 In the Box StarTech Gigabit 850nm Multi Mode SFP Fiber Optical Transceiver - LC 550m Limited 2-Year Warranty Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech Gigabit 850nm Multi Mode SFP Fiber Optical Transceiver - LC 550m in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech Gigabit 850nm Multi Mode SFP Fiber Optical Transceiver - LC 550m can be downloaded in PDF format at the link stated below.
Technical parametersStarTech SFPSXMM Specs | Ethernet Standards | IEEE 802.3z | | Ports | 1 x LC | | Networking Technology | 1000BASE-SX | | Wavelength | 850 nm | | Maximum Networking Distance | 1804' / 550 m | | Maximum Data Rate | 1.25 Gbps | | Mode | Multi-Mode | | Operating Mode | Full Duplex | | Operating Temperature | 32 to 158°F / 0 to 70°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -40 to 85°F / -40 to 29.4°C | | Dimensions (L x W x H) | 2.2 x 0.5 x 0.3" / 55.9 x 12.7 x 7.6 mm | | Weight | 1.6 oz / 45.4 g | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 4.6 x 2.8 x 1.1" |
