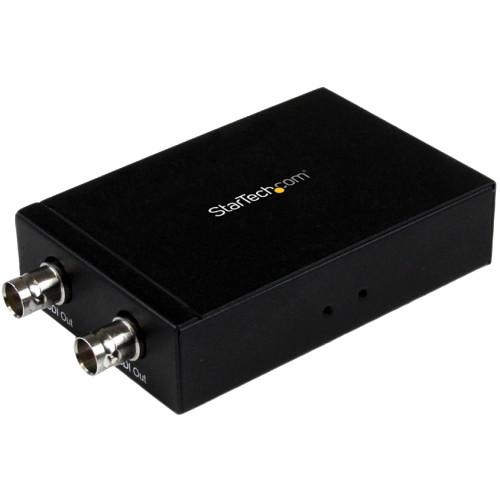

User Manual for StarTech HD2DSI HDMI to Dual SDI Coverter Click to enlarge the picture
Contents of the user manual for the StarTech HD2DSI HDMI to Dual SDI
- Product category: Signal Converters StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Signal Converters
|
User manual for the StarTech HD2DSI HDMI to Dual SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description The StarTech HD2SDI HDMI to Dual SDI Converter enables you to turn your HDMI audio/video signal into two 3G SDI video outputs. The 3G SDI video outputs can then be individually extended up to 755ft (230m) over standard coaxial cable for large scale HD-SDI video distribution. With dual SDI outputs, you can connect your HDMI video source to a local SDI display and output an additional SDI signal into your broadcasting equipment, providing a scalable solution for any SDI broadcasting application that requires an HDMI input. To ensure you maintain high-definition video quality, the HD-SDI converter supports resolutions up to 1080p, which lets you convert HDMI to SDI without sacrificing video quality. For hassle-free installation, the HDMI to SDI converter offers a plug-and-play solution that includes pre-installed mounting brackets and requires no software or driver installation. UPC: 065030854979 In the Box StarTech HD2DSI HDMI to Dual SDI Coverter Universal Power Adapter Limited 2-Year Warranty Guides & Manuals cxxsrfstestsuacabwzuxecusbavbudebwwrrq More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech HD2DSI HDMI to Dual SDI Coverter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech HD2DSI HDMI to Dual SDI Coverter can be downloaded in PDF format at the link stated below.
Technical parametersStarTech HD2SDI Specs | Connectors | 1 x HDMI Input
2 x SDI (BNC) Output | | Audio | 8 Channel Digital Audio @ 48 KHz | | Transmission Distance | Maximum SDI cable length: 755' / 230 m | | Maximum Transfer Rate | 2.97 Gbps | | Maximum Resolution | 1080p | | Supported Resolutions & Formats | 1920x1080 (1080p) @ 24, 25, 30, 50, & 60 FPS
1920x1080 (1080i) @ 50 & 60 FPS
1280x720 (720p) @ 24, 25, 30, 50, & 60 FPS
525i, 625i SD, D1 Format: RGB or YCbCr 4:4:4 sampled
Supports 8-bit or 10-bit component digital video: YCbCr 4:2:2 or 4:2:0 sampled | | Widescreen Supported | Yes | | HDCP | Not Compliant (content protection is not passed through the converter) | | Humidity | 5 to 90% RH (no condensation) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Power Supply | Center Tip Polarity: Positive
Input Current: 0.5 A
Input Voltage: 100 to 240 VAC
Output Voltage: 5 VDC
Plug Type: Male | | Dimensions | 1 x 3.9 x 2.8" / 25 x 100 x 70 mm | | Weight | 7.1 oz / 202 g | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 8.4 x 5.9 x 2.2" |
