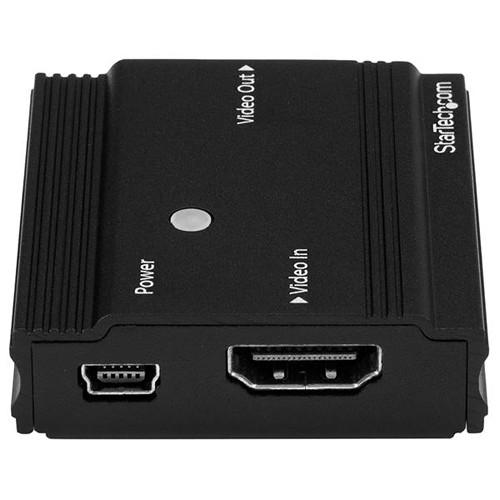

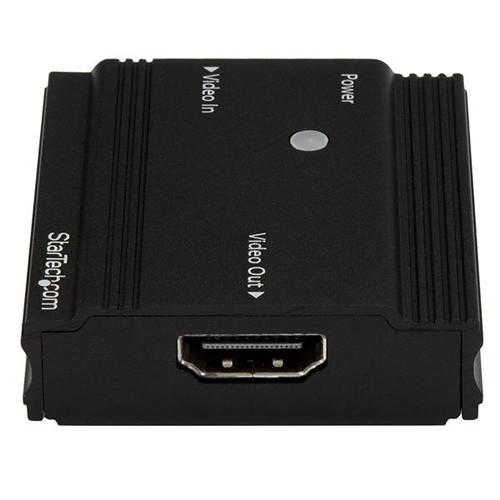

User Manual for StarTech HDBOOST4K HDMI 4K Signal Booster Click to enlarge the picture
Contents of the user manual for the StarTech HDBOOST4K HDMI 4K Signal Booster
- Product category: HDMI Signal Extenders StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech HDMI Signal Extenders
 |
User manual for the StarTech HDBOOST4K HDMI 4K Signal Booster contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description Extend your HDMI signal up to 114.8' with the two standard HDMI cables and the StarTech HDBOOST4K HDMI 4K Signal Booster. It supports resolutions up to 4K at 30 Hz at total lengths up to 32.8', 4K at 60 Hz at total lengths up to 82', or 1080p at 60 Hz at total lengths up to 114.8'. The 4K Signal Booster also supports up to 7.1 channels of audio. - Maintains UHD Video Signals at 60 Hz
- HDMI 2.0 signals up to UHD at 60 Hz are maintained at distances up to 32.8', plus 4K 30 Hz at up to 82' and 1080p 60 Hz at up to 114.8'.
- Designed for Discreet Installation
- With its small form factor and no external power adapter, the 4K booster is easy to hide for a discreet installation.
- Supports Multiple Cable Length Options
- The 4K booster allows you to adjust the amplification of your HDMI signal by the length of the cables used, making it suitable for multiple installation types, including boardrooms, classrooms, waiting rooms, and others, as these applications may require varied distances to different rooms.

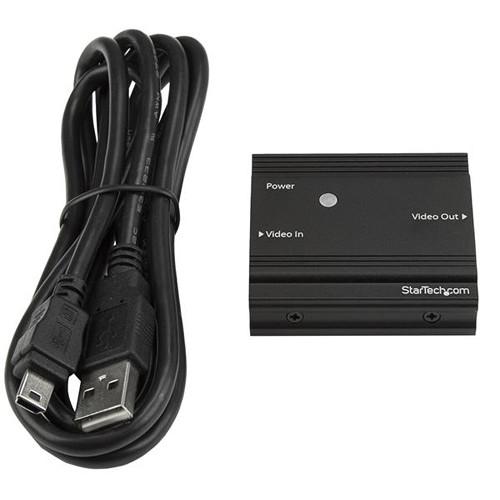

UPC: 065030866422 In the Box StarTech HDBOOST4K HDMI 4K Signal Booster (114.8') 5' USB Power Cable Limited 2-Year Warranty More from Manufacturer tyuruzsrystaasrffvbvqyeurszuubx Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech HDBOOST4K HDMI 4K Signal Booster in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech HDBOOST4K Specs | Extension Range | Up to 114.8' (35 m) | | Supported Resolutions | 3840 x 2160
2560 x 1600
1920 x 1200
1920 x 1080
1280 x 720 | | Maximum Supported Resolutions | At 32.8' (10 m): Up to 4K @ 60 Hz
At 82' (25 m): Up to 4K @ 30 Hz
At 114.8' (35 m): Up to 1080p @ 60 Hz | | Supported Audio | Up to 7.1-channel surround sound | | Input | 1 x HDMI | | Output | 1 x HDMI | | HDMI Version | HDMI 2.0 | | HDCP Version | HDCP 2.2 | | Indicator LEDs | 1 x Power | | Power Source | USB | | Operating Temperature | 32 to 95°F (0 to 35°C) | | Storage Temperature | 23 to 104°F (-5 to 40°C) | | Dimensions | 1.8 x 0.6 x 2.2" (46 x 15 x 56 mm) | | Weight | 5.3 oz (150 g) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 6.1 x 4.0 x 1.9" |
