User Manual for StarTech HDMI and USB over Cat5e 6 Distribution Kit Click to enlarge the picture
Contents of the user manual for the StarTech HDMI and USB over Cat5e
- Product category: Video Extenders & Repeaters StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Video Extenders & Repeaters
 |
User manual for the StarTech HDMI and USB over Cat5e contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

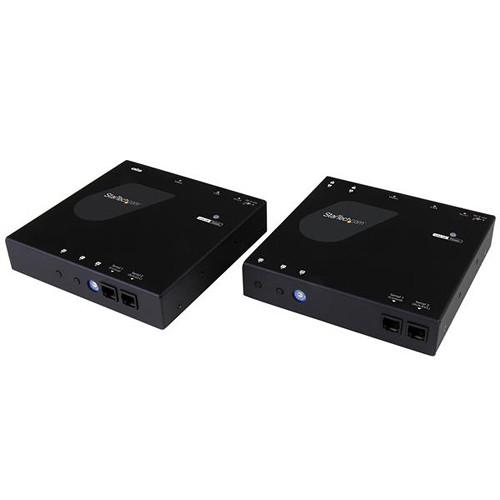

Product description Provided by third party: Deploy content for digital signage through a scalable distribution system with intuitive control and USB extention that's ideal for point-to-point or video wall applications. This HDMI® over IP kit lets you extend an HDMI signal, as well as four USB peripheral device connections, over your network. You can use additional receivers (sold separately) to distribute the HDMI and USB signals to multiple locations and combine your remote displays to create a video wall while using the USB connection to extend a touch screen to create an interactive digital signage presentation.
Versatile configuration options
In a point-to-multipoint setup, you can connect the HDMI over IP kit through an unmanaged or managed Gigabit LAN portal. You can also connect one or several sources (transmitters) to multiple displays (receivers) over your network, using a managed Gigabit Ethernet switch with IGMP. For further scalability, you can combine up to 16 different extender kits.
For smaller-scale applications, you can use the extender kit as a point-to-point video extender by connecting the transmitter and receiver units directly over Cat5 or Cat6 cabling for a one-to-one HDMI extension up to 330 feet (100 meters).
Manage your video distribution from your mobile device
This HDMI distribution kit features an easy-to-use video control software app that helps you manage your IP video distribution. The app is simple to set up, with automatic hardware detection, and it lets you switch video sources for each remote display. You can also create and manage a video wall, for an impressive digital signage presentation that's sure to catch your audience's attention.
The software is available on iOS for your iPhone or iPad, Android™ for your smartphone or tablet, and Google Chrome™ browser.
Professional, cost-effective, simple installation
The HDMI over IP extender kit includes optional mounting hardware for a tidy installation. Ideal for high-definition applications, the extender supports 1080p video resolutions and digital stereo audio. Plus, because the extender uses standard non-proprietary Cat5e or Cat6 Ethernet cable with RJ45 connectors, it eliminates both the expense and hassle of running specialized cables.
The extender also features an EDID copy function, which ensures native resolution and maximum compatibility with your display or projector for a convenient plug-and-play installation.
Download the StarTech.com Video Control software to manage your IP video distribution.
Note: For best performance, a managed network switch with IGMP is recommended if you are using more than one transmitter, or more than four receivers, Non-managed network switches may also limit the performance of other devices connected to the same network.

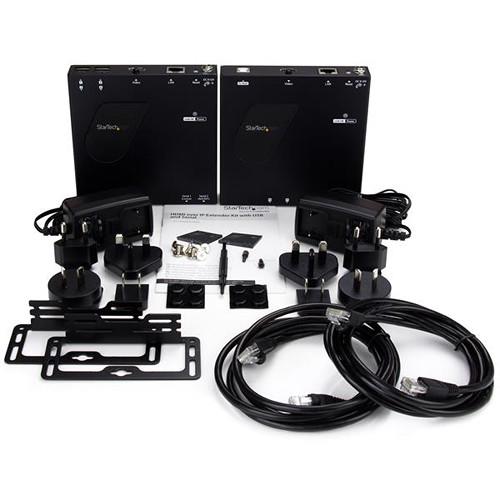

The ST12MHDLANU is backed by a StarTech.com 2-year Warranty and free lifetime technical support. UPC: 065030862110 In the Box StarTech HDMI and USB over Cat5e/6 Distribution Kit 1 x HDMI over IP Transmitter 1 x HDMI over IP Receiver 2 x Power Adapters 2 X Screws 1 x Screw Driver 2 x CAT5 Cables 2 X Mounting Brackets 1 X Quick Install Guide 2 Year Limited Warranty Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech HDMI and USB over Cat5e 6 Distribution Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech HDMI and USB over Cat5e 6 Distribution Kit can be downloaded in PDF format at the link stated below.
Technical parametersStarTech ST12MHDLANU Specs | | | Connectivity Technology | Wired | | Number of Input Devices Supported | 1 | | Number of Output Devices Supported | 1 | | Maximum Operating Distance | 330 ft | | | | Graphics Modes | WUXGA | | Maximum Video Resolution | 1920 x 1200 | | | | Network (RJ-45) | Yes | | HDMI In | Yes | | HDMI Out | Yes | | USB | Yes | | Number of Network (RJ-45) Ports | 2 | | Number of USB Ports | 5 | | Number of HDMI Inputs | 1 | | Number of HDMI Outputs | 1 | | | | Media Type Supported | Twisted Pair | | Twisted Pair Cable Standard | Category 6 | | | | Height | 1.1" | | Width | 3.8" | | Depth | 5.1" | | Weight (Approximate) | 15.80 oz | | | | Environmentally Friendly | Yes | | Environmental Certification | RoHS
WEEE | | | | Package Weight | 5.1 lb | | Box Dimensions (LxWxH) | 14.4 x 9.3 x 3.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 72 owners. Add your rating and experience with the product.
