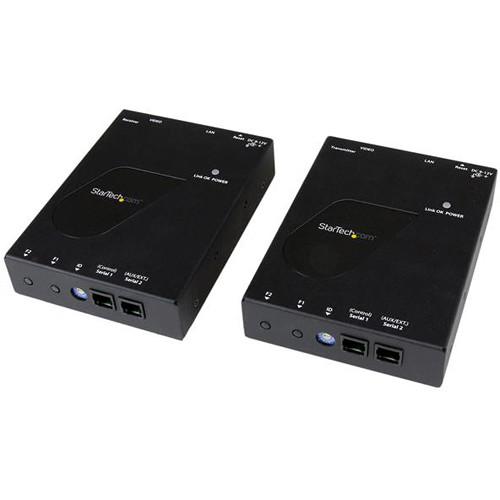

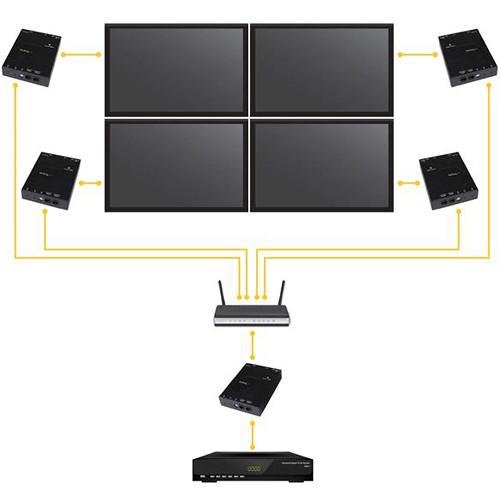

Product description This scalable HDMI over IP Distribution Kit from StarTech can extend an HDMI signal to a display over IP. The system is scalable through combining separately available managed Ethernet switches and additional receivers for each screen you wish to display content on. This system utilizes your existing network infrastructure, so no new cable installations are necessary. This scalability is great for digital signage, trade shows, conventions, or other situations that require many displays showing the same content. Another configuration allows you to scale a single image to fit on multiple screens. All functionality of this system is controlled through the convenient mobile app. This kit comes with a single transmitter and receiver, which can be separated by up to 330' of Cat 5e cable before signal dropouts occur. Use Cases - Build a multi-display video wall to present entertainment to your patrons, with a multi-segment display at a restaurant or shopping center
- Display multiple communication boards showing dynamic data that can be updated at any time, such as times and dates, on digital charts in airports, train and bus stations, or hospitals
- Present your social media feeds on multiple screens in a large viewing area
- Place the display in a convenient viewing area, while the HDMI source equipment is placed elsewhere in a separate, secured environment
- Display the same HDMI audio/video signal on multiple displays, for large-scale digital signage applications

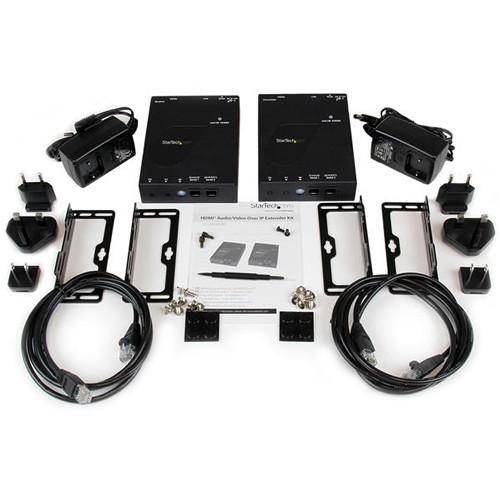

UPC: 065030850759 In the Box StarTech HDMI over IP Distribution Kit Transmitter Receiver 2 x Mounting Brackets 2 x Power Supplies 2 x Foot Pad Sets Limited 2-Year Warranty More from Manufacturer zyqyvwqeezftayuuq Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech HDMI over IP Distribution Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

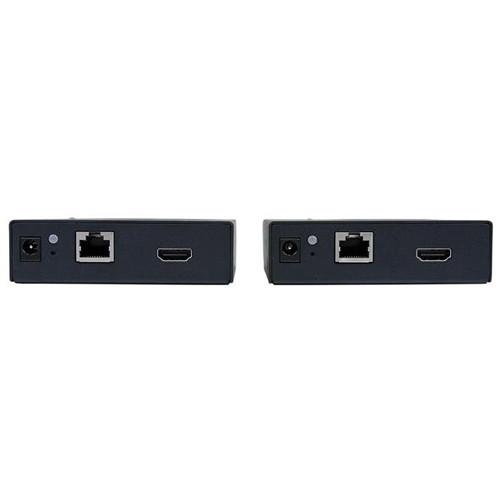

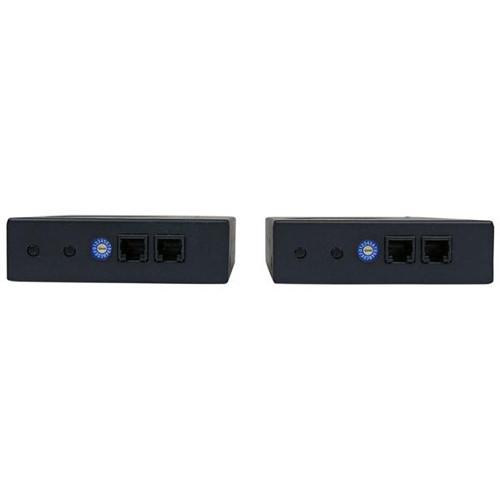

Technical parametersStarTech ST12MHDLAN Specs | Connections | Transmitter:
1 x HDMI Type A
1 x RJ45, LAN
2 x RJ11, serial (not active)
Receiver:
1 x HDMI Type A
1 x RJ45, LAN
2 x RJ11, serial (not active) | | Transmission Distance | Up to 330' / 100 m | | Maximum Resolution | 1920 x 1200 (includes 1080p) | | Audio Support | Stereo | | Power Supply | Input: 100-240 VAC, 0.4 A
Output: 5 VDC, 2 A | | Power Consumption | 10 W | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: 14 to 140°F / -10 to 60°C
Humidity: 0-80% | | Dimensions | 1.1 x 5.1 x 3.8" / 28 x 130 x 97 mm, each | | Weight | 1 lb / 448 g, each | | | | Package Weight | 4.65 lb | | Box Dimensions (LxWxH) | 11.9 x 9.7 x 3.4" |
