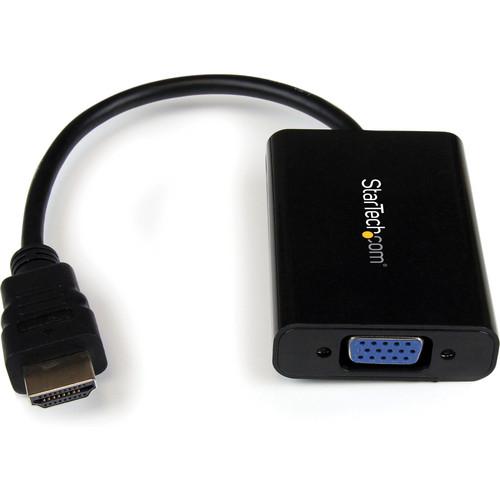

User Manual for StarTech HDMI to VGA Converter with Audio Click to enlarge the picture
Contents of the user manual for the StarTech HDMI to VGA Converter with
- Product category: Signal Converters StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Signal Converters
 |
User manual for the StarTech HDMI to VGA Converter with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

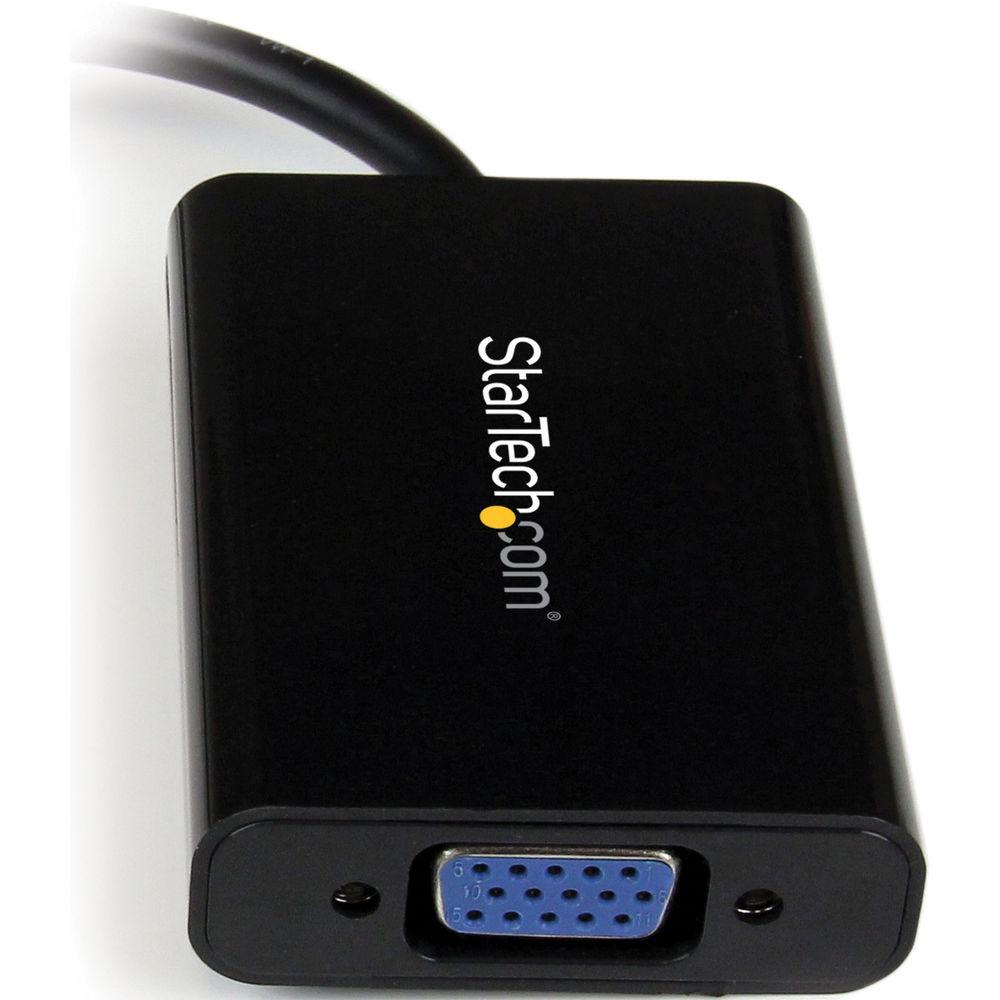

Product description Run the video and audio signals from select laptops, extenders, and devices direct to a VGA projector or monitor with this HDMI to VGA Converter from StarTech. Designed to allow users to display presentations and documents on a VGA projector or monitor, this converter features an HDMI port supporting all devices with an HDMI interface. It also has a 3.5mm audio output so you can separately run audio since the VGA output is only capable of passing video. You can run up to 1920 x 1200 resolution video signals, including Full HD 1080p.

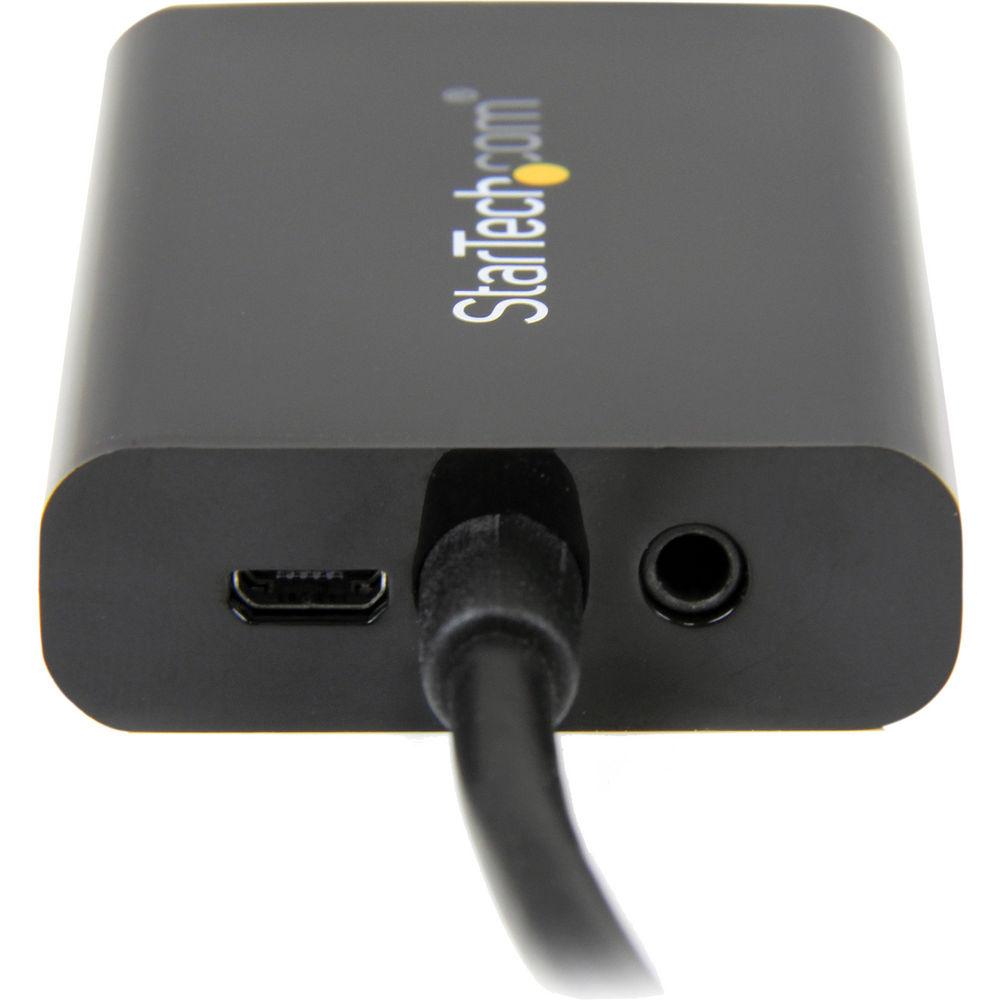

This converter requires no power source, as it gets its power from your HDMI source, but because it converts both video and audio, the power coming from your HDMI source may not be enough, depending on the source. For this reason this converter also has a USB port for supplementary power -- whenever your HDMI source doesn't provide enough power, just plug in a USB cable running from your computer, or connect a USB power adapter, and you'll have sufficient power. Everything works plug-and-play with no setup required. This converter is very compact and an easy accessory to carry in your bag. - Key Features
-
- Run the video and audio signals from select devices to a VGA projector or monitor
- Separate 3.5mm audio jack
- USB port for supplementary power
- Plug-and-play operation
UPC: 065030850995 In the Box StarTech HDMI to VGA Converter with Audio Limited 2-Year Warranty Brochure PDF 96.3kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech HDMI to VGA Converter with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

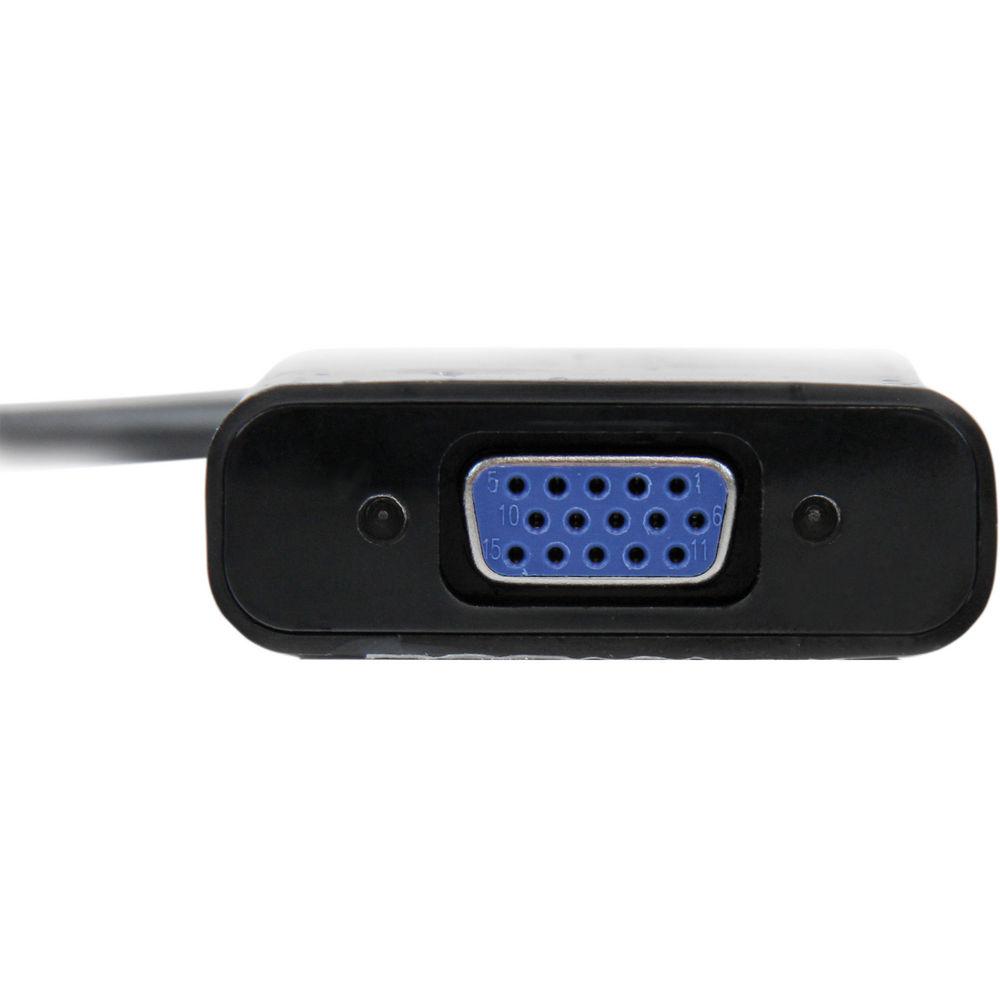

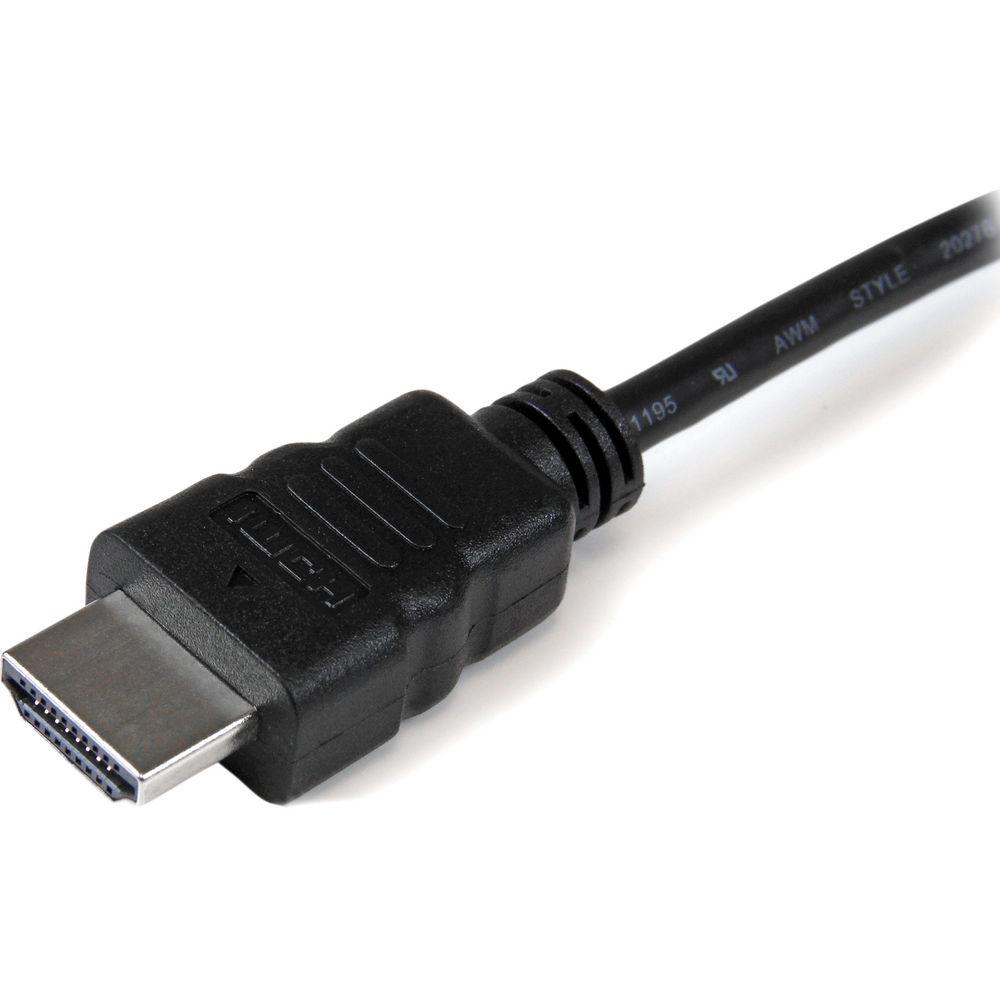

Technical parametersStarTech HD2VGAA2 Specs | Connector 1 | 1 x HDMI 19-pin female | | Connector 2 | 1 x VGA 15-pin, high density D-sub female | | Audio Connector | 1 x 3.5 mm stereo mini jack | | Power Connector | 1 x USB Micro-B female for supplementary power | | Supported Resolution | 1920 x 1200, 1920 x 1080 (1080p), 1600 x 1200 at 60 Hz | | Humidity | 40 to 85% RH non-condensing | | Operating Temperature | 32 to 140°F (0 to 60°C) | | Storage Temperature | 14 to 158°F (-10 to 70°C) | | Enclosure Type | Plastic | | Dimensions | 0.6 x 10.0 x 1.8" (15.0 x 255.0 x 45.0 mm) | | Weight | 1.6 oz (44 g) | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 5.9 x 2.9 x 0.8" |
Rating66% users recommend this product to others. And what about you?
This product has already been rated by 73 owners. Add your rating and experience with the product.
