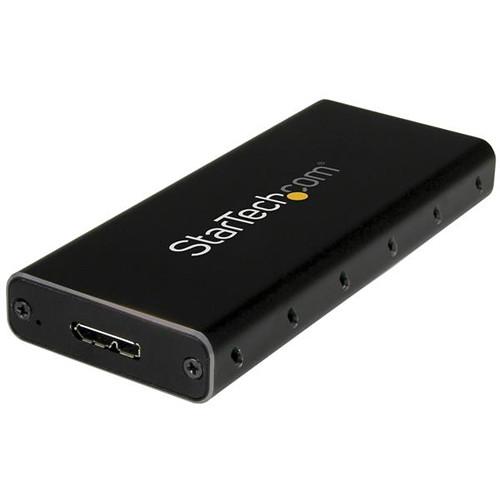

User Manual for StarTech M.2 SATA SSD Enclosure Click to enlarge the picture
Contents of the user manual for the StarTech M.2 SATA SSD Enclosure
- Product category: Hard Drive Enclosures & Docks StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Hard Drive Enclosures & Docks
 |
User manual for the StarTech M.2 SATA SSD Enclosure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

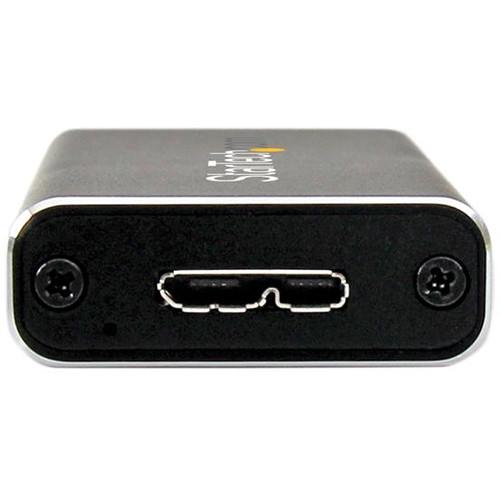

Product description Repurpose a 2230 (30mm), 2242 (42mm), 2260 (60mm), or 2280 (80mm) M.2 SATA SSD as an external USB 3.1 Gen 2 SSD using the M.2 SATA SSD Enclosure from StarTech to take advantage of enhanced data transfer rates of up to 10 Gb/s and streamline your workflow. With a sturdy aluminum housing, this enclosure protects the drive, while the built-in ventilation holes help ensure the drive doesn't overheat. On the outside of this, enclosure you will find a single micro-USB 3.1 Gen 2 port, and the included micro-USB to USB Type-C cable, which is compatible with Thunderbolt 3, will let you begin transferring data right out of the box. This enclosure is powered by the USB bus, has an MTBF rating of 1 million hours, supports TRIM, and has a power/activity LED indicator to alert you as to when the enclosure is powered on and the drive is operating. Also included are a M.2 screw kit and screwdriver to ensure you have all of the necessary tools to install your drive.
Please be aware that StarTech's M.2 SATA SSD Enclosure is only compatible with M.2 SATA SSDs with a SATA III 6 Gb/s, SATA II 3 Gb/s, or SATA I 1.5 Gb/s interface. It does not support M.2 NVMe or AHCI PCIe SSDs. General Features - A Portable Solution

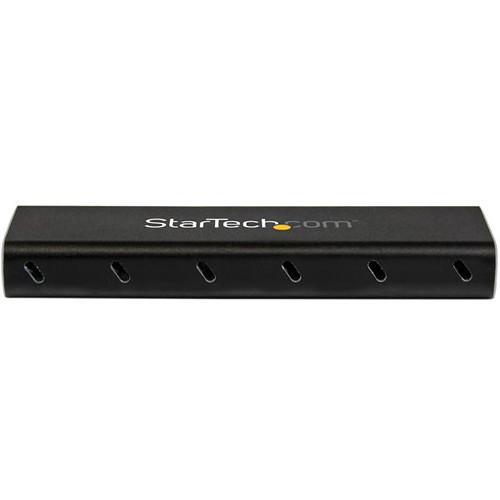

- This slim, pocket-sized M.2 NGFF SSD enclosure has been specially designed for mobility, with a small form factor design that fits easily into your laptop bag. Its lightweight yet durable aluminum housing helps to ensure your drive won't be damaged while you're on the move.

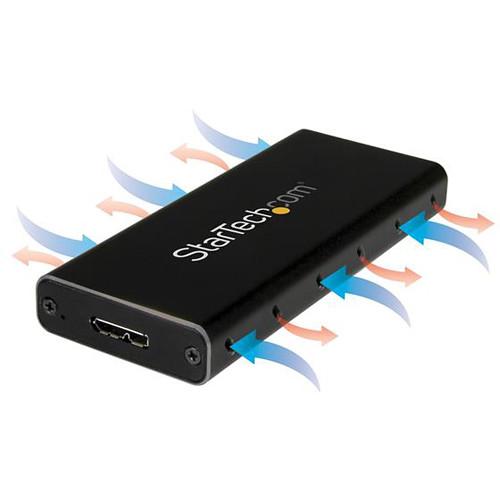

Ventilation holes help to dissipate heat and help ensure an optimum operating temperature. - Maximize the Performance of Your M.2 SSD
- Leverage the speed of your M.2 NGFF SATA drive with this external enclosure. It delivers USB 3.1 Gen 2 data transfer speeds up to 10 Gb/s, as well as UASP support, so you can achieve higher transfer speeds when you connect it to a UASP-enabled host computer.
The enclosure works with tablets, laptops and desktop computers and is compatible with hosts equipped with Thunderbolt 3 USB Type-C ports. - Broad Compatibility
- The enclosure is compatible with various M.2 SSDs, and enables you to mount multiple drive lengths, including: 30mm (2230), 42mm (2242), 60mm (2260), and 80mm (2280).
UPC: 065030864435 In the Box StarTech M.2 SATA SSD Enclosure USB Type-C to Micro-B Cable (18.5" / 47cm) M.2 Screw Kit Screwdriver Limited 2-Year Warranty Guides & Manuals bzscrccwes More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech M.2 SATA SSD Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech M.2 SATA SSD Enclosure can be downloaded in PDF format at the link stated below.
Technical parametersStarTech SM21BMU31C3 Specs | | | Number of Bays | 1 x M.2 (2280) | | Connections | 1 x USB Micro-B (USB 3.1 Gen 2 (10 Gb/s)) | | Compatible Drive Interface | SATA III | | Form Factor | Portable | | UASP Support | Yes | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | 14 to 149°F / -10 to 65°C | | Storage Humidity | 5 to 95% | | | | Material of Construction | Aluminum | | Cable Length | 18.5" / 46.99 cm | | Bridge Chipset | ASMedia ASM1351 | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 1.7 x 0.5 x 3.9" / 43.2 x 12.7 x 99.1 mm | | Weight | 1.9 oz / 55 g | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 6.142 x 5.039 x 1.26" |
Rating84% users recommend this product to others. And what about you?
This product has already been rated by 37 owners. Add your rating and experience with the product.
