User Manual for StarTech M.2 SSD to 2.5" SATA III Adapter Click to enlarge the picture
Contents of the user manual for the StarTech M.2 SSD to 2.5" SATA
- Product category: Internal Hard Drive Trays StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Internal Hard Drive Trays
 |
User manual for the StarTech M.2 SSD to 2.5" SATA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

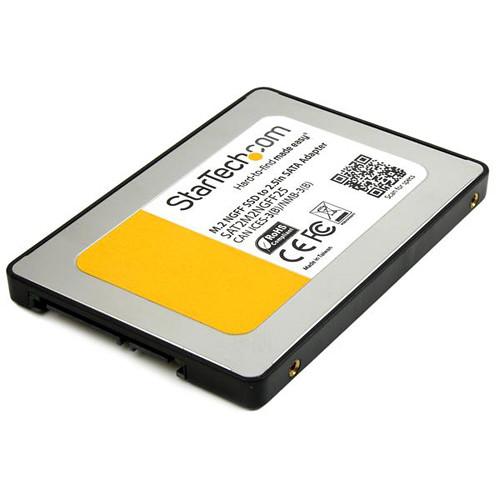

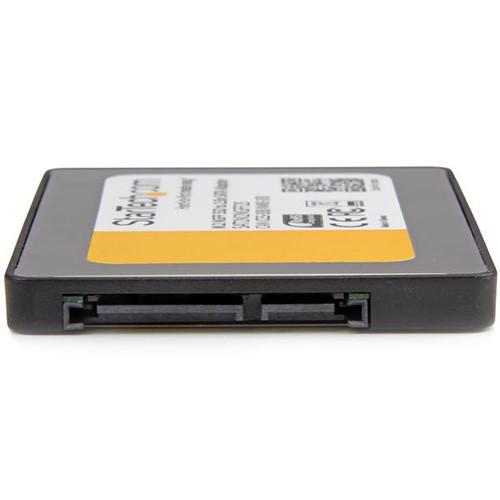

Product description Built using aluminum and plastic, the M.2 SSD to 2.5" SATA III Adapter from Startech provides users with a protective 2.5" housing for an M.2 SSD. This housing is equipped with a SATA III 6 Gb/s interface and once an M.2 drive is placed within, it may be used into your system's 2.5" drive bay as a boot drive. If your system has multiple 2.5" drive bays, then this adapter can provide additional storage. The M.2 SSD to 2.5" SATA III Adapter supports 2.5" drive bays that are 9.5mm or greater in height, is backwards compatible with SATA II 3 Gb/s and SATA 1.5 Gb/s, and is compatible with most M.2 SSDs, such as 2242, 2260, and 2280. It is OS independent, requires no software or drivers, and includes an SSD mounting kit, a housing mounting kit, and a mini screw driver. General Features - Protect your M.2 (NGFF) SSD in 2.5" applications using the enclosed housing
- Add M.2 SSD performance to most computer systems by converting an M.2 drive to a SATA drive
- Broad compatibility with support for the most common SATA M.2 SSDs (2242, 2260, 2280)
- Support for SATA III 6 Gb/s, SATA II 3 Gb/s, and SATA 1.5 Gb/s interfaces
- Supports 2.5" SATA drive bays that are 9.5mm or greater in height

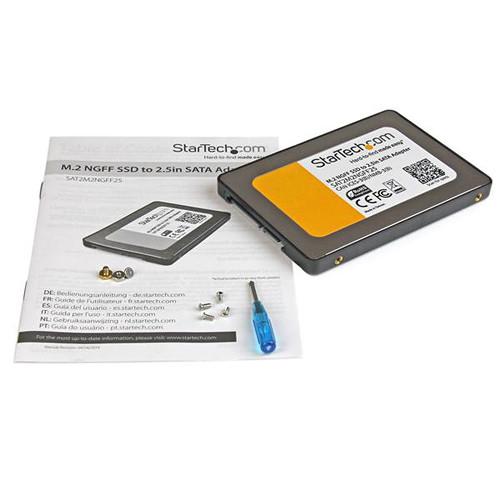

UPC: 065030859288 In the Box StarTech M.2 SSD to 2.5" SATA III Adapter SSD Mounting Kit Housing Mounting Kit Mini Screw Driver Limited 2-Year Warranty Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech M.2 SSD to 2.5" SATA III Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech M.2 SSD to 2.5" SATA III Adapter can be downloaded in PDF format at the link stated below.
Technical parametersStarTech SAT2M2NGFF25 Specs | | | Compatible Drive Types | M.2 (NGFF; B-Key) | | Drive Installation | Fixed | | Interface | SATA | | Number of Drives | 1 | | Supported Drive Heights | 2242, 2260, and 2280 | | | | Hot Swappable | No | | Maximum Data Transfer Rate | SATA 6 Gb/s | | | | Drive Connectors | 1 x M.2 (NGFF; B-Key) Receptacle
1 - SATA Data & Power Combo (7+15 pin) Receptacle | | | | OS Compatibility | OS independent; No software or drivers required | | | | Humidity | 5 to 95% RH | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | 14 to 185°F / -10 to 85°C | | | | Color | Black | | Enclosure Type | Aluminum and plastic | | Dimensions | 0.3 x 3.9 x 2.7" / 7.6 x 99.1 x 68.6 mm | | Weight | 1.8 oz / 51.0 g | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 6.2 x 5.2 x 1.3" |
