User Manual for StarTech Mini DisplayPort 1.2 to HDMI 4K Audio Video Converter Click to enlarge the picture
Contents of the user manual for the StarTech Mini DisplayPort 1.2 to HDMI
- Product category: Computer Monitor Adapters StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Computer Monitor Adapters
 |
User manual for the StarTech Mini DisplayPort 1.2 to HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

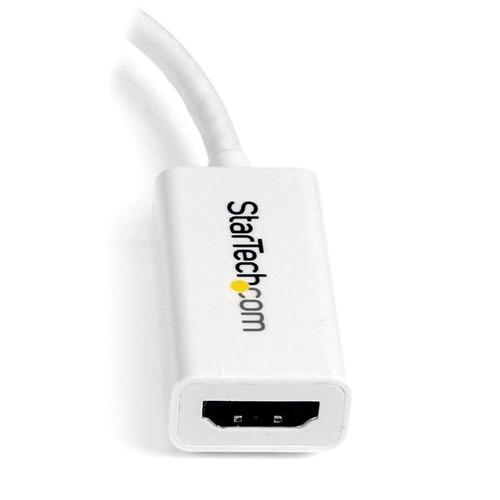

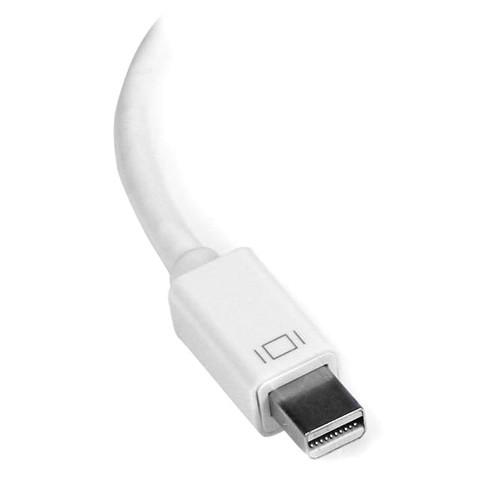

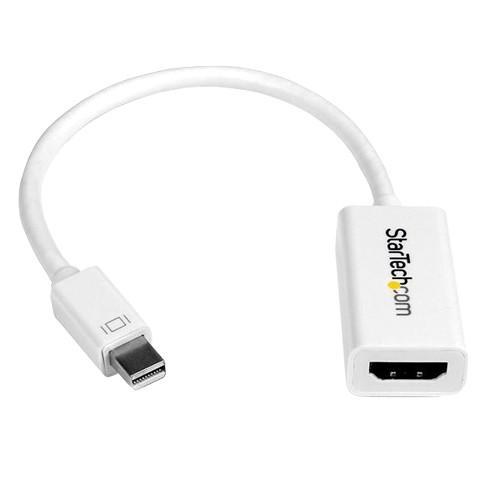

Product description The white Mini DisplayPort 1.2 to HDMI 4K Audio/Video Converter from StarTech enables you to connect a Mini DisplayPort-equipped device to an HDMI display. This adapter is compatible with Mini DisplayPort 1.2 and HDMI 4K at 30 Hz and as a result can support video resolutions up to Ultra HD (4K) as well as digital audio up to 7.1 channel surround sound.With support for Ultra HD (4K) the adapter ensures that you can convert Mini DisplayPort to HDMI while maintaining a picture quality four times the resolution of high-definition 1080p. The adapter is also backwards compatible with previous DisplayPort revisions 1.0/1.1 with support for resolutions up to 1080p. For a hassle-free setup the Mini DisplayPort to HDMI adapter allows for plug-and-play installation without any additional software or drivers. With a small footprint and lightweight design, the adapter maximizes portability. To ensure compatibility with any Mini DisplayPort output, the adapter offers an active conversion. Active video conversion is required to maintain 4K resolutions when converting Mini DisplayPort to HDMI. It is also ideal for outputting 1080p resolutions by ensuring compatibility with graphics cards that are not capable of outputting multi-mode DP++ signals. - Supports video resolution up to 4K
- Supports HDMI 4K at 30 Hz
- Compatible with Intel Thunderbolt devices that output a DisplayPort video signal
- Fully compliant with DisplayPort 1.2 revision
- Maximizes compatibility with support for DisplayPort revisions 1.2/1.1/1.0
- Easy to carry as a laptop accessory, with a compact design and no external power adapter needed
UPC: 065030857376 In the Box StarTech Mini DisplayPort 1.2 to HDMI 4K Audio/Video Converter (White) Limited 2-Year Warranty Brochure PDF 95.8kbuzwyzwqwrfww More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech Mini DisplayPort 1.2 to HDMI 4K Audio Video Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech MDP2HD4KSW Specs | | | Converter Type | Active | | Port | 1 | | | | Audio | 7.1 surround sound | | Supported Resolutions | 4K x 2K (Ultra HD)
1920x1200
1920x1080 (1080p)
1280x720 (720p)
Digital Resolution: 4K x 2K at 30 Hz (maximum) | | Connectors | Connector A: 20-pin Mini DisplayPort
Connector B: 19-pin HDMI | | | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Storage Temperature | +14 to +158°F (-10 to +70°C) | | Humidity | 10 to 85% | | | | Standards | DPCP (DisplayPort Content Protection)
HDCP (High Definition Content Protection)
DisplayPort 1.2
HDMI 1.4 | | | | Cable Length | 5.9" (150.0 mm) | | Weight | 1.9 oz (55.0 g) | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 8.0 x 5.0 x 0.3" |
