User Manual for StarTech Mini VGA Video and Audio Extender over Cat5 Click to enlarge the picture
Contents of the user manual for the StarTech Mini VGA Video and Audio
- Product category: KVM Extenders StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech KVM Extenders
 |
User manual for the StarTech Mini VGA Video and Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

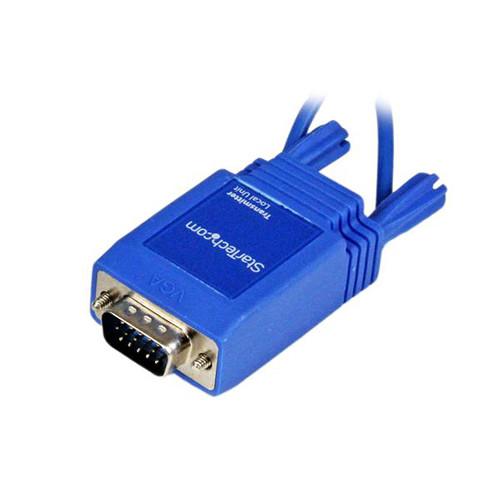

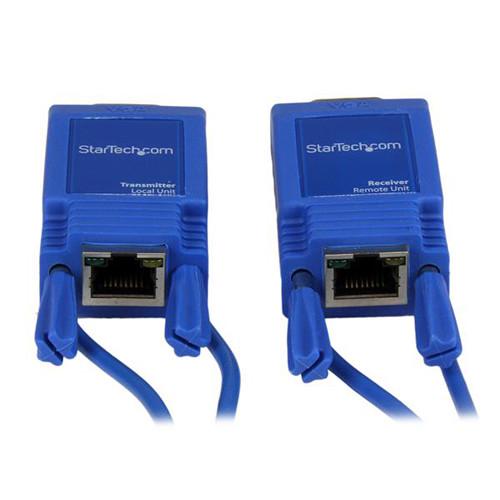

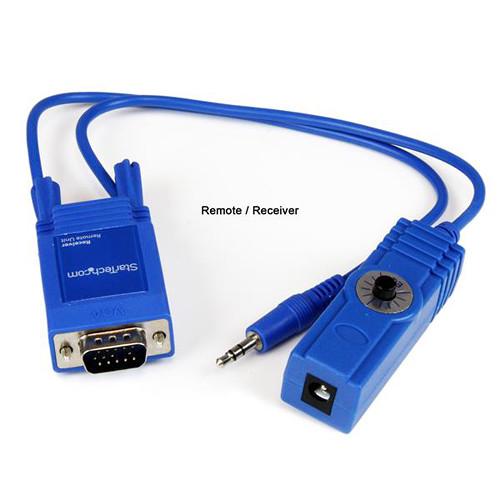

Product description The Mini VGA Video and Audio Extender over Cat5 from StarTech features a high-resolution, point-to-point digital signage solution comprised of one local transmitter and one remote receiver. Simply connect the local (transmitter) unit to the VGA video and audio source, and the remote unit to a VGA display up to 295’ away. To start extending the VGA and audio signal, create a point-to-point connection by using Cat5/5e/6 UTP cable.

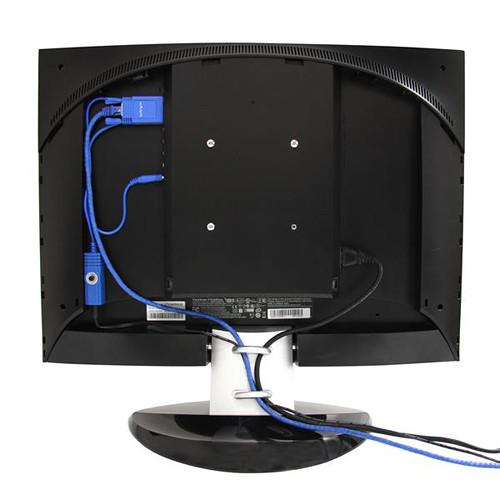

The Cat5 VGA extender places your display as needed, eliminating standard distance limitations for a more effective digital signage configuration. This small form factor extender is compact enough to be tucked away behind the display even when space is limited. - Features
-
- Transmit VGA video and audio through a single Cat5 or better cable
- Supports resolutions up to 1920 x 1200 at 295’
- USB-powered transmitter unit; no external AC adapter required
- Receiver has a built-in equalizer for fine-tuning image quality
- Hardware design; no software or drivers required
- Applications
-
- Suitable for compact spaces or when a boxed VGA extender is not convenient for the installation
- Use digital signage and deliver up-to-date content the way you want it to be seen and heard
- Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
- Suitable for digital signage applications in educational, corporate, retail, health-care, and hospitality sectors
- Suitable for videoconferencing solutions in boardrooms and office settings
- Optimize placement of your demo stations at trade shows and in auditoriums

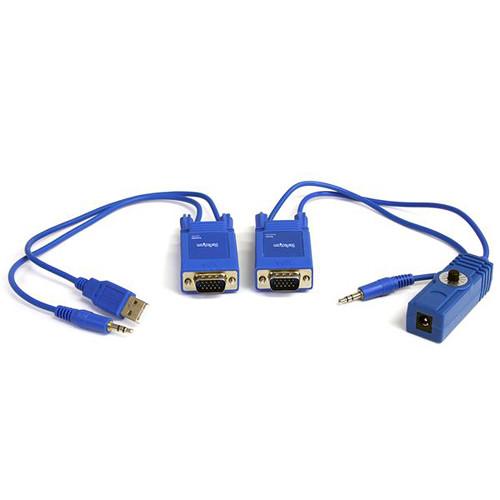

UPC: 065030832946 In the Box StarTech Mini VGA Video and Audio Extender over Cat5 VGA over Cat5 Transmitter VGA over Cat5 Receiver Universal Power Adapter Limited 2-Year Warranty Brochure PDF 154.6kbfaeztzuybbbxxf Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech Mini VGA Video and Audio Extender over Cat5 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech ST121UTPMINI Specs | Cabling | Cat5e UTP or better | | Ports | 1 | | Audio | 2-channel stereo audio supported | | Maximum Analog Resolution | 1920 x 1200 | | Maximum Cable Length | 295.2' / 90 m | | Supported Resolutions | 1920 x 1200 @ 295' / 90 m | | Connectors | Transmitter:
1 x RJ45, female
1 x 15-pin VGA (high-density D-Sub), male
1 x 3.5 mm mini-jack (3-position), male
2 x USB Type-A (4-pin), male
Receiver:
1 x RJ45, female
1 x 15-pin VGA (high-density D-Sub), male
1 x 3.5 mm mini-jack (3-position), male | | LED Indicators | Power and video status | | Center Tip Polarity | Positive | | Input Voltage | 110 to 240 VAC | | Output Current | 1 A | | Output Voltage | 5 VDC | | Plug Type | M | | Power Source | AC adapter, included | | Enclosure Type | Aluminum | | Dimensions (L x W x H) | 13.2 x 1.3 x 0.7" / 33.5 x 3.3 x 1.7 cm | | Weight | 3 oz / 84 g | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 8.7 x 4.8 x 2.7" |
