User Manual for StarTech NETRS2322P 2-Port Serial-to-IP Ethernet Device Server Click to enlarge the picture
Contents of the user manual for the StarTech NETRS2322P 2-Port Serial-to-IP Ethernet Device
- Product category: Network Transceivers StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Network Transceivers
 |
User manual for the StarTech NETRS2322P 2-Port Serial-to-IP Ethernet Device contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

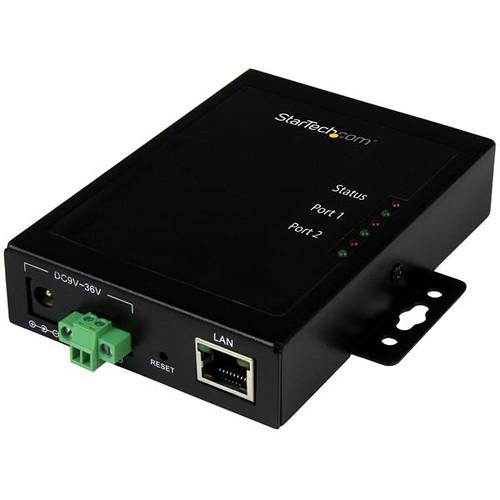

Product description Connect two serial devices to your IP network with the NETRS2322P 2-Port Serial-to-IP Ethernet Device Server from StarTech. This device server comes equipped with dual DB9 serial ports, a single RJ-45 female port, and a single terminal block. Installation is simple thanks to the built-in mounting brackets while the redundant power input ensures you can keep connected devices powered during power dips or power failures. - Flexible Installation in a Range of Environments
- This serial-over-IP control solution features a rugged metal housing and an extended operating temperature range, you can rest assured that the device server can deliver the reliable performance you need, even in harsh environments.
Plus, it features two integrated mounting brackets, so you can mount the device server to a surface or a wall as needed, for out-of-the-way installations. - Backup Power Keeps Your Devices Connected

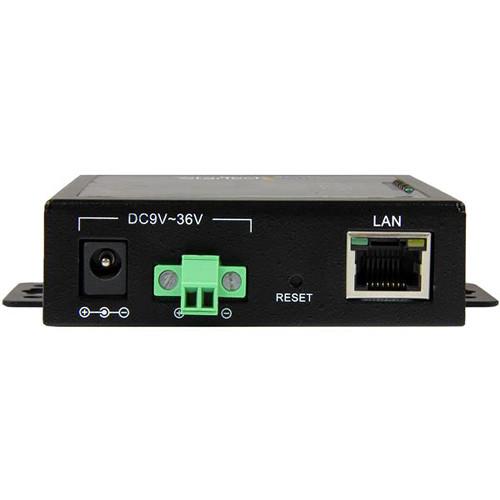

- With redundant power input, this dual-port serial device server ensures seamless operation, even in the event of power dips or failures. It features a wide-range, terminal block power input (9~36 VDC), and includes a universal power adapter.
Because it features two power inputs, if you experience a power disruption the device server automatically switches to its secondary power source. With redundant power input, the device server remains operational if one of the power sources fails, so you can continue to connect to and manage your serial devices when needed. - Completely Customizable
- This highly customizable device server is easy to configure to suit your application. For easy setup, Windows users can use the provided Virtual COM port software, or the versatile Web-based interface.

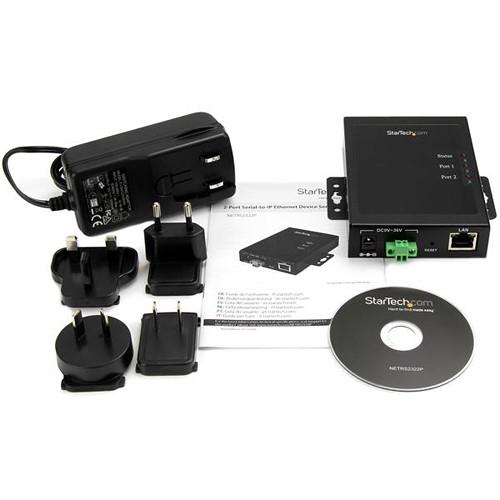

The RS232 device server supports Telnet (an operating system independent communication protocol), so it can be integrated into mixed OS environments (Windows, Mac, Linux). Plus, it supports VCOM, TCP, ICMP, IP, TCP, UDP, DHCP, and BOOTP protocols. UPC: 065030864145 In the Box StarTech NETRS2322P 2-Port Serial-to-IP Ethernet Device Server 2-Port Serial Device Server Terminal Block (2-Wire) Universal Power Adapter Limited 2-Year Warranty Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech NETRS2322P 2-Port Serial-to-IP Ethernet Device Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech NETRS2322P 2-Port Serial-to-IP Ethernet Device Server can be downloaded in PDF format at the link stated below.
Technical parametersStarTech NETRS2322P Specs | Hardware | Industry Standards
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX
Interface
Serial
Ports
2 | | Performance | Auto MDIX
Yes
Auto-Negotiation
Yes
Compatible Networks
10/100 Mb/s
Data Bits
7, 8
Flow Control
XON/XOFF, RTS/CTS, None
Full Duplex Support
Yes
Isolation
2500 Vrms
Max Baud Rate
460.8 Kbps
Parity
None, Even, Odd, Space, Mark
Remote Management Ability
Yes
Serial Protocol
RS-232
Supported Protocols
ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet
Surge Protection
ESD (Electrostatic Discharge) Protection:
15kV Human Body Model (HBM)
15kV IEC1000-4-2 Air
8kV IEC1000-4-2 Contact | | Connectors | Connector Type

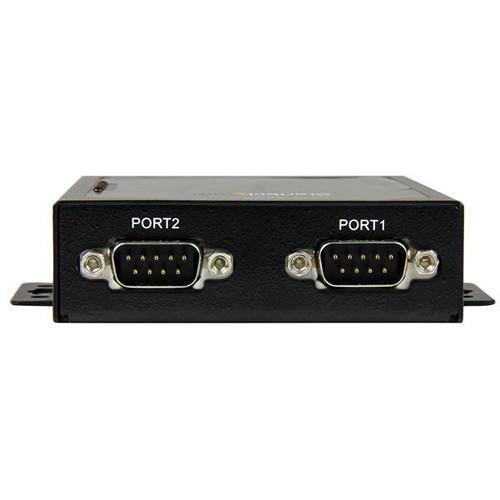

2 x DB-9 (9 pin, D-Sub) male
1 x RJ-45 female
1 x Terminal Block (2 Wire) | | OS Compatibility | Virtual COM Software - Windows Only
Windows Vista, 7, 8, 8.1, 10
Windows Server 2008 R2, 2012, 2016
Note: The device server's hardware is compatible with Mac OS and Linux; however, the provided Virtual COM software is not compatible with these operating systems. When used with a Mac or Linux operating system, the device server can only be configured using the Web-GUI. | | LED Indicators | 2 x Status
2 x Port 1
2 x Port 2
1 x 10/100 Mb/s LAN
1 x Link / Activity | | Power | Center Tip Polarity
Positive
Input Current
1.5 A
Input Voltage
100 ~ 240 AC
Output Current
3 A
Output Voltage
12 DC
Power Consumption (In Watts)
36
Power Source
AC Adapter Included | | Temperature & Humidity | Operating Temperature
32 to 185°F / 0 to 85°C
Storage Temperature
-49 to 266°F / -45 to 130°C
Humidity
20 to 80% RH (non-condensing) | | Enclosure Type | Steel | | Dimensions | 0.9 x 4.4 x 3.2" / 23 x 112 x 81 mm | | Weight | 11.3 oz / 320 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 8.5 x 5.9 x 2.1" |
