User Manual for StarTech PCI Express x4 to M.2 PCIe SSD Adapter Click to enlarge the picture
Contents of the user manual for the StarTech PCI Express x4 to M.2
- Product category: Controller Cards StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Controller Cards
 |
User manual for the StarTech PCI Express x4 to M.2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

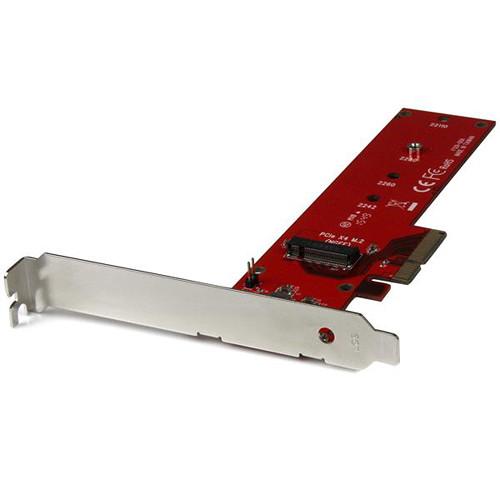

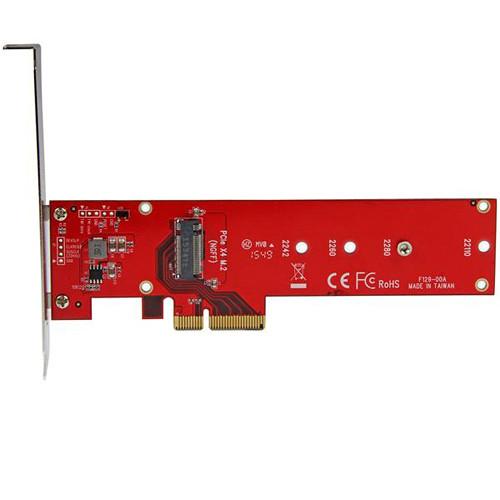

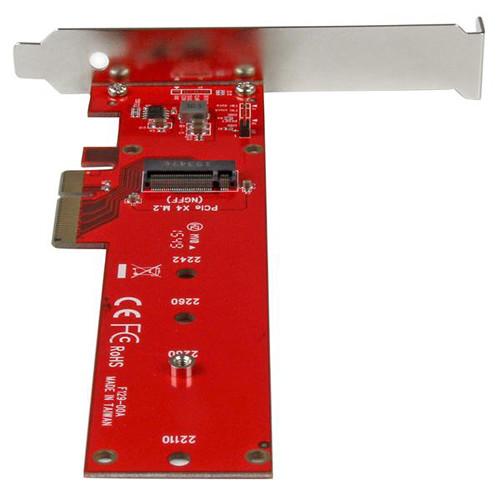

Product description The red PCI Express x4 to M.2 PCIe SSD Adapter from StarTech lets you add a high-speed, 4-lane M.2 SSD (PCIe-based) to a PC with an available x4 PCI Express expansion slot. You can mount the M.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system's performance and expand its overall internal storage. The adapter connects directly to your computer's motherboard to support an M.2 PCIe-based SSDs (NVMe or AHCI) through x4 PCIe, is compatible with PCIe 3.0 motherboards, and is also backwards compatible with PCIe 2.0 and PCIe 1.0. The adapter supports PCIe 3.0 x4 NVMe (M Key) and PCIe-AHCI M.2 SSDs including 2242, 2260, 2280, and 22110 drives. The expansion slot adapter also supports the most common drive sizes including 110, 80, 60, and 42mm. It is equipped with a full-profile bracket and includes a half-height/low-profile bracket, for installation in small form-factor computers. - General Features
- Boost system speed and performance by adding a PCIe M.2 SSD to your PC
- Supports PCIe M.2 SSDs (NVMe and AHCI): 2242, 2260, 2280, and 22110 drives
- Compatible with PCIe 3.0 motherboards and backwards compatible with PCIe 2.0 and 1.0
- Fast and easy setup with native OS support
- Installs into x16, x8, or x4 PCIe slots

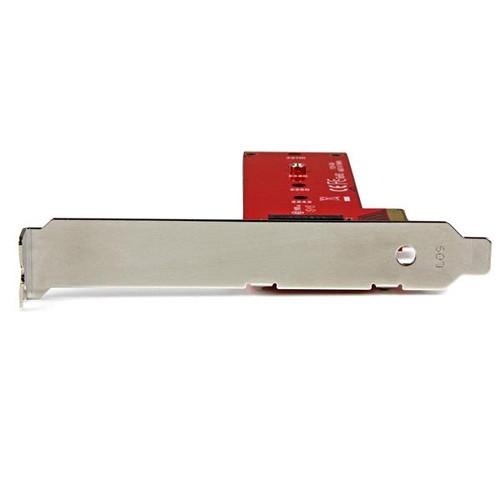

- Equipped with a full-profile bracket, and includes a half-height/low-profile bracket for installation in small form factor computers

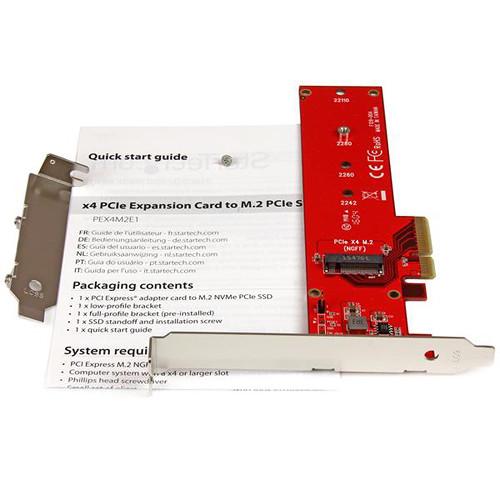

UPC: 065030865043 In the Box StarTech PCI Express x4 to M.2 PCIe SSD Adapter Low-Profile Bracket SSD Standoff and Installation Screw Limited 2-Year Warranty Brochure PDF 203.5kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech PCI Express x4 to M.2 PCIe SSD Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech PEX4M2E1 Specs | | | Bus Type | PCI express | | Compatible Drive Types | M.2 (NGFF; M-Key; PCIe x4) | | Drive Installation | Fixed | | Drive Size | 22m - M.2 NGFF | | Interface | PCI Express | | Number of Drives | 1 | | Supported Drive Heights | 2242
2260
2280
22110 | | | | Drive Connectors | 1 x M.2 (NGFF; M-Key; PCIe x4) | | Host Connectors | 1 x PCI Express x4 (male) | | | | OS Compatibility | OS independent; no software or drivers required | | | | LED Indicators | 1-pin header on board for drive LED connection | | | | Operating Temperature | 41 to 122°F (5 to 50°C) | | Storage Temperature | -13 to 158°F (-25 to 70°C) | | Humidity | 15 to 90% RH | | | | Color | Red | | Drive Height | 4.3" / 11 cm (max) | | Dimensions | 7.2 x 7.0 x 4.8" / 18.4 x 17.9 x 12.1 cm | | Weight | 1.6 oz / 46 g | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 8.5 x 6.2 x 1.9" |
