User Manual for StarTech PCIe to 4-Slot PCI Expansion System Click to enlarge the picture
Contents of the user manual for the StarTech PCIe to 4-Slot PCI Expansion
- Product category: Expansion Chassis StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Expansion Chassis
 |
User manual for the StarTech PCIe to 4-Slot PCI Expansion contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

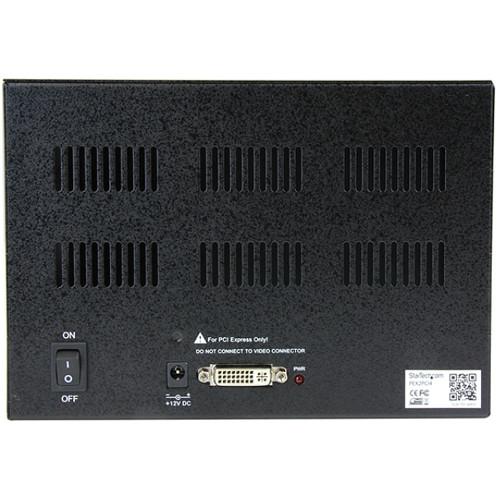

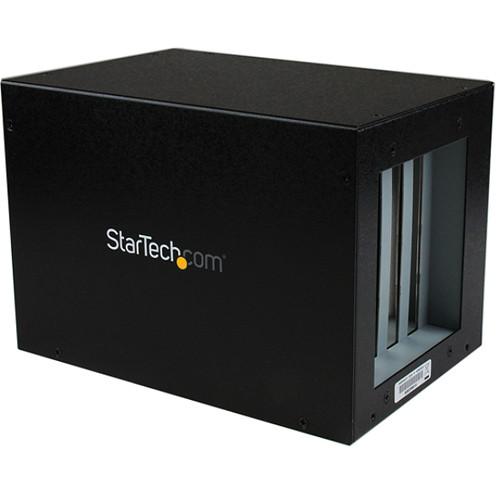

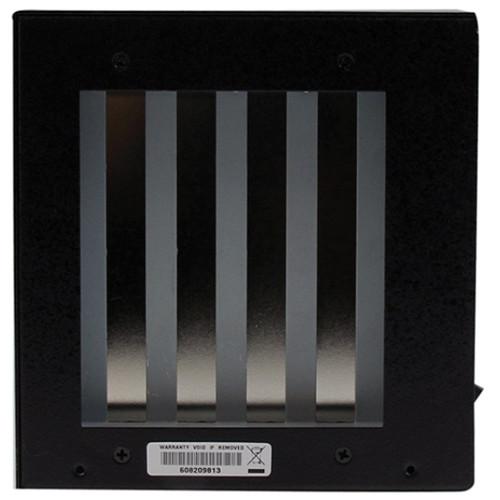

Product description The black PCIe to 4-Slot PCI Expansion System from StarTech adds four external PCI expansion card slots to a desktop or laptop computer system. It provides a quick and simple solution to I/O expandability on almost any PCIe enabled system. This cost-effective and time-saving method of simply adding additional PCI cards to a server/workstation or providing a platform to be able to swap PCI add-in cards between a mobile and desktop setup is the optimal method of maximizing the I/O capabilities of new or existing systems. The external expansion chassis adds four PCI slots (32-bit/33 MHz) to the host computer system through a single PCIe connection. It provides total bandwidth of up to 250 MB/s from the PCIe x1host controller card, which allows the host computer to function as though the cards in the expansion chassis were connected directly to the motherboard. For mobile applications, the expansion chassis can be connected to an ExpressCard enabled laptop using the ExpressCard connection cable (EC2PCI), which adds the same functionality offered by the expansion chassis to a laptop. This eliminates the expense and need of having to purchase different card adapters for the laptop. - Convert a single PCIe slot to four additional external PCI slots without any driver or software installation
- The external expansion enclosure simplifies swapping PCI cards, without ever having to move or take apart the main desktop/server
- Expand an existing system's I/O capabilities without having to purchase an entirely new system
- Expand a laptop's I/O capabilities with desktop PCI cards using the EC2PCI
- Ideal for system testers and engineers who may need to regularly swap out I/O cards
- Add full height cards to a small form factor system
- Provides PCI support to systems with only PCIe slots
- Provides data acquisition, telephony, storage, and audio capabilities with additional I/O expansion slots

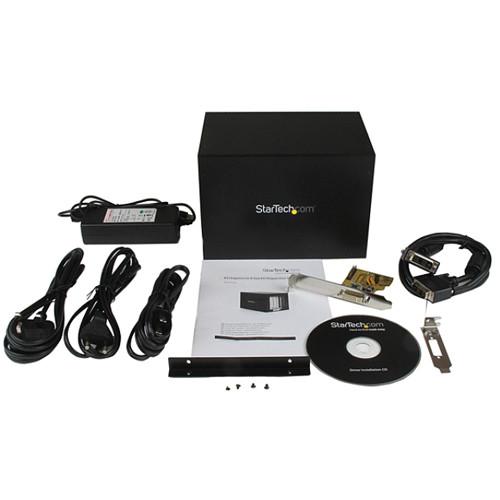

UPC: 065030825184 In the Box StarTech PCIe to 4-Slot PCI Expansion System (Black) PCIe Card 3.0' (0.9m) DVI Cable Low Profile Bracket Screw Kit Power Cable Power Adapter Installation CD Limited 2-Year Warranty Brochure PDF 195.8kbsbxtrdyetfzbvyfwdxec More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech PCIe to 4-Slot PCI Expansion System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech PEX2PCI4 Specs | | | Expansion Slots | 1 x PCIe
4 x PCI | | Operating System Support | Linux, Windows, macOS/OS X | | | | Power Source Type | External Adapter | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 3 A | | | | Operating Temperature | 32 to 131°F / 0 to 55°C | | Storage Temperature | -40 to 167°F / -40 to 75°C | | | | Construction Material | Aluminum, Steel | | Dimensions | 8.0 x 5.4 x 5.6" / 20.4 x 13.7 x 14.2 cm | | Weight | 5.2 lb / 2.4 kg | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 9.9 x 9.7 x 8.2" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 81 owners. Add your rating and experience with the product.
