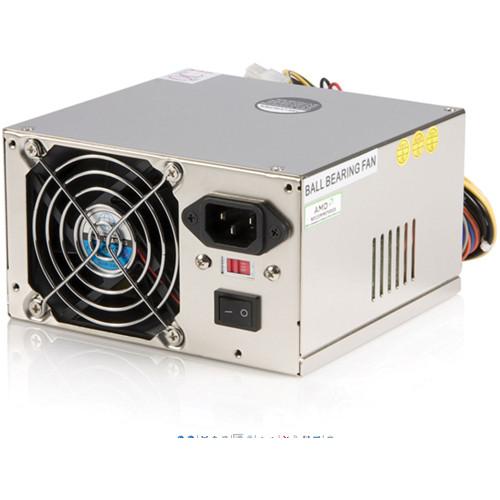

User Manual for StarTech Professional 400 Watt ATX12V 2.01 Computer Power Supply with PCIe and SATA Click to enlarge the picture
Contents of the user manual for the StarTech Professional 400 Watt ATX12V 2.01
- Product category: Power Supplies StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Power Supplies
|
User manual for the StarTech Professional 400 Watt ATX12V 2.01 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description StarTech's Professional 400 Watt ATX12V 2.01 Computer Power Supply with PCIe and SATA offers a professional-grade PC power solution, with support for modern AMD and Intel-based dual-core CPU designs as well as PCI Express and SATA device connections. Compliant with ATX12V 2.01 revision standards, the power supply offers dual 12V power rails and ensures broad compatibility with a 20/24 pin motherboard connection. Designed to provide dependable, long-lasting power to your hard working AMD or Intel CPU based system, the 400 Watt Power Supply features an 80mm dual ball bearing fan to help keep the PSU cool. To ensure stable power delivery to the most demanding devices, the power supply features Quad+1 protection against short-circuit, over-power, over-voltage and no-load situations. - ATX12V 2.01 compliant and 24/20 pin split motherboard connector for compatibility with existing standards
- Two separate 12V power rails to deliver stable power to demanding devices
- Quad+1 protection against: short circuit, over power, over voltage, no load
- Premium EMI/RFI power filtration provides low noise and ripple for stable power delivery
- Generous number of accessory connectors
UPC: 065030817745 In the Box StarTech Professional 400 Watt ATX12V 2.01 Computer Power Supply with PCIe and SATA Limited 3-Year Warranty Brochure PDF 200.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech Professional 400 Watt ATX12V 2.01 Computer Power Supply with PCIe and SATA in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech ATX2PW400PRO Specs | Total Connectors | 1 x 20+4-Pin Motherboard 1 x 4-Pin P4 1 x 6-Pin PCIe 4 x 15-Pin SATA 4 x 4-Pin Peripheral / Molex 2 x 4-Pin Floppy | | Total Wattage | 400 W | Number of +12 V Rails | 2 | Max Load for +12 V | 14 to 15 A | Max Load for +3.3 V | 30 A | Max Load for +5 V | 28 A | Max Load for +5 Vsb | 2.5 A | Max Load for -12 V | 1 A | AC Input Power | 115 to 230 VAC, 50 / 60 Hz at 5.5 to 10 A | | Efficiency Rating | None | Efficiency | 68% | | Fan Size | 80 mm | Bearing Type | Ball | | Mean Time Between Failures (MTBF) | 100,000 Hours | Dimensions | 5.9 x 5.5 x 3.4" / 150.0 x 140.0 x 86.0 mm | Weight | 4.2 lb / 1.9 kg | | Package Weight | 4.75 lb | Box Dimensions (LxWxH) | 9.2 x 8.0 x 4.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 91 owners. Add your rating and experience with the product.
