User Manual for StarTech Remote Receiver with Audio Support for VGA Video Extension over CAT5 Cable Click to enlarge the picture
Contents of the user manual for the StarTech Remote Receiver with Audio Support
- Product category: KVM Extenders StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech KVM Extenders
 |
User manual for the StarTech Remote Receiver with Audio Support contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

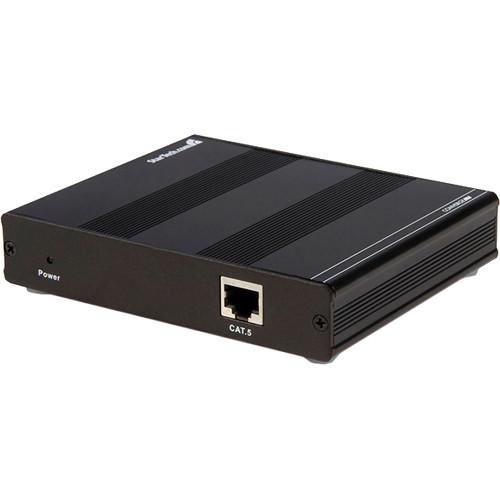

Product description The black Remote Receiver with Audio Support for VGA Video Extension over CAT5 Cable from StarTech is a video distribution system that simplifies the implementation of digital signage solutions by allowing a VGA source with audio to be broadcast over a CAT5 cable (sold separately) up to 950’ away.Multiple units of this receiver when used with ST124UTPEA 4- or ST128UTPEA 8-port VGA & Audio extenders (sold separately) allow transmission of a single VGA output and corresponding audio to 4 or 8 displays over standard CAT5 or better UTP cable (sold separately).You can also multiply the number of remote displays in your setup by adding the STUTPEA4X VGA & Audio over CAT5 Line Splitter (sold separately) to it, allowing your VGA and accompanying audio signals to be broadcast up to a total 16 displays. - Extend and distribute VGA signals and the accompanying audio to a remote display over a CAT5 cable (sold separately)
- Send videos and audio over a CAT5 or better cable to remote displays
- Receiver supports a resolution of 1280 x 1024 / 720p for monitors situated up to 950' away and 1920 x 1080/1080p for the ones situated 250' away
- Choice of using a 4- or 8-port transmitter / extender unit (sold separately)
- Extends the connection distance of VGA signals by up to 950' offering flexibility in the placement of your equipment
- CAT5 extension design allows you to make use of existing CAT5 or better wiring infrastructure
- Pure hardware design; no software or drivers required for simple implementation
- Use digital signage to catch the attention of your audience and deliver up to date content in financial, educational, and business sectors
- Place the display in a convenient viewing area while the system equipment is placed elsewhere in a clean and secure environment
- Extend your display across harsh environment industrial sites
- Utilizable for video conferencing solutions in boardrooms and office settings
- Optimize placement of your demo stations at trade-shows and in auditoriums
- CE, FC, and RoHS compliant
- Supports audio and daisy-chain
- Widescreen format signals supported

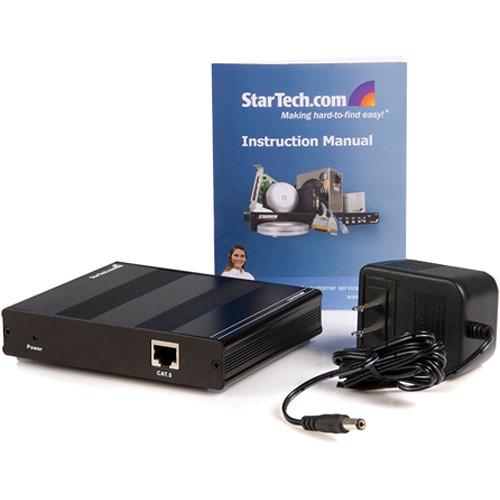

UPC: 065030830379 In the Box StarTech Remote Receiver with Audio Support for VGA Video Extension over CAT5 Cable (Black) Power Adapter Limited 2-Year Warranty With Free Lifetime Technical Support Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech Remote Receiver with Audio Support for VGA Video Extension over CAT5 Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech Remote Receiver with Audio Support for VGA Video Extension over CAT5 Cable can be downloaded in PDF format at the link stated below.

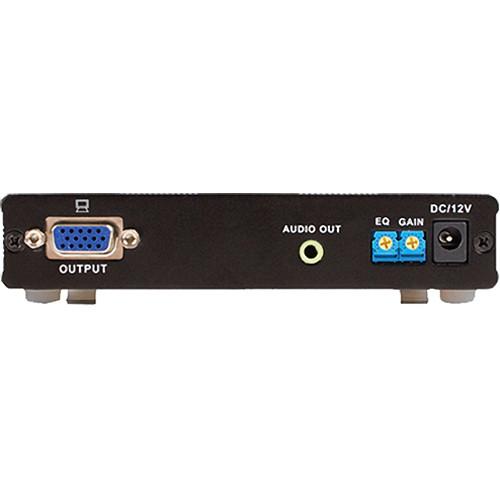

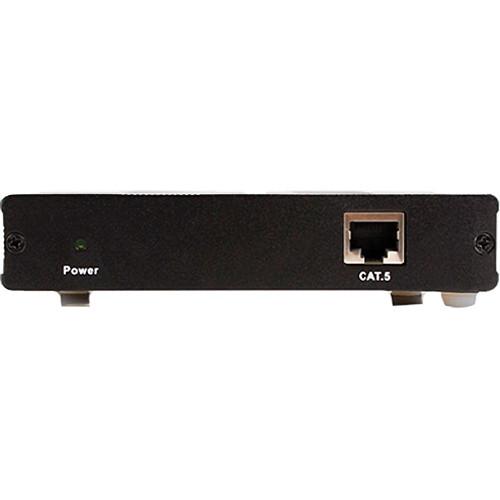

Technical parametersStarTech STUTPEALR Specs | | | Port | 1 | | Cabling Type | CAT5 UTP or better | | | | Remote Connection | Remote Unit Connectors:
1 x 3.5 mm mini-jack (3-position) female
1 x RJ-45 female
1 x VGA (15-pin; high density D-sub) female | | | | Maximum Distance | 950' (300 m) | | Supported Resolutions | 1920 x 1200 @ 250' (75 m)
1440 x 900 @ 500' (150 m)
1024 x 768 @ 950' (300 m) | | | | Output Voltage | 12 VDC | | Output Current | 0.6 A | | Center Tip Polarity | Positive | | | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Humidity | 5 to 90% RH | | | | Enclosure Type | Aluminum | | Dimensions (L x W x H) | 5.1 x 4.4 x 1.0" (13.0 x 11.1 x 2.5 cm) | | Weight | 9.5 oz (270.0 g) |
