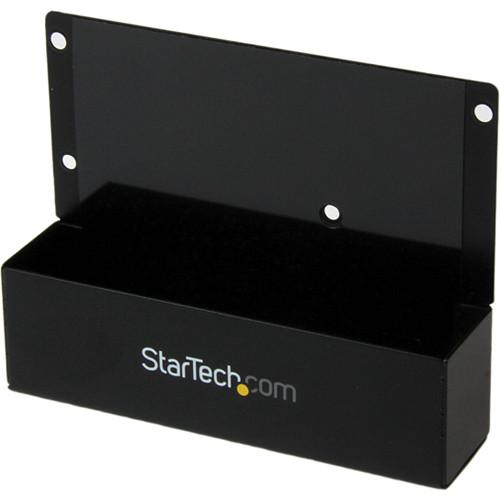

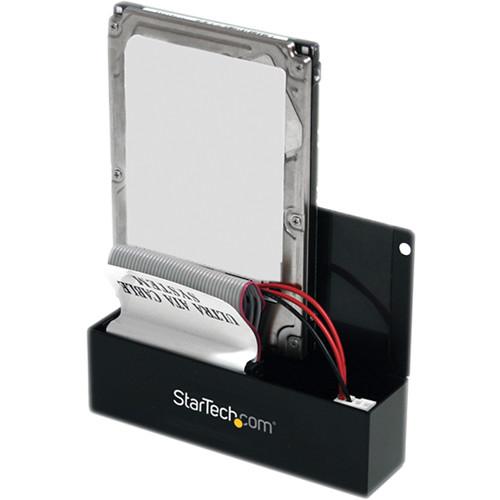

Product description The black SATA to 2.5" or 3.5" IDE Hard Drive Adapter for HDD Docks from StarTech allows you to use your 2.5"/3.5" IDE-based (PATA) hard drives in SATA-based HDD docking stations and drive duplicators. The SATA-IDE adapter features all-metal construction that ensures maximum durability, and is fully compatible with IDE hard drives up to ATA-133 (133 MB/s). The unique design of the SATA/IDE adapter enables it to be easily mounted to an IDE/ATA hard drive and inserted into a SATA hard drive dock bay for quick and easy retrieval of data from older HDDs. The adapter can also be used to install IDE hard drives into SATA desktop computers, or any other scenario that requires an IDE hard drive to be connected through serial ATA. - Unique design allows any 2.5"/3.5" IDE hard drive to be used and inserted (upright) into a SATA HDD docking station or duplicator drive bay
- Durable metal construction
- Compatible with most 3.5" SATA hard drive docking stations and duplicators
- Large capacity hard drive support with 48-bit LBA
- Compliant with SATA revision 1.0
- Compatible with PATA (IDE) 66/100/133 MB/s hard drives
- Mounting holes for both 2.5" and 3.5" form factor IDE hard drives
Applications - Use old IDE/PATA hard drives in a SATA hard drive docking station
- Install an IDE/PATA hard drive into a computer with only SATA ports
- Easily recover data from a 2.5" (laptop) IDE hard drive by connecting it to a SATA-enabled computer or docking station
- Designed for technicians who are required to work with a wide variety of old and new technologies

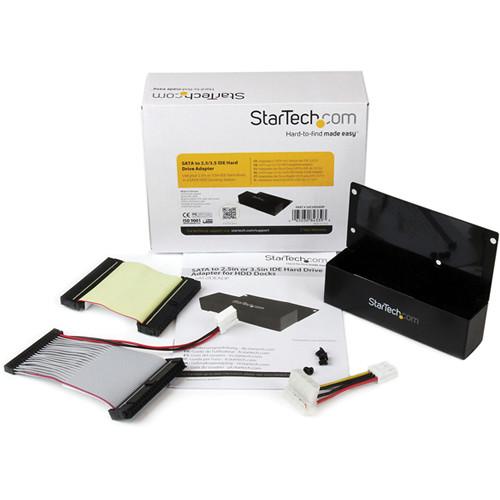

UPC: 065030843393 In the Box StarTech SATA to 2.5" or 3.5" IDE Hard Drive Adapter for HDD Docks (Black) 40-Pin IDE Cable 40-Pin to 44-Pin IDE Cable with Power SP4 to LP4 Power Cable Package of Mounting Screws Limited 2-Year Warranty Brochure PDF 134.6kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech SATA to 2.5" or 3.5" IDE Hard Drive Adapter for HDD Docks in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

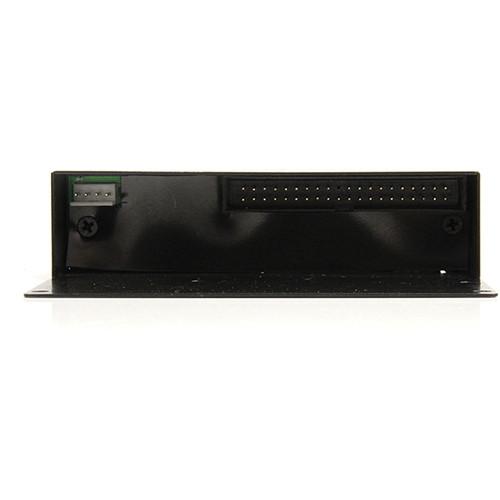

Technical parametersStarTech SAT2IDEADP Specs | | | Number of Drives | 1 | | Drive Size | 2.5" & 3.5" | | Drive Type | IDE (ATA) | | Drive Installation | Fixed | | Chipset ID | Jmicron-JM20330 | | LBA Support | 48-bit | | Enclosure Type | Steel | | | | Connector | 1 x SP4 (4-pin; small drive power) male | | Drive Connectors | 1 x IDE (40-pin; EIDE/PATA) female
1 x IDE (44-pin; EIDE/PATA; 2.5" HDD) female

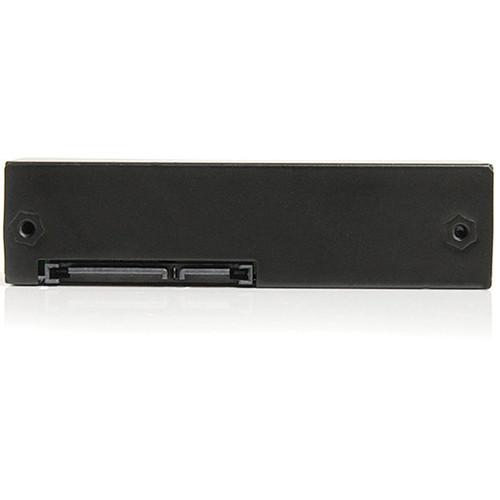

1 x LP4 (4-pin; molex large drive power) female | | Host Connectors | 1 x SATA (7-pin; data) plug
1 x SATA power (15-pin) plug | | | | OS Compatibility | OS independent
No software or drivers required | | Device Supported | SATA HDD Docking Stations and Duplicators:
SATADOCK22UE, SATDOCK2UEGB, SATDOCK22RE, SATDOCK22R, SATDOCKU3S, SATADOCKU2, SATADOCKU2E, SATDOCK4U2E, SATDOCK4U3E, SATDOCKCRH, SATDOCKU3E, SATDOCKU2EGB, and SATDOCKU2GB | | Temperature | Operating: 41 to 176°F (5 to 80°C)
Storage: -40 to 158°F (-40 to 70°C) | | Relative Humidity | 8 to 90% | | Certifications | CE, FCC, RoHS | | Dimensions (L x W x H) | 4.0 x 3.1 x 1.0" (101.6 x 78.7 x 25.4 mm) | | Weight | 3.7 oz (104.0 g) | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 5.8 x 4.4 x 1.5" |
