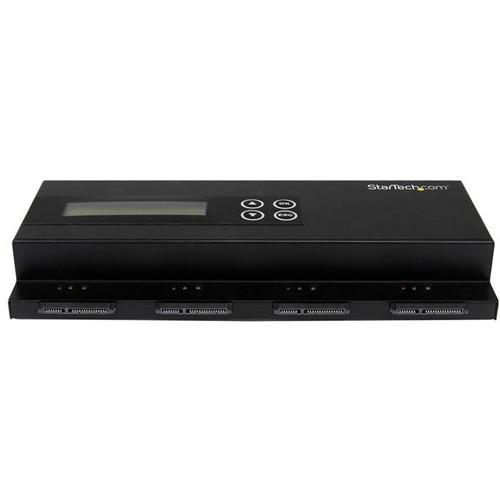

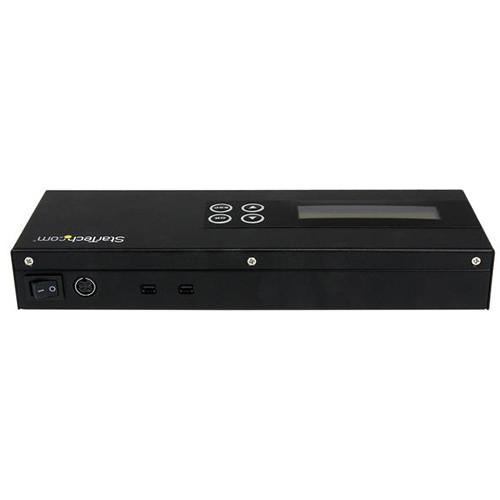

User Manual for StarTech SATDUP13 Standalone 1:3 SATA 2.5" 3.5" HDD Duplicator & Eraser Click to enlarge the picture
Contents of the user manual for the StarTech SATDUP13 Standalone 1:3 SATA 2.5"
- Product category: Drive Duplicators StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Drive Duplicators
 |
User manual for the StarTech SATDUP13 Standalone 1:3 SATA 2.5" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description The black SATDUP13 Standalone 1:3 SATA 2.5"/3.5" HDD Duplicator & Eraser from StarTech lets you copy up to three, or erase up to four SATA HDDs or SSDs simultaneously, without having to connect to a host computer. It works with any 3.5" or 2.5" SATA HDD or SSD, and features an integrated LCD that makes it easy to monitor cloning/erasing performance. The versatile 1:3 duplicator features three operating modes for duplication, including Data Only, All Partitions, and Sector by Sector cloning. It also offers several erase modes, including Quick Erase, Secure Erase, and Single-Pass/Multi-Pass Hard Drive Overwriting (DoD), which passes over the hard drive three times to ensure that the data has been completely wiped. For increased scalability, the HDD duplicator/eraser features a daisy-chain port that gives you the option to combine multiple SATDUP13 units together, allowing up to four additional drives to be erased or copied with each added unit, to help save you time. - High quality aluminum construction
- Three modes hard drive duplication including Sector-by-Sector
- 1:1, 1:2, or 1:3 drive duplication
- Daisy-chain support, using additional SATDUP13 units
- Erase up to four hard drives with single-pass and multi-pass overwriting/DoD erasing
- Digital LCD Display for operation and task progress
- Supports 2.5"/3.5" form factor hard drives (HDD) or solid state drives (SSD)
- Supports SATA I/II/III (1.5/3.0/6.0 Gb/s) drives
- TAA Compliance (Trade Agreement Act)
- Universal power adapter (NA/UK/EU)
- Suitable for forensic investigators who require disk sector imaging/cloning to create an exact replica of a source drive, onto a different drive
- Suitable for professionals who require identical backups for when data integrity is crucial, such as data recovery
- Suitable for cloning hard drives that contain hidden partitions, that some software disk cloning programs may skip

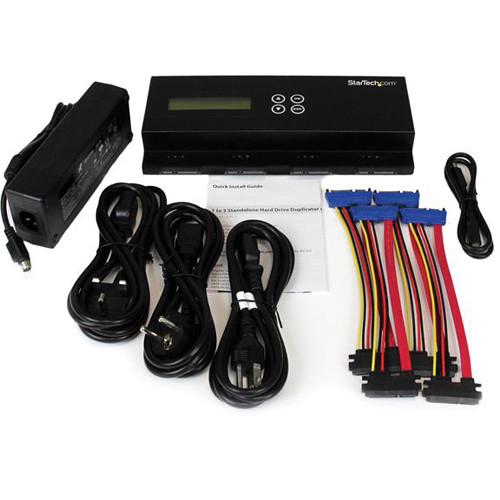

UPC: 065030852333 In the Box StarTech SATDUP13 Standalone 1:3 SATA 2.5"/3.5" HDD Duplicator & Eraser (Black) 4 x SATA Cables 1 x Daisy Chain Cable 1 x Power Adapter 3 x Regional Power Cords Limited 2-Year Warranty Brochure PDF 117kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech SATDUP13 Standalone 1:3 SATA 2.5" 3.5" HDD Duplicator & Eraser in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech SATDUP13 Specs | | | Number of Drives | 4 | | Drive Size | 2.5" and 3.5" | | Drive Type | SATA | | | | Drive Connectors | 4 x SATA data and power combo (7+15-pin) receptacle | | Other Connectors | 2 x 20-pin daisy-chain female | | | | Maximum Data Transfer Rate | 3.8 GB per minute Actual speed will depend on hard drive model, algorithm, and other factors. Results will vary. | | Type and Rate | SATA III (6 Gb/s) | | Maximum Drive Capacity | Currently tested with up to 4 TB 7200 rpm 3.5" hard drives per bay and 1 TB 7200 rpm 2.5" hard drives per bay | | | | LED Indicators | Source Drive Power Indicator
Source Drive Activity
Source Drive Error
Destination Drive 1 Power
Destination Drive 1 Activity
Destination Drive 1 Error
Destination Drive 2 Power
Destination Drive 2 Activity
Destination Drive 2 Error
Destination Drive 3 Activity
Destination Drive 3 Power
Destination Drive 3 Error
LED Panel | | | | Input Voltage | 110 to 240 VAC | | Input Current | 2.2 A | | Output Voltage | 12 VDC | | Output Current | 9 A | | | | Operating Temperature | 41 to 113°F (5 to 45°C) | | Storage Temperature | -4 to +185°F (-20 to -85°C) | | Humidity | 20 to 80% | | | | Certifications | CE, FCC | | Compliance | RoHS | | | | Enclosure Material | Aluminum | | Dimensions (L x W x H) | 4.7 x 10.2 x 1.6" (12.0 x 26.0 x 4.0 cm) | | Weight | 31 oz (879 g) | | | | Package Weight | 5.85 lb | | Box Dimensions (LxWxH) | 17.7 x 9.2 x 3.3" | Note: For duplication, the destination drive must be of equal or greater size than the source drive.
