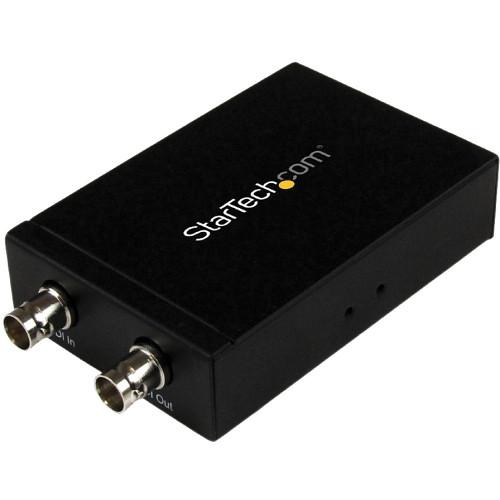

User Manual for StarTech SDI2HD 3G-SDI to HDMI Converter with SDI Loopthrough Click to enlarge the picture
Contents of the user manual for the StarTech SDI2HD 3G-SDI to HDMI Converter
- Product category: Signal Converters StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Signal Converters
|
User manual for the StarTech SDI2HD 3G-SDI to HDMI Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description The StarTech SDI2HD 3G-SDI to HDMI Converter enables you to turn a 3G-SDI video signal into an HDMI video output. The adapter features a built-in 3G-SDI daisy chain port, giving you the ability to further extend the SDI source up to 755' (230m) over standard coaxial cable, for large scale HD-SDI video broadcasting distribution. To ensure you maintain perfect high-definition video quality, the SDI-HDMI converter features supports resolutions up to 1080p, allowing you to convert SDI to HDMI without sacrificing video quality. For hassle-free installation, the SDI to HDMI converter offers a plug-and-play solution that includes pre-installed mounting brackets and requires no software or driver installation. UPC: 065030854986 In the Box StarTech SDI2HD 3G-SDI to HDMI Converter with SDI Loopthrough Universal Power Supply Limited 2-Year Warranty Guides & Manuals vbbxqyevwrbwdxxdfzswrfzybasdczwwexzxwr More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech SDI2HD 3G-SDI to HDMI Converter with SDI Loopthrough in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech SDI2HD 3G-SDI to HDMI Converter with SDI Loopthrough can be downloaded in PDF format at the link stated below.
Technical parametersStarTech SDI2HD Specs | Connections | 1 x SDI (BNC) Input
1 x SDI (BNC) Loopthrough Output
1 x HDMI Output | | Audio | 8 Channel Digital Audio @ 48 KHz | | Transmission Distance | Maximum SDI cable length: 755' / 230 m | | Maximum Transfer Rate | 2.97 Gbps | | Maximum Resolution | 1080p | | Supported Resolutions & Formats | 1920x1080 (1080p) @ 24, 25, 30, 50, & 60 FPS
1920x1080 (1080i) @ 50 & 60 FPS
1280x720 (720p) @ 24, 25, 30, 50, & 60 FPS
525i, 625i SD, D1 Format: RGB or YCbCr 4:4:4 sampled
Supports 8-bit or 10-bit component digital video: YCbCr 4:2:2 sampled | | Widescreen Supported | Yes | | Humidity | 5 to 90% RH (no condensation) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Power Supply | Center Tip Polarity: Positive
Input Current: 0.5 A
Input Voltage: 100 to 240 VAC
Output Current: 2 A Output Voltage: 5 VDC
Plug Type: Male | | Dimensions | 1 x 3.9 x 2.8" / 25 x 100 x 70 mm | | Weight | 7.1 oz / 202 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 8.425 x 5.906 x 2.047" |
