User Manual for StarTech Slim USB 3.0 to HDMI External Video Card Multi Monitor Adapter Click to enlarge the picture
Contents of the user manual for the StarTech Slim USB 3.0 to HDMI
- Product category: Computer Monitor Adapters StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Computer Monitor Adapters
 |
User manual for the StarTech Slim USB 3.0 to HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

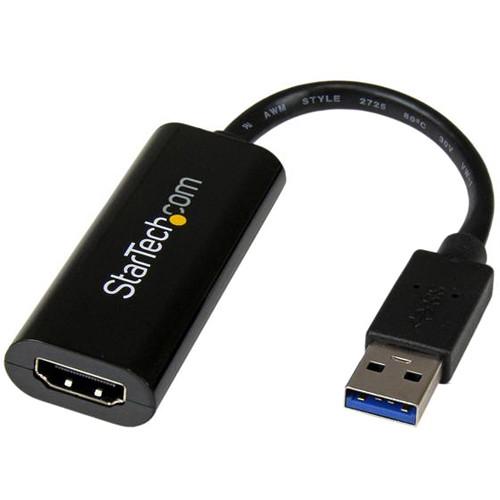

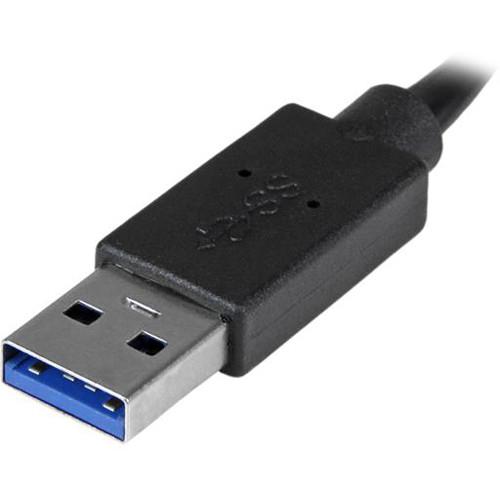

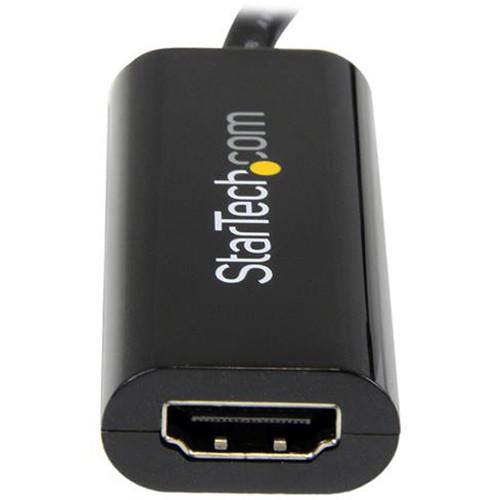

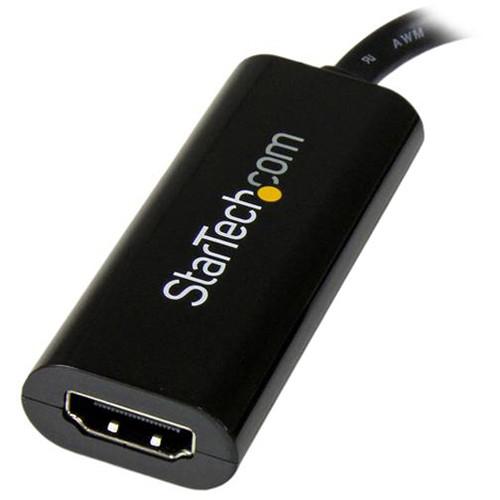

Product description The Slim USB 3.0 to HDMI External Video Card Multi Monitor Adapter from StarTech turns a USB 3.0 Type-A port into an HDMI output with video support up to 1920 x 1200. It is also backward compatible with USB 2.0. This adapter is designed to minimize clutter for multi-monitor applications on computer systems. Moreover, it functions as an external graphics card.
Leveraging the high-bandwidth and SuperSpeed USB 3.0 interface of 5 Gb/s, this adapter delivers smooth, high-definition content to your HDMI equipped display. Additionally, this adapter can be used to mirror or extend your primary screen. Other helpful features include 16MB of DDR2 SDRAM memory, a portable design, and compatibility with Windows. Note: Connect a maximum of five USB32HDES adapters to a single computer Hardware - USB 3.1 Gen 1 Input
- USB 3.1 Gen 1 features a maximum throughput of 5 Gb/s. USB 3.1 Gen 1 and USB 3.0 are synonymous.
Performance - Audio Specifications
- 2-Channel Stereo (48 Khz)
- Maximum Digital Resolutions
- 1920 x 1200 / 1080p
- Wide Screen Supported
- Yes
- Supported Resolutions
- Widescreen (16- 32-bit):
1920x1200, 1920x1080, 1680x1050, 1600x900, 1440x900, 1360x768, 1280x800, 1280x768, 1280x720
Standard (16- 32-bit):
1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600 Software - OS Compatibility
-
- Windows 10 (32- and 64-bit)
- Windows 8 / 8.1 (32- and 64-bit)
- Windows 7 (32- and 64-bit)
- Windows Vista (32- and 64-bit)
- Windows XP (32- and 64-bit)
- Microsoft WHQL Certified
- Yes
System Requirements -
- Full HD Video
- CPU: 2.8 GHz i3 Dual-Core and 2.4 GHz Quad-Core or higher (i5 recommended)
- RAM: 2GB or higher and 4GB or higher
- Not intended for gaming

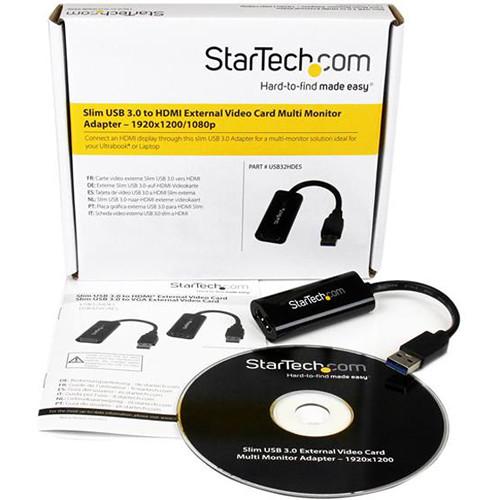

UPC: 065030854887 In the Box StarTech Slim USB 3.0 to HDMI External Video Card Multi Monitor Adapter Driver CD Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech Slim USB 3.0 to HDMI External Video Card Multi Monitor Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech USB32HDES Specs | | | Display | 1 x HDMI (Female) | | USB | 1 x USB 3.1 Gen 1 Type-A | | | | System Connection | 1 x USB 3.1 Gen 1 Type-A Male | | | | Maximum Supported Resolution | 1920 x 1200 | | Audio Support | Yes | | | | Operating Temperature | 32 to 122°F / 0 to 50°C (Recommended) | | Storage Temperature | 14 to 167°F / -10 to 75°C | | Operating Humidity | 0 to 85% (Recommended) | | | | Cable Length | 2.4" / 60.96 mm | | Enclosure Material | Plastic | | Chipset | MCT - T5-302 | | Memory | 16 MB DDR2 | | Dimensions | 7.5 x 1 x 0.5" / 190.5 x 25.4 x 12.7 mm | | Weight | 0.9 oz / 26 g | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 7.0 x 6.0 x 6.0" |
