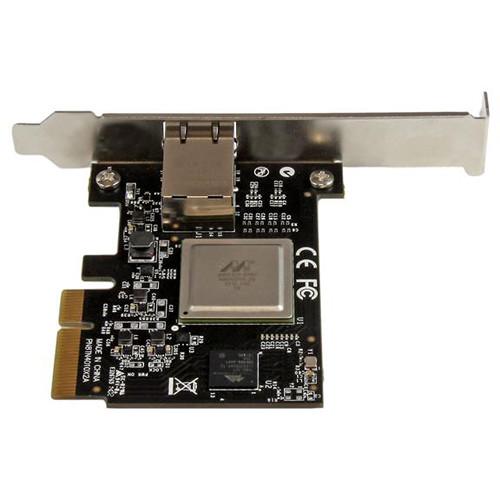

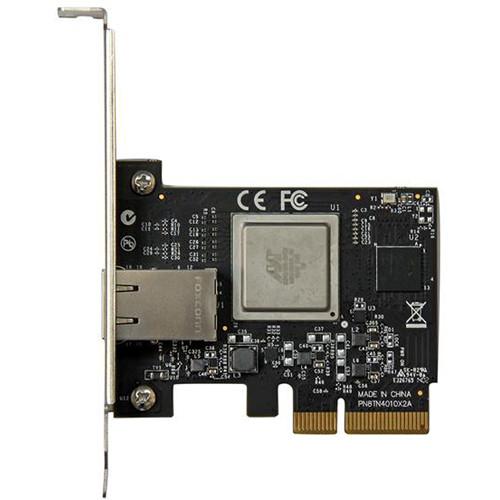

User Manual for StarTech ST10000SPEX Single Port PCI Express 10 Gigabit Ethernet Network Card Click to enlarge the picture
Contents of the user manual for the StarTech ST10000SPEX Single Port PCI Express
- Product category: Network Interface Cards & Adapters StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Network Interface Cards & Adapters
 |
User manual for the StarTech ST10000SPEX Single Port PCI Express contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description Insert the ST10000SPEX Single Port PCI Express 10 Gigabit Ethernet Network Card from StarTech into an available x4 slot on your computer or workstation and begin taking advantage of network speeds up to 10 Gbps. With support for data transfer rates this fast it is possible to move large files quickly, stream multimedia content, and much more. This NIC card comes fully compliant with the 802.3an networking standard denoting compatibility with the 10GBASE-T network protocol. Additionally, the ST10000SPEX is designed to work in a variety of systems including Windows and Mac based computers, as well as support for VMWare ESXI and Microsoft Hyper-V virtualization software, and the iSCSI network structure. Once installed, the ST10000SPEX supports the 802.3az Energy Efficient Ethernet standard to offer reduced power consumption making this network card both fast and efficient. - 10 Gbps PCIe networking over standard Cat 6a cabling
- IEEE 802.3az compliant energy-efficient chipset
- Virtualization (VMWare ESXi and Microsoft Hyper-V) and iSCSI support
- Compliant with PCI Express Rev 2.0 specification, using PCIe x4 (or higher) slot
- Backward compatible with 1 Gbps and 100 Mbps networks
- Up to 16K Jumbo Frame support
- Supports 802.1q VLAN Tagging
- Supports Checksum Offload (IP, TCP, UDP) and Large send Offload

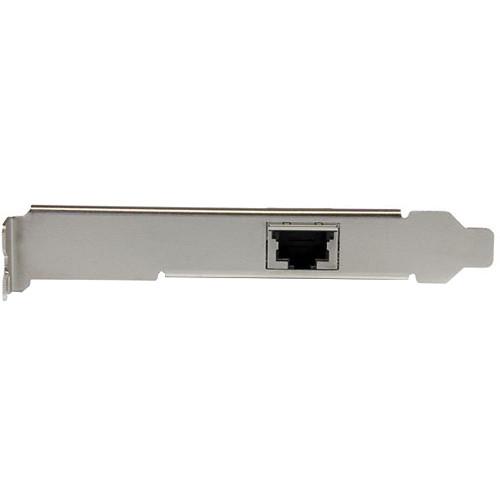

- Configured with standard profile bracket, low profile/half-height bracket included
UPC: 065030857390 In the Box StarTech ST10000SPEX Single Port PCI Express 10 Gigabit Ethernet Network Card Low Profile Bracket Limited 2-Year Manufacturer Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech ST10000SPEX Single Port PCI Express 10 Gigabit Ethernet Network Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech ST10000SPEX Specs | | | Bus Type | PCI Express | | Card Type | Standard Profile (LP bracket incl.) | | Chipset ID | Tehuti - TN4010 Marvell - 88X3110 | | Industry Standards | IEEE 802.3an (10GBASE-T)
IEEE 802.3ab (1GBASE-T)
IEEE 802.3u (100BASE-T)
IEEE 802.3az (EEE - Energy Efficient Ethernet)
PCI Express Rev 2.0 | | Interface | RJ-45 (10 Gigabit Ethernet) | | Ports | 1 | | | | Compatible Networks | 100/1000/10000 Mbps (10Gb) | | Full Duplex Support | Yes | | Jumbo Frame Support | 16 K max. | | Maximum Data Transfer Rate | 10 Gbps | | Supported Protocols | IEEE 802.3ad (link aggregation)
IEEE 802.1q (VLAN tagging)
RFC 2819 (RMON MIB statistics) | | | | Connector Types | 1 x PCI Express x4 Male | | External Ports | 1 x RJ-45 Female | | | | OS Compatibility | Windows 7, 8, 8.1, 10
Windows Server 2008 R2, 2012, 2012 R2, 2016
Mac OS 10.10.3 to 10.12
Linux 2.6.24 to 4.4.x LTS Versions only
VMWare ESXi 5.0/5.1/6.0 and Microsoft Hyper-V | | | | Dimensions | 4.7 x 3.3 x 0.7" / 120 x 83 x 19 mm | | Weight | 1.7 oz / 49 g | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 6.7 x 5.7 x 1.3" |
