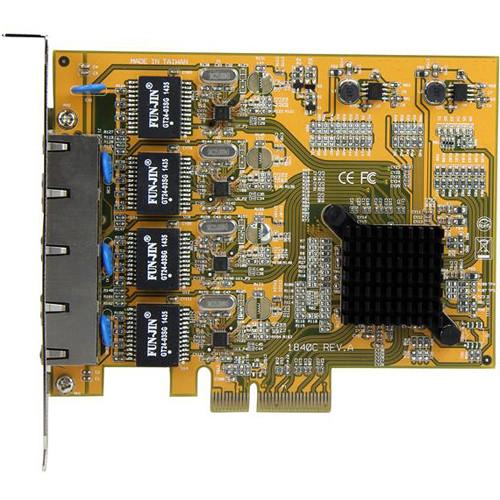

User Manual for StarTech ST1000SPEX43 4-Port PCIe Gigabit Network Adapter Card Click to enlarge the picture
Contents of the user manual for the StarTech ST1000SPEX43 4-Port PCIe Gigabit Network
- Product category: Network Interface Cards & Adapters StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Network Interface Cards & Adapters
 |
User manual for the StarTech ST1000SPEX43 4-Port PCIe Gigabit Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

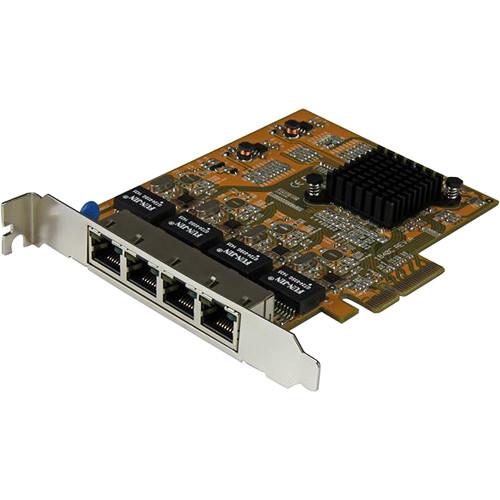

Product description With four independent Gigabit Ethernet ports, the ST1000SPEX43 4-Port PCIe Gigabit Network Adapter Card from StarTech allows you to connect to multiple networks simultaneously through a single PCIe slot. This card features full compliance with 802.3/3u/3ab networking standards and supports corssover detection and auto-correction. Additionally, this card comes equipped with 9K jumbo frame support for increased bandwidth capabilities and data transfer rates of up to 2000 Mbps. - Reliable Connectivity to Multiple Networks

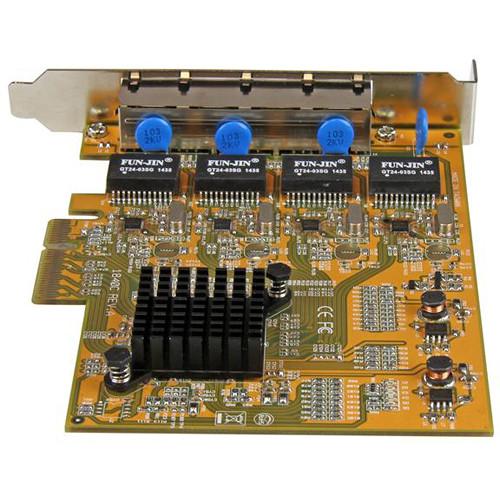

- This 4-port network card delivers powerful connectivity with support for high-performance, 4-channel networking and a maximum throughput of up to 1000 Mbps in each direction (2000 Mbps total). The network adapter card features the Realtek RTL8111G chipset, which is designed to deliver the performance and enhanced capabilities you need for reliable network connections to your server or computer.
- Enhanced Compatibility
- This versatile quad-port network card is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking with four independent ports. Compatible with a broad range of operating systems, this PCIe Gigabit NIC is suitable for many SMB and Enterprise applications such as virtualized environments that require multiple NICs (check your VM software for chipset compatibility).

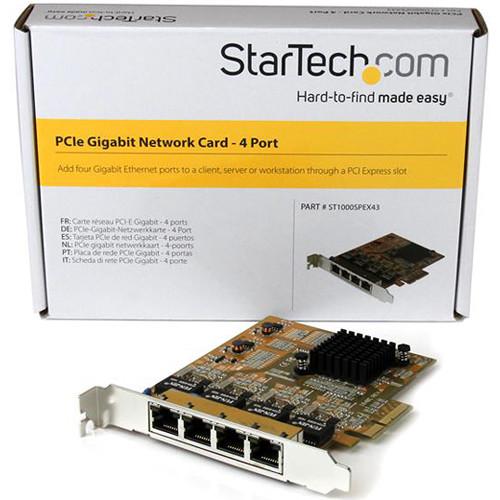

UPC: 065030862448 In the Box StarTech ST1000SPEX43 4-Port PCIe Gigabit Network Adapter Card Limited 2-Year Manufacturer Warranty Brochure PDF 207.5kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech ST1000SPEX43 4-Port PCIe Gigabit Network Adapter Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech ST1000SPEX43 Specs | | | Bus Type | PCI Express | | Card Type | Standard Profile (LP bracket included) | | Chipset ID | Realtek RTL8111G | | Network Standards Compatibility | Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab | | Interface | RJ-45 (Gigabit Ethernet) | | Ports | 4 | | | | Auto MDIX | Yes | | Compatible Networks | 10/100/1000 Mbps | | Full Duplex Support | Yes | | Jumbo Frame Support | 9K max. | | Maximum Data Transfer Rate | 2000 Mbps (Full Duplex) | | | | Connector Type | 1 x PCI Express x4 Male | | External Ports | 4 x RJ-45 Female | | | | OS Compatibility | Windows 10 (32/64), 8, 8.1 , 7, Vista, XP, 2000, ME, 98SE
Windows Server 2012, 2003 (32/64)

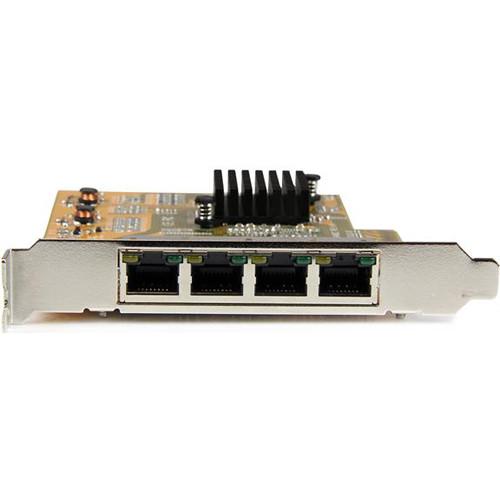

Linux Kernel 2.4.x and up | | System and Cable Requirements | Available PCI Express x4 or higher (x8, x16) slot | | LED Indicators | 4 x Link
4 x Activity | | Temperature & Humidity | Operating Temperature: 32 to 131°F / 0 to 55°C
Storage Temperature: -40 to 167°F / -40 to 75°C
Humidity: 5 to 95% RH | | Dimensions | 0.7 x 5.4 x 4.7" / 18 x 138 x 120 mm | | Weight | 3.5 oz / 100 g | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 8.2 x 5.7 x 1.6" |
