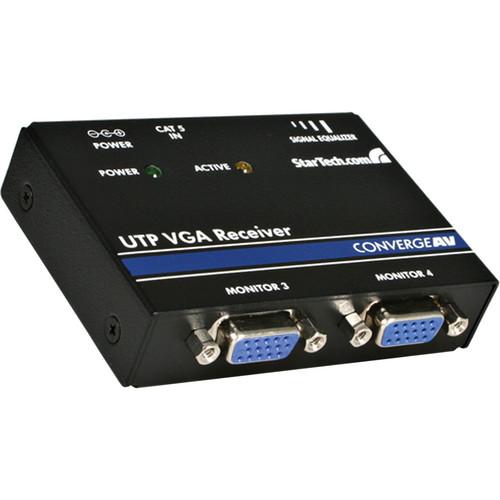

User Manual for StarTech ST121R VGA Video Extender Remote Receiver Over Cat5 Click to enlarge the picture
Contents of the user manual for the StarTech ST121R VGA Video Extender Remote
- Product category: KVM Extenders StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech KVM Extenders
 |
User manual for the StarTech ST121R VGA Video Extender Remote contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

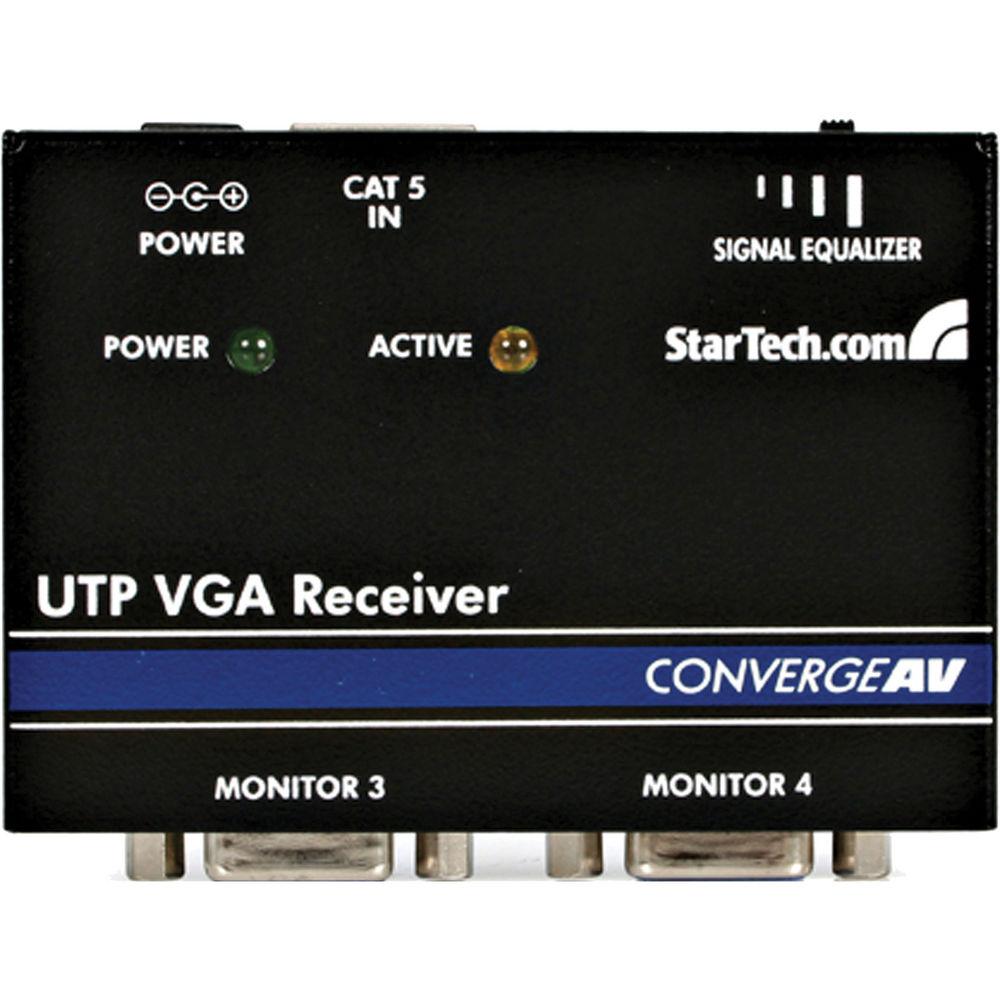

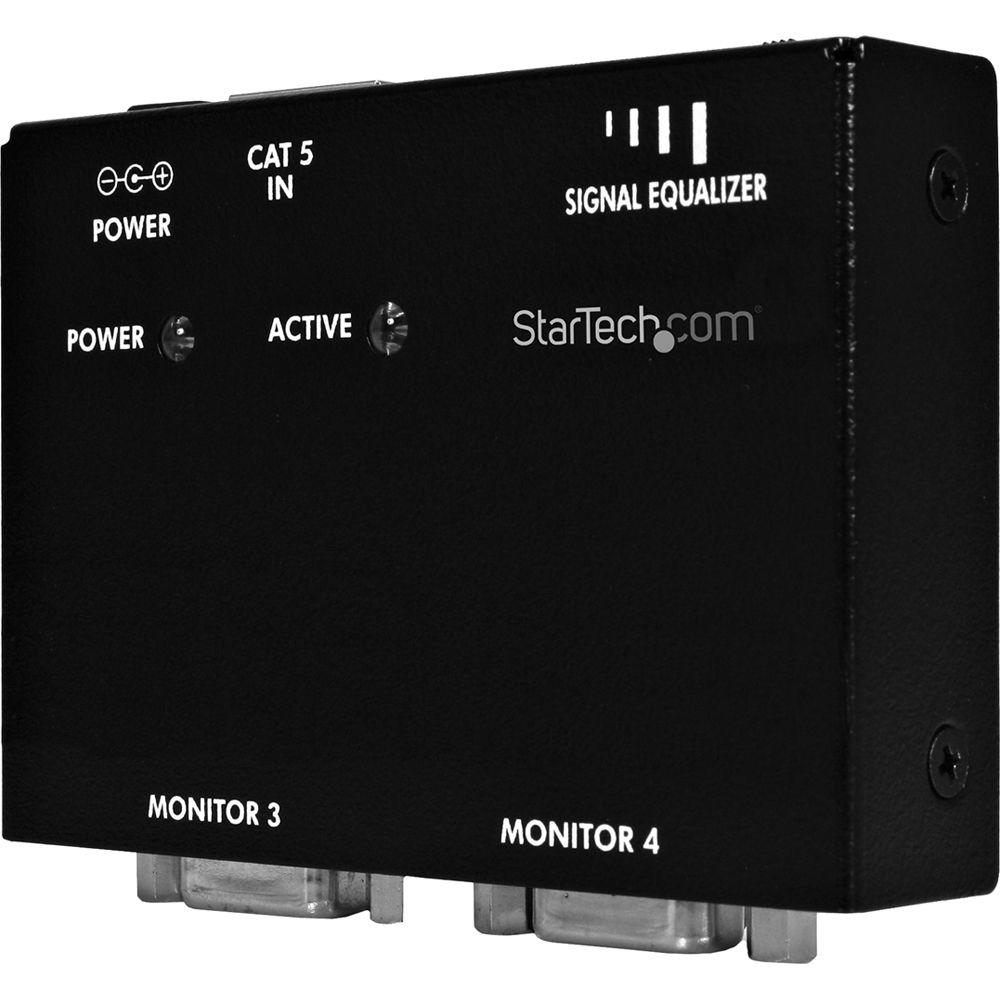

Product description The black ST121R VGA Video Extender Remote Receiver Over Cat5 from StarTech is specifically designed for use as a receiver unit to StarTech’s ST1214T 4 Port, and ST1218T 8 Port VGA over Cat5 UTP Extender Transmitter Units (sold separately). It allows you to split and extend a single VGA source to up to 4 remote displays over a Cat5 cable.From the transmitter device, the VGA video signal is sent over standard 4 pair Category 5 or better UTP cable to remote monitors, each connected to an ST121R Cat 5 VGA receiver, supporting distances of up to 500’ (150 m).This receiver provides a good video extension solution and is suitable for a wide range of environments including airports, bus depots, retail, or any large buildings where VGA video needs to be extended to long connection distances. - Extends the connection distance of VGA displays by up to 500' (150 m) offering flexibility in the placement of your equipment
- Pure hardware design, no software or drivers required
- Included mounting brackets provide versatile mounting options such as a wall, desk, or cabinet for a clean and manageable solution
- Uses standard Category 5 straight-wired, twisted-pair, network patch cable for reliable data transmission; the Cat5 extension design allows you to make use of existing Cat 5 or better wiring infrastructure
- Free lifetime technical support
Applications - Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
- Suitable for digital signage applications in financial, educational, and business sectors
- Extend your display across harsh environment industrial sites
- Suitable for video conferencing solutions in boardrooms and office settings
- Optimize placement of your demo stations at tradeshows and in auditoriums

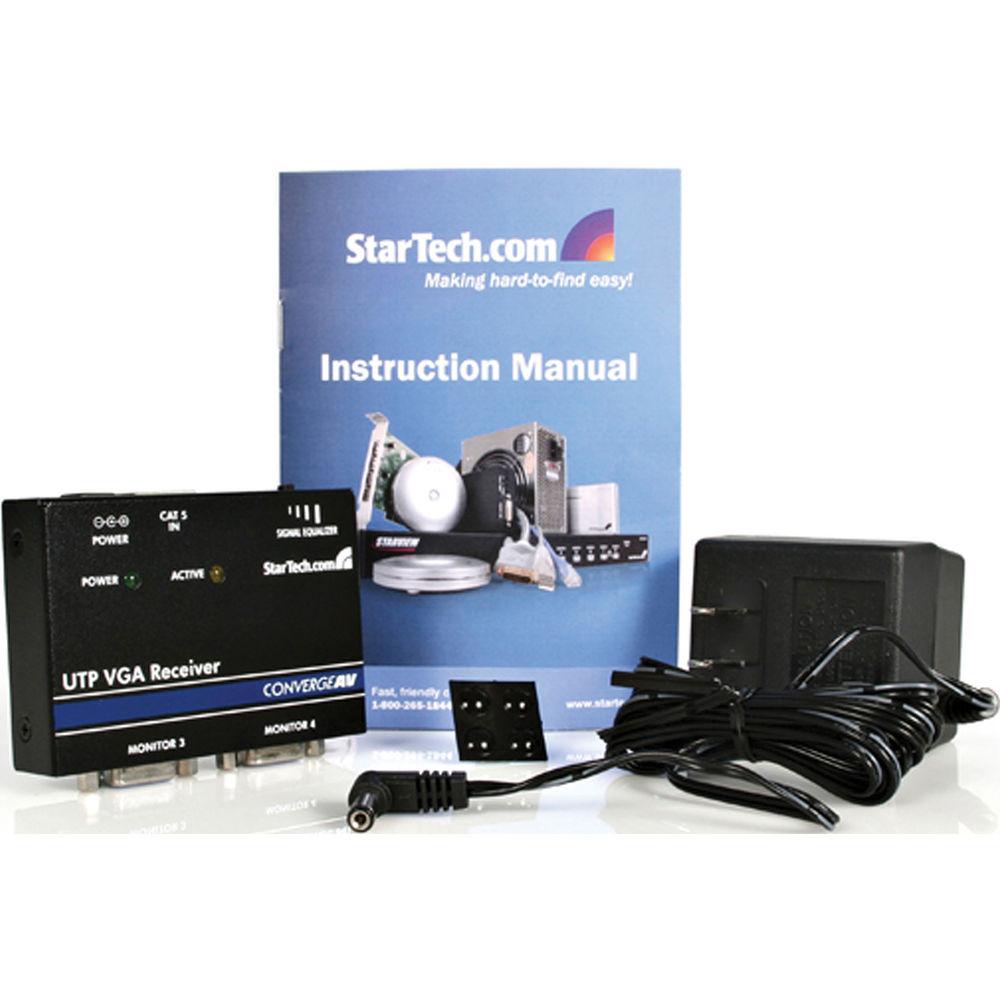

UPC: 065030824323 In the Box StarTech ST121R VGA Video Extender Remote Receiver Over Cat5 (Black) Mounting Brackets 9VAC 500ma Adapter Limited 2-Year Warranty Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech ST121R VGA Video Extender Remote Receiver Over Cat5 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech ST121R VGA Video Extender Remote Receiver Over Cat5 can be downloaded in PDF format at the link stated below.

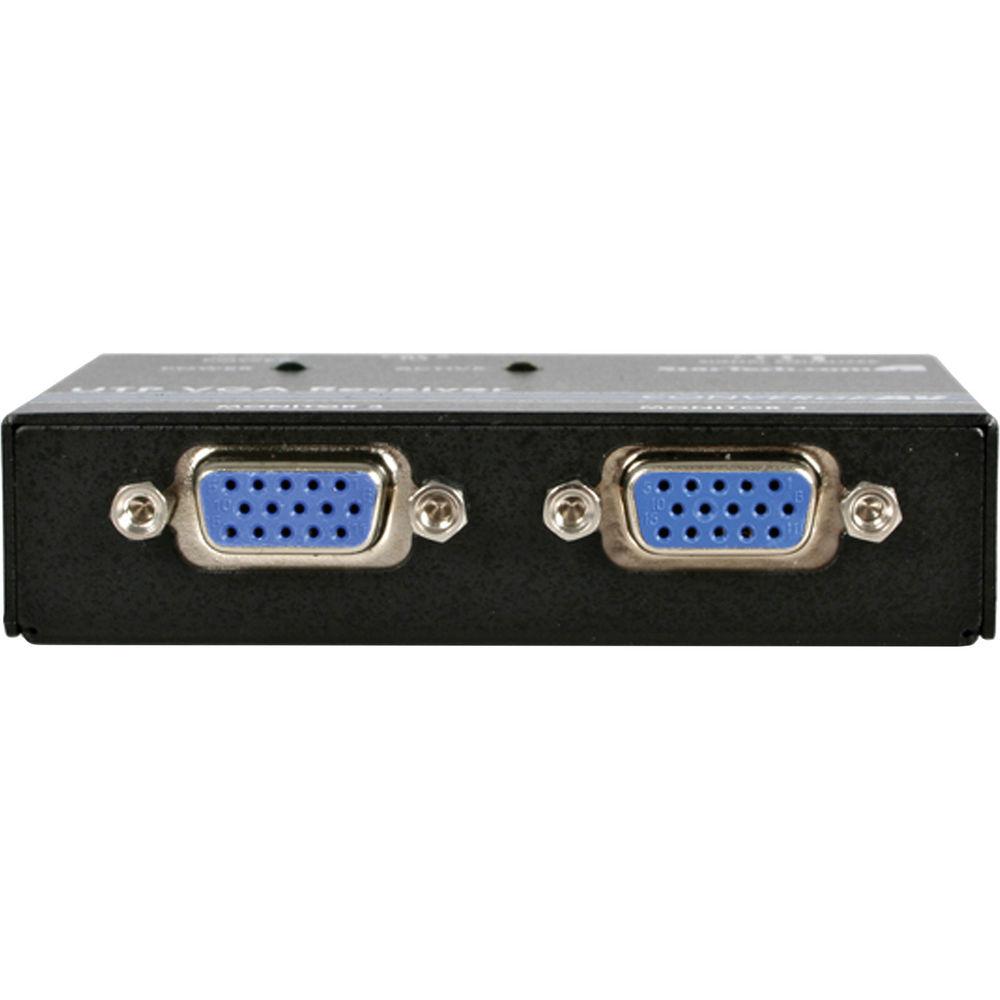

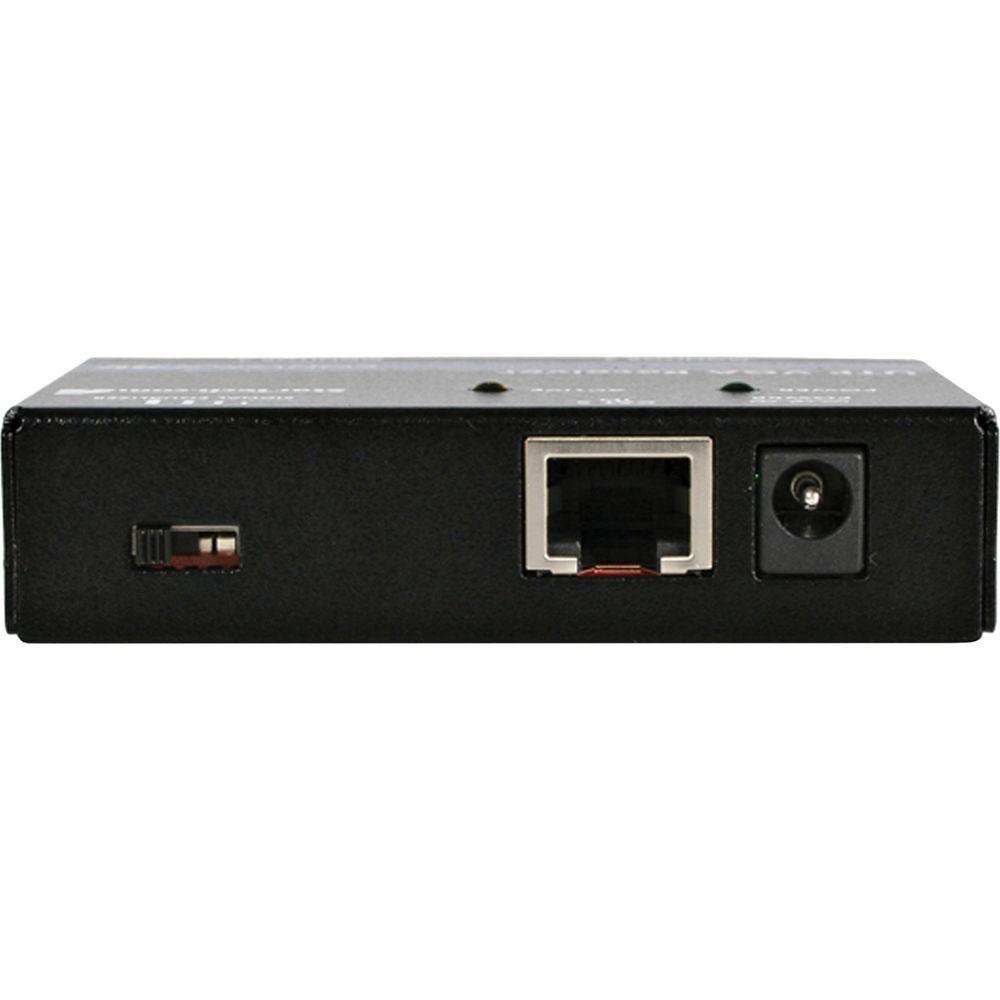

Technical parametersStarTech ST121R Specs | | | Port | 1 | | Cabling Type | Cat 5 UTP or better | | | | Connector 1 | Remote Unit Connectors:1 x RJ-45 Female2 x VGA (15 pin; high density D-Sub) Female | | | | Cable Length | 500' (150 m) maximum | | Maximum Distance | 500' (150 m) | | Analog Recording Rate/Resolution | 1024 x 768 maximum | | Supported Resolutions | 1600 x 1200 @ 150’(50 m)1280 x 1024 @ 300’ (100 m)1024 x 768 @ 500’ (150 m) | | | | Input Voltage | 115 VAC | | Output Voltage | 9 VDC | | Output Current | 0.6 A | | Center Tip Polarity | Positive | | Plug Type | M | | | | Enclosure Type | Aluminum | | Dimensions (L x W x H) | 3.30 x 2.60 x 0.80" (8.38 x 6.60 x 2.03 cm) | | Weight | 6.00 oz (170.10 g) | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 8.6 x 4.0 x 2.8" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 21 owners. Add your rating and experience with the product.
