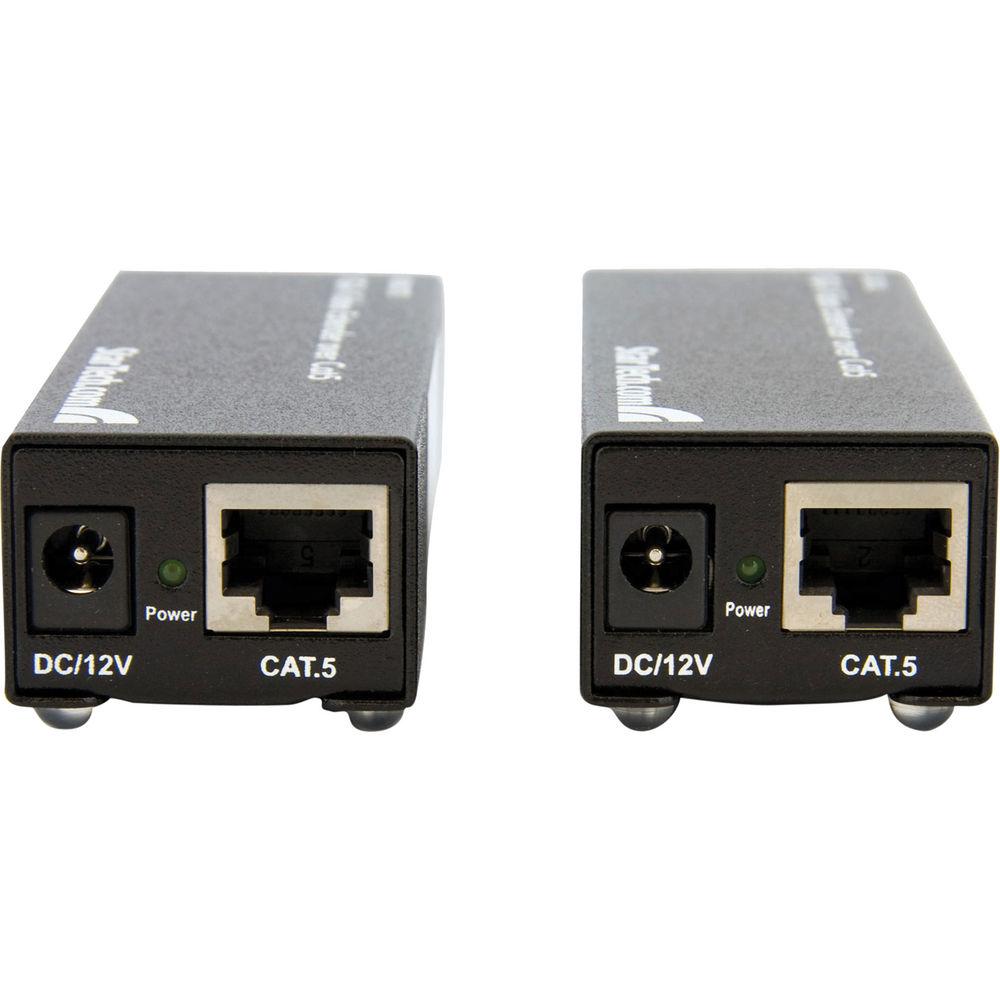

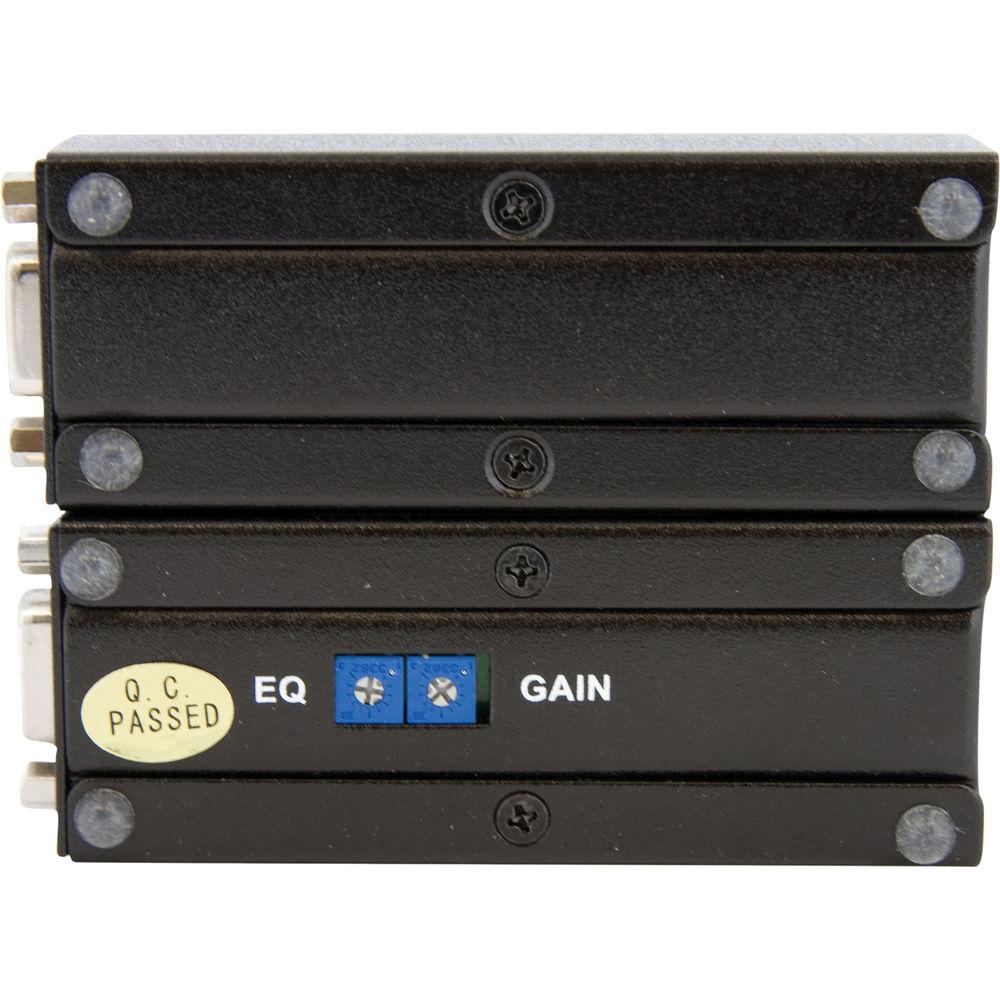

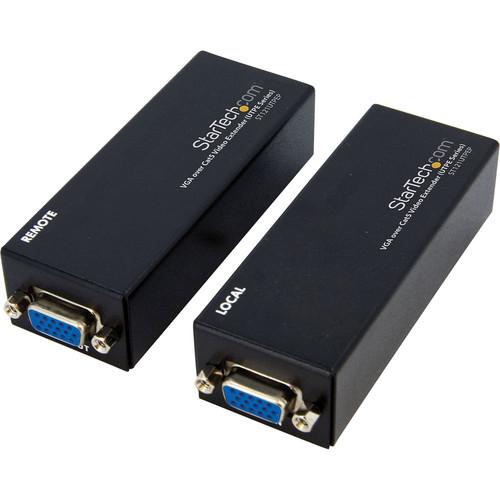

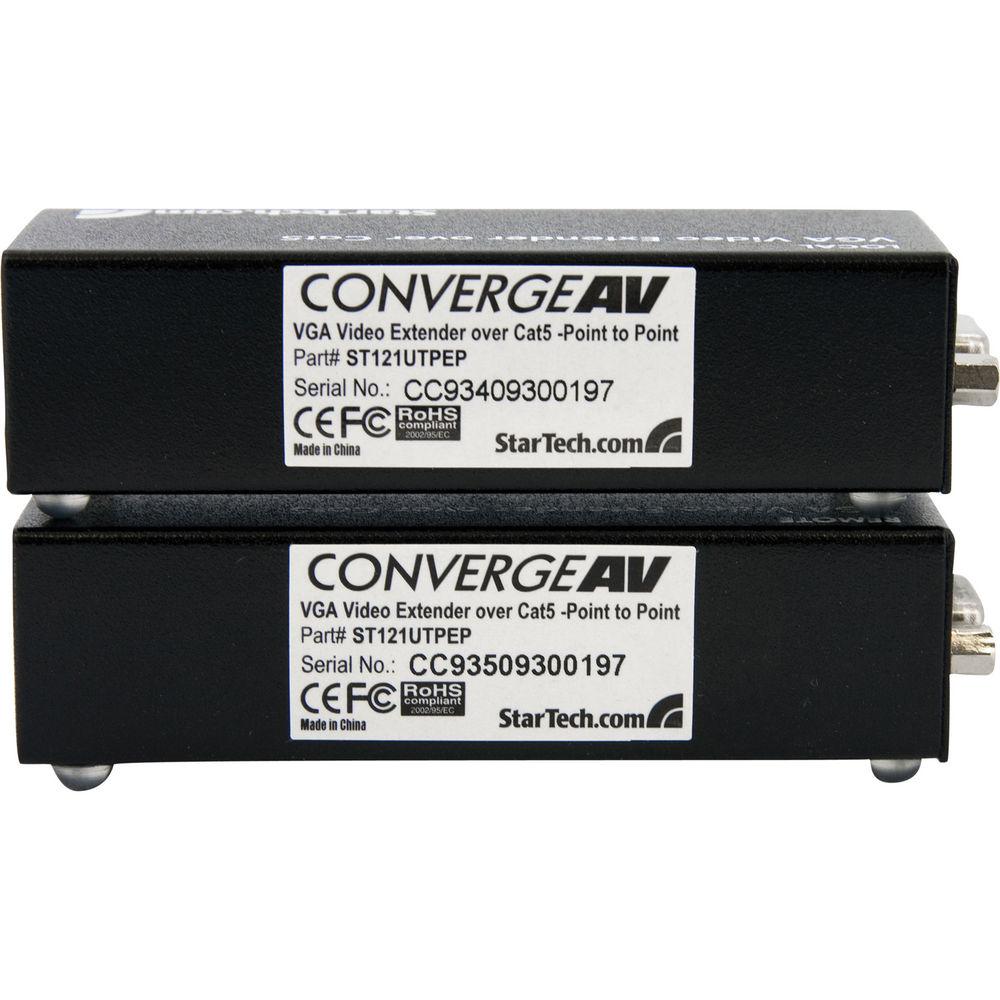

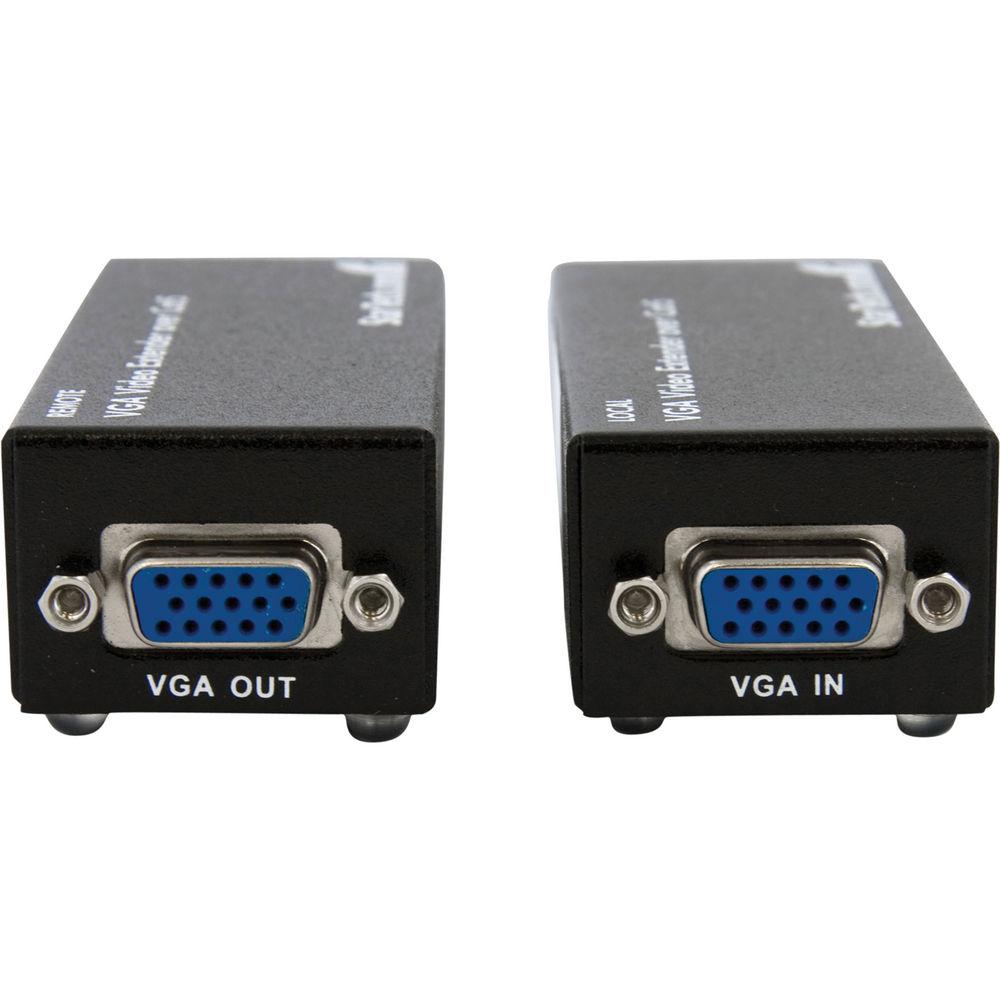

Product description The black ST121UTPEP VGA to Cat5 Monitor Extender Kit from StarTech is a video extender over Cat5 point-to-point that lets you connect a remote VGA display or projector up to 262.46’ away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit, providing a complete end-to-end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5e or better UTP cable, terminated with RJ45 connectors).
Offering convenient VGA distribution, this extender kit only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application. To ensure a tidy installation, the ST121UTPEP Extender Kit includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles. - Extends the connection distance of VGA displays by up to 262.46', offering flexibility in the placement of your equipment
- Supports 1920 x 1200 or 1600 x 1200 resolutions at distances up to 164.04'
- Supports 1280 x 1024 or 1024 x 768 resolutions at distances up to 262.46'
- Included mounting bracket provides versatile mounting options such as a wall, desk, or cabinet, for a clean and manageable installation
- Requires one power adapter, installed at either the local or remote unit, wherever is most convenient for the application
- Uses standard Cat5 or better cabling
- Kit consists of one base unit and one remote unit
- Pure hardware design; no software or drivers required
- Free lifetime technical support
Applications - Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
- Suitable for digital signage applications in financial, educational, and business sectors
- Extend your display across harsh-environment industrial sites
- Suitable for videoconferencing solutions in boardrooms and office settings
- Optimize placement of your demo stations at trade shows and in auditoriums

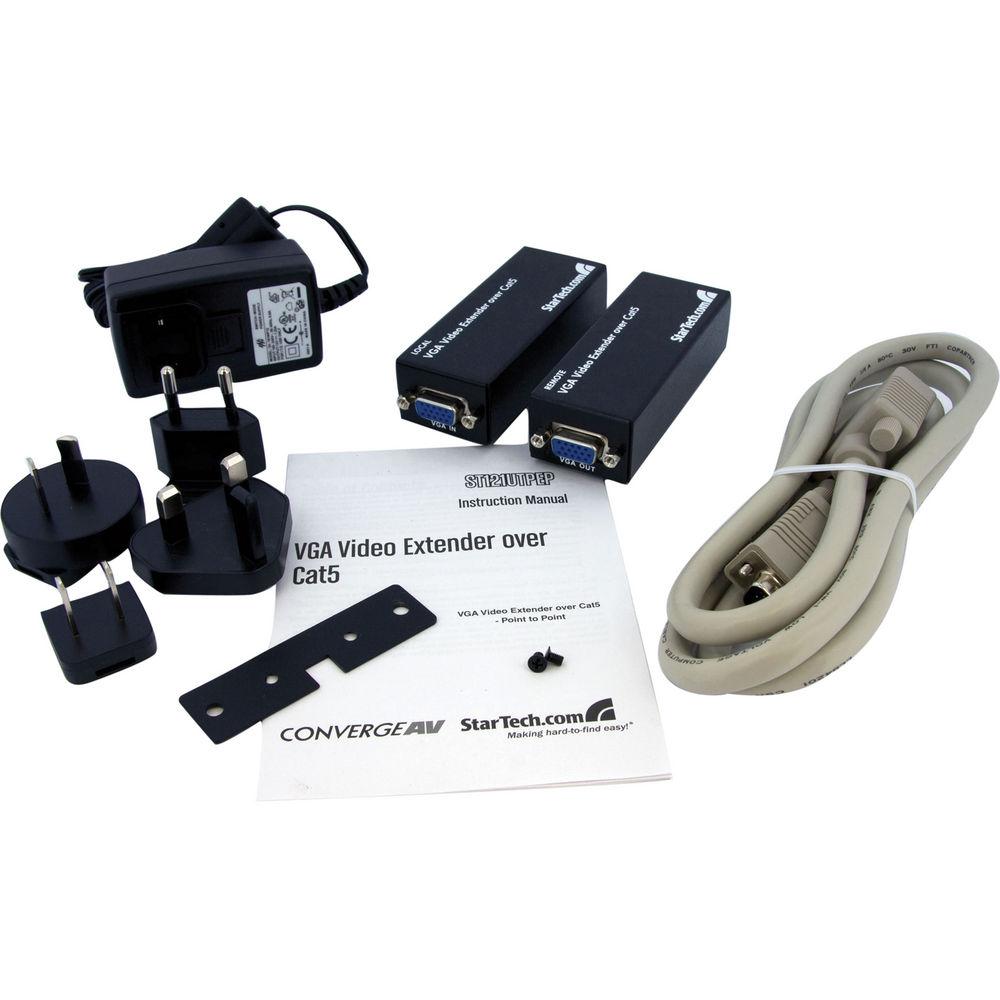

UPC: 065030835398 In the Box StarTech ST121UTPEP VGA to Cat5 Monitor Extender Kit (Black) VGA over Cat5 Transmitter VGA over Cat5 Receiver Installation Bracket (with Screws) VGA Cable Universal Power Adapter Limited 2-Year Warranty Guides & Manuals aeyfqrqeatavtbazdtevzxtsyqyerbfc More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech ST121UTPEP VGA to Cat5 Monitor Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech ST121UTPEP VGA to Cat5 Monitor Extender Kit can be downloaded in PDF format at the link stated below.
Technical parametersStarTech ST121UTPEP Specs | | | Port | 1 | | Cabling Type | Cat5 UTP | | | | Connector 1 | Local Unit Connectors:
1 x RJ45, female
1 x 15-pin VGA (high-density D-Sub), female | | Connector 2 | Remote Unit Connectors:
1 x RJ45, female
1 x 15-pin VGA (high-density D-Sub), female | | | | Maximum Distance | 262.46' / 80.0 m | | Supported Resolutions | 1920 x 1200 @ 164.04’ / 50.0 m
1280 x 1024 @ 262.46’ / 80.0 m | | | | Output Voltage | 12 VDC | | Output Current | 0.6 A | | Center Tip Polarity | Positive Resolution may vary at distances depending on cable quality. Cat5e UTP cables are recommended. | | | | Enclosure Type | Aluminum | | Dimensions (L x W x H) | 3.90 x 5.40 x 1.00" / 9.91 x 13.72 x 2.54 cm | | Weight | 1.30 oz / 36.85 g | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 12.4 x 5.6 x 2.2" |
