User Manual for StarTech ST121UTPHD2 HDBaseT HDMI Extender Kit Click to enlarge the picture
Contents of the user manual for the StarTech ST121UTPHD2 HDBaseT HDMI Extender Kit
- Product category: Video Extenders & Repeaters StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Video Extenders & Repeaters
 |
User manual for the StarTech ST121UTPHD2 HDBaseT HDMI Extender Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

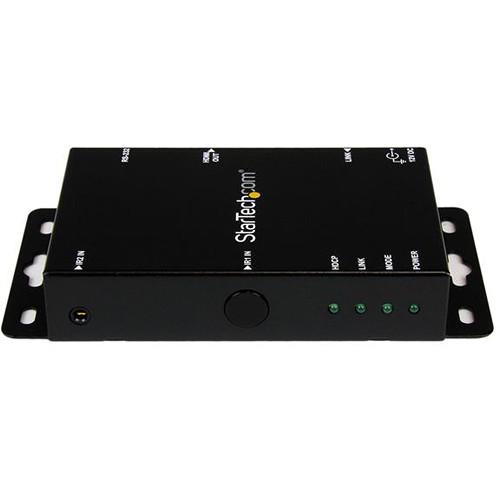

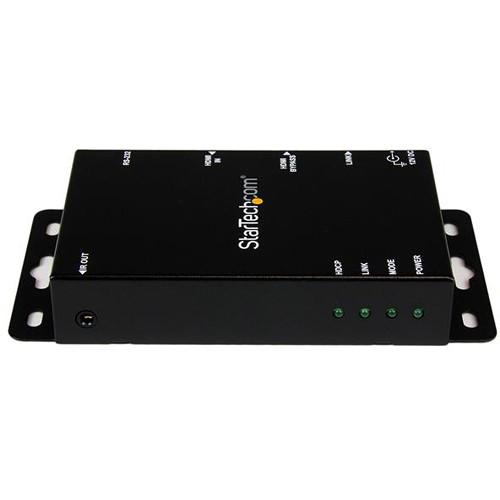

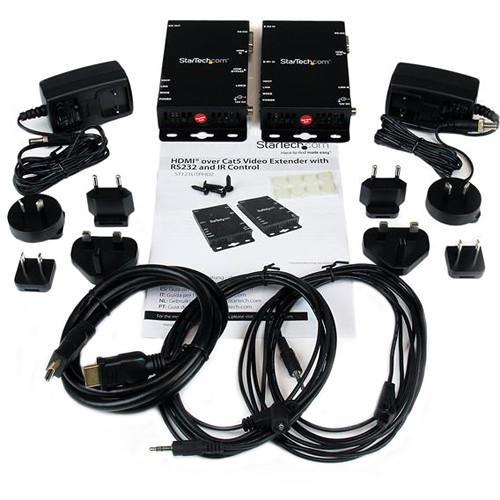

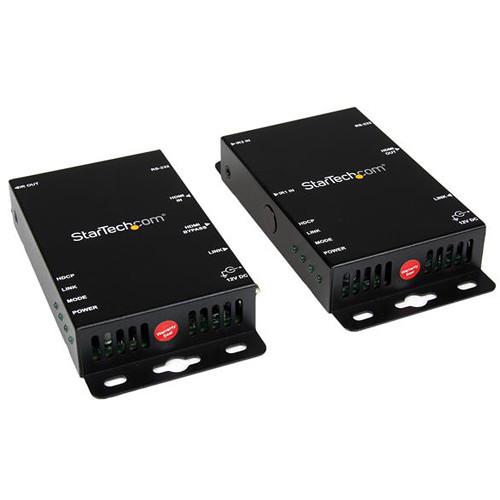

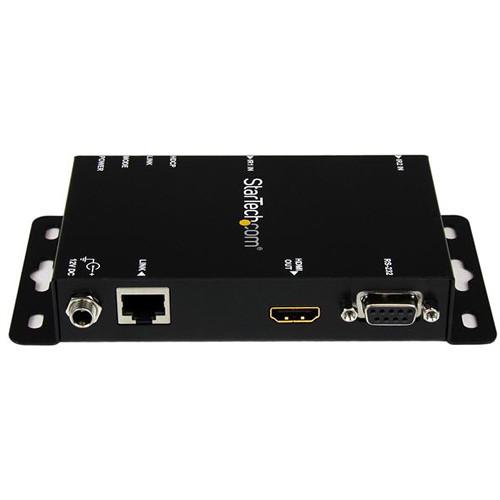

Product description Transmit an HDMI signal over 330' without any loss in visual or audio quality with this HDBaseT HDMI Extender Kit from StarTech. Comprised of a transmitter and a receiver, this kit offers an end-to-end solution for routing an HDMI signal, along with RS-232 and bidirectional IR control, over longer distances than HDMI cables would normally allow, using affordable Cat5 cable. The HDMI signal integrity is maintained, including HDCP and multichannel audio. Both transmitter and receiver units can be screw-mounted using the integrated ears, and IR cabling as well as an HDMI cable is included. This setup doesn't use Power-over-HDBaseT, so the two included power supplies are required. UPC: 065030848480 In the Box StarTech ST121UTPHD2 HDBaseT HDMI Extender Kit HDBaseT Transmitter HDBaseT Receiver IR Transmitter Cable IR Receiver Cable HDMI Cable 2 x Power Supplies Limited 2-Year Warranty More from Manufacturer fzbserurwrcquruweqvruqeqfzctdcty Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech ST121UTPHD2 HDBaseT HDMI Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech ST121UTPHD2 Specs | Inputs | Transmitter:
1 x HDMI Type A
1 x DB-9, RS-232
1 x 3.5 mm, IR
Receiver:
1 x RJ-45, HDBaseT
1 x 3.5 mm, IR | | Outputs | Transmitter:
1 x RJ-45, HDBaseT
1 x HDMI Type A
1 x 3.5 mm, IR
Receiver:
1 x HDMI Type A
1 x DB-9, RS-232
1 x 3.5 mm, IR | | Resolution Support | 3840 x 2160
2560 x 1600
1920 x 1200
1080p
720p | | Transmission Distance | 330' / 100 m | | Power Supply | Input: 100-240 VAC, 0.6 A
Output: 12 VDC, 1.24 A | | Power Consumption | 12 W | | Environmental | Operating Temperature: 32 to 158°F / 0 to 70°C
Storage Temperature: -4 to 185°F / -20 to 85°C
Humidity: 0-90% RH, non-condensing | | Dimensions | 1 x 5.9 x 3.1" / 2.5 x 15 x 8 cm (each unit) | | Weight | 10.8 oz / 305 g | | | | Package Weight | 3.45 lb | | Box Dimensions (LxWxH) | 12.047 x 10.0 x 2.598" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 85 owners. Add your rating and experience with the product.
