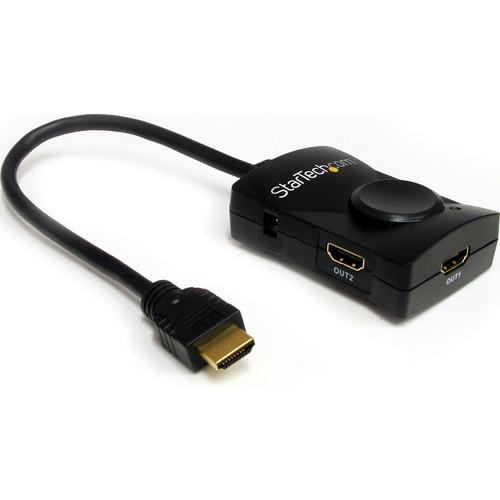

Product description The black ST122HDMILE USB Powered 2 Port HDMI Video Splitter with Audio from Startech lets you share a single high definition video and audio source between 2 HDMI or DVI displays. The HDMI splitter is USB-powered, allowing you to use it with desktop and laptop computers that offer HDMI output.The USB powered High Speed HDMI splitter is HDCP 1.1 compliant, delivering optimal audio capability with crisp digital video at resolutions of up to 1080p.The splitter also functions as an HDMI distribution amplifier allowing you to situate HDMI monitors up to 45' away from the source. It can be used for connecting an HDMI-capable computer to monitors, projectors, or TV screens as needed. Note: HDMI to DVI cable sold separately. - Signal amplification provides high resolution HDMI signals without signal degradation/loss of quality
- Compact, USB-powered design makes it a portable solution, useful with desktops and laptops
- Splits an HDMI source to 2 outputs, without signal loss
- Integrated signal amplifier designed to situate displays up to 45' away
- Supports a wide range of HDTV resolutions, from 480 to 1080p
- USB-powered unit that requires no wall outlet or bulky power supply
- High Speed HDMI and HDCP 1.1 compliant

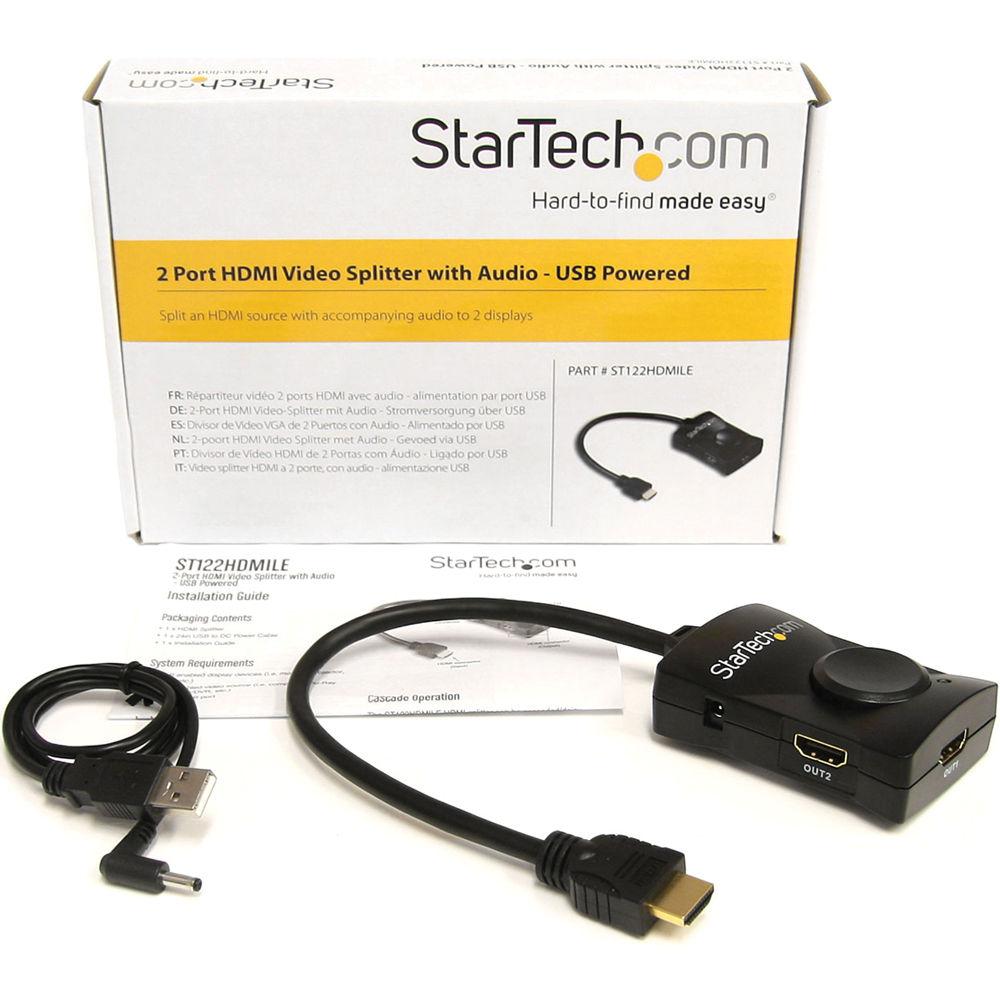

UPC: 065030842976 In the Box StarTech ST122HDMILE 2 Port HDMI Video Splitter with USB Powered Audio 24" USB Power Cable Limited 2-Year Warranty Guides & Manuals zzvfrdtetbubxxdrtvabs Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech ST122HDMILE 2 Port HDMI Video Splitter with USB Powered Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech ST122HDMILE 2 Port HDMI Video Splitter with USB Powered Audio can be downloaded in PDF format at the link stated below.

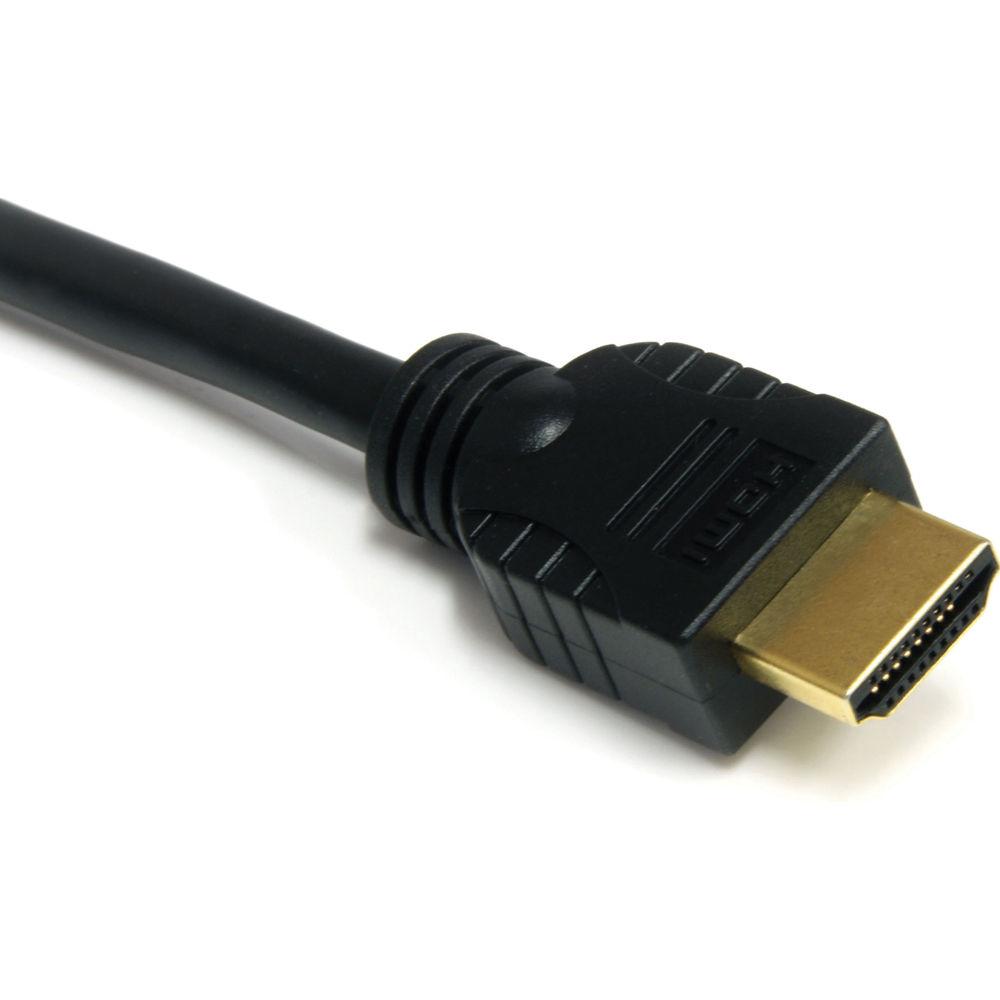

Technical parametersStarTech ST122HDMILE Specs | | | Ports | 2 | | Standards | Industry: High Speed HDMI, HDCP | | Daisy Chain | Yes | | Connectors | A: 1 x HDMI (19-pin) Male
1 x USB (4-pin) Male

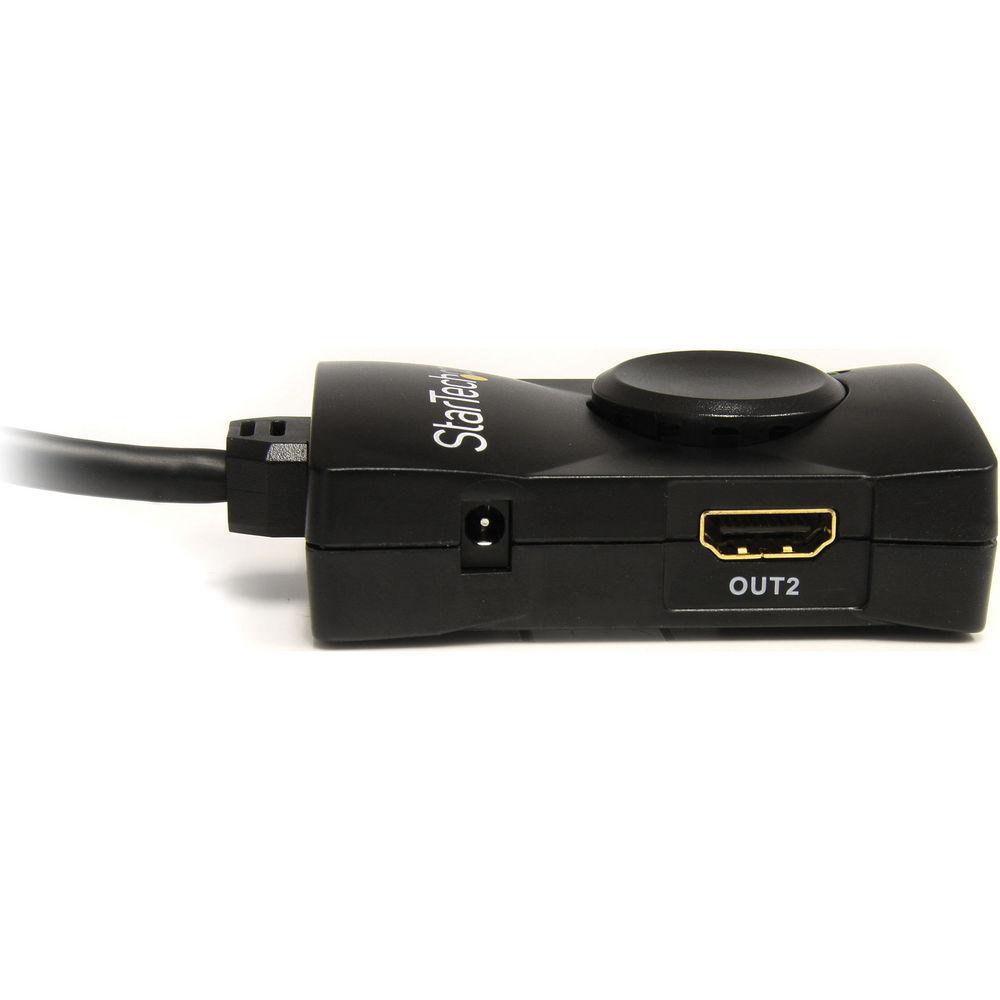

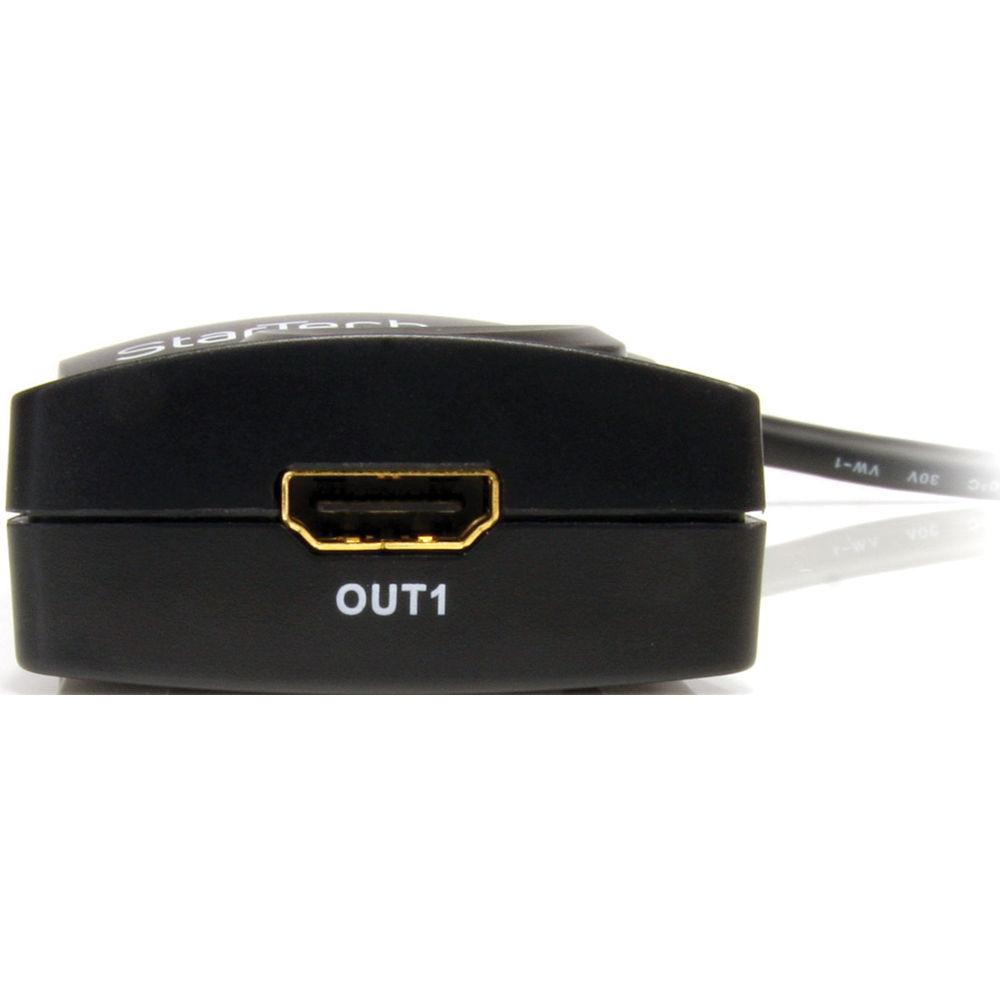

B: 2 x HDMI (19-pin) Female | | | | Cable Length | Maximum: 49.2' (15.0 m) | | Supported Resolutions | 480p, 480i, 720p, 1080i, 1080p, 1600 x 1200 (UXGA) | | Support | Wide screen | | | | Power Adapter | Self Powered | | Input Voltage | 5 VDC | | Input Current | 500 mA | | | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | 0 to 95% RH | | | | System Requirements | An HDMI source (desktop / laptop) with a USB port for powering the ST122LE Video Splitter | | | | Enclosure Type | Plastic | | Cable Length | 11" (280 mm) | | Dimensions (L x W x H) | 3.0 x 2.0 x 1.0" (75.0 x 53.0 x 25.0 mm) | | Weight | 2.8 oz (80.0 g) | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 8.2 x 5.9 x 1.6" |
