User Manual for StarTech ST122LEA USB Powered 2 Port VGA Video Splitter with Audio Click to enlarge the picture
Contents of the user manual for the StarTech ST122LEA USB Powered 2 Port
- Product category: Distribution Amplifiers (DA's) StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Distribution Amplifiers (DA's)
 |
User manual for the StarTech ST122LEA USB Powered 2 Port contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

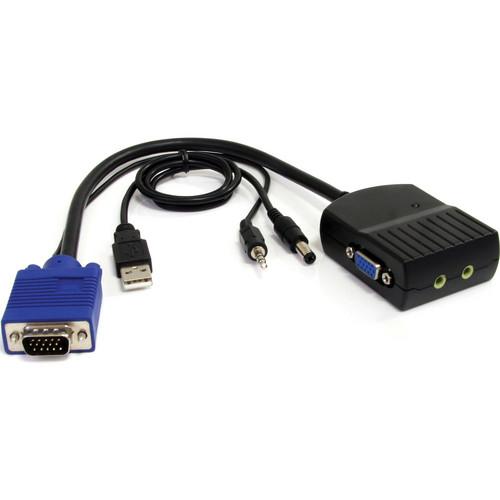

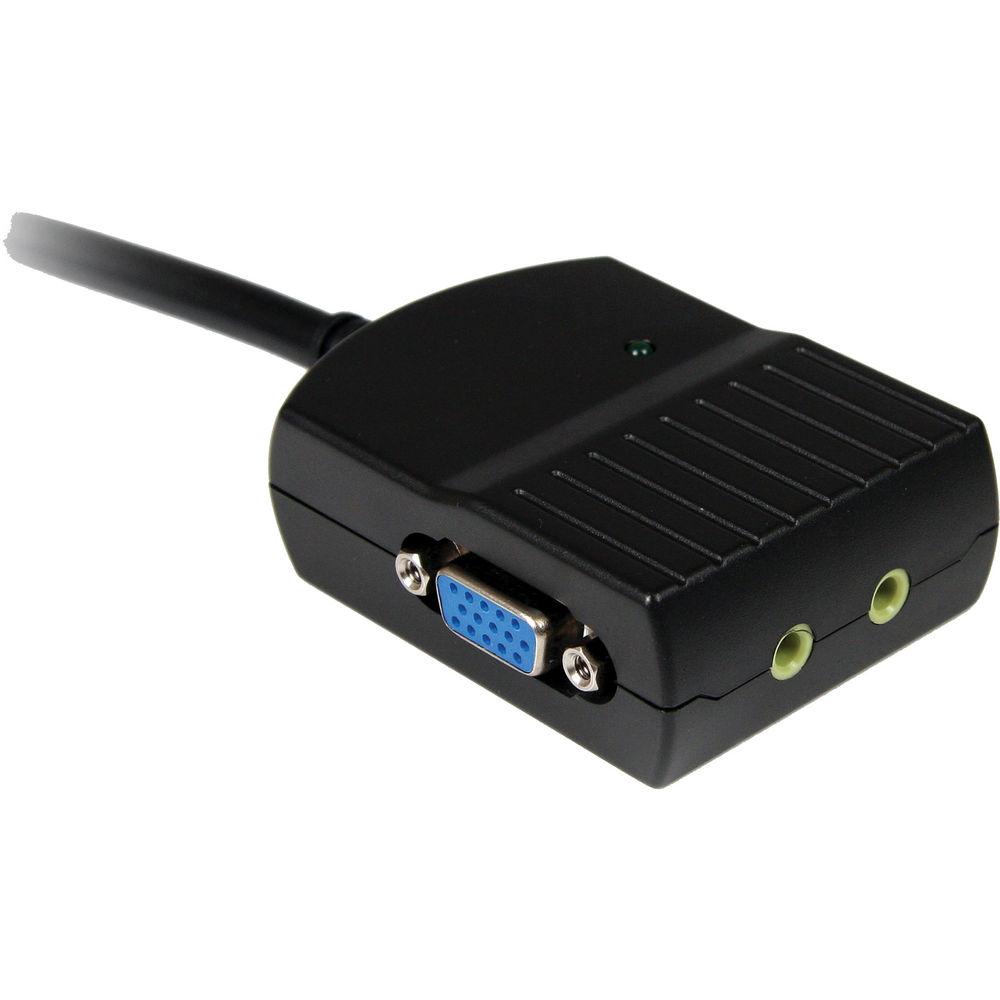

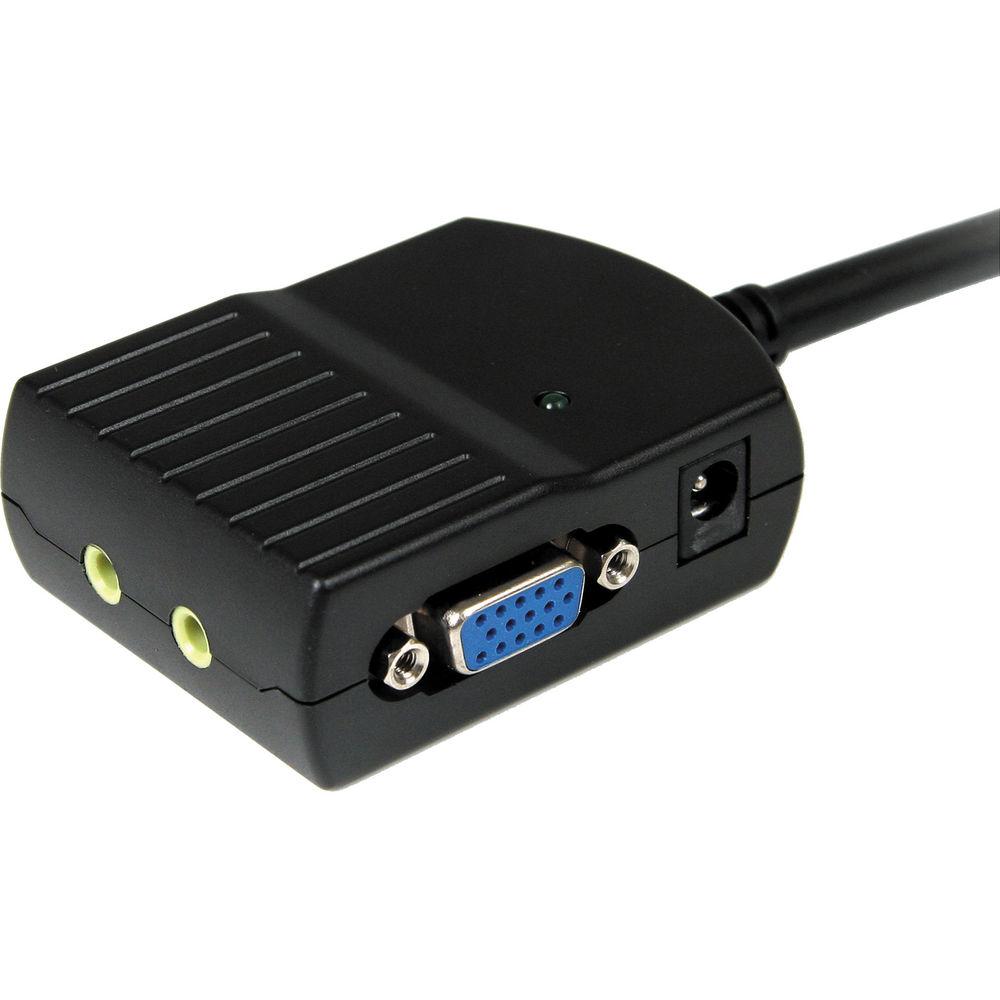

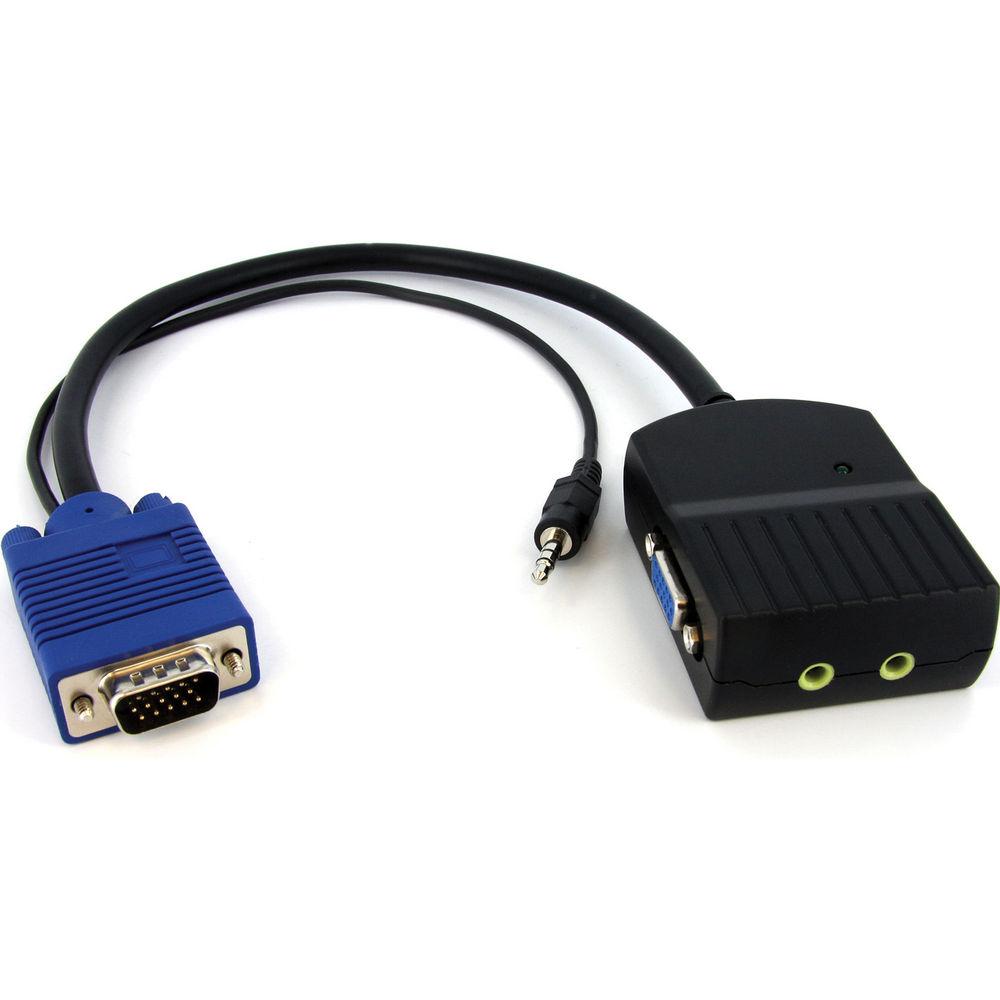

Product description The black ST122LEA USB Powered 2 Port VGA Video Splitter with Audio from Startech is a compact VGA splitter that allows a computer to simultaneously display VGA video on two monitors from a single source.
With support for resolutions up to 2048 x 1536 and stereo audio, this device can be used in classrooms, tradeshows, or any environment requiring crisp video on several displays. The VGA splitter is able to draw power from your source PC or media player using the built-in USB port, instead of using a conventional power adapter. This makes it easy to install where power outlets are not available. The splitter also features a built-in booster circuit that allows you to locate VGA monitors up to 200' away from your system. - Compact and space-saving design includes USB power cord for when power outlets are not available
- Integrated signal amplifier boosts your connection range to up to 210'
- Display on multiple screens lets you communicate your message more effectively to a large audiences for greater impact
- Provides resolutions up to 2048 x 1536, 60 Hz
- 300 MHz bandwidth for high bandwidth fast moving video
- Supports stereo audio using 3.5mm audio jacks
- For use in/with small digital signage installations with minimal space or limited number of power outlets, in-store product merchandising in retail environments to give your advertisements greater visibility, display travel schedules and alerts in airports, bus terminals and train stations, engaging multimedia presentations for demonstration in lecture halls and classrooms, trade-shows or information booths/kiosks, auditorium or houses of worship

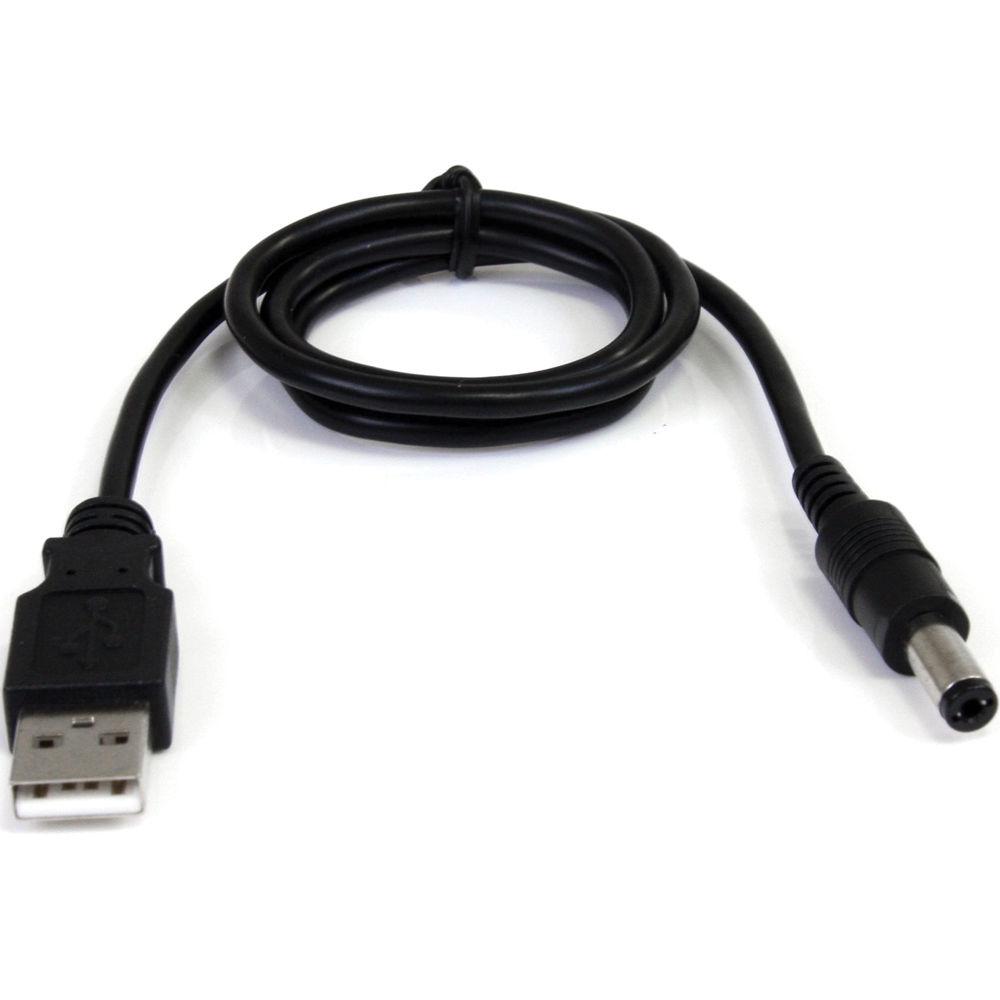

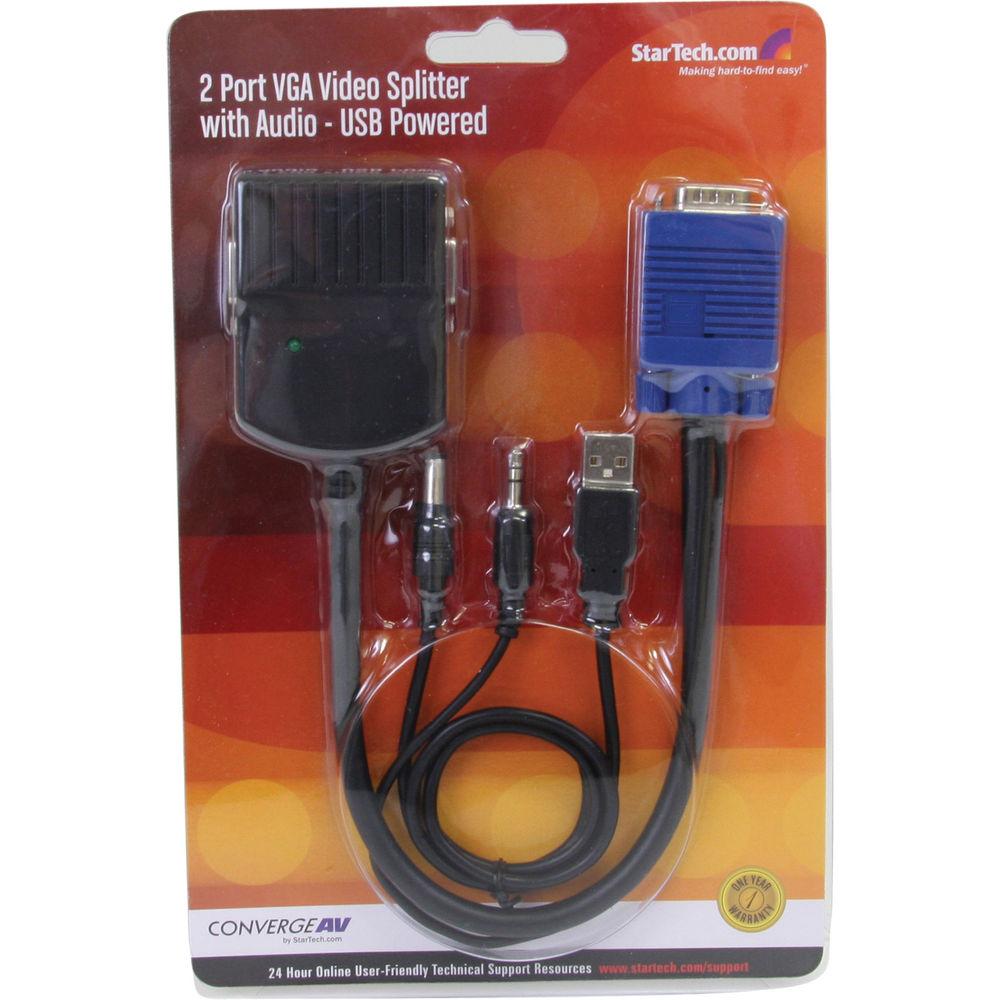

UPC: 065030839778 In the Box StarTech ST122LEA USB Powered 2 Port VGA Video Splitter with Audio Video Splitter USB to DC Power Cable Limited 2-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech ST122LEA USB Powered 2 Port VGA Video Splitter with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech ST122LEA USB Powered 2 Port VGA Video Splitter with Audio can be downloaded in PDF format at the link stated below.

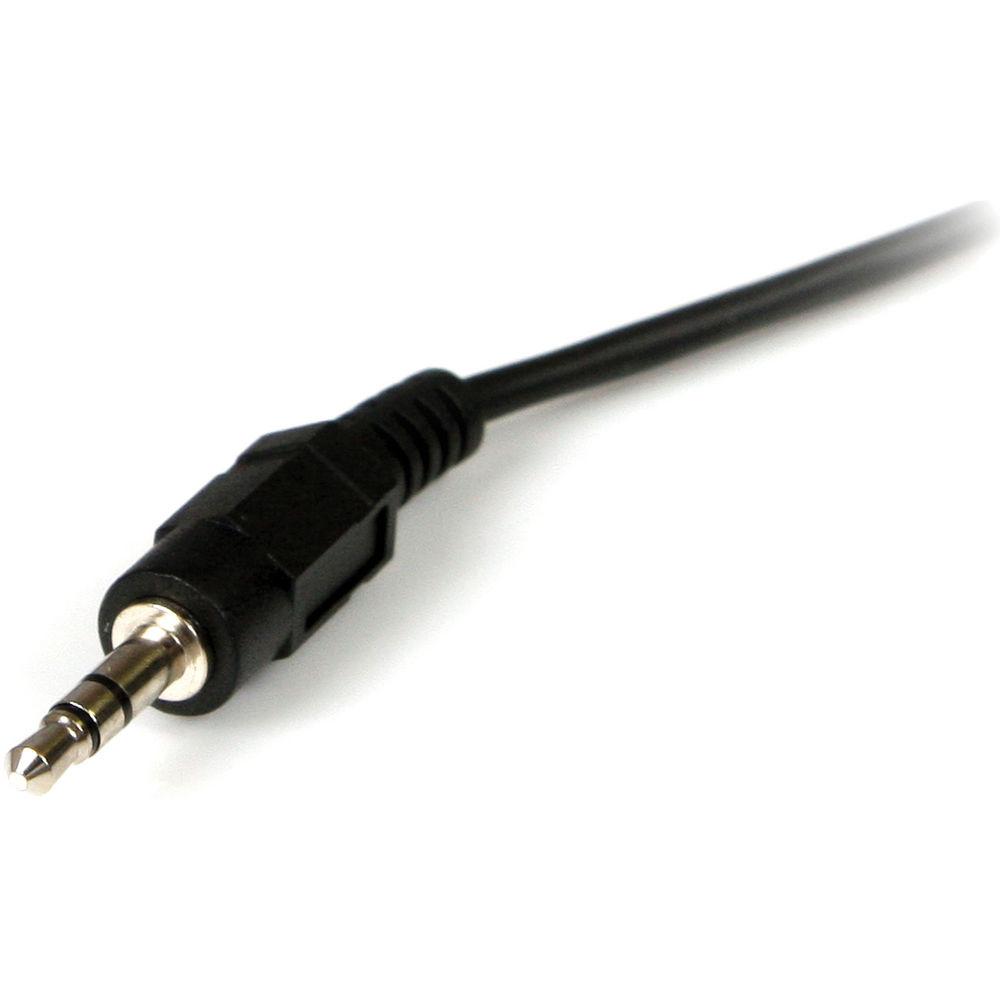

Technical parametersStarTech ST122LEA Specs | | | Ports | 2 | | Audio | Yes | | Connectors | A: 1 x 3.5 mm Mini-Jack (3 Position) Male

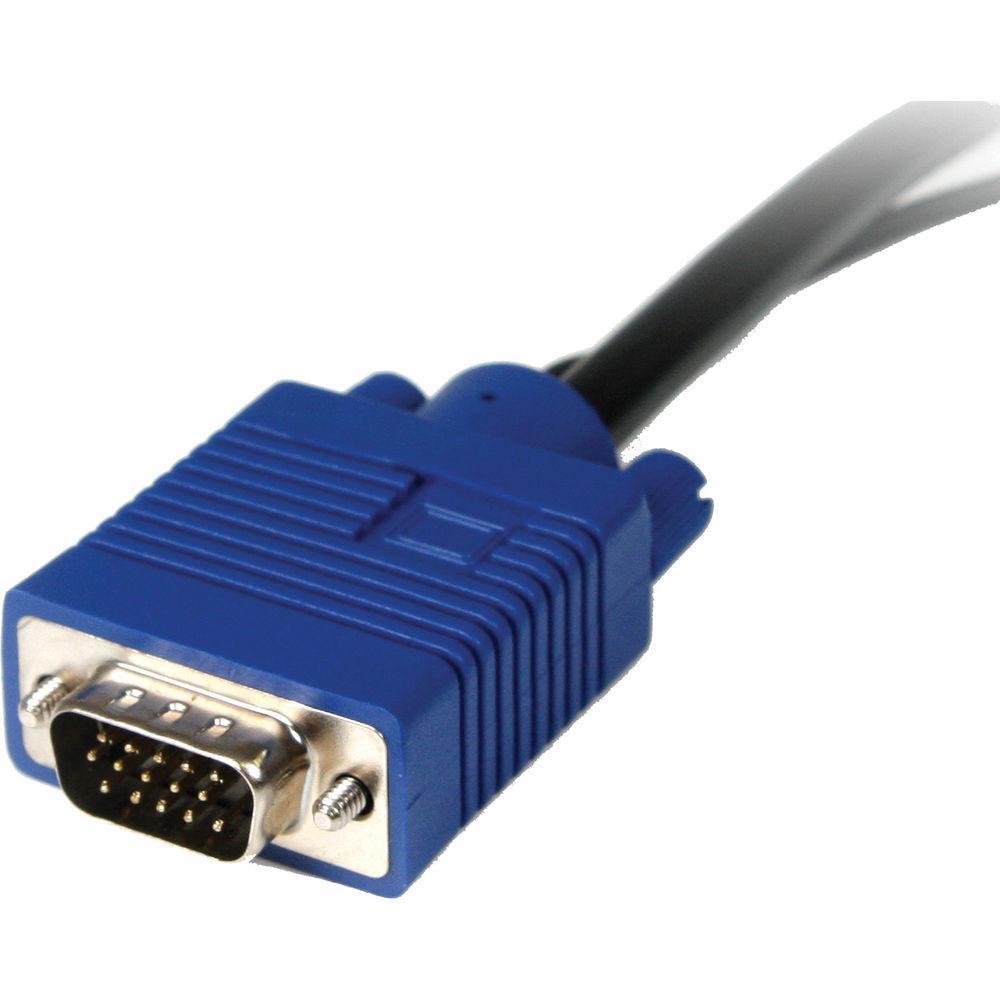

1 x VGA (15-pin; High Density D-Sub) Male
B: 1 x 3.5 mm Mini-Jack (3 Position) Female
2 x VGA (15 pin; High Density D-Sub) Female | | | | Resolutions | Analog: Maximum: 2048 x 1536 | | | | LED Indicator | 1 - Green - Power | | | | Power Adapter | Self Powered | | Output Voltage | 5 VDC | | Output Current | 0.5 A | | | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | 0 to 95% RH | | | | Enclosure Type | Plastic | | Dimensions (L x W x H) | 2.7 x 2.0 x 1.0" (68.0 x 53.0 x 25.0 mm) | | Weight | 4.1 oz (115.0 g) | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 9.3 x 5.9 x 0.9" |
