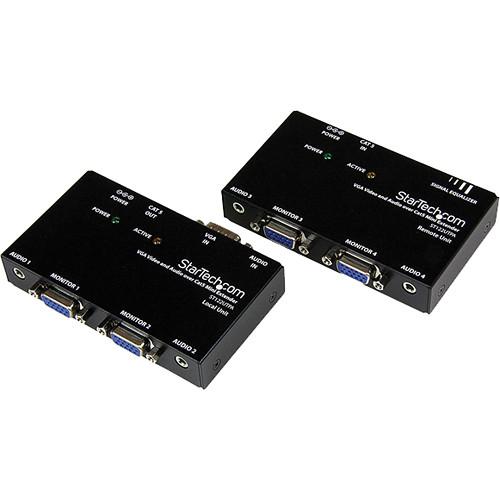

Product description The ST122UTPA VGA Video Extender Kit from StarTech includes a local transmitter and a remote receiver that provide an out-of-the box solution suited for point to point digital signage applications that require audio. This system helps extend and distribute VGA signals with audio to a remote display over a CAT-5 cable (sold separately).This VGA video extender kit allows up to 4 monitors to display content from a single PC. The video signals and corresponding audio from the transmitter are sent to the remote unit over a standard 4-pair CAT5 or the recommended CAT5e UTP cable that can be placed up to 500’ away. To simplify installation, this kit also includes two mounting brackets for the transmitter and receiver, allowing for installation onto walls, desks, or cabinets for a tidy setup. General - Consists of a base unit for local display and a remote unit for remote display 1
Please Note: Up to 2 monitors can be connected at each location. close - Extends VGA and analog audio up to 500'
- VGA extension through non-proprietary network cabling
- No software or drivers required
- Uses standard CAT-5/-5e straight-wired, twisted-pair, network patch cable (sold separately) for economical and reliable data transmission
- Includes mounting brackets for a tidy and professional installation
Applications - Allows you to transmit signals through harsh environments and industrial sites to a display, while the system equipment is placed in a clean and secure environment
- Useful for digital signage applications in financial, educational, and business sectors
- Can be used for video conferencing solutions in boardrooms and office settings
- Optimize placement of your demo stations at tradeshows and in auditoriums

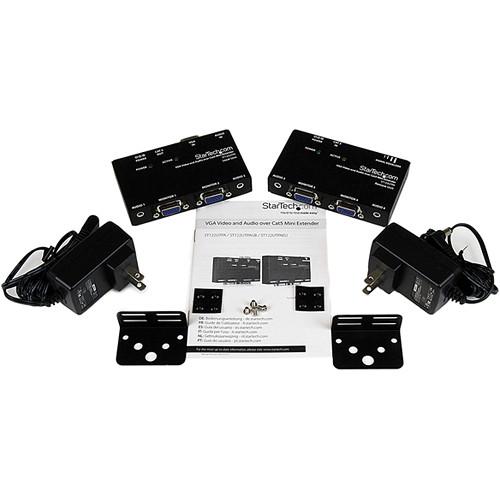

UPC: 065030811408 In the Box StarTech ST122UTPA VGA Video Extender Kit with Audio Support over CAT-5 Cable Local VGA Extender Unit Remote VGA Extender Unit 2 x Mounting Bracket with Screws 2 x Set of Rubber Feet 2 x 9VDC Power Adapter Limited 2-Year Warranty Brochure PDF 128.8kb More from Manufacturer tuscuwudvrzzcvzryyuxwuyraxdsbyuw Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech ST122UTPA VGA Video Extender Kit with Audio Support over CAT-5 Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

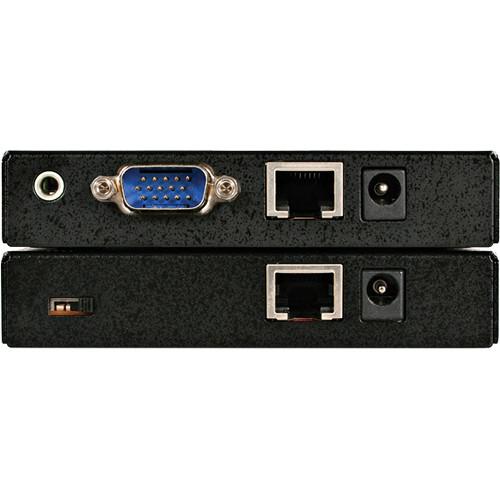

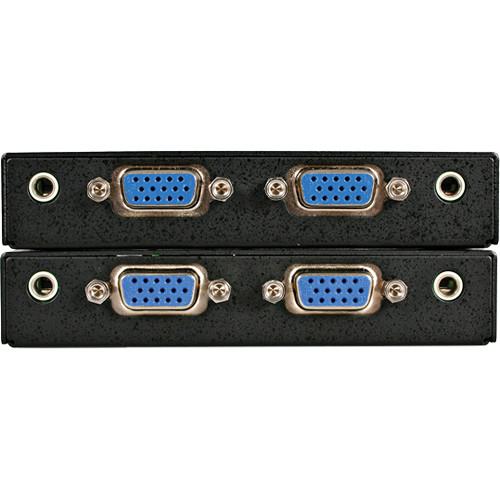

Technical parametersStarTech ST122UTPA Specs | | | Ports | 2 | | Cabling Type | CAT-5e UTP or better | | | | Connectors | Local Unit: 1 x RJ-45 female, 1 x VGA (15 pin; high density D-Sub) male, 2 x 3.5 mm mini-jack (3-position) female, and 2 x VGA (15-pin; high density D-Sub) female
Remote Unit: 1 x RJ-45 female, 2 x 3.5 mm mini-jack (3-position) female, and 2 x VGA (15-pin; high density D-Sub) female | | LEDs | 1 x Power, 1 x Activity | | | | Maximum Cable Length | 500.0' (152.4 m) | | Maximum Distance | 500.0' (152.4 m) | | Supported Resolutions | Maximum: 1440 x 900 at 150.0' (45.7 m)
1280 x 1024 at 300.0' (91.4 m)
1024 x 768 at 500.0' (152.4 m) | | | | Output Voltage | 9 VDC | | Output Current | 0.6 A | | Center Tip Polarity | Positive | | | | Enclosure Type | Aluminum | | Power Adapter | 9 VDC, 600 mA, center positive | | Dimensions (L x W x H) | 2.4 x 3.3 x 0.8" (6.0 x 8.3 x 2.0 cm) | | Weight | 6.4 oz (181.4 g) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 9.4 x 7.4 x 2.6" |
