User Manual for StarTech ST123HDA 3 Port Component Video Splitter with Digital Audio Click to enlarge the picture
Contents of the user manual for the StarTech ST123HDA 3 Port Component Video
- Product category: Distribution Amplifiers (DA's) StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Distribution Amplifiers (DA's)
 |
User manual for the StarTech ST123HDA 3 Port Component Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

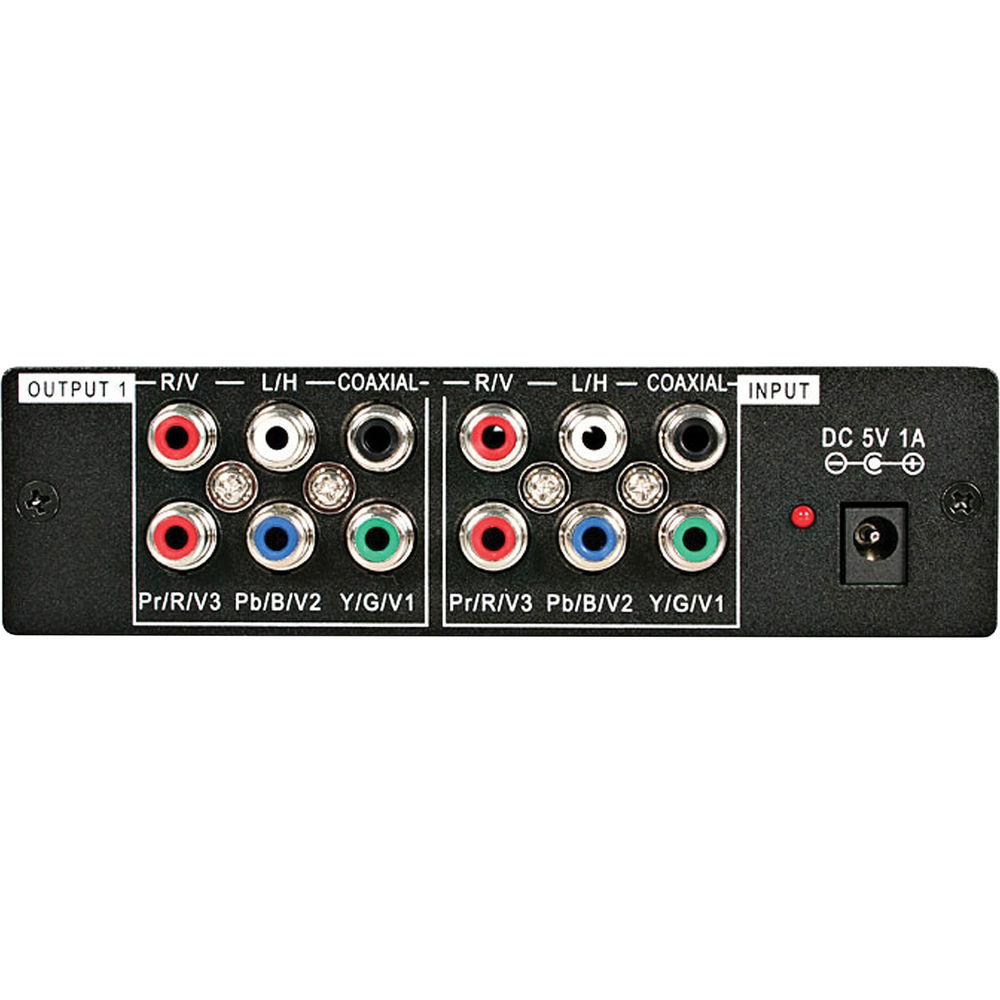

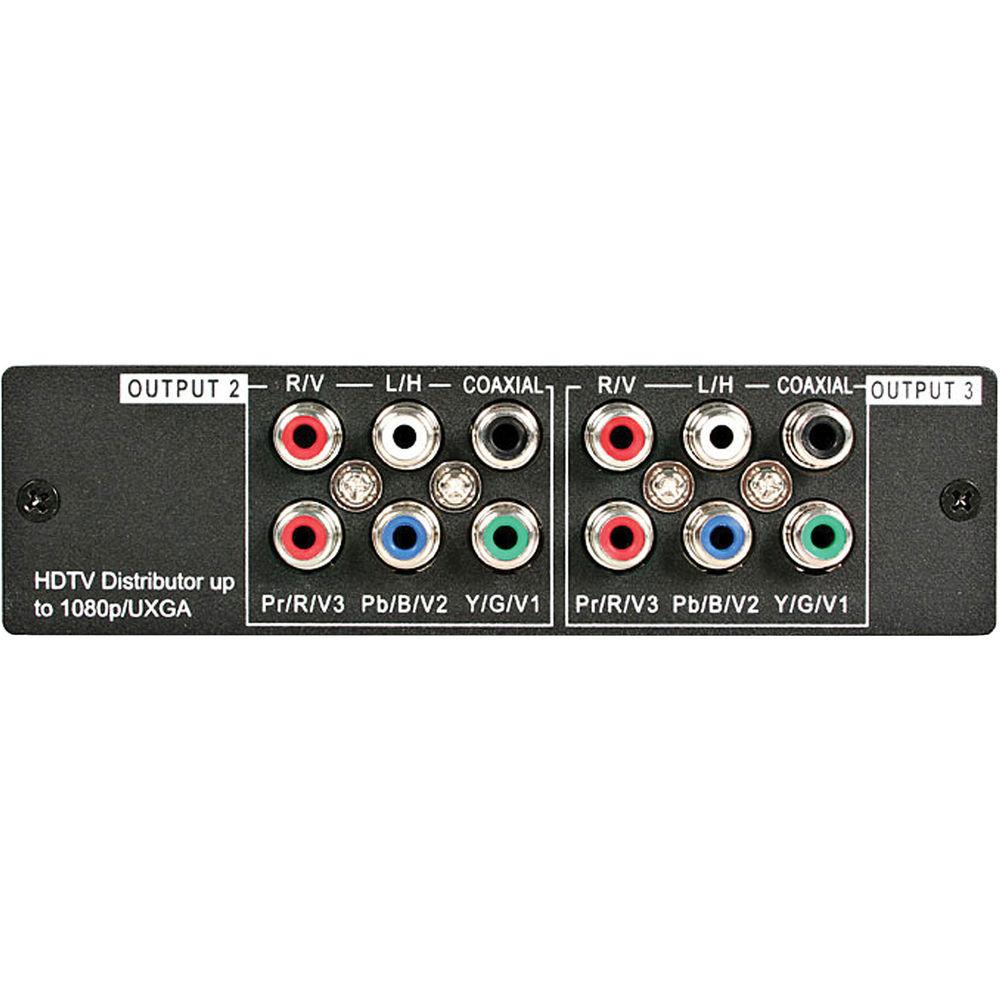

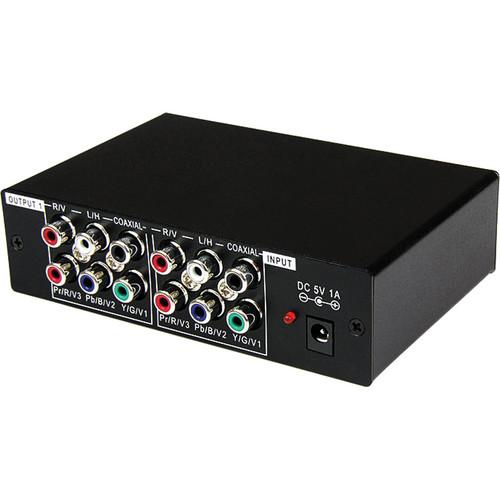

Product description The black ST123HDA 3 Port Component Video Splitter with Digital Audio from StarTech lets you share a single component (YPbPr) video signal as well as the corresponding audio, across 3 monitor displays or projectors simultaneously.
Offering true high definition performance, the component splitter supports video resolutions up to 1080p, and 5.1 channel digital audio.
A versatile video solution, the component video splitter can also be used as a composite video splitter, allowing for up to 3 distinct composite video signals to be distributed to up to 9 displays. - General
-
- Use it as a component video and digital audio splitter or composite video splitter
- Distribute high definition component video and 5.1 channel digital audio
- Supports resolutions up to 1080p
- Works with standard and high definition displays
- Sturdy metal construction
- Applications
-
- Connect component video enabled projectors, monitors, plasma screens, commercial billboards, and wall display systems
- Suitable for classroom, corporate, healthcare, professional A/V, control centres, conference halls, and retail environments
- Certifications, Reports, and Compatibility
- CE & FCC compliant

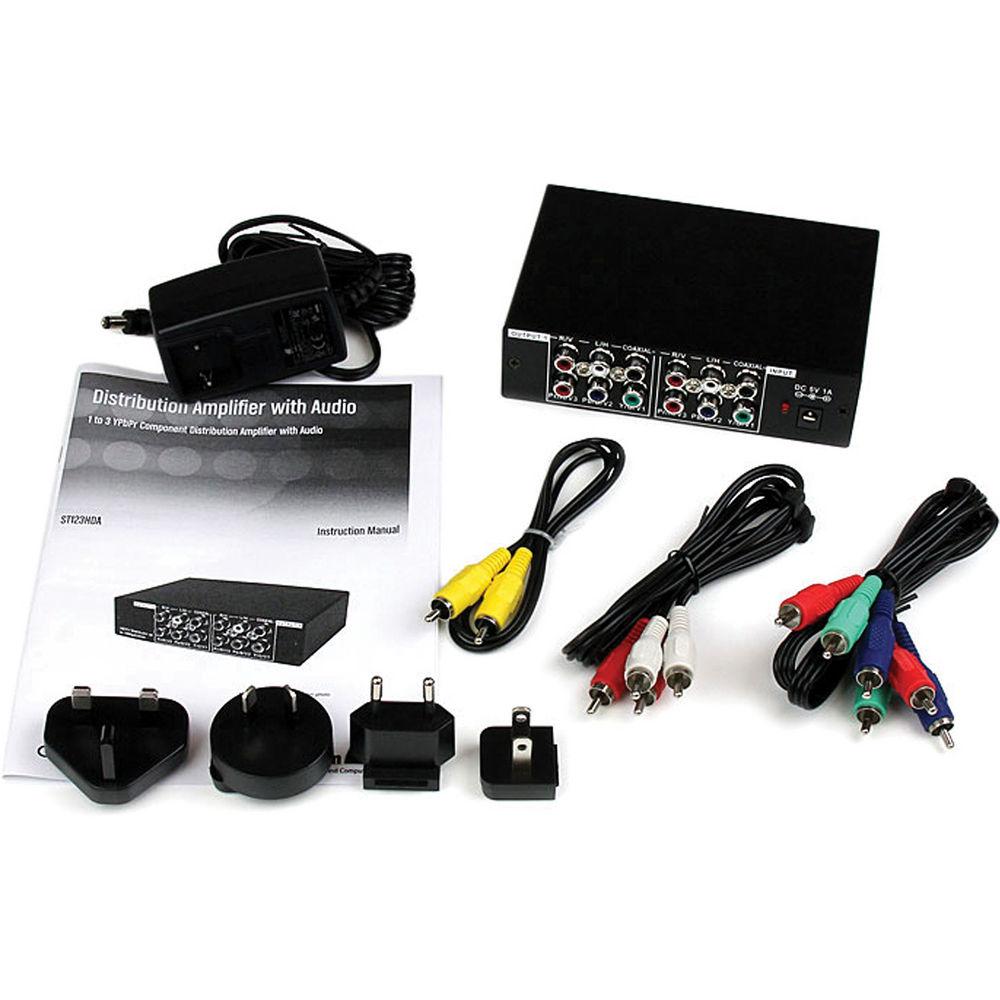

UPC: 065030817639 In the Box StarTech ST123HDA 3 Port Component Video Splitter with Digital Audio (Black) Component RCA Cable Composite RCA Cable RCA Audio Cable Universal Power Adapter Limited 2-Year Warranty Manual PDF 261.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech ST123HDA 3 Port Component Video Splitter with Digital Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech ST123HDA Specs | | | Ports | 3 | | System Requirements | Composite or component video sources
A composite or component compatible display | | | | Output Connectors | 3 Component video (3 x RCA) female
3 Digital coax audio (RCA) female
3 Stereo audio (2 x RCA) female | | Input Connections | 1 Component video (3 x RCA) female
1 Digital coax audio (RCA) female
1 Stereo audio (2 x RCA) female | | | | Audio | Signals Supported: Digital (5.1 channel), stereo (2 channel) | | | | Power Adapter | Included: Yes | | Output Voltage | 5 DC | | Output Current | 1 A | | | | Dimensions (L x W x H) | 5.6 x 1.5 x 4.1" (142.2 x 38.1 x 104.1 mm) | | Weight | 34.2 oz (970.0 g) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 11.3 x 7.3 x 2.7" | Note: 3 separate composite video sources can be distributed to up to 9 displays using this device (3 per video source).
