User Manual for StarTech ST128L 8 Port VGA Video Splitter Click to enlarge the picture
Contents of the user manual for the StarTech ST128L 8 Port VGA Video
- Product category: Distribution Amplifiers (DA's) StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Distribution Amplifiers (DA's)
 |
User manual for the StarTech ST128L 8 Port VGA Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

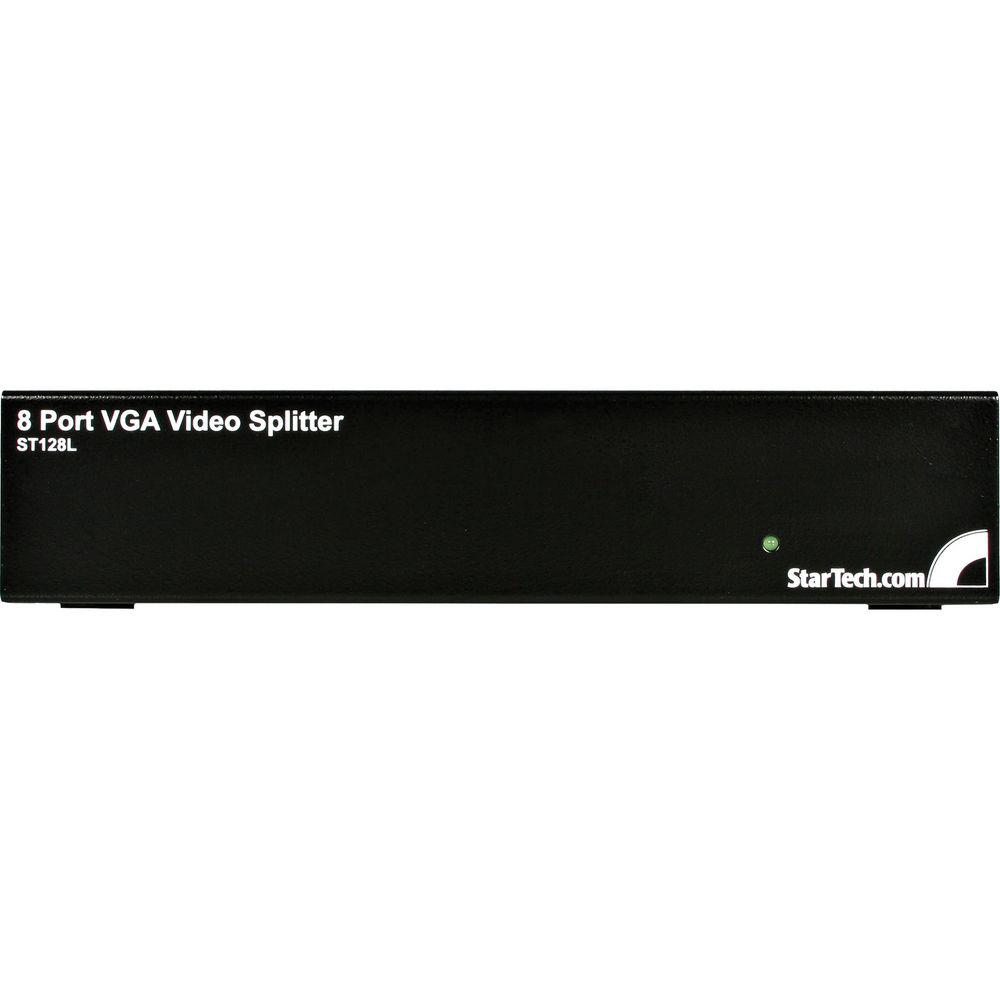

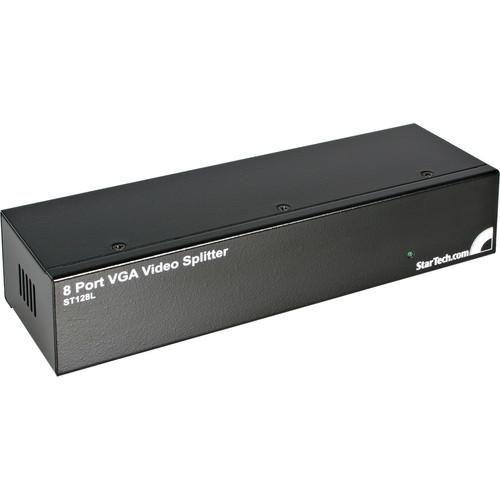

Product description The black ST128L 8 Port VGA Video Splitter from StarTech allows a single VGA source to display VGA video onto 8 monitors simultaneously. It is suitable for classrooms, tradeshows, or in-store displays where high quality video on several monitors is needed. The simple plug and play operation makes setup quick and easy so you can be up and running in minutes.
It supports displays with up to 250 MHz of bandwidth, providing resolutions up to 1920 x 1440. A built-in booster circuit lets you situate your displays up to 210’ (65m) away from the source. A MXT101HQ Male to Female VGA extension cable is required (sold separately). - General
-
- Supports resolutions up to 1920 x 1440
- Supports cable distances up to 210’ (65m)
- Supports cascading up to 3 levels
- 250 MHz video bandwidth
- Compatible with VGA, SVGA, and multi-sync monitors
- Integrated signal amplifier boosts your connection range to 210’ (65m)
- Multiple screens let you communicate your message more effectively to large audiences with greater impact
- High quality construction and high resolution support maintains signal strength for crisp, sharp imaging
- Steel housing
- Applications
-
- Use for in-store product merchandising in retail environments to give your advertisements greater visibility
- Display travel schedules and alerts in airports, bus terminals, and train stations
- Create engaging multimedia presentations for demonstration in lecture halls and classrooms
- Get your message across multiple displays for trade-shows or information booths/kiosks
- Quick and easy solution to split a video signal in an auditorium or house of worship
- Certifications, Reports, and Compatibility
-

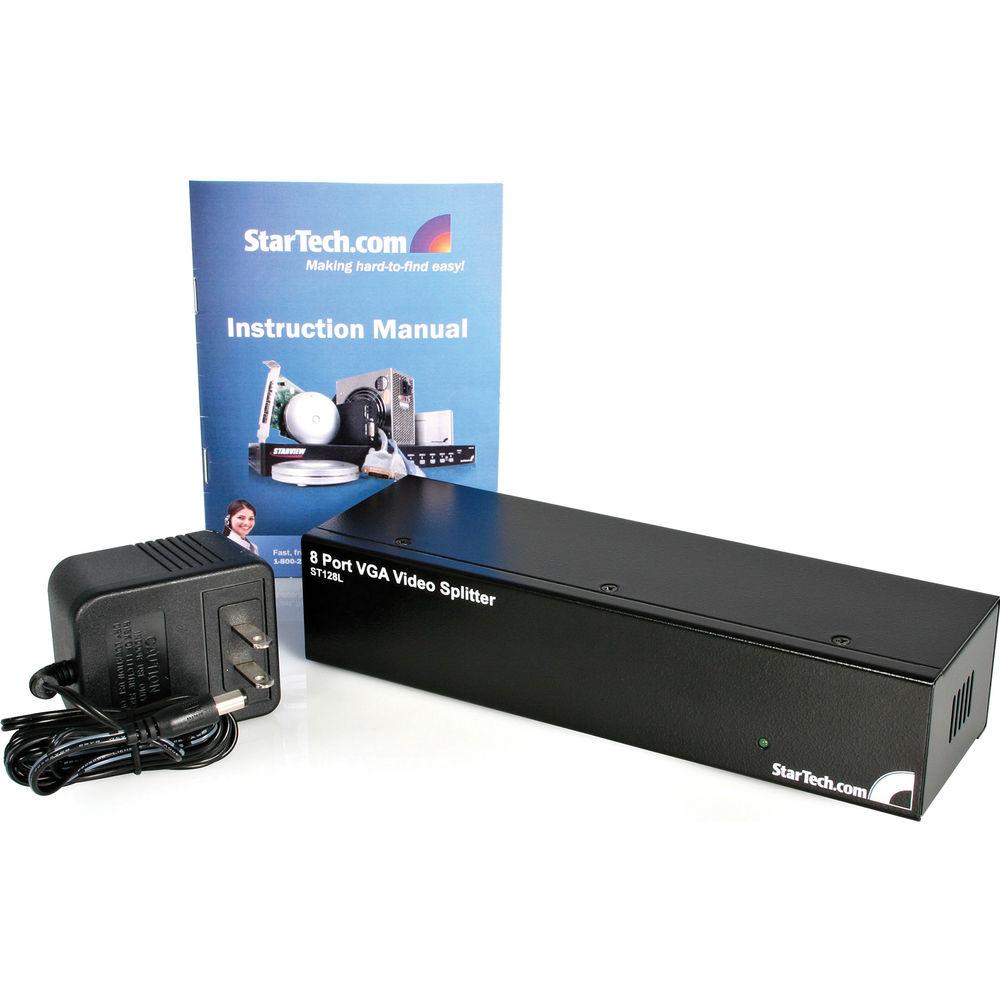

UPC: 065030817479 In the Box StarTech ST128L 8 Port VGA Video Splitter (250 MHz, Black) Power Adapter Limited 2-Year Warranty Brochure PDF 104.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech ST128L 8 Port VGA Video Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

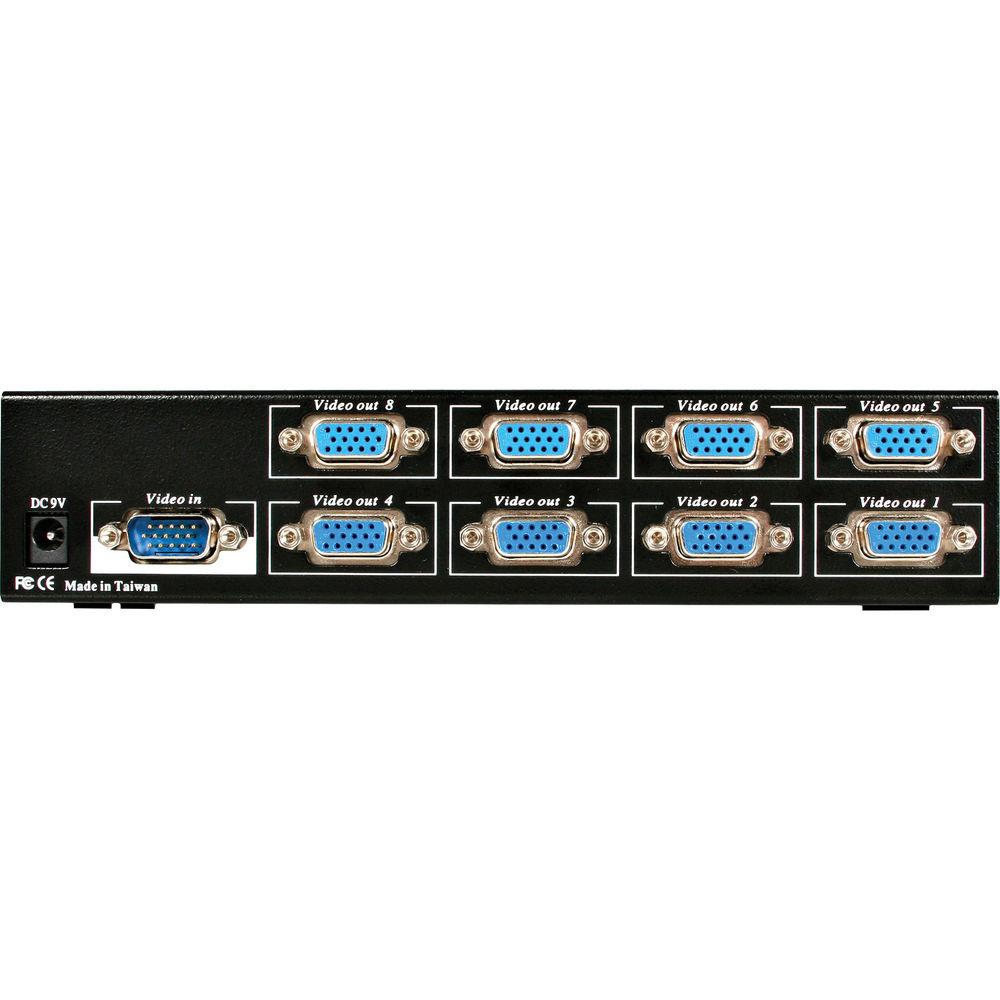

Technical parametersStarTech ST128L Specs | | | Ports | 8 | | Video Input | 1 x HD-15 VGA male | | Video Output | 8 x HD-15 VGA female | | Daisy Chain Capability | Yes, Maximum: 3 | | System Requirements | A computer with VGA output
Up to 8 displays with VGA inputs
1 high-quality VGA switchbox cable for each monitor to be connected and 1 VGA male/female cable for the source computer | | | | Connector Type | 1 x VGA (15-pin; high density D-sub) male
8 x VGA (15-pin; high density D-sub) female | | | | Cable Length | 210' (65 m) | | Resolution | Maximum Analog: 1920 x 1440 | | Bandwidth | 250 MHz | | | | Power Adapter | Yes, 9 VDC, 500 mA (center positive) | | Output Voltage | 9 DC | | Output Current | 0.5 A | | Plug Type | M | | Operating temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | 4 to 140°F (-20 to 60°C) | | | | Dimensions (L x W x H) | 2.6 x 5.2 x 1.0" (65.0 x 131.1 x 25.9 mm) | | Weight | 7.8 oz (221.0 g) | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 10.8 x 7.8 x 3.1" |
