User Manual for StarTech ST222MXA 2 x 2 VGA Matrix Video Switcher Splitter with Audio Click to enlarge the picture
Contents of the user manual for the StarTech ST222MXA 2 x 2 VGA
- Product category: Routers & Switchers StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Routers & Switchers
 |
User manual for the StarTech ST222MXA 2 x 2 VGA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

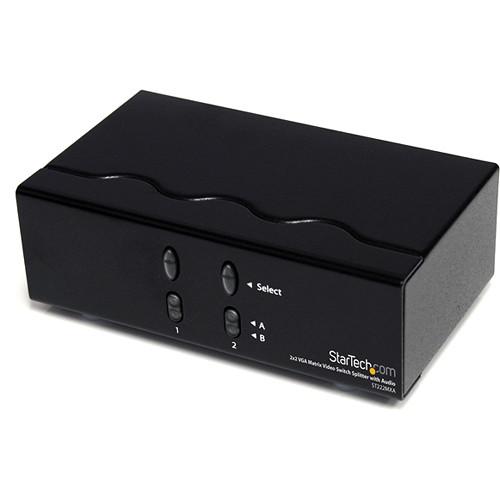

Product description The black ST222MXA 2 x 2 VGA Matrix Video Switcher/Splitter with Audio from StarTech allows you to share 2 distinct VGA inputs as well as a corresponding audio source signals between 2 independent displays or projectors.
Providing convenient push-button control, the VGA Matrix Switcher/Splitter allows each of the 2 input VGA signals and the corresponding audio to be switched individually, meaning that you can have a different source showing on each display or 1 source showing on both, offering maximum flexibility and control.
To ensure optimized VGA distribution and signal management over longer distance signal transmissions, it features a built-in signal booster that facilitates installation of displays at distances of up to 213’ (65m) away from the source device while maintaining signal integrity. - General
-
- Allows 2 VGA source devices to provide video and audio to 2 displays / projectors
- Maximum resolution of up to 1920 x 1440 @ 85 Hz
- Video bandwidth 250 MHz

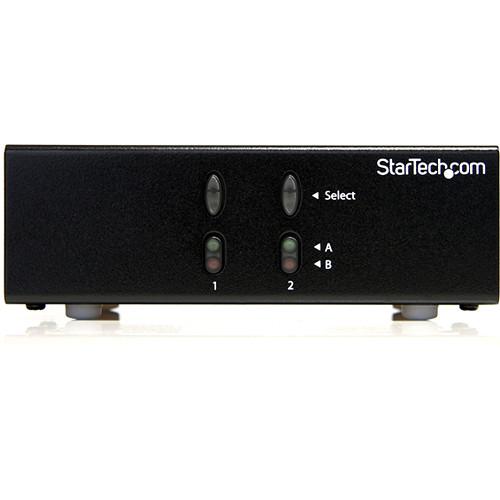

- Front panel selection buttons
- 213’ (65m) maximum cable length
- 3.5mm stereo audio connections
- Audio frequency response 20 Hz to 20 kHz
- Supports DDC DVI EDID Ghosting Emulator with EDID Copy, DDC2 Mini DisplayPort to VGA Video Adapter Converter, DDC2B 2-port USB KVM Cable Switch
- Supports multi-sync video types including RGBHV, RGsB, RGBS
- Matrix switching lets you use the device as a video splitter or switch with the ability to toggle on/off signals, giving you full control of screen content
- Built-in signal amplifier lets you extend your connection by up to 210’ (64m)
- Steel enclosure type
- Applications
-
- Take full control of your sources and displays/projectors; select any source on any display
- Run multimedia presentations with supporting data showing on another display in business conference rooms or at trade-shows
- Suitable for connecting/switching multiple sources in test bench facilities, data centers, help desks, and video broadcasting facilities
- Suitable for digital signage applications in retail environments requiring more than one media player or PC to be connected
- Allow trainees/students to see what is on your display and then switch them back to their own display after the demonstration completes
- Certifications, Reports, and Compatibility
- CE and FCC compliant

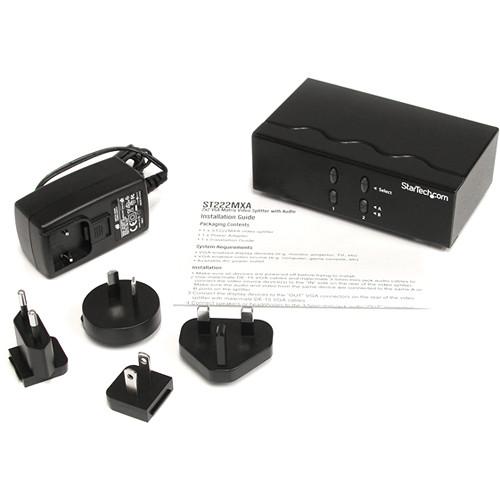

UPC: 065030841825 In the Box StarTech ST222MXA 2 x 2 VGA Matrix Video Switcher/Splitter with Audio (Black) Power Adapter Limited 2-Year Warranty Brochure PDF 149kb Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech ST222MXA 2 x 2 VGA Matrix Video Switcher Splitter with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

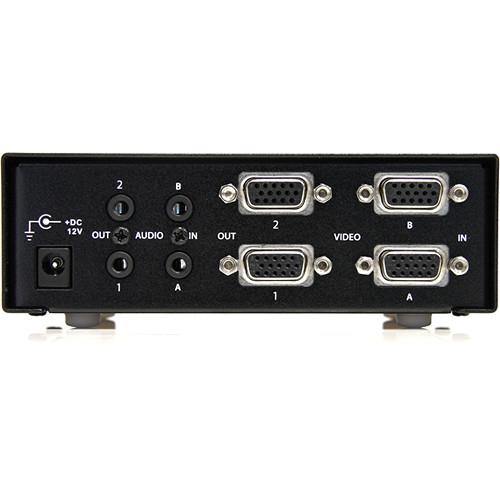

Technical parametersStarTech ST222MXA Specs | | | Ports | 4 | | Audio | No | | Standard | Industry: DDC, DDC2, DDC2B | | Video Signal | VGA (RGBHV, RGsB, RGBS) | | Number of Inputs | 2 | | Number of Outputs | 2 | | Connector | 2 x DE-15 VGA female (input)
2 x DE-15 VGA female (output)
2 x 3.5 mm mini-jack female (input)
2 x 3.5 mm mini-jack female (output)
1 x DC power | | LED | 2 x Input A selection
2 x Input B selection | | System Requirements | VGA enabled display devices (e.g., monitor, projector, TV, etc.)
VGA enabled video source (e.g., computer, game console, etc.)
AC power outlet (sold separately) | | | | Connector 1 | 2: 3.5 mm mini-jack (3 position) female
2: VGA (15-pin; high density D-sub) female | | Connector 2 | 2: 3.5 mm mini-jack (3 position) female
2: VGA (15-pin; high density D-sub) female | | | | Cable Length | Maximum: 213.2' (65.0 m) | | Resolution | Maximum Analog: 1920 x 1440 @ 85 Hz | | Bandwidth | 250 MHz | | Frequency Range | Audio: 20 Hz to 20 kHz | | Audio Support | Yes (stereo) | | | | LED | 4: Port/source selection indicators (2 sets of 2), Green: Source A, Red: Source B | | | | Power Adapter | Yes, 600 mA Power adapter included | | Input Voltage | 110 to 240 AC | | Input Current | 0.2 | | Output Voltage | 12 VDC | | Output Current | 0.6 A | | Center Tip Polarity | Positive | | Plug Type | M | | | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | 0 to 95% | | | | Dimensions (L x W x H) | 5.1 x 3.1 x 1.6" (130.0 x 80.0 x 40.0 mm) | | Weight | 16.3 oz (462.0 g) | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 9.6 x 6.1 x 2.6" |
