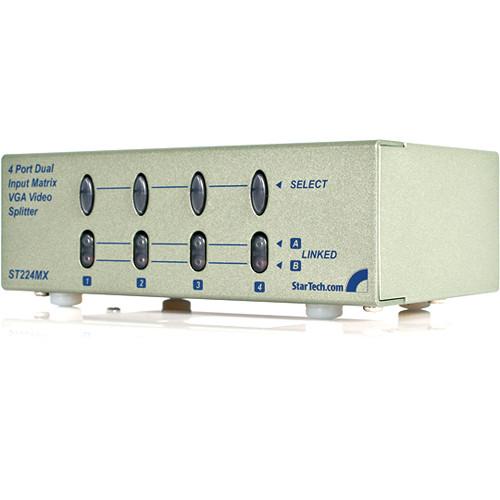

Product description The gray ST224MX 2 x 4 High Resolution Matrix VGA Video Switch from StarTech allows you to share 2 distinct VGA input source signals between 4 displays or projectors. Providing convenient push button control, the VGA Matrix Switcher/Splitter allows both the VGA input signals to be switched / split for display on any of the connected VGA displays (up to 4), in turn ensuring centralized control of the VGA signal output destination at the push of a button.
To ensure optimized VGA distribution and signal management even over longer distance signal transmissions, the VGA Matrix Switcher/Splitter features a built-in signal booster that facilitates installation of displays at distances of up to 210’ (65m) away from the source computer while maintaining superior signal integrity. The switcher/splitter offers high video bandwidth (250 MHz) capability, providing display resolutions of up to 1920 x 1440p.
Designed to provide maximum control while saving space and eliminating clutter, the VGA Matrix splitter/switcher can be used as a standalone solution or rack-mounted using the included ear mounts. - General
-
- Allows 2 computers to provide video inputs to display on 4 different monitors
- Allows you to switch video input signals on all 4 displays
- Works with VGA, SVGA, XGA, and multi-sync monitors
- High video bandwidth (250 MHz) provides high quality resolution of up to 1920 x 1440p
- Daisy chainable for use with more than 8 monitor hookups

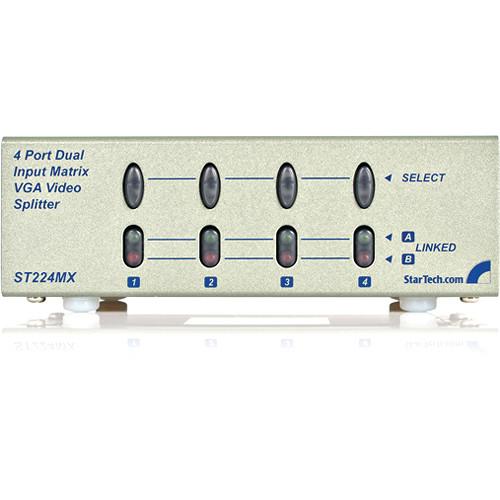

- Equipped with easy to use front panel selection buttons
- Includes a 7.5 VAC power adapter
- Built-in video amplifier boosts the signals to allow a cable length of up to 210’ (65m)
- Uses standard monitor extension cables
- Metal housing
- Applications
-
- Public broadcast systems
- Demos and presentations
- In-store product merchandising
- Information kiosks
- Certifications, Reports, and Compatibility
-
- CE and FCC compliant
- Safety Standards: FCC and CE mark

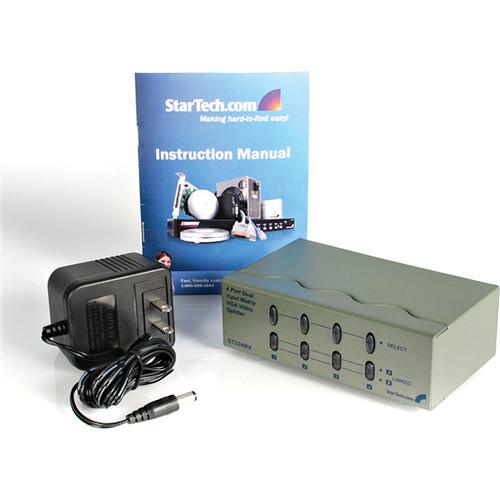

UPC: 065030805247 In the Box StarTech ST224MX 2 x 4 High Resolution Matrix VGA Video Switch (Gray) Power Adapter Limited 2-Year Warranty Manual PDF 806.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech ST224MX 2 x 4 High Resolution Matrix VGA Video Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

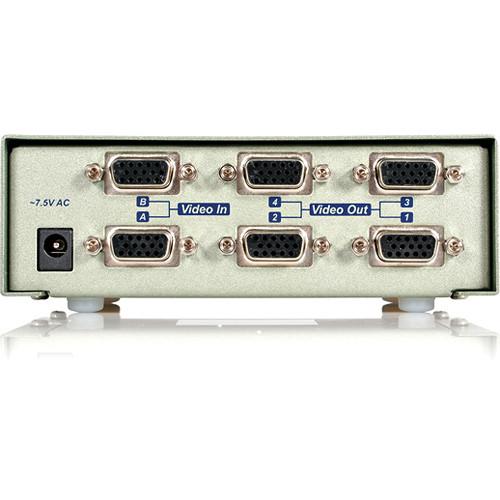

Technical parametersStarTech ST224MX Specs | | | Ports | 4 | | Audio | No | | Signal Type | VGA, SVGA, XGA, multi-sync | | | | Connector 1 | 2: VGA (15-pin; high density D-sub) female | | Connector 2 | 4: VGA (15-pin; high density D-sub) female | | Input/Output Signal | Red video, green video, blue video, ground, analog ground, NC, ground, horizontal & vertical sync
ID2, ID0, ID1, ID3 The ID0, ID1, ID2, and ID3 signals are available only on the video output ports 1 and 2. | | | | Cable Length | Maximum: 213.2' (65.0 m) | | Resolution | Maximum Analog: 1920 x 1440 @ 60 Hz | | Bandwidth | 250 MHz | | | | LED | 8: Port status (4x PC A: Green & 4x PC B: Red) | | | | Output Voltage | 7.5 AC, 800 mA | | Output Current | 0.8 A | | | | Dimensions (L x W x H) | 7.9 x 3.0 x 1.7" (200.0 x 7.5 x 42.0 mm) | | Weight | 15.9 oz (450.0 g) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 7.244 x 5.276 x 2.992" |
