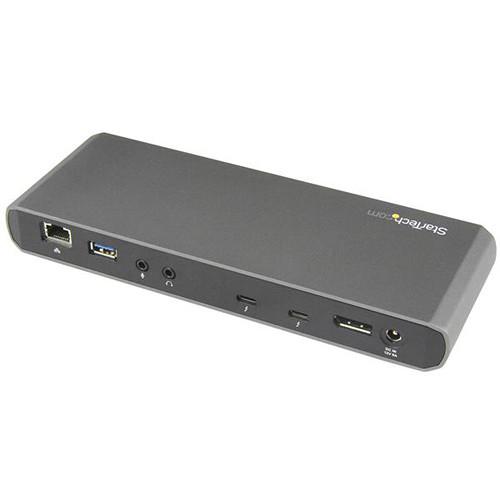

Product description Connect a variety of Thunderbolt 3, USB 3.1 Type-C, USB 3.0 Type-C, USB 3.0 Type-A, DisplayPort, Gigabit Ethernet, and 3.5mm audio peripherals to your Windows system with a single cable using the Thunderbolt 3 Dual 4K Docking Station from StarTech. This dock contains two Thunderbolt 3 ports, which operate at speeds up to 40 Gb/s and utilize the reversible USB Type-C connector, while also supporting USB 3.1 at speeds up to 10 Gb/s and DisplayPort connectivity. This dock is also equipped with one USB 3.0 Type-C port (5 Gb/s), one USB 3.0 Type-A port (5 Gb/s), one USB 3.0 Type-A charging port (5 Gb/s), one DisplayPort, one Gigabit Ethernet port with Wake-on-LAN (WOL) support, one 3.5mm mic audio-out jack, and one 3.5mm mic-in jack.
StarTech's Thunderbolt 3 dock has been designed for creative professionals, such as video producers, graphic and web designers, engineers, and architects, who work with high-resolution, high-bandwidth, and graphically intensive images, video, CAD drawings, and medical imagery. To help facilitate this kind of work, this dock supports one 5K (5120 x 2880) display at 60 Hz via Thunderbolt 3, or two 4K (4096 x 2160) displays at 60 Hz via its Thunderbolt 3 and DisplayPort outputs. When connecting displays via a Thunderbolt 3 daisy-chain, the maximum resolution is dependent on the number of Thunderbolt 3 displays.
For those using this dock with laptops, a 15W trickle charge is provided that helps your system maintain its power levels. The Thunderbolt 3 Dual 4K Docking Station is only compatible with Windows 10, 8.1, 8, and 7. It does not support Mac OS. Included with this dock is a 1.6' Thunderbolt 3 cable, a universal 100-240 VAC power adapter, and a power cord. Protection is provided by a limited 2-year warranty. General Features - Improve your workflow with single-cable docking and up to 40 Gb/s bandwidth
- Supports simultaneous connections to dual 4K displays, with a 4096 x 2160p (60 Hz) resolution on each display (USB Type-C video adapter may be required)
- Connect your system to one of the rear-panel Thunderbolt 3 / USB Type-C ports, so you can access multiple displays and peripherals

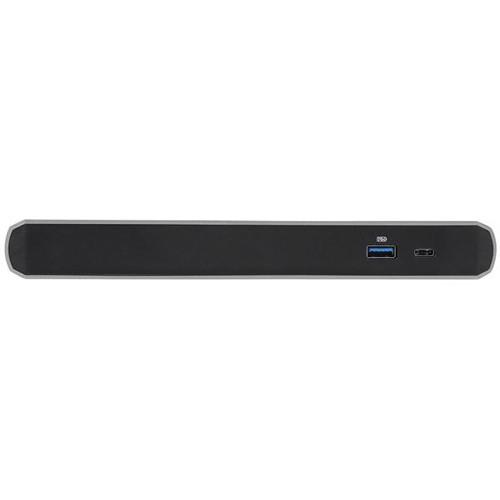

- Convenient, front access for your smartphone or tablet using the always-on USB 3.0 fast-charge and sync port (compliant with USB Battery Charging Specification 1.2)
- Additional ports include two standard USB 3.0 ports (1 x USB Type-C, 1 x USB Type-A), and one Thunderbolt 3 / USB Type-C port for connecting your second display or other peripherals
- Rear-panel 3.5mm audio output and 3.5mm microphone input
- Thunderbolt 3 ports also support DisplayPort 1.2, USB 3.1 Type-C, and DP alt mode
- Supports a single 5K (5120 x 2880p) display at 60 Hz using one of the Thunderbolt 3 / USB Type-C ports (video adapter may be required)
- This dock provides a trickle charge (15W) to your connected host laptop to help maintain your laptop's power levels
- An RJ45 Gigabit Ethernet port with Wake-on-LAN (WOL) support for environments where a wireless connection is not available
Applications - Creative professionals working with high-resolution, high-bandwidth, and graphically intensive images, video, CAD drawings, and medical imagery
- Recommended for video producers, graphic and web designers, engineers, architects, and more
- Access and edit large, uncompressed files such as videos and images on the fly, for dynamic on-site production
- Transfer a 4K movie in under 30 seconds, or 3 hours of 4K GoPro video in less than a minute
- Edit 4K video on one display, with a full-size video preview on the second 4K display
- Dock and undock quickly, with a single cable for data and external displays
UPC: 065030864893 In the Box StarTech Thunderbolt 3 Dual 4K Docking Station 1.6' / 0.5m Thunderbolt 3 Cable Power Cord Universal Power Adapter Limited 3-Year Warranty Brochure PDF 337.9kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech Thunderbolt 3 Dual 4K Docking Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech TB3DK2DPW Specs | | | 4K Support | Yes | | Bus Type | Thunderbolt 3 | | Chipset ID | Intel - Alpine Ridge DSL6540 (Thunderbolt 3) Texas Instruments - TPS65982ABZQZR (Power Delivery) Texas Instruments - HD3SS2522 (CC Logic) Parade - PS181 (Video) Fresco Logic - FL1100-EX (USB 3.0) Texas Instruments - TPS2546RTE (USB Charge) Texas Instruments - PCM2912APJT (Audio) Intel - WGI210AT (LAN) | | Displays Supported | 2 | | Industry Standards | Thunderbolt 3 USB Battery Charging Specification Rev. 1.2 IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1 | | | | Auto MDIX | Yes | | Compatible Networks | 10/100/1000 Mbps | | Full Duplex Support | Yes | | Maximum Data Transfer Rates | 40 Gb/s (Thunderbolt 3)
10 Gb/s (USB 3.1 Gen 2)
5 Gb/s (USB 3.0)

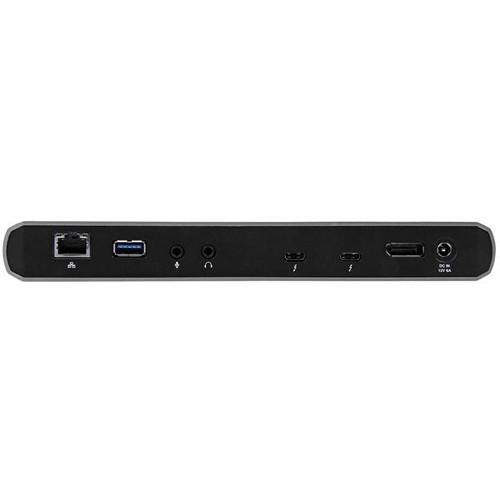

2 Gb/s (Ethernet; Full-Duplex) | | Maximum Digital Resolutions | Single Display - DisplayPort - 4096 x 2160p (60 Hz) Single Display - Thunderbolt 3 / USB Type-C - 5120 x 2880p (60 Hz) Dual Displays - DisplayPort and Thunderbolt 3 / USB Type-C - 4096 x 2160p (60 Hz) and 4096 x 2160p (60 Hz) | | Type and Rate | Thunderbolt 3 - 40 Gb/s | | UASP Support | Yes | | | | Connector Types | 2 x Thunderbolt 3 / USB 3.1 Type-C (24-pin) Female 1 x DisplayPort (20-pin) Female 1 x USB 3.0 Type-C (24-pin) Female 1 x USB 3.0 Type-A (Fast-Charge; 9-pin; SuperSpeed) Female 1 x USB 3.0 Type-A (9-pin) Female 2 x 3.5 mm Mini-Jack (3 Position) Female 1 x RJ-45 Female | | | | OS Compatibility | Windows 10, 8.1, 8, and 7 (32 & 64-bit) | | | | Notes | A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K) When connecting a display to one of the Thunderbolt 3 / USB Type-C ports, a USB Type-C video adapter may be required depending on the input of your display USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5 Gb/s. USB 3.1, also known as USB 3.1 Gen 2, offers speeds up to 10 Gb/s | | System and Cable Requirements | A Thunderbolt 3 equipped computer with a Thunderbolt 3 port running Windows. This docking station does not support Mac | | | | LED Indicators | 1 - Power (Blue) | | | | Center Tip Polarity | Positive | | Input Current | 1.5 A | | Input Voltage | 100 ~ 240 VAC | | Output Current | 6 A | | Output Voltage | 12 VDC | | Plug Type | N | | Power Consumption | 72 W (max) | | Power Source | AC Adapter (included) | | | | Humidity | 5 ~ 95% RH (non-condensing) | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | | | Color | Gray and Black | | Enclosure Type | Aluminum and Plastic | | Dimensions | 1.0 x 8.7 x 3.1" / 25.4 x 221.0 x 80.0 mm | | Weight | 17.6 oz / 499.0 g | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 9.8 x 5.2 x 4.5" |
