User Manual for StarTech Ultra HD 4K HDMI over Cat 5e 6 HDBaseT Extender Kit Click to enlarge the picture
Contents of the user manual for the StarTech Ultra HD 4K HDMI over
- Product category: Video Extenders & Repeaters StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Video Extenders & Repeaters
 |
User manual for the StarTech Ultra HD 4K HDMI over contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description Provided by third party: Extend HDMI up to 230ft (70m) over a single CAT5e/6 cable with Power over Cable to Receiver. The StarTech.com HDBaseT extender kit, extends HDMI up to 230 feet (70 Meters) over a single CAT5e or CAT6 cable. The extender supports Ultra HD and Full HD resolutions (4K / 1080p) with support for 3D and the accompanying digital audio. For added versatility, both the transmitter and receiver can be powered by the same single power source using Power Over Cable (POC). The versatility of this video extender makes it an ideal solution for digital signage applications in large buildings such as commercial shopping centers, stadiums, schools, and hospitals.
HDBaseT is a standardized, zero latency, video distribution technology that's revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable.
The extender offers HDBaseT technology with HDMI and Power in a single extender kit, for complete end-to-end solution. Offering greater versatility than traditional HDMI extenders or HDMI cabling alone HDBaseT is the clear choice for every integrator and system designer. The added benefit of power over cable means you'll only need one power source at either side of your extension, great for extending video to areas where power outlets may be limited, such as industrial sites.
With the A/V industry quickly adopting 4K as the new high-resolution video standard, long range video distribution can be a challenge with standard HDMI cables beginning signal degradation at 30 feet.
With support for 4K you'll be amazed at how HDBaseT maintains your Ultra HD picture quality, four times the resolution of high-definition 1080p, even at 130 feet away from your video source. Plus, because the extender supports High-Definition 1080p and lower resolutions at 230 feet away, you can comfortably use this extender to make any video source look great.

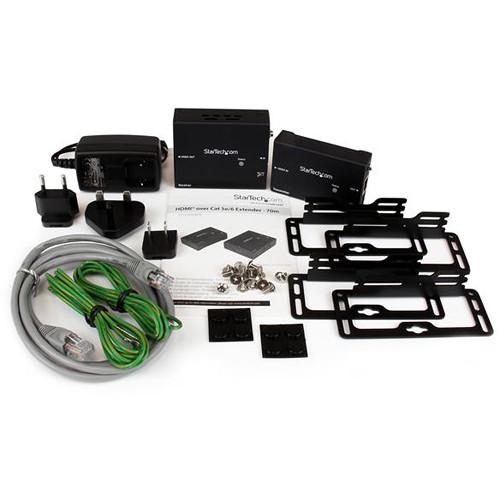

This extender has been specially crafted for a smooth, tidy installation. HDBaseT technology allows for single cable installation, for seamless integration using existing CAT5e or CAT6 infrastructure, avoiding the hassle of running multiple Ethernet cables while, reducing potential failure points. Plus, the added benefit of power over cable means you'll only need one power source to power both your extender and receiver, great for extending to areas where power outlets may be limited. Mounting hardware is also included for both the extender and receiver for discrete, professional mounting.
- Key Features
-
- Requires only a single power adapter for both the Transmitter and Receiver
- Cost-effective HDMI extension through non-proprietary network cabling
- Optional mounting hardware included for a tidy, professional installation
UPC: 065030851107 More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech Ultra HD 4K HDMI over Cat 5e 6 HDBaseT Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech ST121HDBTE Specs | | | Device Type | Video/audio extender | | Form Factor | External | | Color | Black | | | | Connectivity Technology | Wired | | Max Resolution | 4096 x 2160 @ 30 Hz | | Max Transfer Distance | 230 ft | | | | Compliant Standards | FCC, RoHS | | | | Power Device | External power adapter | | Voltage Required | AC 120/230 V | | | | Width | 2.6 in | | Depth | 3.1 in | | Height | 1 in | | Weight | 10.93 oz | | | | Service & Support | Limited warranty - 2 years | | | | Min Operating Temperature | 32
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
