User Manual for StarTech Universal USB 3.0 Laptop Docking Station Click to enlarge the picture
Contents of the user manual for the StarTech Universal USB 3.0 Laptop Docking
- Product category: Docking Stations & Port Replicators StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Docking Stations & Port Replicators
 |
User manual for the StarTech Universal USB 3.0 Laptop Docking contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description The black Universal USB 3.0 Laptop Docking Station from StarTech adds dual video outputs (HDMI + DVI), headphone and microphone jacks, as well as Gigabit Ethernet and additional USB 3.0 and USB 2.0 ports to a laptop computer, all from a single device and over a single SuperSpeed USB 3.0 connection.This versatile universal docking station features two independent external monitor outputs (HDMI, DVI) that can be separately used to expand or mirror your computer's main desktop. Moreover, each of the video outputs provided by the docking station supports video resolutions up to 2048 x 1156 and HD video playback. An all-in-one mobile solution, the Universal Laptop Docking Station combines USB 2.0 and USB 3.0 hubs, headphone and microphone audio connectors, and a Gigabit Ethernet RJ-45 port, helping to connect and manage multiple devices at home or the office. - Independent HDMI and DVI video outputs with mirroring and/or extended desktop capabilities
- 10/100/1000 Mb/s compatible RJ-45 Ethernet port
- Speaker and microphone support via 3.5mm stereo mini-jacks
- Supports resolution up to 2048 x 1152 on both video outputs simultaneously

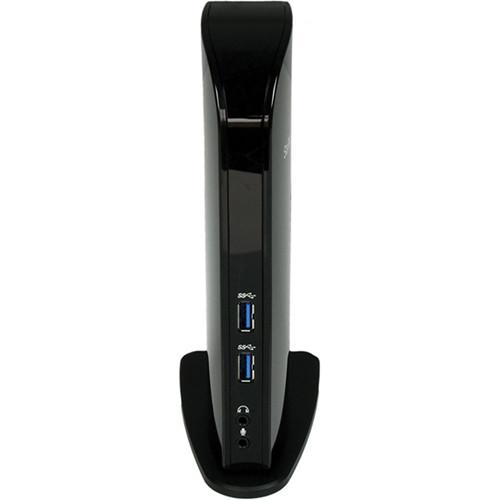

- Features two front panel USB 3.0 and four rear panel USB 2.0 ports to connect additional devices from a single USB 3.0 connection
- Compliant with USB specifications, with support for transfer rates up to 5 Gb/s
- Supports the Windows Aero interface
- Auto MDIX and full duplex support
- Vertical, upright positioning saves desk space
- Applications:
-

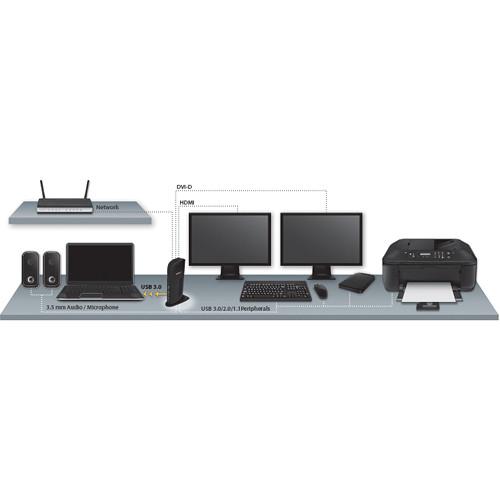

Add HD video, USB (USB 2.0 and USB 3.0), Ethernet, and Audio from a single USB connection, without having to open the computer system
Add dual video outputs to a laptop or small form factor computer, where the video card cannot be replaced
Connect a wide variety of peripherals at home/office to a laptop and be able to instantly disconnect them all from a single USB connection
Turn a laptop into a multi-monitor workstation (up to 3 screens total) for increased productivity - Compatibility
- Windows XP SP3 (32-bit), Vista, 7, 8, 8.1, 10
macOS 10.6 - 10.12, 10.14

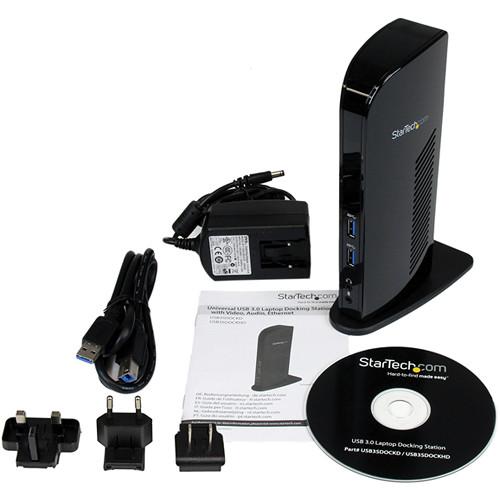

Chrome OS v55+ UPC: 065030847674 In the Box StarTech Universal USB 3.0 Laptop Docking Station (Black) 1 x USB 3.0 Cable 1 x Universal Power Adapter 3 x Power Adapter Plugs (NA/UK/EU) 1 x Driver CD Limited 2-Year Warranty More from Manufacturer vecwcvtwszasvawt Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech Universal USB 3.0 Laptop Docking Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

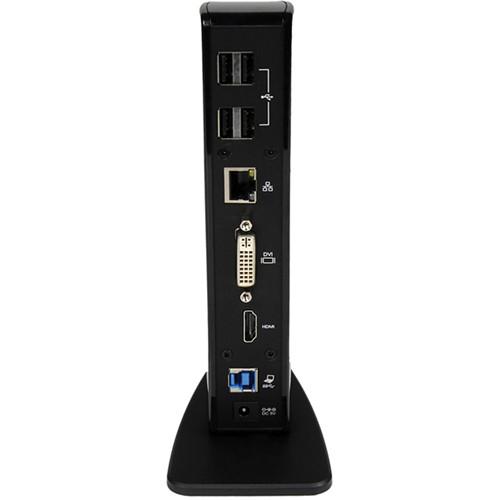

Technical parametersStarTech USB3SDOCKHD Specs | | | USB | 2 x USB 3.1 Gen 1 Type-A
4 x USB 2.0 Type-A | | Thunderbolt | None | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x DVI-I
1 x HDMI | | Audio | 2 x 1/8" / 3.5 mm TRS | | Memory Card Slots | None | | | | System Connection | 1 x USB 3.1 Gen 1 Type-B Female | | | | Chipset | DisplayLink DL-3900
VLI VL810
Terminus FE1.1
Realtek RTL8211E | | Maximum Resolution Supported | 2048 x 1152 | | Data Transfer Rate | 5 Gb/s USB 3.0/USB 3.1 Gen 1 | | Operating System Support | Windows, macOS/OS X | | | | Total Current Output | 4 A | | AC Input Power | 115 to 230 VAC, 50 / 60 Hz | | DC Input Power | 5 VDC | | | | Certifications | CE, FCC, RoHS, as per Manufacturer | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Storage Temperature | 14 to 176°F / -10 to 80°C | | | | LED Indicator | Connection, Power | | Enclosure Material | Plastic | | Dimensions | 4.9 x 2.8 x 7.7" / 124.4 x 71.1 x 195.5 mm | | Weight | 12.8 oz / 362.8 g | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 10.9 x 7.5 x 4.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 98 owners. Add your rating and experience with the product.
