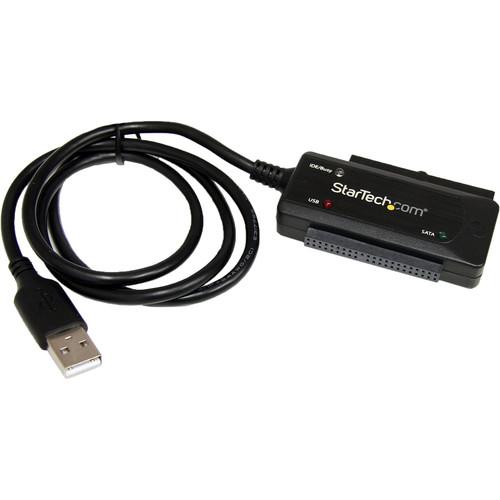

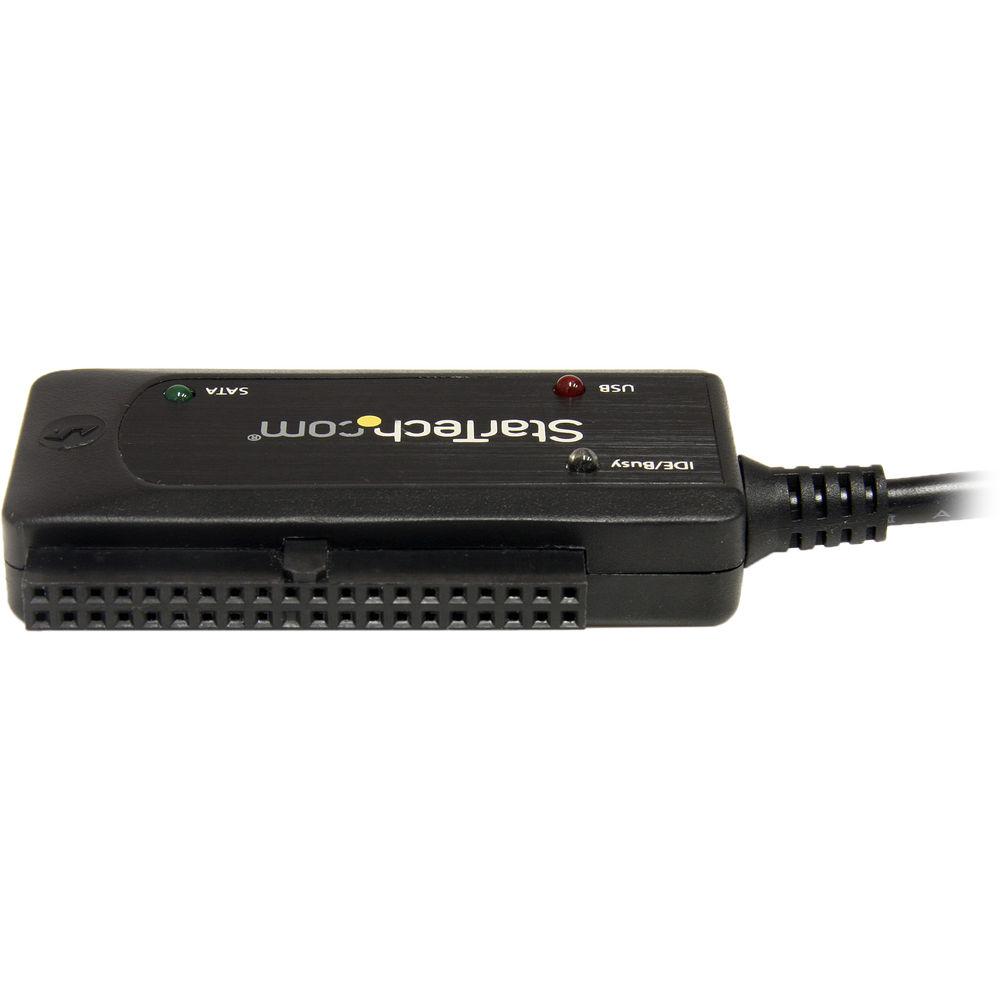

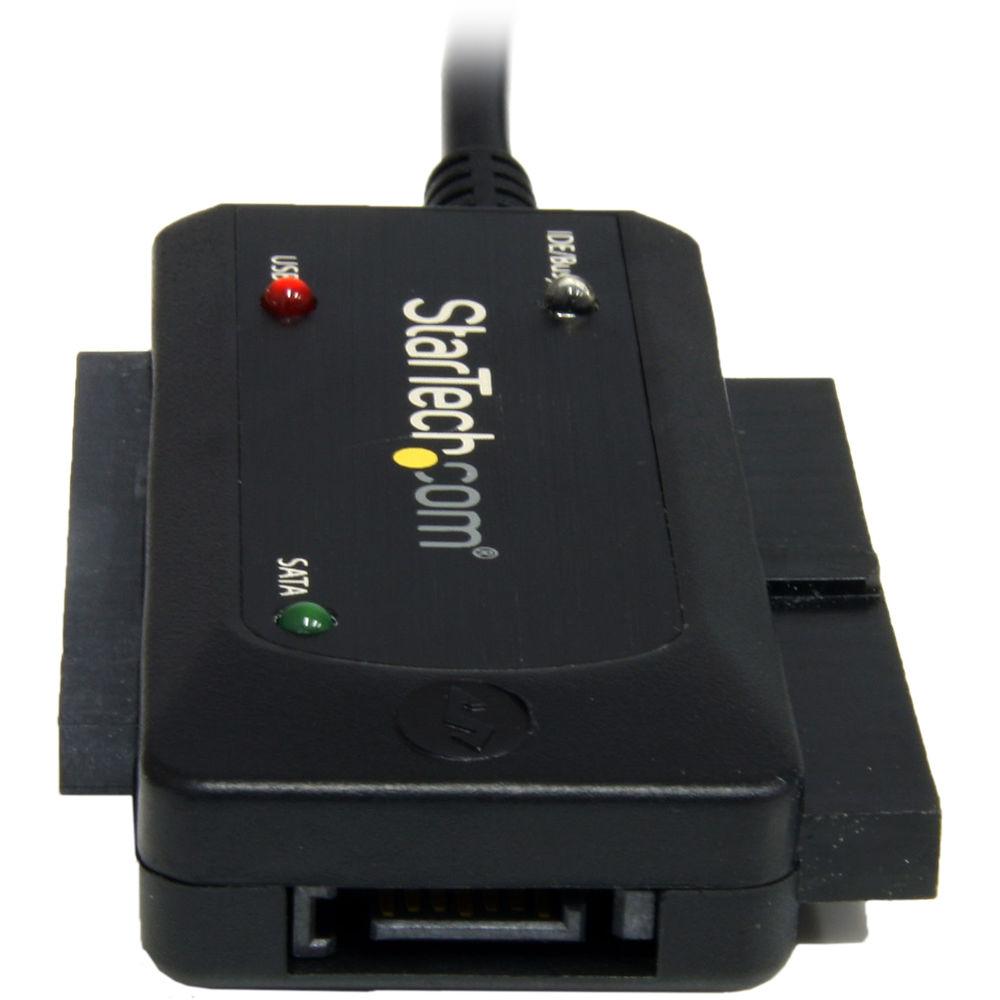

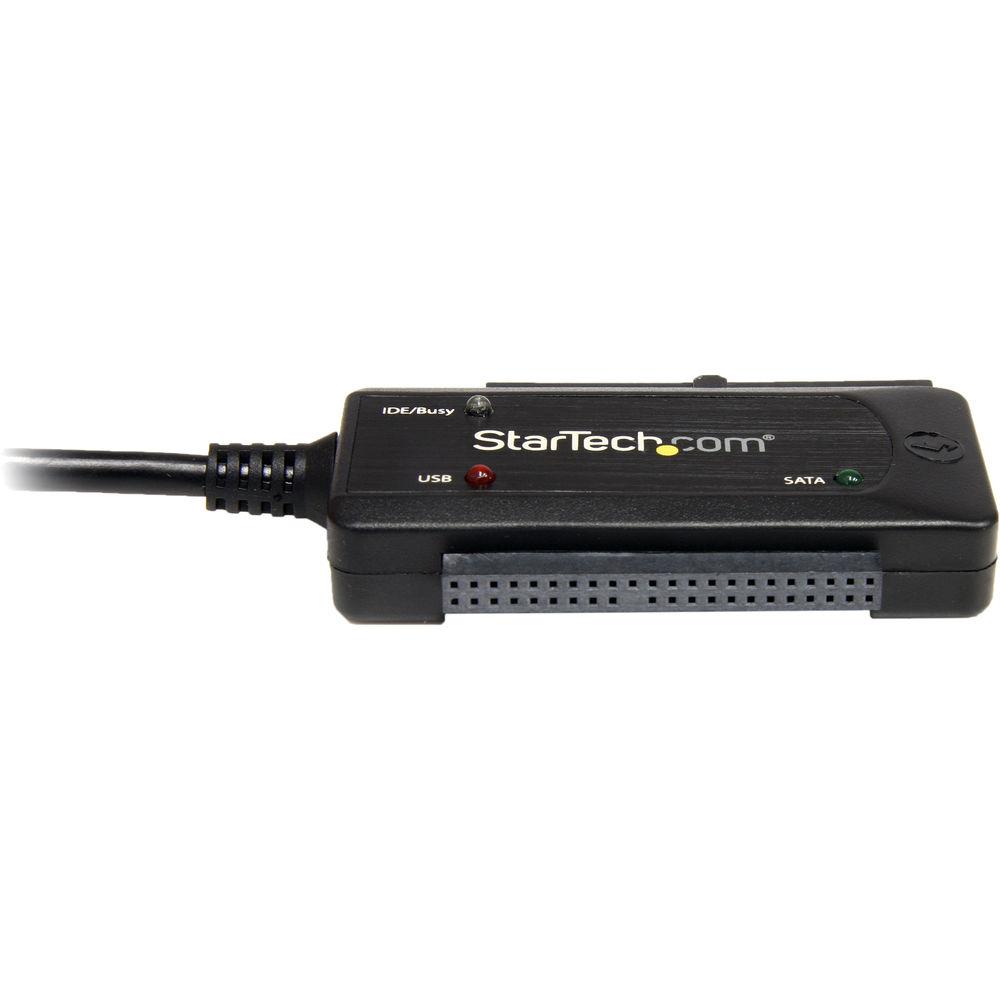

Product description The black USB 2.0 to SATA IDE Adapter from StarTech connects any standard 2.5" (6.35cm) or 3.5" (8.89cm) SATA or IDE hard drive to a computer through USB 2.0. The adapter lets you connect a bare drive with no enclosure, saving time and hassle. It features LED indicators that allow you to easily monitor status and activity updates and is designed for durability and reliability. - Supports both 2.5" (6.35cm) and 3.5" (8.89cm) SATA/IDE hard drives in a single unit
- LED indicators provide status and activity updates
- High speed USB 2.0 host interface, with support for transfer rates up to 480 Mbps
- Compact, portable form factor
Applications - Service technicians who need to test or retrieve data from old hard drives
- Technicians who travel and deal with different types of hard drives
- Ideal for testing and quickly swapping drives
- Connect your 2.5" (6.35cm) or 3.5" (8.89cm) drives to almost any notebook or desktop

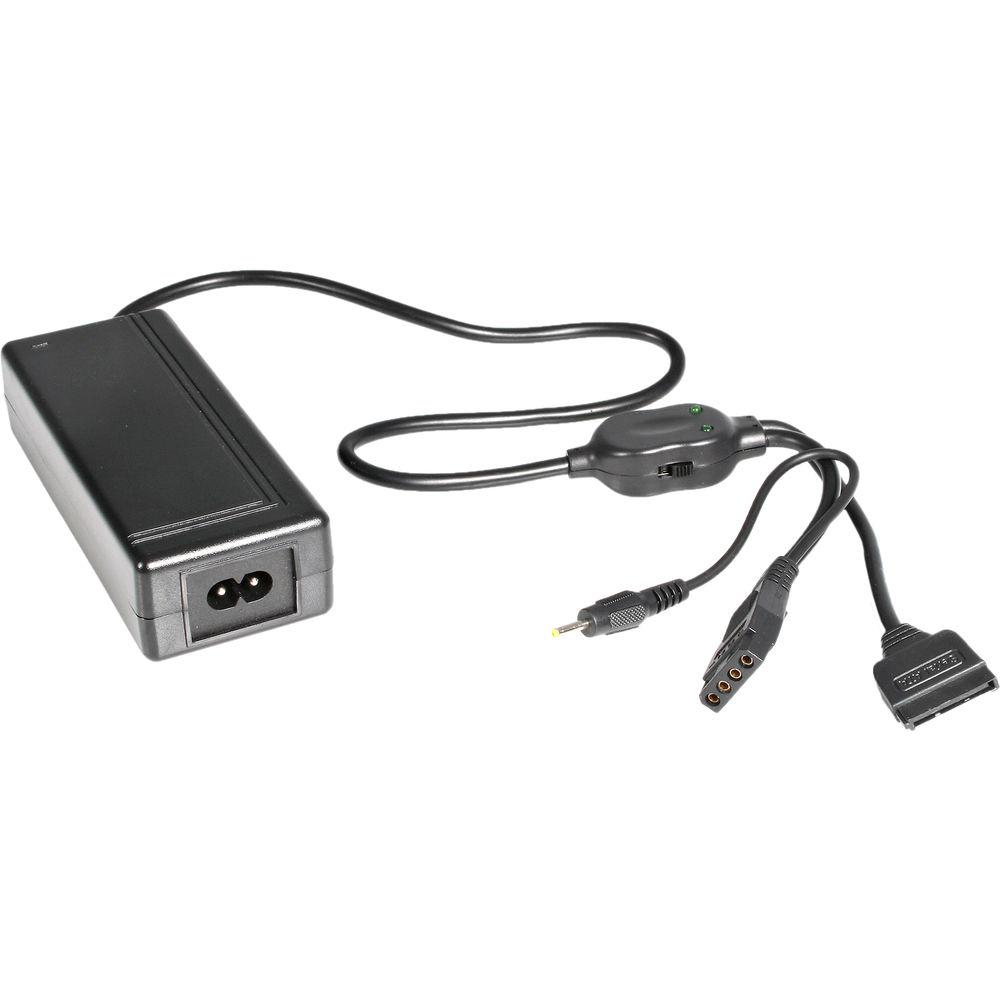

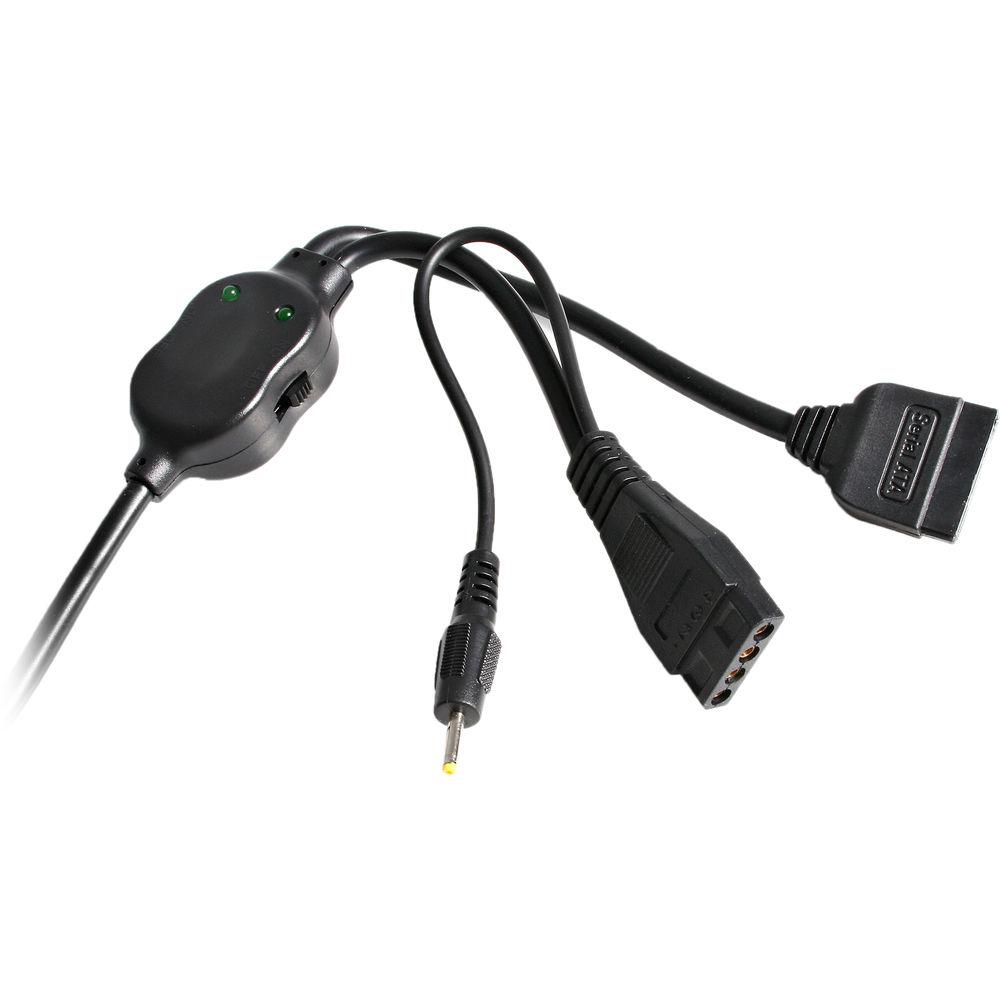

UPC: 065030824767 In the Box StarTech USB 2.0 to SATA IDE Adapter (Black) SATA Cable AC Power Cord Power Supply Driver CD 2-Year Warranty Brochure PDF 125.2kbrzuzewustrzqwqxtysccxcre More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech USB 2.0 to SATA IDE Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech USB2SATAIDE Specs | | | Drive Size | 2.5" (6.35 cm) and 3.5" (8.89 cm) | | Drive Type | SATA and IDE | | | | Drive Connectors | 1 x IDE (40-pin; EIDE/PATA) female
1 x IDE (44-pin; EIDE/PATA; 2.5" HDD) female
1 x LP4 (4-pin; molex large drive power) female
1 x SATA (7-pin; data) plug
1 x SATA power (15-pin) receptacle | | Host Connectors | 1 x USB A (4-pin) male | | | | Maximum Data Transfer Rate | 480 Mbps | | Type and Rate | USB 2.0 - 480 Mbps | | | | LED Indicators | 1 x IDE detect/activity
1 x SATA detect/activity
1 x USB link | | | | OS Compatibility | Windows 2000/XP (32/64-bit)/Server 2003 (32/64-bit)/Vista (32/64-bit)/7 (32/64-bit)/Server 2008 R2, Linux and Mac OS 8.6 and up | | | | Enclosure Type | Plastic | | Dimensions (L x W x H) | 2.8 x 1.7 x 0.6" (70 x 43 x 15 mm) | | Weight | 1.9 oz (54 g) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 8.4 x 5.9 x 2.0" | Note: Backwards compatible with USB 1.1 standard but not recommended due to slow transfer rate
