User Manual for StarTech USB 3.0 SATA Hard Drive Duplicator & Eraser Dock Click to enlarge the picture
Contents of the user manual for the StarTech USB 3.0 SATA Hard Drive
- Product category: Hard Drive Enclosures & Docks StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Hard Drive Enclosures & Docks
 |
User manual for the StarTech USB 3.0 SATA Hard Drive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

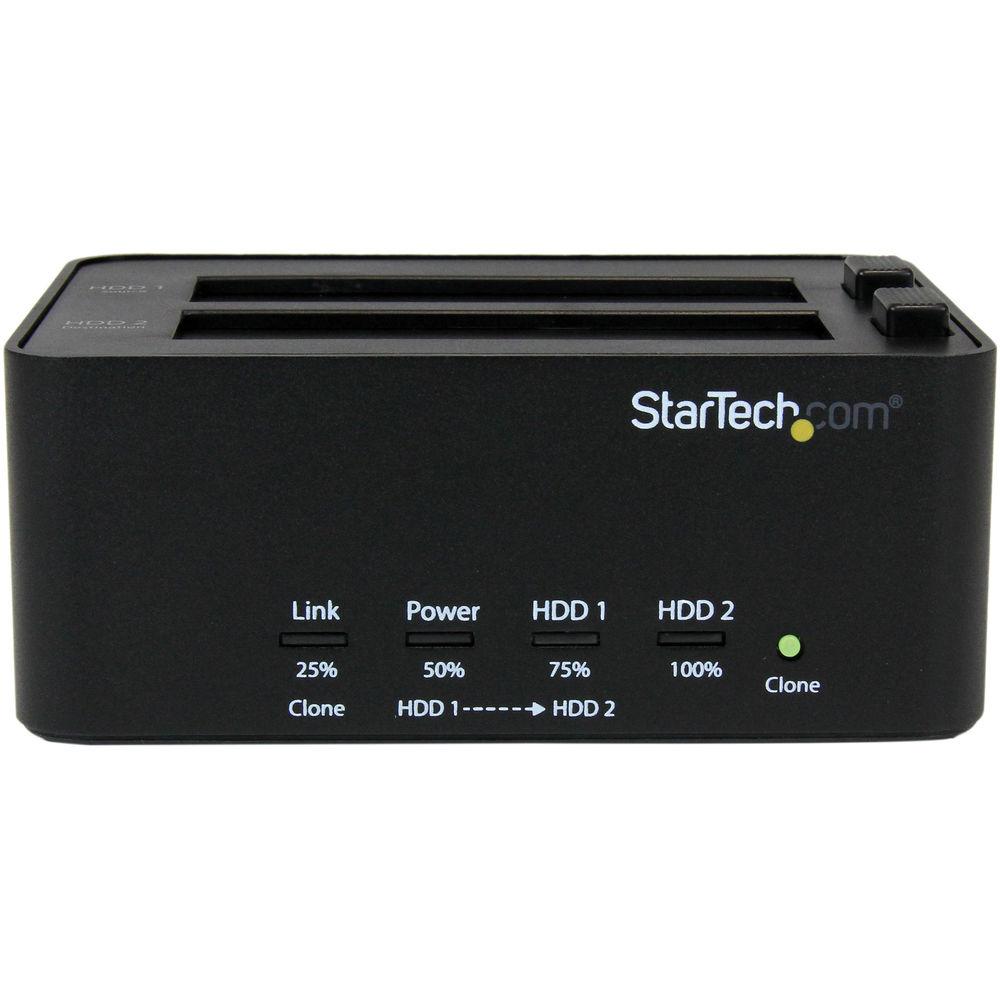

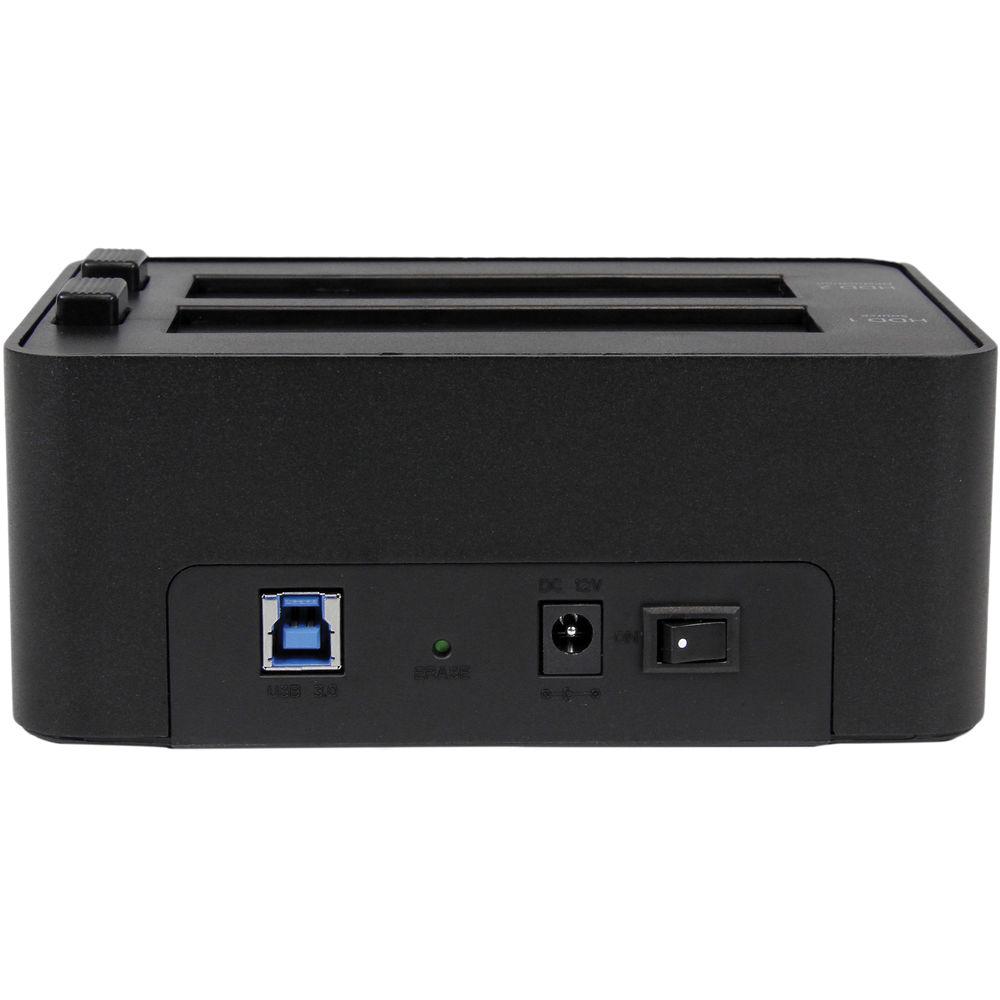

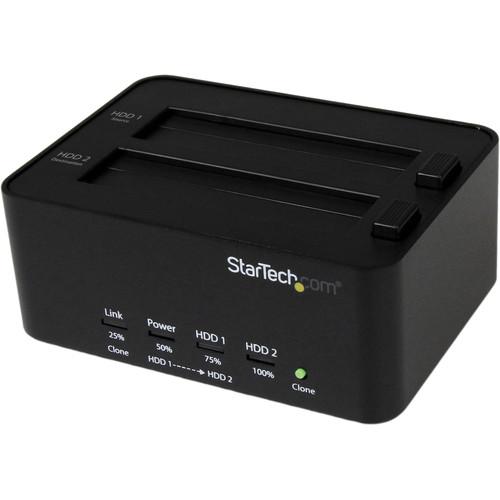

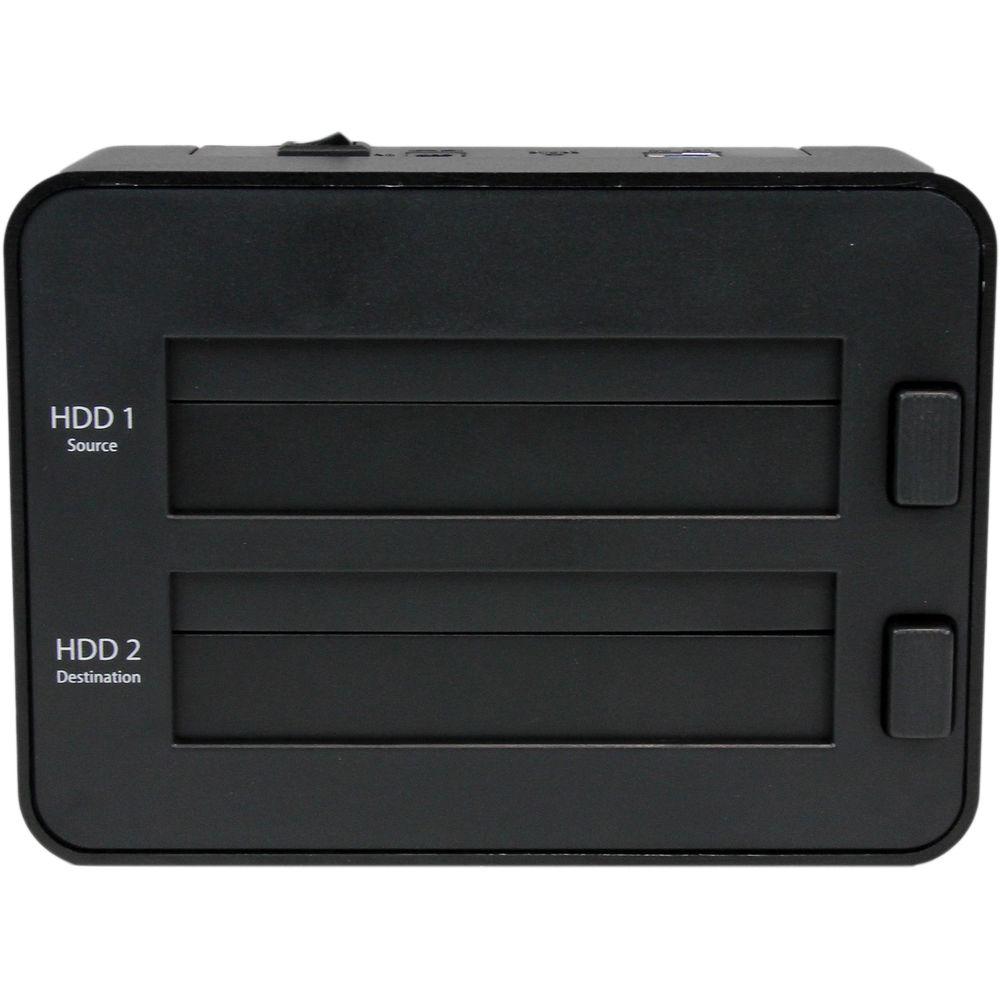

Product description The USB 3.0 SATA Hard Drive Duplicator & Eraser Dock from StarTech will allow users to connect 2.5" or 3.5" SATA III 6 Gb/s, SATA II 3 Gb/s, or SATA I 1.5 Gb/s hard drives or SSDs to their host system via USB 3.0 (USB 3.1 Gen 1) without the need for a drive enclosure. The dock's dual SATA drive bays can also be used to clone drives in a stand-alone fashion that does not require a computer. In addition to functioning as a cloning device, this dock also functions as a drive eraser, making it an effective and versatile solution for external drive management. This user-friendly, all-in-one solution is suitable for virtually any application requiring hard drive duplication or erasing thanks to its standalone, sector-by-sector hard drive duplication with built-in LED progress bar and support for 2-drive single pass overwriting.
In addition to supporting SATA hard drives and SSDs up to 4TB, this dock also increases the storage and backup capabilities of your computer. This hard drive docking station can be used with the SAT2IDEADP SATA to IDE Hard Drive Adapter (available separately) that allows easy insertion of almost any 2.5 or 3.5" IDE hard drive into the SATA hard drive dock.
The StarTech USB 3.0 SATA Hard Drive Duplicator & Eraser Dock operates using an included 110-240 VAC power supply. Its USB 3.0 port operates at speeds up to 5 Gb/s, while its SATA ports operate with SATA II 3 Gb/s speeds. Also included is a USB 3.0 cable and protection is provided by a limited 2-year warranty. Highlights - Hassle-free access to drive data, with hot-swappable top slot loading dock design that supports both 2.5 and 3.5" SATA HDDs and SSDs
- Quickly copy hard drives with standalone sector-by-sector HDD/SSD duplication
- Securely erase up to 2 drives simultaneously with single-pass HDD overwriting
- SuperSpeed USB 3.0 compliant host interface, with up to 5 Gb/s data bandwidth
- High-speed USB 2.0 compliant host interface, with transfer rates up to 480 Mb/s
- Supports SATA revision I/II/III (1.5/3/6 Gb/s) drives
- Plug-and-play and hot-swap compatible
- Comes with universal power adapter (NA/UK/EU)
- Built-in LED progress bar
Applications - System administrators who need quick access to drives for imaging
- Technicians who regularly test or benchmark different hard drives and need to swap between them
- Forensic investigators who require disk sector imaging/cloning to create an exact replica of a source drive onto a different drive
- Professionals who require identical backups for when data integrity is crucial, such as data recovery
- Cloning hard drives that contain hidden partitions, which some software disk cloning programs may skip
- IT administrators that wish to quickly clear/erase a drive in preparation for use in other applications
- Data recovery specialists who need quick access to drives to recover/retrieve data

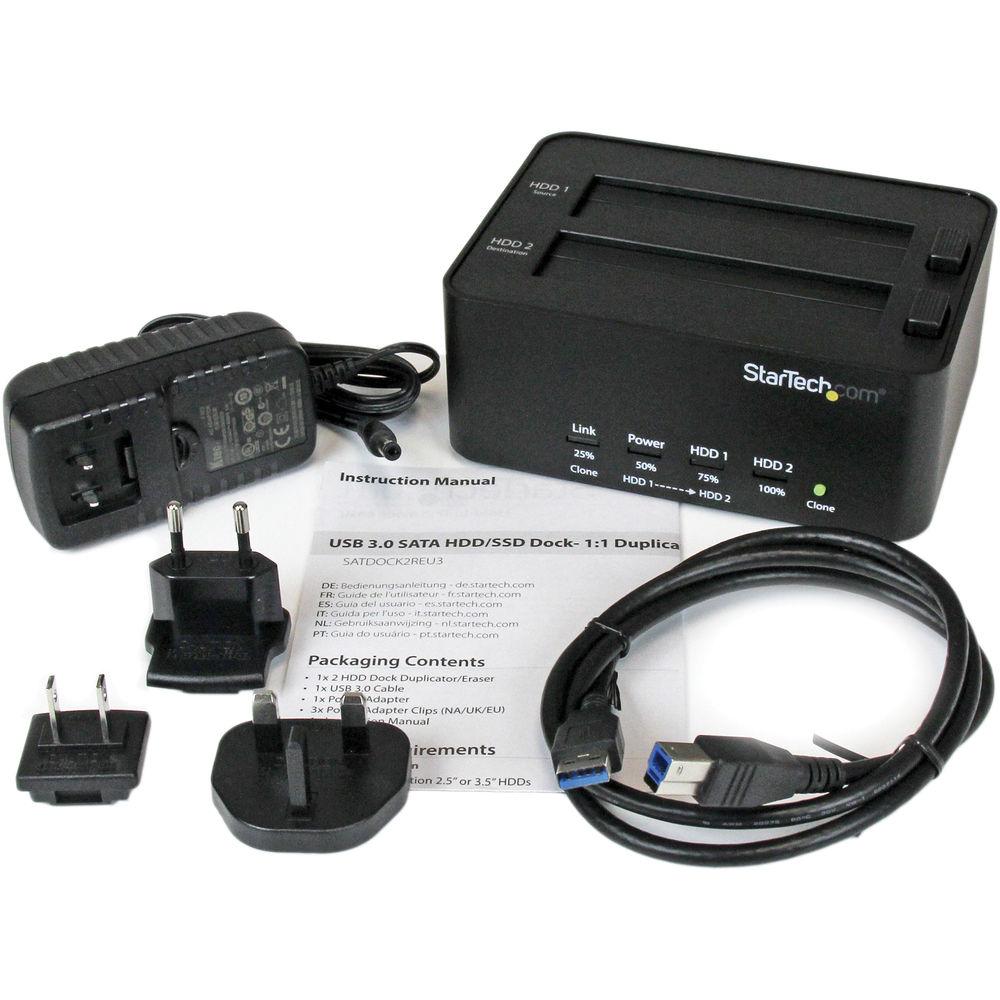

UPC: 065030852654 In the Box StarTech USB 3.0 SATA Hard Drive Duplicator & Eraser Dock USB 3.0 Type-B to Type-A Cable Universal Power Adapter Limited 2-Year Warranty Brochure PDF 129.4kbcdsvtzcw More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech USB 3.0 SATA Hard Drive Duplicator & Eraser Dock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech SATDOCK2REU3 Specs | | | Number of Bays | 2 x 2.5"/3.5" | | Connections | 1 x USB Type-B (USB 3.1 Gen 1 (5 Gb/s)) | | Compatible Drive Interface | SATA, SATA II, SATA III | | Hot-Swap Support | Yes | | | | Power Source | AC Adapter | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz at 1.2 A | | DC Input Power | 12 VDC at 4 A | | Power Consumption | 36 W | | | | Operating Temperature | 32 to 185°F / 0 to 85°C | | Operating Humidity | 5 to 90% | | Storage Temperature | 14 to 203°F / -10 to 95°C | | | | Material of Construction | Aluminum, Plastic | | Bridge Chipset | Prolific PL2775 | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 4.1 x 2.4 x 5.0" / 104.1 x 61.0 x 127.0 mm | | Weight | 15 oz / 425 g | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 7.9 x 6.6 x 5.1" |
