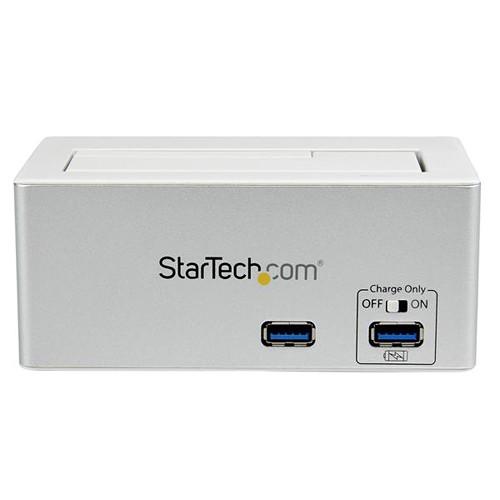

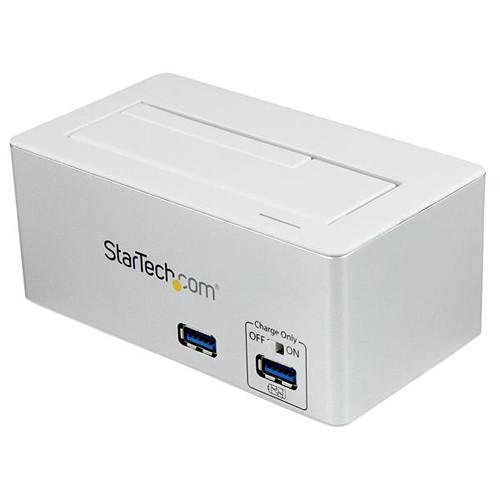

Product description The white USB 3.0 SATA HDD Dock with Fast-Charge USB Hub from StarTech lets you back up or image data to and from internal and external drives by offering a top-loading drive slot along with three USB 3.0 ports. The hot-swappable drive slot is compatible with 2.5" and 3.5" drive form factors and supports SATA I, II, and III interfaces. With the built-in USB hub, your system is provided with additional ports, so it can access a greater amount of portable storage drives, thumbdrives, printers, and other USB-outfitted devices. Additionally, one of these USB 3.0 ports features fast-charging technology, which charges tablets and smartphones as effectively as through a wall plug. Included along with the dock are a universal power supply as well as a 3.3' USB 3.0 Type-B to USB Type-A cable for connecting the dock to your computer system. Moreover, data is transferred up to 70% faster than a conventional USB 3.0 connection when connected to a UASP-enabled computer system. - Supports 2.5" and 3.5" form factor SATA-based hard drives and SSDs
- Built-in USB 3.0 hub with fast-charging port
- Configurable power management
- SuperSpeed USB 3.0 compliant host interface with up to 5 Gb/s bandwidths
- White design with silver trim
- Compatible with SATA revision I/II/III drives
- Plug-and-Play and hot-swap support

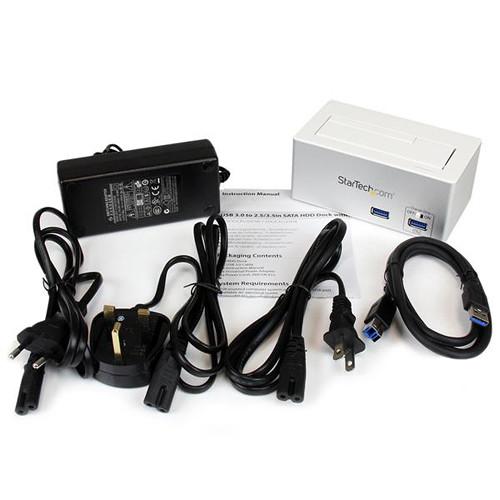

UPC: 065030852685 In the Box StarTech USB 3.0 SATA HDD Dock with Fast-Charge USB Hub (White) 3.3' (1m) USB 3.0 Cable Universal Power Adapter Package of Power Cords (NA/UK/EU) Limited 2-Year Warranty More from Manufacturer reqauwsyzcsreestvwvcdcft Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech USB 3.0 SATA HDD Dock with Fast-Charge USB Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

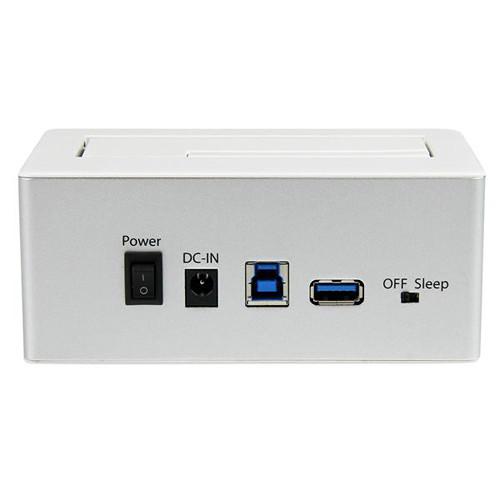

Technical parametersStarTech SDOCKU33HW Specs | Chipset | VIA812 + ASM1053E | | Supported Drive Types | 2.5" and 3.5" drive sizes with a SATA I, II, or III (1.5, 3, or 6 Gb/s) interface | | Interface | USB 3.0 (5 Gb/s) | | UASP Support | Yes | | Drive Connectors | 1 x SATA data and power combo (7+15-pin) | | Host Connectors |
1 x USB 3.0 Type-B (female) | | Ports | 1 x USB 3.0 Type-A (fast-charge, 9-pin, female)
2 x USB 3.0 Type-A (9-pin, female) | | Microsoft WHQL Certified | Yes | | Supported Operating Systems | Windows 8, 7, Vista, XP
Windows Server 2008, 2003
Mac OS X 10.9, 10.8, 10.7, 10.6
Linux
Google Chrome OS | | Indicators | 1 x Power/Activity | | Center Tip Polarity | Positive | | Input Power | 110 to 240 VAC, 1 A | | Output Power | 12 VDC, 3 A | | Plug Type | M | | Power Consumption | 36 W | | Power Source | External AC adapter | | Humidity | 20 to 80% RH | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | -4 to 122°F / -20 to 50°C | | Material of Construction | Aluminum and plastic | | Dimensions (H x L x W) | 2.2 x 5.1 x 2.8" / 5.6 x 13 x 7.1 cm | | Weight | 12.4 oz / 351.5 g | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 6.9 x 6.5 x 3.6" |
