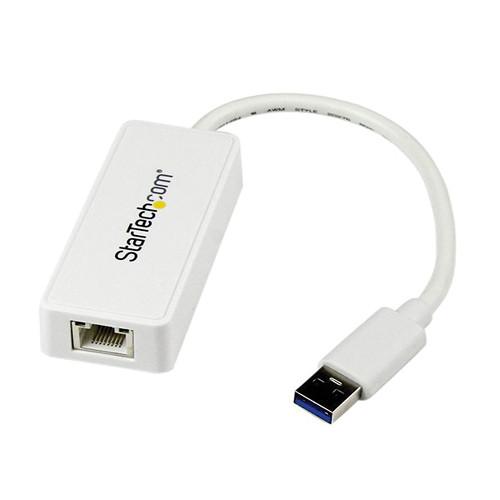

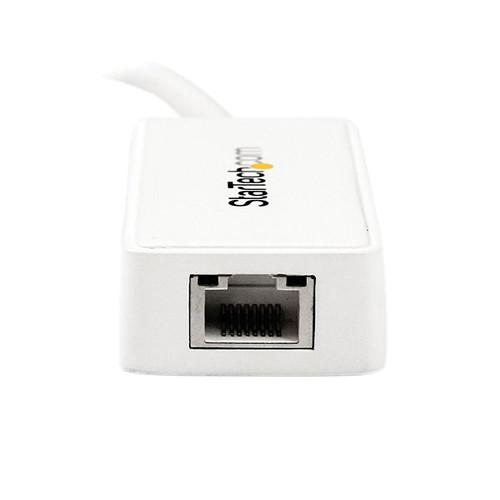

Product description The white USB 3.0 to Gigabit Ethernet Adapter NIC with USB Port from StarTech lets you add a Gigabit network port to a compatible computer through an USB 3.0 port. It features an integrated USB 3.0 pass-through port that keeps the USB port available for use with other peripherals. Each RJ-45 port supports 10/100/1000 Mb/s Ethernet and is fully compatible with IEEE 802.3i/u/ab standards. Being an ideal replacement LAN adapter or laptop accessory, this compact USB 3.0 NIC leverages the 5 Gb/s speed of USB 3.0 to provide full Gigabit bandwidth. It also offers backward compatibility with USB 2.0 systems (speed limited by USB bus). The adapter support features such as IPv4/IPv6 packet Checksum Offload Engine (COE) and TCP large send offload to reduce the load on your CPU. Jumbo Frames, full-duplex operation with 802.3x flow control and VLAN tagging are also supported, making this an efficient and full-featured USB network adapter. - Features a Gigabit Ethernet port through a USB 3.0/2.0 connection

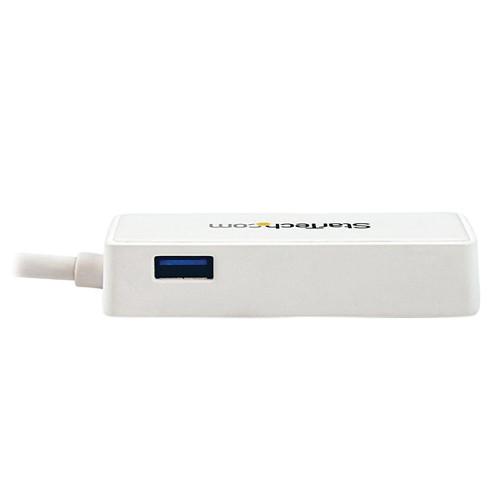

- Integrated USB 3.0 pass-through port
- IEEE 802.3, 802.3u and 802.3ab (10BASE-T, 100BASE-TX, and 1000BASE-T) compatible
- Crossover detection & Auto-correction (Auto MDIX)
- IEEE 802.1Q VLAN tagging support
- Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and Large Send Offload
- Compact, lightweight design for maximum portability
- Applications
- • You can add Gigabit Ethernet capabilities to a desktop or laptop

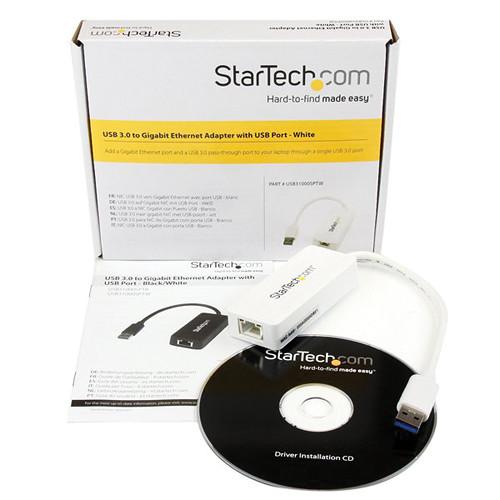

• Replacement for a failed built-in Gigabit Ethernet port UPC: 065030851909 In the Box StarTech USB 3.0 to Gigabit Ethernet Adapter NIC with USB Port (White) Power Adapter Driver CD Limited 2-Year Warranty Brochure PDF 100.8kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech USB 3.0 to Gigabit Ethernet Adapter NIC with USB Port in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech USB31000SPTW Specs | Bus Type | USB 3.0 | | Chipset ID | ASIX - AX88179
VIA - VL811 | | Industry Standards | IEEE802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az | | Interface | RJ-45 (Gigabit Ethernet) | | Ports | 1 | | USB Pass-Through | Yes | | | | OS Compatibility | Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)
Windows Server 2008 R2, 2003 (32/64-bit)
Mac OS 10.6 - 10.8
Linux Kernel 2.6.14 - 3.5.0 | | | | Type | 1 x RJ-45 female
1 x USB 3.0 A (9-pin; SuperSpeed) female
1 x USB 3.0 A (9-pin; SuperSpeed) male | | | | Auto MDIX | Yes | | Compatible Networks | 10/100/1000 Mb/s | | Full Duplex Support | Yes | | Distance | Maximum: 330' (100 m) | | Maximum Data Transfer Rate | 5 Gb/s (USB 3.0)
2 Gb/s (Ethernet - Full Duplex) | | | | Enclosure | Plastic | | LED Indicators | 1 x 10/100 link/activity (green)
1 x Gigabit link/activity (amber) | | Requirements | Available USB port | | Power | USB powered | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Relative Humidity | 5 ~ 85% | | Dimensions (LxWxH) | 5 x 1.4 x 0.7" (126 x 35 x 17 mm) | | Weight | 1.5 oz (43 g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 6.6 x 5.6 x 1.1" |
