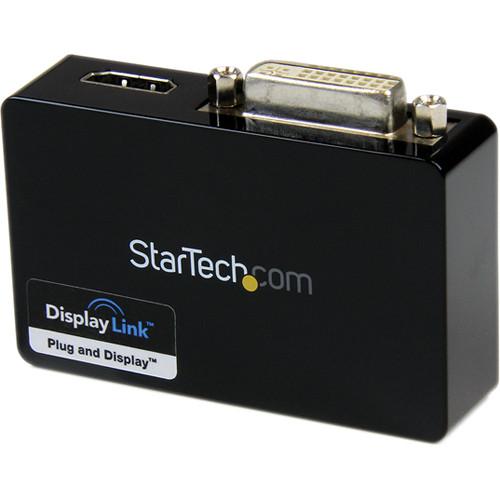

User Manual for StarTech USB 3.0 to HDMI & DVI Dual Monitor External Video Card Adapter Click to enlarge the picture
Contents of the user manual for the StarTech USB 3.0 to HDMI &
- Product category: Computer Monitor Adapters StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Computer Monitor Adapters
 |
User manual for the StarTech USB 3.0 to HDMI & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description The black USB 3.0 to HDMI & DVI Dual Monitor External Video Card Adapter from StarTech turns an available USB 3.0 port into one DVI-I or VGA port and one HDMI output. It supports high-definition 1080p and 1920x1200 video resolution along with 5.1 surround sound audio. The adapter delivers a convenient external video solution that makes it easy-to-add multi-monitor capability to a USB enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB 2.0). Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the USB video adapter functions as a convenient external graphics card that eliminates the need to open the computer case for video card installation. The adapter delivers smooth, high definition content to multiple displays and can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop onto a second or third monitor to double or triple your workspace and increase your productivity. By adding a secondary HDMI and or DVI display you can also extend your desktop without taking apart your computer to install a new video card. You can add multi-monitor capability to a single computer, to create engaging multimedia presentations. The adapter is a compact, lightweight solution for traveling business associates using laptop PCs, enabling connection to a secondary display/projector. - SuperSpeed USB 3.0 (5 Gb/s) interface, backward compatible with USB 2.0
- Supports resolution of up to 1920 x 1080p (Full HD) and 2048 x 1152
- Quick and easy installation

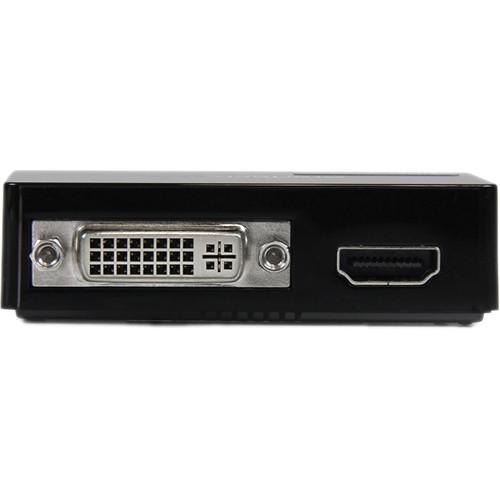

- Dual head design supports both HDMI and DVI-I simultaneously (DVI to VGA adapter included for VGA monitors)
- USB-powered - no external power adapter required
- You can choose between mirrored, extended or primary display configurations
- Driver software supports display rotation
- Supports the Windows Aero interface
- Supports 5.1 channel surround sound audio (HDMI only)
- You can add up to 6 additional monitors on a single system if you add 3 of these adapters
- SuperSpeed USB 3.0 to HDMI/DVI conversion delivers improved bandwidth for smoother high-definition video content compared to a USB 2.0 connection
- The adapter can be used to connect your PC to your HDMI-equipped HDTV for viewing family pictures and movies. It is great for researchers and writers offering the ability to have reference material on one display and a working document copy on the other. It also increases productivity by running multiple applications on different screens to check your email on one display and search the web on the other. You can view large or multiple spreadsheets across multiple displays.
- Compatibility
- Windows 2000, XP, Vista, 7, 8, 8.1, 10
macOS 10.6 - 10.12, 10.14
Ubuntu 14.04, 16.04

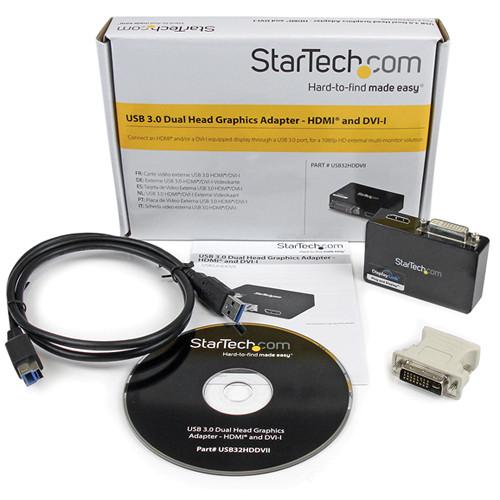

Chrome OS v55+ UPC: 065030847667 In the Box StarTech USB 3.0 to HDMI & DVI Dual Monitor External Video Card Adapter (Black) DVI to VGA Adapter Mini USB 3.0 Cable Driver CD Limited 2-Year Warranty Guides & Manuals vccsccdxwcfxsrrbd More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech USB 3.0 to HDMI & DVI Dual Monitor External Video Card Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech USB 3.0 to HDMI & DVI Dual Monitor External Video Card Adapter can be downloaded in PDF format at the link stated below.
Technical parametersStarTech USB32HDDVII Specs | | | Display | 1 x DVI-I (Female)
1 x HDMI (Female) | | | | System Connection | USB 3.1 Gen 1 Type-A Male | | | | Maximum Supported Resolution | 1600 x 1200 or 2048 x 1152 | | Audio Support | Yes, 5.1 Channel | | | | Operating Temperature | 32 to 95°F / 0 to 55°C | | Storage Temperature | 23 to 104°F / -5 to 40°C | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 6.3" / 16 cm | | Enclosure Material | Plastic | | Chipset | DL-3900 | | Memory | 1 GB DDR2 | | Dimensions | 2.9 x 2 x 0.7" / 73.7 x 50.8 x 0.7 mm | | Weight | 1.5 oz / 42 g | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 8.2 x 5.6 x 1.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 73 owners. Add your rating and experience with the product.
