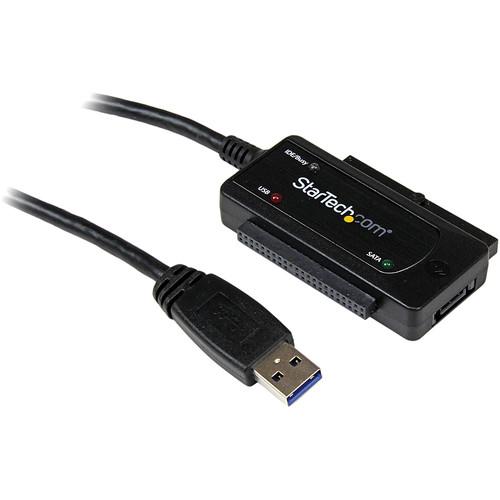

Product description The black USB 3.0 to IDE/SATA Adapter Cable from StarTech connects any standard 2.5" or 3.5" SATA or IDE hard drive to a computer through an available USB 3.0 port (backwards compatible with USB 2.0). The adapter lets you externally connect a bare drive with no enclosure or HDD dock required, thus saving time and hassle. It features LED indicators that allow you to easily monitor the status and activity updates. The cable works with Windows, Linux, and Mac computers and does not require any software or driver installation. It is a plug-and-play solution for adding cost-effective external storage or overcoming incompatibility between all hard drives and USB-enabled motherboards that may not be SATA or IDE-equipped. - Built-in connectors for both 2.5" and 3.5" SATA Hard Drives (HDDs), SATA Solid State Drives (SSDs), and IDE hard drives
- LED indicators provide status and activity updates
- Maximum transfer rate of 5 Gb/s using USB 3.0 and 480 Mb/s with USB 2.0
- Compact, portable form factor
- Compliant with USB specification revision 2.0 and 3.0
- Plug-and-play and hot-swappable
- Test or retrieve data from old hard drives
- Connects your 2.5" and 3.5" drives to almost any notebook or desktop
- Suitable for testing and quickly swapping drives
- Easily connects and accesses data from a 2.5" or 3.5" hard drive with USB 3.0
- Retrieves data from a hard drive without having to connect the drive internally
UPC: 065030851091 In the Box StarTech USB 3.0 to IDE/SATA Adapter Cable (Black) 1 x SATA Cable 1 x Power Supply Limited 2-Year Warranty Brochure PDF 127.4kbubzyetazeutwrvwfwfrdxbzbvuzwwdd More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech USB 3.0 to IDE SATA Adapter Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech USB3SSATAIDE Specs | Interface | SATA and IDE | | Connectors | Drive:

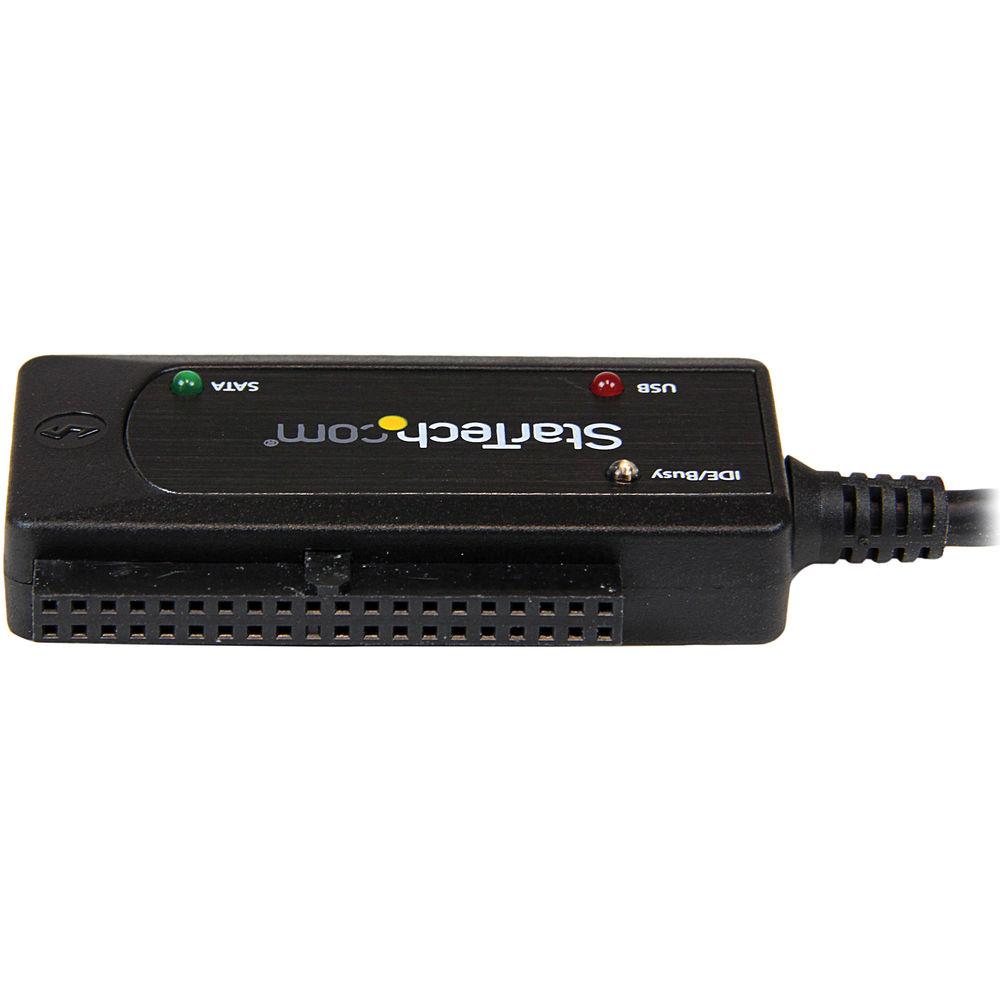

1 x IDE (40-pin EIDE/PATA) female
1 x IDE (44-pin EIDE/PATA 2.5" HDD) female
1 x LP4 (4-pin Molex large drive power) male

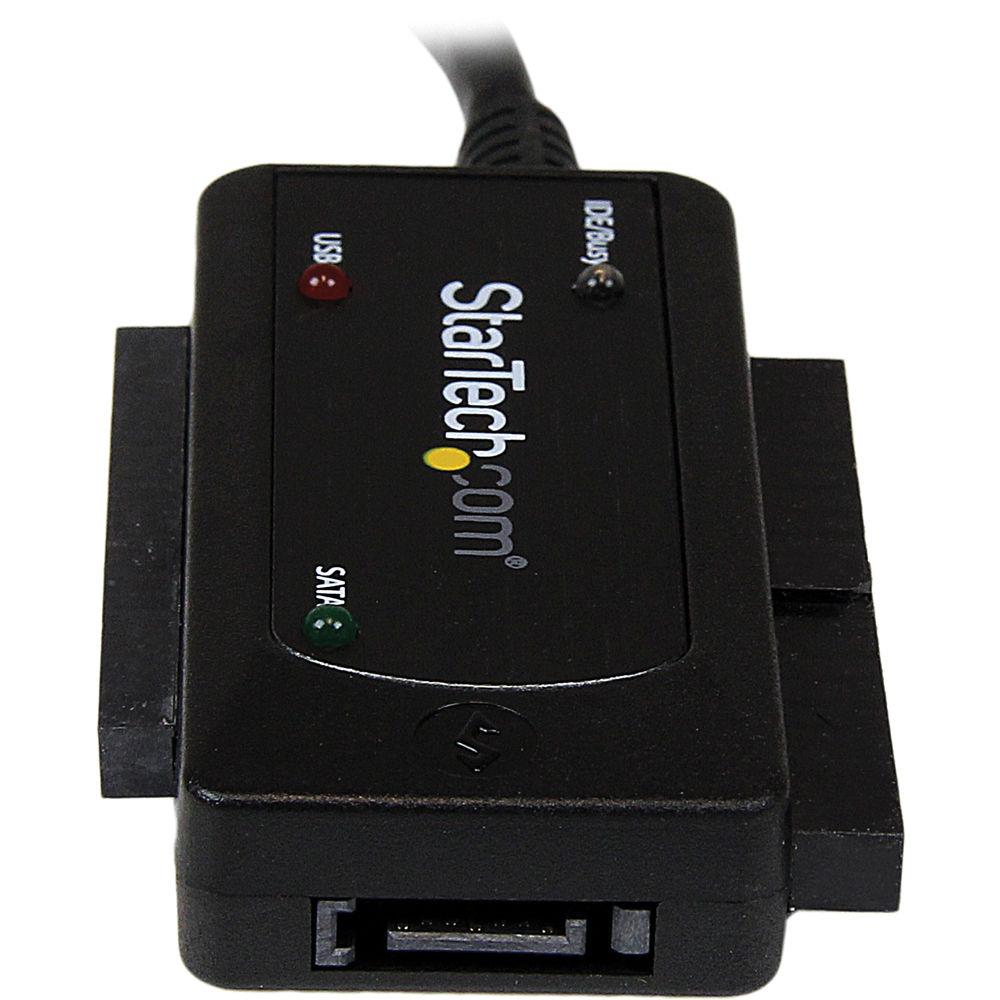

1 x SATA (7-pin data) female
1 x SATA power (15-pin) female
Host:

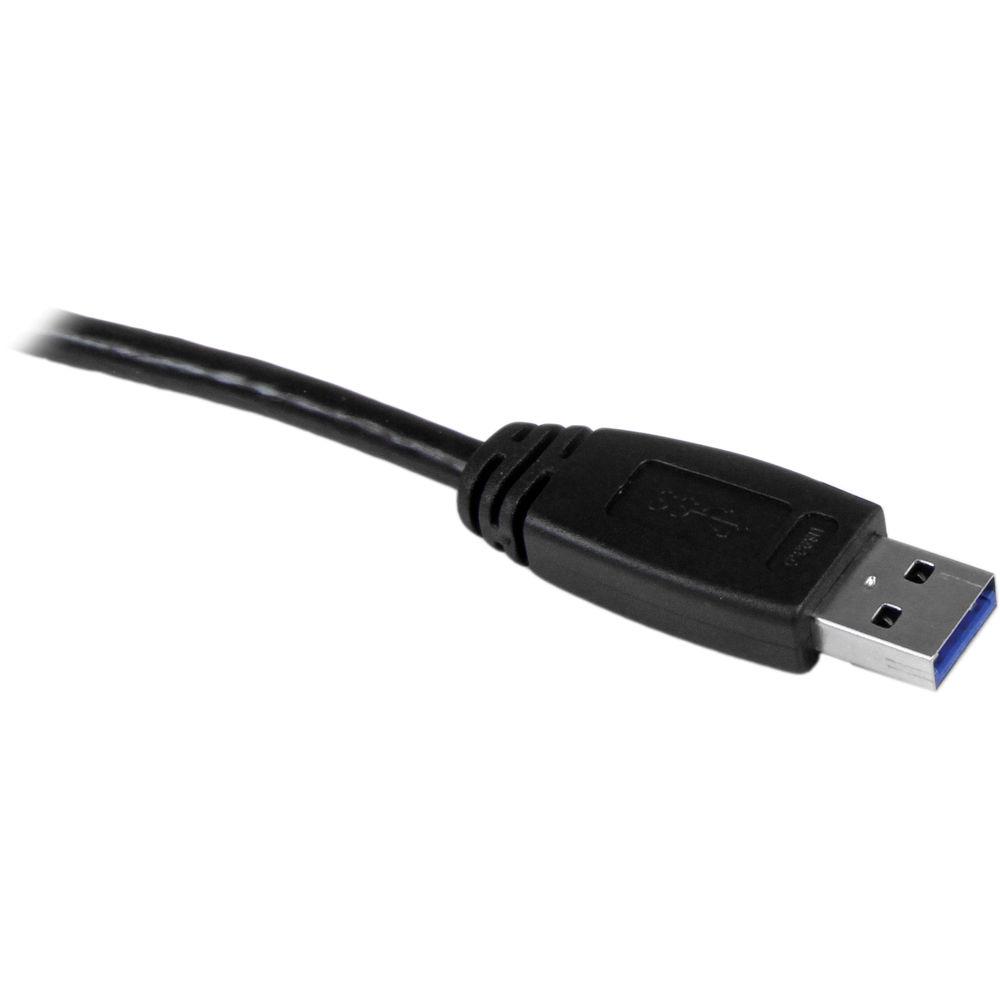

1 x USB 3.0 A (9-pin SuperSpeed) male | | Bus Type | USB 3.0 | | Data Transfer Rate | Maximum: 4.8 Gb/s | | Number of Drives | 1 | | Drive Size | 2.5" and 3.5" | | OS Compatibility | Windows 8/8.1/7/Server 2008/Vista/Server 2003/ XP (32/64-bit), 2000
Apple Mavericks (10.9) OS X Mountain Lion (10.8), Lion (10.7), Snow Leopard (10.6)

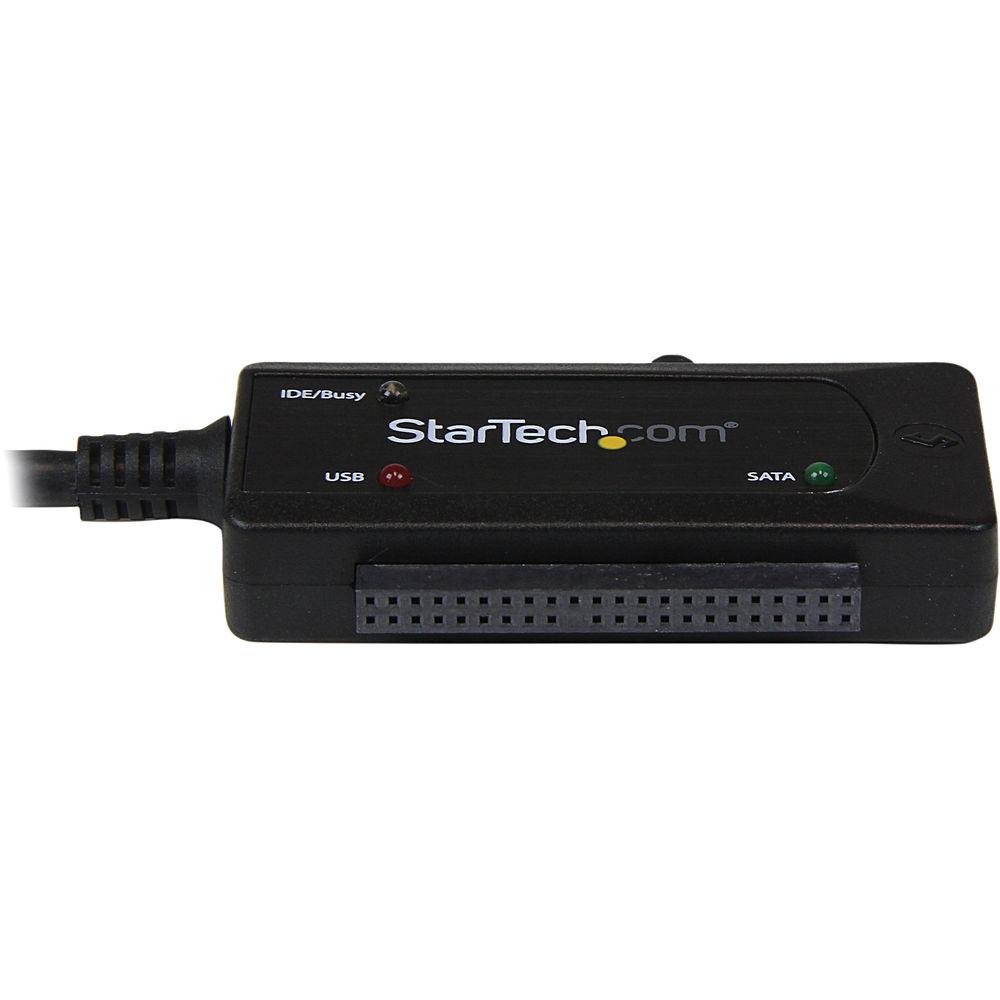

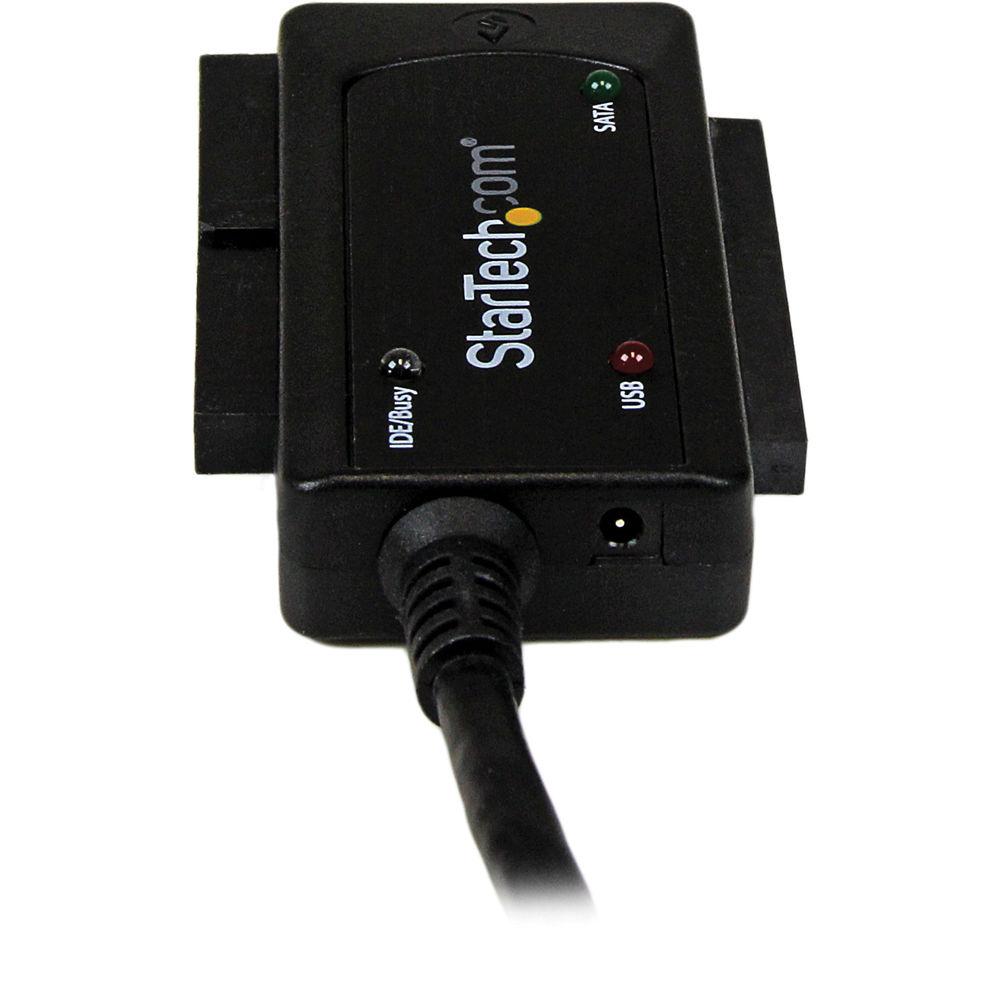

Linux Backwards compatible with USB 1.1 standard, but not recommended due to slow transfer rate. | | Enclosure Type | Plastic | | LED Indicators | IDE detect/activity
SATA detect/activity
USB link | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Relative Humidity | 5 to 85% | | Compliance | CE, FCC, RoHS | | Dimensions (L x W x H) | 2.8 x 1.7 x 0.7" (71.1 x 43.2 x 17.8 mm) | | Weight | 2.2 oz (62.4 g) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 8.5 x 5.9 x 2.1" |
