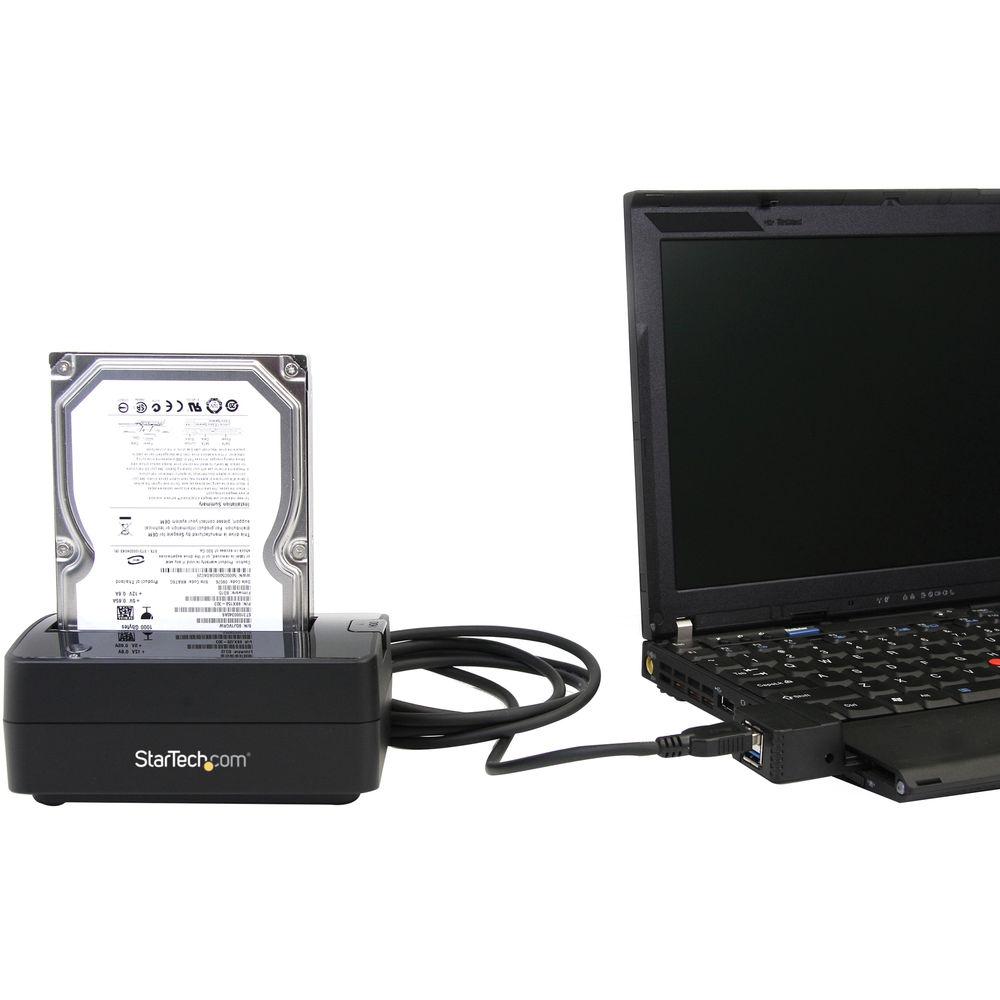

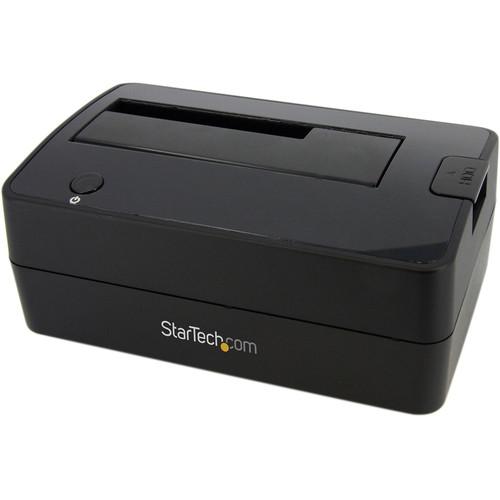

Product description The black USB 3.0 to SATA Hard Drive Docking Station for 2.5"/3.5" HDD from StarTech delivers full, instant access to any 2.5"/3.5" SATA (SATA, SATA II, SATA III) Hard Disk Drive (HDD) or Solid State Drive (SSD), without having to mount the drive in a computer or install it in an external enclosure. Large capacity drives (tested with up to 4 TB 3.5" and 1 TB 2.5" drives) can be used to enhance your computer's storage/backup capabilities. Connected to the host computer through a single USB 3.0 SuperSpeed or USB 2.0 connection, the HDD docking station provides a convenient, plug and play storage solution that delivers instant access to the hard drive, without requiring a reboot. Relying on the outstanding data throughput support of USB 3.0, the HDD docking station is capable of transfer speeds of up to 5 Gb/s, making it the fastest way to access data from an external drive. You can double the value of this hard drive docking station, using a SATA to IDE hard drive adapter (SAT2IDEADP), which enables you to use any 2.5"/3.5" IDE hard drive in a SATA hard drive dock slot. To ensure compatibility with your computer system, the docking station supports all of the leading operating systems, including Microsoft Windows (8/7/Vista/XP/Server 2008/Server 2003), Apple OS X (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS. - SuperSpeed USB 3.0 technology provides fast access for external storage, while still being backwards compatible with USB 2.0
- A top slot-loading design and drive ejection mechanism provides quick and easy access to data, without having to install drives into an enclosure or tray
- SuperSpeed USB 3.0 compliant host interface, with transfer rates up to 5 Gb/s
- High Speed USB 2.0 compliant host interface, with transfer rates up to 480 Mb/s
- Patented drive ejection mechanism
- Combined power switch and status LED
- Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gb/s) drives
- Supports 2.5"/3.5" form factor SATA hard drives (HDD) and solid state drives (SSD)
- Built-in short circuit protection
- Compact, desktop-style form factor
- Plug and play and hot-swappable
- Allows quick access to drives for imaging
- Backup data quickly to an external drive for archiving
- Test or benchmark multiple hard drives
- Upgrade from a USB 2.0 drive dock to faster USB 3.0

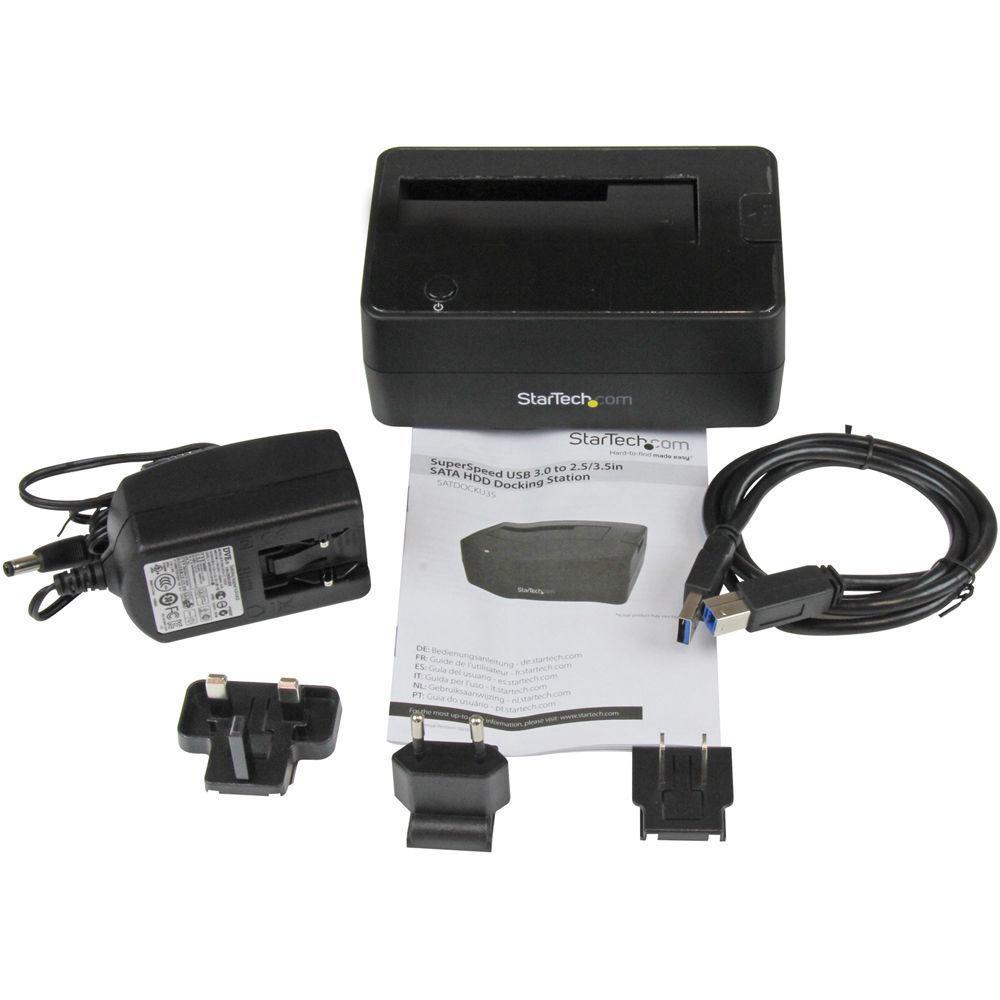

UPC: 065030838160 In the Box StarTech USB 3.0 to SATA Hard Drive Docking Station for 2.5"/3.5" HDD (Black) 1 x USB 3.0 Cable 1 x Universal Power Adapter 3 x Power Adapter Plugs Limited 2-Year Warranty Guides & Manuals btbuqtceffbw More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech USB 3.0 to SATA Hard Drive Docking Station for 2.5" 3.5" HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech USB 3.0 to SATA Hard Drive Docking Station for 2.5" 3.5" HDD can be downloaded in PDF format at the link stated below.

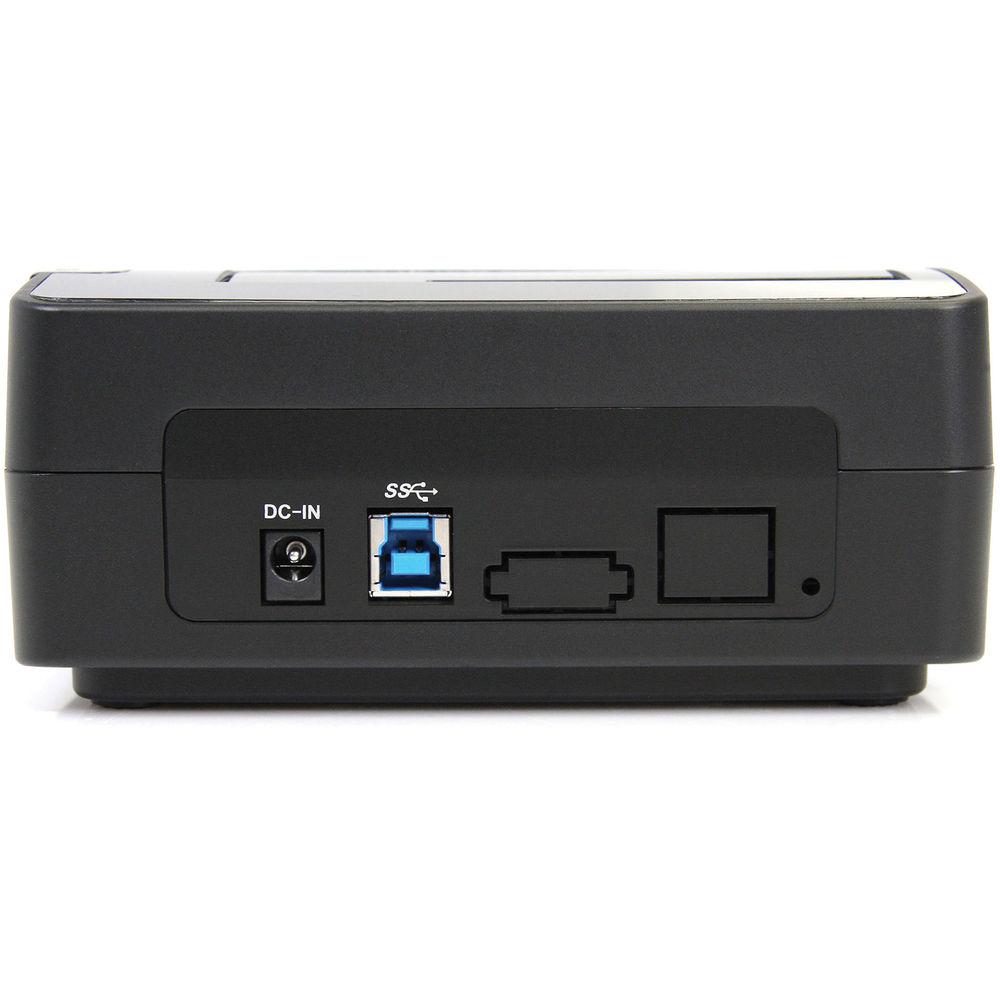

Technical parametersStarTech SATDOCKU3S Specs | Number of Bays | 1 x 2.5"/3.5" | | Connections | 1 x USB Type-B (USB 3.1 Gen 1 (5 Gb/s)) | | Compatible Drive Interface | SATA | | Operating System Support | ChromeOS, Linux, Windows, macOS/OS X | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 2.5 A | | | | Operating Temperature | 41 to 176°F / 5 to 80°C | | Operating Humidity | 8 to 80% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Certifications | RoHS, as per Manufacturer | | | | Material of Construction | Plastic | | Insertion Rating | 15,000 | | Bridge Chipset | ASMedia ASM1053 | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 5.7 x 3.7 x 2.6" / 14.5 x 9.3 x 6.5 cm | | Weight | 14.1 oz / 400.0 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 6.6 x 6.5 x 3.5" |
