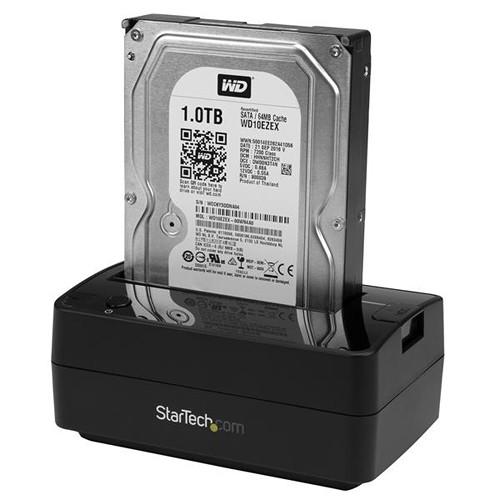

User Manual for StarTech USB 3.1 Drive Docking Station for 2.5" and 3.5" SATA Drives Click to enlarge the picture
Contents of the user manual for the StarTech USB 3.1 Drive Docking Station
- Product category: Hard Drive Enclosures & Docks StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Hard Drive Enclosures & Docks
 |
User manual for the StarTech USB 3.1 Drive Docking Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

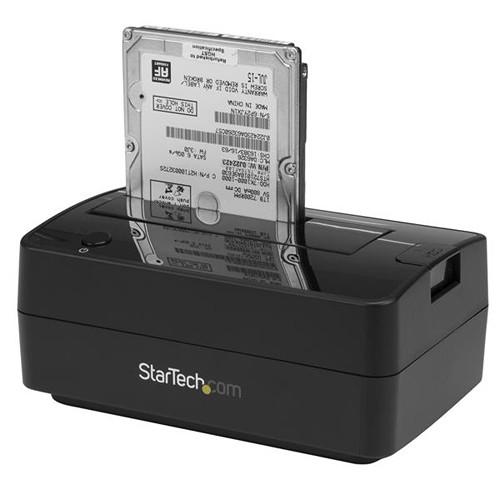

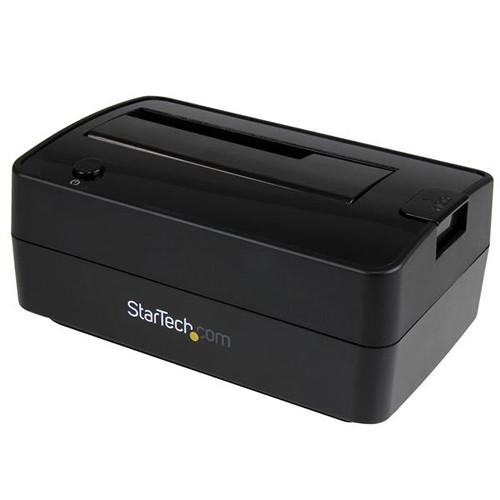

Product description The USB 3.1 Drive Docking Station for 2.5" and 3.5" SATA Drives from StarTech allows users to connect and access almost any bare 2.5" or 3.5" SATA hard drive or SSD to their host system for drive imaging, data recovery, and backups. This dock supports SATA III 6 Gb/s, SATA II 3 Gb/s, and SATA I 1.5 Gb/s drives, and is plug-and-play compatible with most operating systems using its one USB 3.1 Type-B port, which operates at speeds up to 10 Gb/s, or its one eSATA port, which operates at speeds up to 6 Gb/s. The lone drive bay has an overhead loading system, a power and activity LED, and supports hot swapping, meaning drives can be changed out without needed to power down the system.
Included is a universal power adapter that is compatible with North America, Japan, Europe, the UK, Australia, and New Zealand, a 3.3' USB 3.1 Type-B to Type-A cable, a 3.3' USB 3.1 Type-B to Type-C cable, and a 3.3' eSATA cable. Protection is provided by a limited 2-year warranty, and there is also free lifetime technical support. General Features - Supports 10 Gb/s USB 3.1 and 6 Gb/s eSATA
- Designed for IT professionals and system builders, this docking station lets you access a SATA solid-state drive or hard drive for drive imaging, data recovery, and backups. You can connect through either 10 Gb/s USB 3.1 (USB 3.1 Gen 2) or 6 Gb/s eSATA.

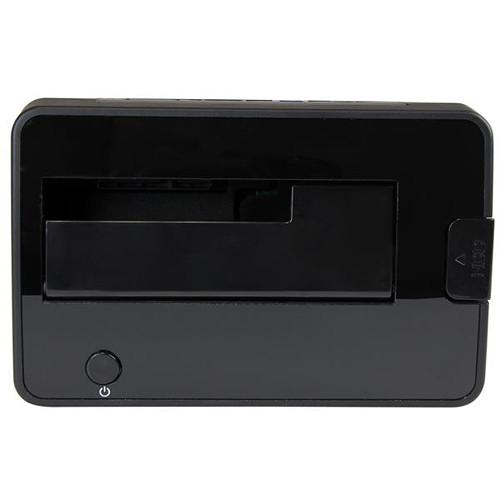

- Top-Loading Design for Easy Drive Access
- The dock's vertical drive insertion makes it easy to dock and swap drives from your desktop computer or laptop. You simply insert your SSD or HDD into the drive slot at the top of the docking station, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.
- Compatibility
- The single-bay docking station comes with a USB 3.1 Type-B to Type-C cable, for connecting to USB Type-C enabled devices. It also comes with a USB 3.1 Type-B to Type-A cable, providing backward compatibility with your existing USB 3.0, 2.0, and 1.1, and 1.0 devices. An eSATA cable is also included with the dock.
UPC: 065030863544 In the Box StarTech USB 3.1 Drive Docking Station for 2.5" and 3.5" SATA Drives Universal Power Adapter (NA/JP, EU, UK, ANZ) 3.3' / 1.0m USB Type-B to USB Type-A Cable 3.3' / 1.0m USB Type-B to USB Type-C Cable 3.3' / 1.0m eSATA Cable Free Lifetime Technical Support Limited 2-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech USB 3.1 Drive Docking Station for 2.5" and 3.5" SATA Drives in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech SDOCKU313E Specs | | | Interface & Bus Type | USB 3.1 (USB 3.1 Gen 2) & eSATA | | Chipset ID | ASMedia - ASM1351 | | Compatible Drive Types | SATA | | Drive Installation | Removable | | Drive Size | 2.5 and 3.5" | | Fan | No | | Number of Drives | 1 | | | | Hot Swap Support | Yes | | TRIM Support | Yes | | Type and Rate | USB 3.1 (USB 3.1 Gen 2) - 10 Gb/s

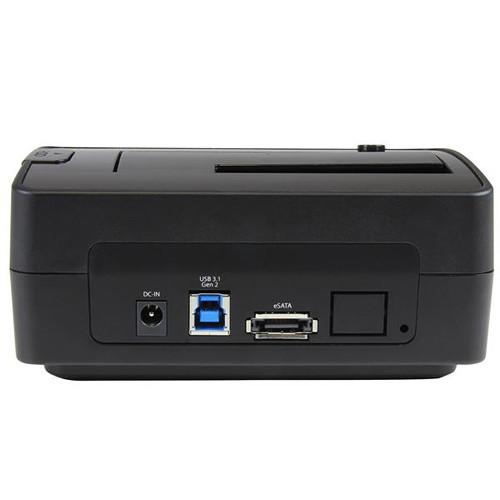

SATA III - 6 Gb/s | | UASP Support | Yes | | | | Drive Connectors | 1 x SATA Data & Power Combo (7+15 pin) Receptacle | | Host Connectors | 1 x USB 3.1 USB Type-B (9-pin, Gen 2, 10 Gb/s) Female
1 x eSATA (7-pin, Data) Female | | | | OS Compatibility | OS independent; No software or drivers required | | | | LED Indicators | 1 x Power & Activity | | | | Center Tip Polarity | Positive | | Input Current | 0.6 A | | Input Voltage | 110 to 240 VAC | | Output Current | 2.0 A | | Output Voltage | 12 VDC | | Plug Type | M | | Power Consumption | 24 W | | Power Source | AC Adapter | | | | Humidity | 20 to 80% RH | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | -4 to 122°F / -20 to 50°C | | | | Color | Black | | Material | Plastic | | Dimensions | 2.6 x 5.7 x 3.7" / 6.6 x 14.5 x 9.4 cm | | Weight | 14.5 oz / 410 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 6.7 x 6.4 x 3.7" |
