User Manual for StarTech USB 3.1 Dual-Bay Dock for 2.5" 3.5" SATA SSDs HDDs Click to enlarge the picture
Contents of the user manual for the StarTech USB 3.1 Dual-Bay Dock for
- Product category: Hard Drive Enclosures & Docks StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Hard Drive Enclosures & Docks
 |
User manual for the StarTech USB 3.1 Dual-Bay Dock for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

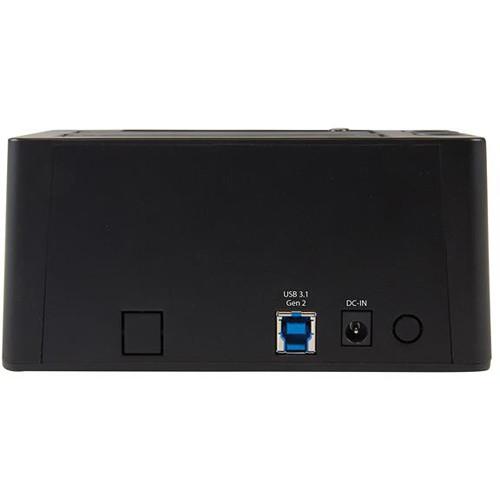

Product description The USB 3.1 Dual-Bay Dock for 2.5"/3.5" SATA SSDs/HDDs from Startech provides users with a convenient way to access data on an internal SATA drive without needing to install that drive in their computer. Using this dock's dual SATA III 6 Gb/s drive bays, each of which supports 2.5" and 3.5" drives, users can access data on hard drives and solid-state drives using 10 Gb/s USB 3.1 connectivity, which is also known as USB 3.1 Gen 2. This drive dock is equipped with a USB 3.1 Type-B connector and is able to interface with your host system using its included USB 3.1 Type-B to Type-A cable. In addition to USB 3.1 compatibility, this unit is also compatible with USB 3.0 at speeds up to 5 Gb/s, USB 2.0 at speeds up to 480 Mb/s, and USB 1.1 at speeds up to 12 Mb/s. Given this wide range of compatibility, as well as its OS-independent architecture, the USB 3.1 Dual-Bay Dock can connect to virtually any system with a USB Type-A port, while its compatibility with SATA III 6 Gb/s, SATA II 3 Gb/s, and SATA 1.5 Gb/s drives mean that it supports most available storage solutions. Also included with this drive dock is a universal power adapter and four power adapter plugs for North America, the EU, UK, and Australia. General Features - Access data from two 2.5"/3.5" SATA SSDs/HDDs over a 10 Gb/s USB 3.1 connection
- Supports SATA III, II, and I (up to 6 Gb/s)
- USB Type-A interface for backward compatibility with USB 3.0, 2.0, and 1.x

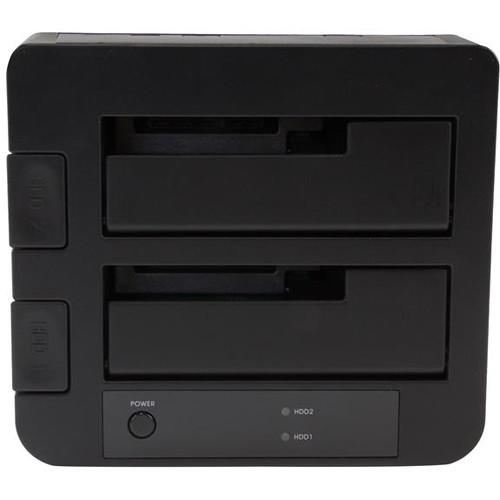

- Dual-bay, top-loading design with a built-in ejection button for easy drive access
- UASP support for enhanced performance
- Currently tested to support drive capacities of 12TB (6TB per bay)

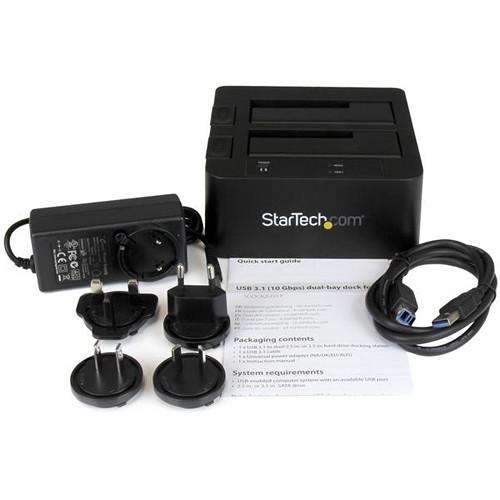

UPC: 065030861663 In the Box StarTech USB 3.1 Dual-Bay Dock for 2.5"/3.5" SATA SSDs/HDDs USB 3.1 Type-B to Type-A Cable Universal Power Adapter 4 x Power Adapter Plugs (NA/EU/UK/AUS) Limited 2-Year Warranty Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech USB 3.1 Dual-Bay Dock for 2.5" 3.5" SATA SSDs HDDs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech USB 3.1 Dual-Bay Dock for 2.5" 3.5" SATA SSDs HDDs can be downloaded in PDF format at the link stated below.
Technical parametersStarTech SDOCK2U313 Specs | Number of Bays | 2 x 2.5"/3.5" | | Connections | 1 x USB Type-B (USB 3.1 Gen 2 (10 Gb/s)) | | Compatible Drive Interface | SATA | | UASP Support | Yes | | | | Power Source | AC Adapter | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.3 A | | DC Input Power | 12 VDC at 3 A | | | | Operating Temperature | 35 to 95°F / 2 to 35°C | | Operating Humidity | 20 to 80% | | Storage Temperature | -4 to 122°F / -20 to 50°C | | | | Material of Construction | Plastic | | Bridge Chipset | ASMedia ASM1352R | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 2.8 x 5.2 x 5.8" / 71.1 x 132.1 x 147.3 mm | | Weight | 17.3 oz / 490.4 g | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 8.4 x 7.5 x 4.8" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 54 owners. Add your rating and experience with the product.
